TP-Link AC2600 Quick Installation Manual

Quick Installation Guide
AC2600 Wireless Dual Band Gigabit Router
7106506185 REV1.1.0

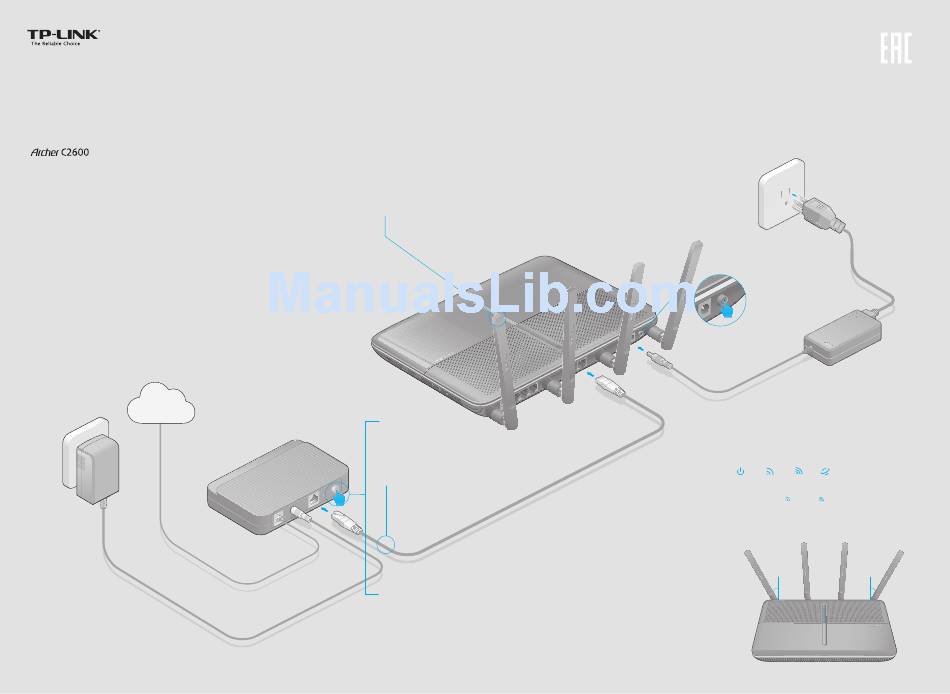

Connect the Hardware

If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow steps 5 and 6 to
complete the hardware connection.
Internet
Power adapter
1
Install the antennas.
2
Turn off the modem,
and remove the backup
battery if it has one.
Modem
3
Connect the modem to the
Internet port on your router
with an Ethernet cable.
4
Turn on the modem, and then
wait about 2 minutes for it to
restart.
Router
Power adapter
5
Turn on the router.
6
Verify that the following LEDs are on and solid
before continuing with the configuration.
Power 2.4G 5G Internet
On On
On On
Note: If the 2.4G LED and 5G LED are off, please press the Wi-Fi On/Off
button on the side panel for 2 seconds and check the LEDs again a few
seconds later.
For optimum performance, orient the four antennas
as shown in the drawing below.
30° 30°
