USE & CARE INSTRUCTIONS for ULTRA-1 & 2 COLD DRINK DISPENSERS
NOTICE - This guide is for quick reference only and is not intended to replace the information in the Operation Manual!

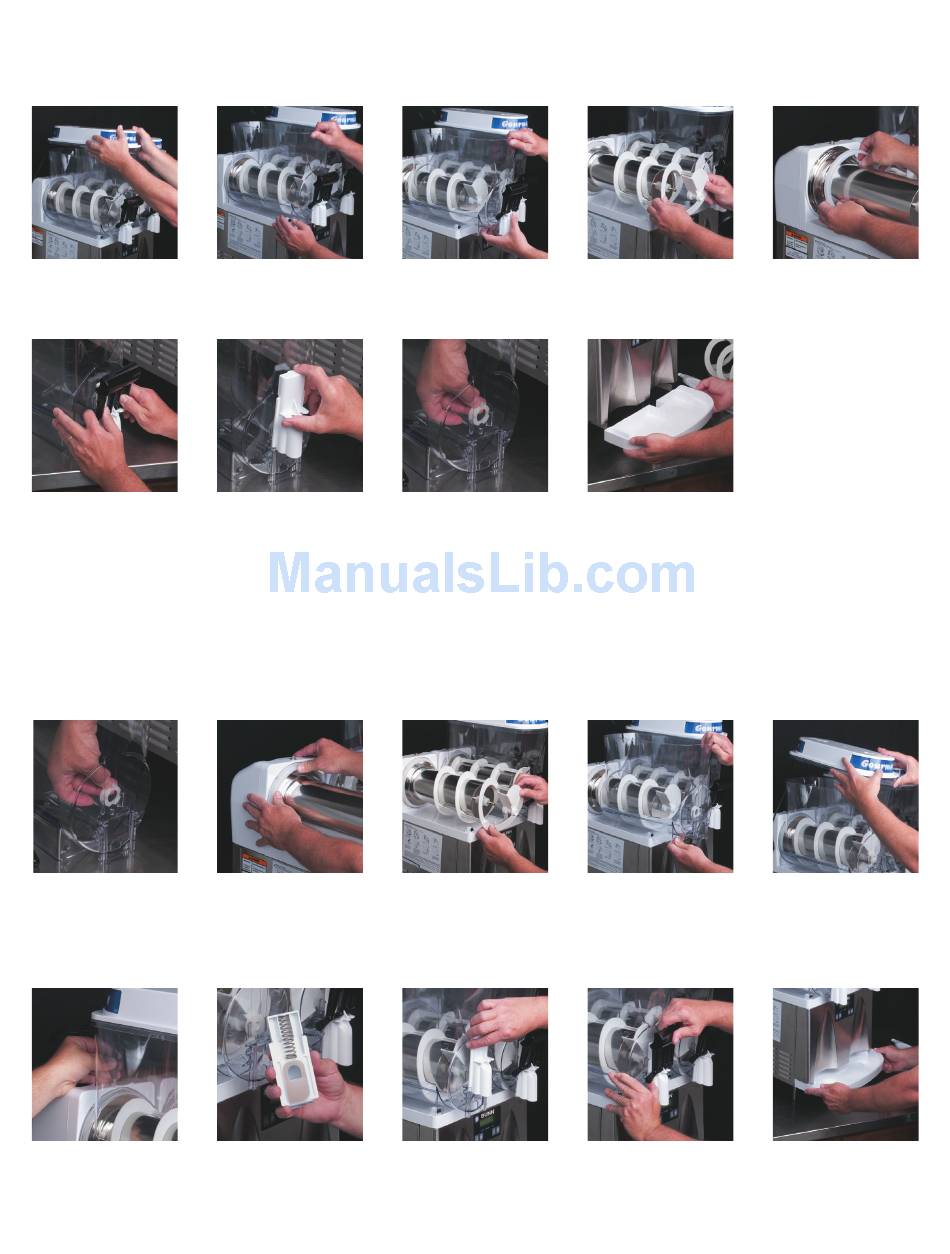

DISASSEMBLY & CLEANING
Turn cooling to OFF selection. Empty all product from the hopper(s). Turn auger to OFF selection.
1. Unplug the hopper lamp
cord(s) and remove the hopper
lid(s). NOTE: On Autofill models,
remove the level probe and fill
tubes from the hopper.
6. CAUTION: Faucet valve is
under spring tension. Spread
one side of the handle first, then
the other and disconnect from
hopper.
11. Wash the drum(s), hopper drip tray(s), top cover(s), and outer enclosure using a clean wash cloth that has been dampened in the hot
water and sanitizer solution. Pay particular attention to the shaft area and make sure it is thoroughly cleaned and sanitized.
12. Thoroughly rinse all surfaces with a clean wash cloth that has been dampened with hot water. Wipe dry with a clean dry wash cloth
before reassembling the dispenser.
NOTE – Although most parts are dishwasher safe, they may be affected by the chemicals in some commercial sanitizing agents. Do not
place the hopper nor hopper lids in a dishwasher. Rinse thoroughly before assembly.
ASSEMBLY
1. Replace the auger nose bush-
ing inside the front of the hopper.
7. Plug in the hopper lid lamp
cord.
12. Turn ON augers and cooling
function to desired settings.
29959.0006A 10/14 ©2014 Bunn-O-Matic Corporation
2. Depress the hopper lock
plunger, lift slightly.
7. Carefully slide valve up to
remove spring and faucet seal.
Extra care should be taken when
handling the seal to prevent
damage.
2. Install the hopper seal over the
flange at the rear of the cooling
drum as shown.
8. Position the faucet seal and
the return spring in the faucet
valve.
13. Whether liquid concentrate or granulated powder, all product
must be thoroughly mixed BEFORE adding it to the hoppers.
3. Pull the hopper assembly
forward and remove.
8. Remove the auger nose bush-
ing from inside the front of the
hopper. NOTE: Do not scratch
this surface when cleaning. Deep
scratches could cause leakage
around the seal.
3. Align the auger shafts with the
augers. Push the augers as far as
they will go and rotate them so
the flat face of the auger shaft is
aligned with the flat face of the
auger nose.
9. Slide the faucet valve as-
sembly into place on the hopper.
4.Pull the auger from the cool-
ing drum.
9. Remove the drip tray and
cover.
4. Install the hopper over the
auger and cooling drum and slide
it into place. Push down until the
hopper lock plunger snaps into
place. NOTE: On Autofill models,
install the level probe and fill
tubes to the hopper.
10. Press down on the valve to
compress the spring. Position
the faucet handle over the faucet
valve one side at a time and snap
into place on the hopper.
5. Remove the hopper seal from
the flange on the cooling drum.
10. Place all parts in a clean sink
with mild hot water (120°F)
and sanitizer solution. Allow
all parts to soak for at least
5 minutes. Carefully wash
all components with a clean
wash cloth in the hot water
and sanitizer solution. Use
a clean, soft bristle brush
as needed for the smaller
components and tight ar-
eas. Do not immerse hop-
per lids. Use a commercial
sanitizer that has 100 ppm
of available chlorine with
a concentration level of at
least 3% available chlorine
(KAY-5 Sanitizer). Follow the
sanitizer's mixing instruc-
tions to ensure 100 ppm of
available chlorine.
6. Set the hopper lid on the hop-
per with lamp cord at the back.
11. Install the drip tray and cover.
