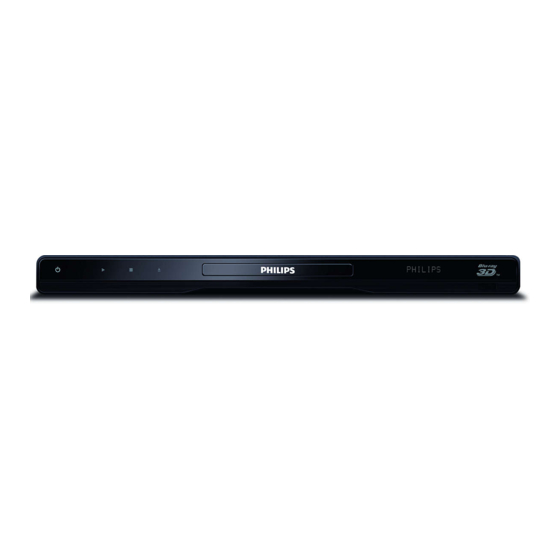

SERVICE MANUAL
BLU-RAY DISC PLAYER
BDP5506/F7

Advertisement

Table of Contents
loading

Related Manuals for Philips BDP5506/F7

Summary of Contents for Philips BDP5506/F7

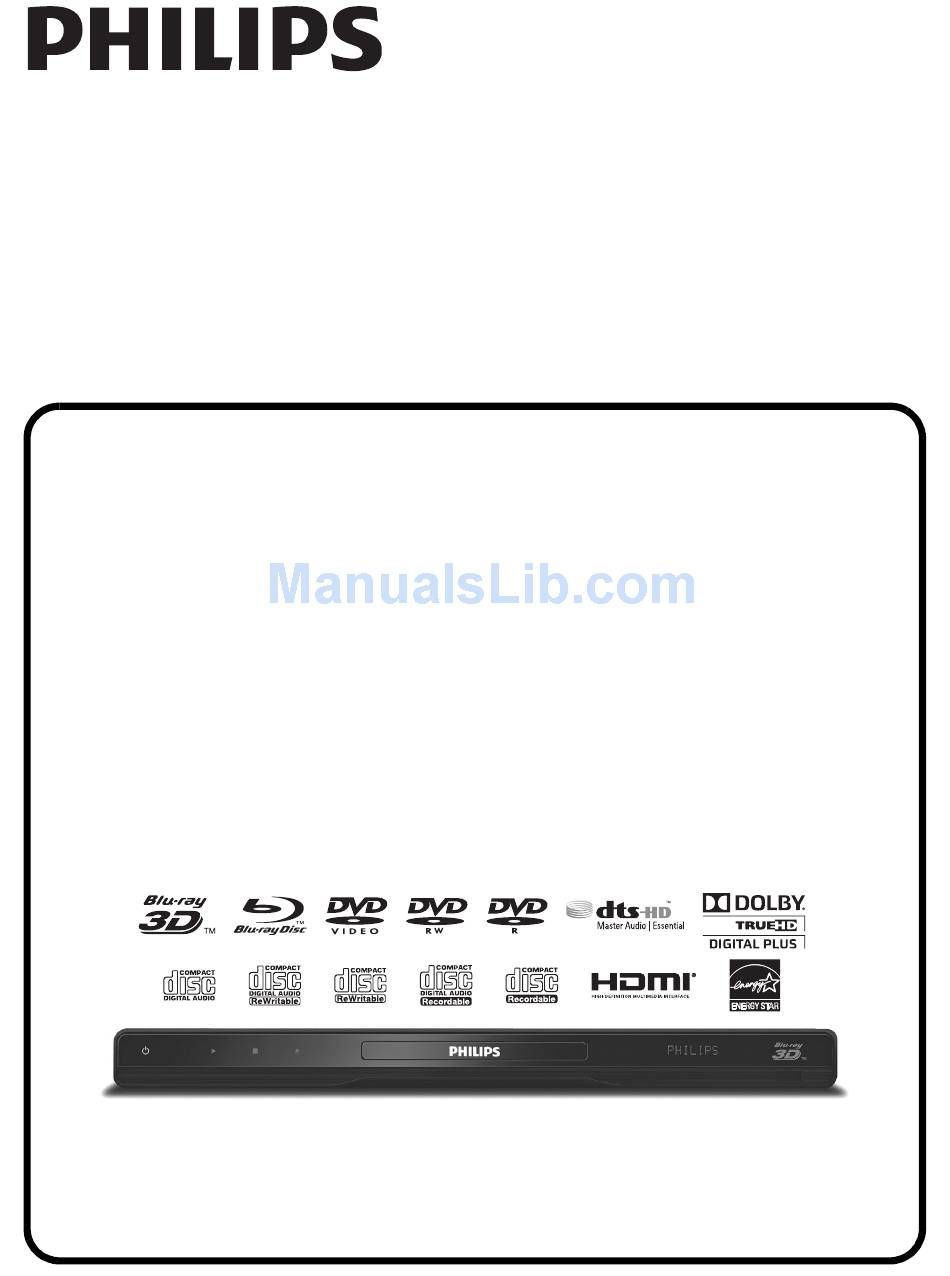

  • Page 1 SERVICE MANUAL BLU-RAY DISC PLAYER BDP5506/F7...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY NOTICE Proper service and repair is important to the safe, reliable operation of all P&F Equipment. The service procedures recommended by P&F and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

  • Page 3: Specifications

    SPECIFICATIONS General Signal System NTSC Color Power requirements 120 V AC, 60 Hz Power consumption 20 W (standby: 0.5 W) Dimensions (width x height x depth) 17.2 x 1.6 x 8.5 inches (435 x 38.9 x 213.85 mm) Weight 4.4 lbs. (2.0 kg) Operating temperature 41°F (5°C) to 104°F (40°C) Operating humidity...

  • Page 4: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This BD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on.

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set. safety-related characteristics which are often not K.
  • Page 6 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards. 1.

  • Page 7: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder 1. The output pin of the 3 pin Regulator ICs is When soldering, be sure to use the Pb free solder. indicated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 8 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each 1. Using desoldering braid, remove the solder from pin or the solder lands under the IC when all pins of the flat pack-IC.
  • Page 9 2. Installation With Iron Wire: 1. Using desoldering braid, remove the solder from 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder the foil of each pin of the flat pack-IC on the CBA flux which is applied to all pins of the flat pack-IC, so you can install a replacement flat pack-IC more you can remove it easily.
  • Page 10 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

  • Page 11: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart Note: (1) Identification (location) No. of parts in the figures This flowchart indicates the disassembly steps to gain (2) Name of the part access to items to be serviced. When reassembling, (3) Figure Number for reference follow the steps in reverse order.
  • Page 12 CN1002 (S-2) CN1000 [7] Power CN6803 Supply CBA (S-4) (L-1) Power [9] WiFi CBA Holder CN1001 (S-3) [8] USB CBA (L-1) CN6403 (L-2) [2] Tray Panel [3] Front Unit Assembly Fig. D2 CN6402 Fig. D4 Sensor PCB Holder (L-4) : See Reference Note 4. [5] T-Sensor CBA (S-8) [4] Front CBA...
  • Page 13 3. How to Eject a Disc When a disc cannot be removed due to malfunction or when an unplayable disc is inserted, follow the procedure below to remove the disc. Procedure A 1. Unplug the AC power cord and then plug it in. 2.

  • Page 14: How To Initialize The Blu-Ray Disc Player

    HOW TO INITIALIZE THE BLU-RAY DISC PLAYER To put the program back at the factory-default, initialize the BD player as the following procedure. Note: • By initializing, network is reset to disconnected state and “Network Service Disclaimer” appears on the screen.

  • Page 15: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE Note: The file extension of the available firmware is The appearance shown in (*1) of Fig. b is “b40”. described as follows: 1. Turn the power on and remove the disc on the tray Appearance State and close the tray. 2.
  • Page 16 How to Verify the Firmware Version 1. Turn the power on. 2. Remove the disc on the tray and close the tray. 3. Press [ ] (skip up), [1], [2], and [3] buttons on the remote control unit in that order. Fig.
  • Page 17 FIRMWARE RENEWAL MODE (for User) Disc/USB Memory Stick/SD Card Update 1. Press [ ] button to display Setup menu. 7. Firmware loading starts. Fig. l will appear on the screen and Fig. m will appear on the VFD. 2. Select Setup - Advanced Setup - Software Update. 3.
  • Page 18 Network Update 1. Press [ ] button to display Setup menu. 7. The unit starts reading the firmware. Fig. s will appear on the screen and Fig. t will appear on the 2. Select Setup - Advanced Setup - Software Update VFD.
  • Page 19 Network Error Message Error Message The cable is not correctly connected. Please confirm the connection of the cable. DHCP cannot be acquired. Please set whether to confirm the connection with the manual. Internet Protocol address is not set. Please confirm a set content. The equipment with same Internet Protocol address already exists.

  • Page 20: Adjustment Instructions For Bd Main Cba Or Bd Mechanism Assembly Replacement

    ADJUSTMENT INSTRUCTIONS FOR BD MAIN CBA OR BD MECHANISM ASSEMBLY REPLACEMENT When replacing either BD Main CBA or BD Mechanism Assembly, the unique OPU DATA of the BD Mechanism needs to be written into the BD Main CBA. Follow the procedure below for OPU DATA write operation. Equipments: •...
  • Page 21 Caution: • Make sure the FFC cable is inserted in the proper direction so the Pin 1 of COMTOOL jig relay board and Pin 1 of BD MAIN CBA connector is connected. Location of Pin 1 on BD Main CBA 1pin Pin 1 is located on the left side •...
  • Page 22 4. OPU DATA WRITE 4-1. Connect the unit’s AC power cord. Wait for about 30 seconds until the unit is in standby mode. 4-2. Double click on the [OpuDataWriter.exe] shortcut on the desktop to start the application. 4-3. Application start screen appears. Select the assigned connection port of [USB Serial Port] for the [COM PORT] field located at the right corner of the screen.
  • Page 23 4-6. Data write begins. While writing data, the Status Display message will change. Status Display SEND LD PAR 4-7. [OK] appears in the Status Display if data write has been completed successfully. If error occurs: • If an error occurs, the screen changes to a red display. In such case, close the window and then unplug the unit AC power cord.
  • Page 24 Error Code Error Code Error Description Start word error The first letter entered for [LOADER S/N] does not match. [ReadBackup]Drive Mount error Cannot mount the drive set for [ReadBackup] folder. [Transfer]Drive Mount error Cannot mount the drive set for [Transfer] folder. [OpuData]Drive Mount error Cannot mount the drive set for [OpuData] folder.
  • Page 25 Error Code Error Description 2042 LdParamClear ERROR0 Cannot initialize LD Parameter. 2043 LdParamClear ERROR1 Cannot initialize LD Parameter. 2044 LdParamClear TIME OUT Cannot initialize LD Parameter (TimeOut). 2051 IopSet NG Iop Set Error 2052 IopSet ERROR0 Iop Set Error 2053 IopSet ERROR1 Iop Set Error 2054...

  • Page 26: Troubleshooting

    TROUBLESHOOTING FLOW CHART NO.1 The power cannot be turned on. See FLOW CHART No.2 <The fuse blows out.> Is the fuse normal? Is normal state restored when once unplugged Check if there is any leak or short-circuiting on the power cord is plugged again after several seconds? primary circuit component, and service it if defective.
  • Page 27 FLOW CHART NO.6 The key operation is not functioning. Does the LED on the T-Sensor CBA light up when Is 5V voltage supplied to Pin(5) of CN2001? turning the power on? Check EV+11V line on Power Supply CBA, and service it if defective. Or repalce the BD Main CBA Unit.

  • Page 28: Error Message

    ERROR MESSAGE Note: Only error messages for the unit’s corresponding media will appear. Disc Error - - Please eject the disc. - - Playback feature may not be available on this Disc. Error Message Disc Error Disc Error - - Please eject the disc. - - Playback feature may not be available on this Disc.
  • Page 29 Error Message It is not possible to connect to the server. Cannot Connect To Server Please contact our support center. It is not possible to confirm the firmware version. Cannot Confirm Firmware Version Please contact our support center. Error detected. File may be corrupted.
  • Page 30 MediaConnect NETWORK ERROR When the unit detects a MediaConnect Network Error, the error screen is displayed as shown below. Network Error Network Error Cannot connect to Network/Computer. NE[00103203] NE[00302010] Error message Error Code Description of Error Message Error Message Description Invalid LAN (Wired/Wireless).

  • Page 31: Block Diagrams

    BLOCK DIAGRAMS System Control Block Diagram 1-11-1 E5WA0BLS...
  • Page 32 Digital Signal Process 1 Block Diagram 1-11-2 E5WA0BLD1...
  • Page 33 Digital Signal Process 2 Block Diagram 1-11-3 E5WA0BLD2...
  • Page 34 Video / Audio Block Diagram 1-11-4 E5WA0BLVA...
  • Page 35 Power Supply Block Diagram 1-11-5 E5WA0BLP...

  • Page 36: Schematic Diagrams / Cba And Test Points

    SCHEMATIC DIAGRAMS / CBA AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
  • Page 37 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE-REPLACE FUSE AS MARKED.
  • Page 38 Power Supply Schematic Diagram CAUTION ! CAUTION ! NOTE: For continued protection against fire hazard, Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. The voltage for parts in hot circuit is measured using replace only with the same type fuse. If Main Fuse (F1002) is blown , check to see that all components in the power supply hot GND as a common terminal.
  • Page 39 Front Schematic Diagram FL1101 MATRIX CHART j, p j, p j, p j, p j, p j, p j, p j, p (VFD) FRONT CBA TO BD MAIN CBA UNIT CN6803 -23.0 -25.8 (REMOTE SENSOR) -20.1 9 F1 8 GND -19.2 7 VFD-DAT 6 VFD-CLK...
  • Page 40 T-Sensor Schematic Diagram R2001 R2002 R2003 R2004 D2001 D2002 D2003 D2004 LTW-C193TS5 LTW-C193TS5 LTW-C193TS5 LTW-C193TS5 POWER PLAY PAUSE OPEN/CLOSE Q2004 Q2003 Q2002 Q2001 SRC1202SF SRC1202SF SRC1202SF SRC1202SF (LED DRIVE) (LED DRIVE) (LED DRIVE) (LED DRIVE) C2004 C2005 C2006 C2007 0.01 0.01 0.01 0.01...
  • Page 41 USB Schematic Diagram WiFi Schematic Diagram TO BD MAIN CBA CN1302 UNIT CN6403 TO BD MAIN CBA WIRELESS LAN CN1402 UNIT CN6402 CN1401 MODULE R1301 CN1301 (USB JACK) R1401 4 GND BUS-POWER 4 BUS-POWER 3 +5V USBDN1 3 USBDN1 USBDN0 2 USBDN0 USBDP1 2 USBDP1...
  • Page 42 BD Main 1 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. BD MAIN CBA UNIT CONTINUE BD MAIN 8...
  • Page 43 BD Main 2 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. BD MAIN CBA UNIT IC6001(2/10) R7109...
  • Page 44 BD Main 3 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. BD MAIN CBA UNIT CONTINUE BD MAIN 8...
  • Page 45 BD Main 4 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. BD MAIN CBA UNIT IC6001(4/10) MN2WS0150A3...
  • Page 46 BD Main 5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. CONTINUE IC6001(5/10) IC6203...
  • Page 47 BD Main 6 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. IC6001(6/10) MN2WS0150A3 MAIN MICRO CONTROLLER...
  • Page 48 BD Main 7 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. BD MAIN CBA UNIT CONTINUE BD MAIN 8...
  • Page 49 BD Main 8 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. IC6101 CONTINUE BD MAIN CBA UNIT...
  • Page 50 BD Main 9 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. CONTINUE BD MAIN 8 P-ON+3.3V...
  • Page 51 BD Main 10 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into ten and shown as IC6001 (1/10) ~ IC6001 (10/10) in this BD Main Schematic Diagram Section. BD MAIN CBA UNIT CONTINUE BD MAIN 8...
  • Page 52 Power Supply CBA, Front CBA, USB CBA & WiFi CBA Top View CAUTION ! CAUTION ! NOTE: Because a hot chassis ground is present in the power supply Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. For continued protection against fire hazard, circuit, an isolation transformer must be used when repairing.
  • Page 53 Power Supply CBA, Front CBA, USB CBA & WiFi CBA Bottom View Because a hot chassis ground is present in the power supply CAUTION ! CAUTION ! NOTE: For continued protection against fire hazard, circuit, an isolation transformer must be used when repairing. Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
  • Page 54 T-Sensor CBA Top View T-Sensor CBA Bottom View D2002 R2014 C2003 R2001 R2015 D2003 D2001 R2016 R2013 C2002 CN2001 D2004 R2002 R2003 C2007 C2001 Q2004 C2006 BE5WA0G0201 R2017 C2005 L2001 C2004 BE5WA0G02011 1-12-19...

  • Page 55: Waveforms

    WAVEFORMS JK6601 (VIDEO) VIDEO-CVBS VIDEO-CVBS 0.5V 0.5V 20µs JK6601 (AUDIO(L)) AUDIO(L) AUDIO(L) 0.5ms 0.5ms JK6601 (SPDIF) SPDIF SPDIF 0.1µs NOTE: Input Signal (DVD) VIDEO: 75% COLOR BAR AUDIO: 1KHz, 0dB 1-13-1 B4NA0WF...

  • Page 56: Wiring Diagram

    WIRING DIAGRAM 25 GND EV+11V EV+11V EV+11V EV+11V EV+11V EXPB(+) EV+11V EXPB(-) EXPA(+) EXPA(-) THERMO A+8V BD-LD FL-SW TEST-V LD-TYPE CD-LD I2C-DAT AVCC I2C-CLK PD-LD EV+3.3V LDON P-ON+5V LDD-SDATA DVD-LD LDD-SCLK DSEN AVCC FPIO1 RF(-) RF(+) VC-PD USBDN0 USBDP0 LOAD(-) LOAD(+) TRAY-IN BUS-POWER...

  • Page 57: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS IC1101 ( VFD DRIVER ) Signal Function Name Signal Function Name Not Used Not Used Not Used Grid Output Not Used IN OSC Oscillator Input Not Used IN VFD-DIN Serial Data Input Power Supply IN VFD-CLK Serial Clock Input IN VFD-STB Serial Interface Input...

  • Page 58: Lead Identifications

    LEAD IDENTIFICATIONS 2SC5344 Y MIP2E4DMY0LE SL431A-AT 1: Control 2: Source 3: Drain 1 2 3 R A K 2SA1980SFG 2SC5343SFG PS2561A-1(W) SRC1202SF 1: Anode 2: Cathode 3: Emitter 4: Collector SC16315 WT5701-UG160WT Note: A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference G: Gate...

  • Page 59: Exploded Views

    EXPLODED VIEWS Cabinet 2L082 2L082 2L085 2L082 CN1000 2L081 2L062 2L070 2L083 Power Supply CBA 2L061 F1002 2L058 WiFi CBA BD Main CBA Unit 2L064 2L063 T-Sensor CBA USB CBA See Electrical Parts List for parts with this mark. Some Ref. Numbers are Front CBA not in sequence.
  • Page 60 Packing Upper Side Lower Side X2-A X2-B S1-A S1-B Some Ref. Numbers are not in sequence. 1-17-2 E5WA0PEX...
  • Page 61 BAG REMOCON STD REMOCON 0VM406766 IC1001 IC IPD MIP2E4DMY0LE QSCA0S0MS027 AV CORD 1500/BLACK WPZ1520TM003 IC1003! PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1 REGISTRATION CARD(PHILIPS) E1U00UD 1VMN30775 IC1011 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01 REMOTE CONTROL UNIT NB549UD NB549UD L1001! COIL LINE FILTER ST0603FT20-009 0.027 LLEB0Z0Y2001...
  • Page 62 BDP5506/F7(E5WA0UD) BDP5506/F7(E5WA0UD) R1007 CARBON RES. 1/4W J 3K OHM RCX4JATZ0302 D2002 LED WHITE SMD LTW-C193TS5 NP1ZLTWC193T R1008 CARBON RES. 1/4W J 3.9K OHM RCX4JATZ0392 D2003 LED WHITE SMD LTW-C193TS5 NP1ZLTWC193T R1009 CHIP RES. 1/10W J 15K OHM RRXAJR5Z0153 D2004 LED WHITE SMD LTW-C193TS5...
  • Page 63 Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law. BDP5506/F7 E5WA0UD 2011-02-21...
