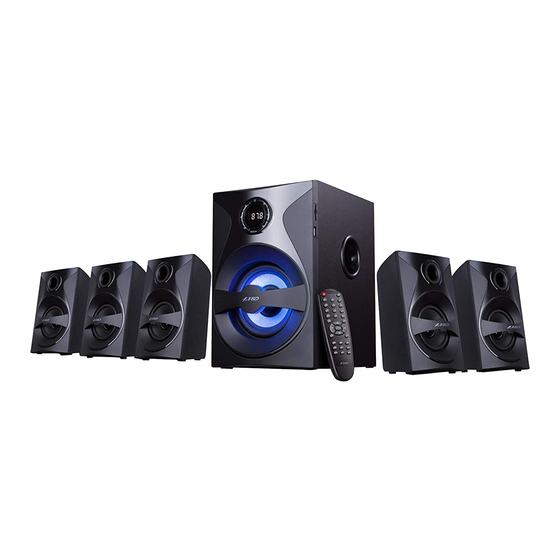

F&D F3800X User Manual

Caution 1 Front panel keys
* Do not place system in high temperatures or humid
environments, keep the system dry and handle with care 1
to avoid damage.
2
* In order to avoid electric shock and other accidents, do not
open the back panel cover for repair without
3
professional guidance.
* In case fragments or other liquids are accidentally sprinkled
4
inside the cabinet, please switch off the power immediately.
5
* In case of repair,please come to F&D's professional
maintenance for help.
* Switch off the power and unplug from the power jack
1. Standby
when the system is not on work.
2. Sound
* Keep the cabinet vent far from the wall by 20mm at least 3. Decrease volume
4. Previous
and the air vent should not be blocked.
1. Turn on/off the unit.
Packaging content
2. Sound:Switch between Normal & Prologic sound effects.
3/7. Decrease or Increase the volume level.
Speaker 1unit
1
4. Previous:
２ RCA to RCA cable 3pcs a. USB/SD mode: Short press to select previous song and long
press to select previous folder.
RCA to 3.5mm cable 1pc
３
b. FM mode: Short press to select previous stored station, FM LED
Remote control 1pc dispaly flash once. When it reaches to 1st stored station/channel,
４
short press of this key does not change the channel & LED dispaly
Manual & warranty card 1pc
５ remains bright.
c. Bluetooth mode: short press to select previous song.
5. Play/Pause/Scan/BT Pair:
a. USB/SD Mode: Short press for play/pause the music playback.
b. FM Mode: Short press to start Auto Search & this will store the
1
found frequencies (channels) automatically.
Light 4
c. Bluetooth mode:short press to play/pause music. long press
will enter in to pairing mode, blue LED dispaly will flash fast.
6. Source:
2
Switch between BT,DVD, AUX, USB/SD and FM mode. LED dispaly
3 on subwoofer panel will be bright to indicate related source mode.
5
8. Next :
a. USB/SD mode: Short press to select next song and long press to
select next folder.
b. FM mode: Short press to select next stored station, FM LED
dispaly flash once. When it reaches to last stored station/channel,
short press of this key does not change the channel & LED dispaly
remains bright.
c. Bluetooth mode: short press to select next song.
2 Remote control
6
7
8
Light
5. Play/Pause/Scan/BT Pair
6. Source
7. Increase volume
8. Next
1.Standby ON/OFF
2.Source button
3.Bluetooth pairing button
4.Tune + button
5.Volume decrease
6.Tune – button
7.FM auto scan button
8.Play/Pause button
9.Previous button
10.Center volume increase button
11.Front volume increase button
12.Front volume decrease button
13.Center volume decrease button
14.Bass decrease button
15.Press to mute or unmute the sound
16.Sound button
17.Light/Reset button
18.Volume increase button
19.FM station Memory button
20.Next button
21.Rear volume increase button
22.Rear volume decrease button
23.Bass increase button
24.Numeric keys
25.Enter key
3 Remote control keys function 4
24. (0-9 ) Numeric Keys
1. : Turn on/off unit.
a. USB/SD Mode: directly press numeric keys through remote to
2. Source: Switch betweenBT, DVD, AUX, USB/SD and FM mode.
select your favorite song if you know the song number in the
3. :short press to enter in to Bluetooth mode & long press will enter
folder. One folder limits to 999 songs and press "9 9 9" within
in to Pairing mode.,blue LED dispaly will flash fast.
short time to select 999th song. The system will automatically
4/6. Tune+/-: FM mode:
play the last song of the folder if you press number excess of song
Fine Tuning: Short press to increase or decrease one step (100Khz),
numbers of that folder.
FM LED dispaly flash once. LED dispaly stop flashing once it reaches
b.FM Mode: directly press numeric keys through remote to select
to Minimum or Maximum frequency.
your favorite station if you know the station number (1~100).Or press
Manual Tuning: Long press of this key works for Manual tuning,
3 or 4 digits of frequency to play that station, for example,
It finds the next available frequency.
1026 for 102.6 MHz station. If station not found, the unit will
5/18. : Decrease or increase the master volume.
state at current station only.
7. Scan: FM mode: Short press to start Auto Search & this will store
25. Enter key:Confirm setting.
the found frequencies (channels) automatically.
8. :Play/Pause:
Bluetooth pairing
a.USB/SD Mode: Short press for play/pause the music playback.
Switch to Bluetooth mode, F3800X will automatically search the
b.Bluetooth mode:short press to play/pause music.
Bluetooth device. If the device paired before, F3800X will connect
9. :Previous
automatically.
a.USB/SD mode: Short press to select previous song and long press to
If can't find paired device, F3800X will enter pairing mode
22 select previous folder.
automatically, bluetooth LED dispaly under pairing button flashes quickly.
b.FM mode: Short press to select previous stored station, FM LED dispaly
1. Active "Bluetooth" function on your device and search for "F3800X".
23
flash once. When it reaches to 1st stored station/channel, short press
Enter "0000" if your device asks for the PIN code..
of this key does not change the channel & LED dispaly remains bright.
2. After pairing successfully, bluetooth LED dispaly will be bright, and
c.Bluetooth mode: short press to select previous song.
ready for playing music.
10/13. Center+/-: Increase or decrease volume of center speaker.
Recommend to adjust suitable volume before playing music.
11/12. Front+/-: Increase or decrease the volume of front speakers.
14/23. SW+/-: Increase or decrease the volume of subwoofer.
Tips:To make sure your PC or notebook is working well with our
15. : Press it to mute or unmute the sound.
Bluetooth speakers, it is recommended that you check with your
16. Sound: switch between Normal & Prologic sound effects.
PC or notebook vendor first. Make sure the correct Bluetooth
17. Light/Reset: short press to turn on/off light.long press to go to
driver software is installed
default settings.
19. MEM: Short press of this key work to store tuned station through
Prologic function
Fine or Manual tuning. FM LED dispaly flash once to indicate
store/save operation.(max. 100 stations).
A.Using SOUND key you can convert 5.1 channel into
20. :Next
5.0CH/PROLOGIC effect through AUX Input.
a.USB/SD mode: Short press to select next song and long press to
B.To get the real 5.1 effect, connect 5.1CH output of your DVD to the
select next folder.
input of F3800X & select "PROLOGIC" through sound key of remote
b.FM mode: Short press to select next stored station, FM LED dispaly
control.
flash once. When it reaches to last stored station/channel, short
press of this key does not change the channel & LED dispaly remains
bright.
c.Bluetooth mode: short press to select next song
21/22. Rear+/-: Increase or decrease volume of rear speakers.
