Teac R-1 Service Manual

Hide thumbs Also See for R-1:

Advertisement

Quick Links

See also: Owner's Manual
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
!
Parts marked with this sign are safety critical
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.
Parts of [ ] mark can be used only with the version designated.
[T/C]: UL/CSA
[E]: EUROPE [HK]: HONG KONG
[SIN]: SINGAPORE

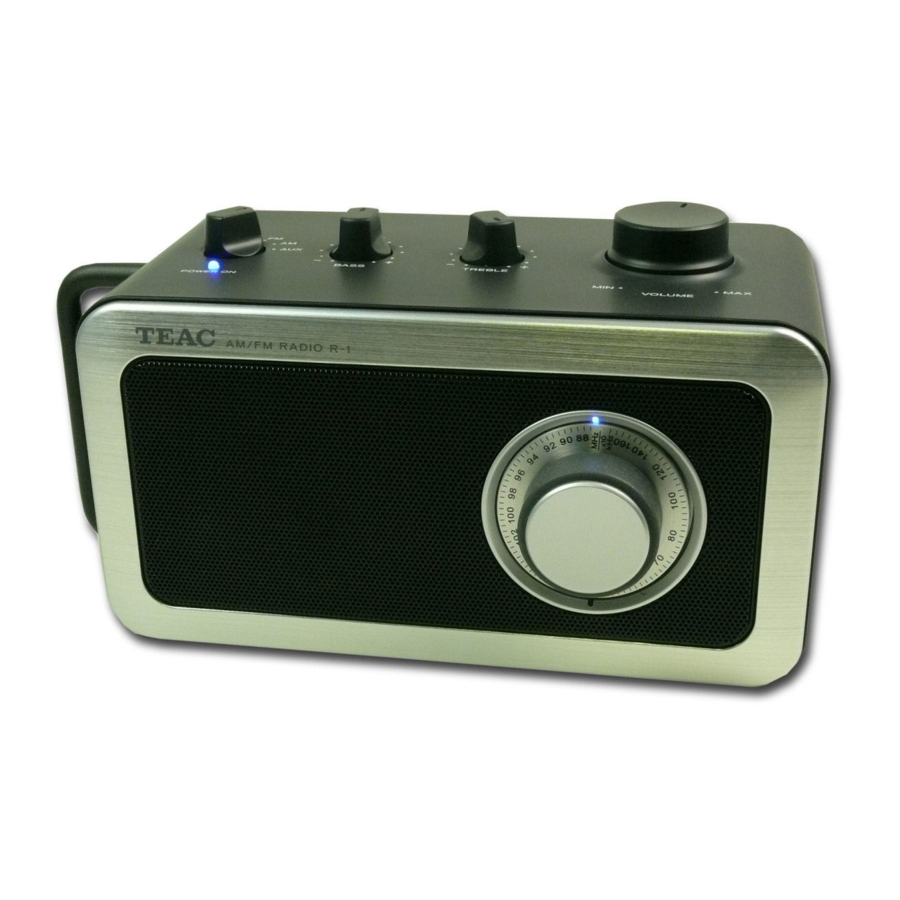

AM/FM RECEIVER
R-1
16
2
3
4
6
9
15

Advertisement

loading

Related Manuals for Teac R-1

Summary of Contents for Teac R-1

  • Page 1: Table Of Contents

    AM/FM RECEIVER 1 SAFETY INFORMATION PC board shown are viewed from parts side. 2 SPECIFICATIONS The parts with no reference number or no parts number in the exploded views are not supplied. 3 ADJUSTMENT AND CHECKS As regards the resistors and capacitors, refer to the 4 EXPLODED VIEW AND PARTS LIST circuit diagrams contained in this manual.

  • Page 2: Safety Information

    1 SAFETY INFORMATION SAFETY INFORMATION This product has been designed and manufactured according to FDA regulations " title 21, CFR, chapter 1,subchapter J,based on The Radiation Control for Health and Safety Act of 1968" and is classified as class 1 laser product. There is not hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings.

  • Page 3: Specifications

    2 SPECIFICATIONS TUNER Section Frequency Range (FM): 87.5MHz to 108.00 MHz (100kHz step) - USA 87.5MHz to 108.00 MHz (50kHz step) - EUR Frequency Range (AM): 520kHz to 1710 kHz (10kHz step) - USA 522kHz to 1620 kHz (9kHz step) - EUR SPEAKER Type Type : 65 mm...

  • Page 4: Adjustments And Checks

    3 ADJUSTMENTS AND CHECKS 3-1 TUNER SECTION Use a screwdriver with a plastic or ceramic grip for all adjustment. 3-1-1 FM adjustment 1. Set the function switch to the FM position. 2. Connect the signal generator output through a 75 ohm dummy antenna to "ANT"...
  • Page 5 3-2-1 FM/AM alignment chart SG SETTING TUNER SETTING ADJUSTMENT POINT ADJUSTMENT ITEM 87.5MHz 1. FM band Adjust for max. output 87.5MHz L105 1kHz, +/-22.5kHz dev. 108MHz PVC C1 Adjust for max. output 108MHz 1kHz, +/-22.5kHz dev. 90MHz Adjust for max. output 90MHz L104 1kHz, +/-22.5kHz dev.

  • Page 6: Exploded Views And Parts List

    4 EXPLODED VIEWS AND PARTS LIST EXPLODED VIEW - 1...
  • Page 7 EXPLODED VIEW-1 REF. NO PARTS NO. DESCRIPTION REMARKS 020-SR100300 ALUMI FRAME [T/C,SIN,HK] 020-R1EU0100 ALUMI FRAME [E] 020-SR100500 SPEAKER METAL NET - BLACK 020-SR100501 SPEAKER METAL NET - SILVER 051-SR100000 FRONT PANEL HIMERON 001-SR100100 FRONT PANEL - BLACK 001-SR100101 FRONT PANEL - WHITE 004-SR100100 TUNER KNOB 037-SR100000...
  • Page 8 EXPLODED VIEW-1 REF. NO PARTS NO. DESCRIPTION REMARKS 1-38 004-SR100200 VOLUME KNOB - BLACK 004-SR100201 VOLUME KNOB - SILVER 1-39 004-SR100400 BASS/TREBLE KNOB - BLACK 004-SR100401 BASS/TREBLE KNOB - SILVER 1-40 004-SR100300 FUNCTION KNOB - BLACK 004-SR100301 FUNCTION KNOB - SILVER 1-41 099-45SRL101 AA SIZE NI-MH BATTERY...

  • Page 9: Pc Boards And Parts List

    5 PC BOARDS AND PARTS LIST MAIN PCB ASSY REF. NO PARTS NO. DESCRIPTION REMARKS 100-SR102010 MAIN PCB ASSY 062-SRL10003 MAIN PCB C220 072-30330251 E.CAP 3300UF/25V CN201 082-21530300 FPC CONNECTOR 15P P=1MM 082-10240100 CONNECTOR 2P P=2.5MM CN205 D201,203,204, 077-00414801 DIODE 1N4148 D206-208,210-215 D202 077-70SS1201...
  • Page 10 MAIN PCB C221 C221 SR-L10 MAIN PCB SR-L10 MAIN PCB 062-SRL10003 062-SRL10003 D205 D205 REV:01 REV:01 94-V0 94-V0 ZGM 2005.08.08. ZGM 2005.08.08. R258 R258 D209 D209 JK204 JK204 C203 C203 C204 C204 R220 R220 Q206 Q206 R218 R218 L201 L201 R217 R217 JK201...
  • Page 11 TUNER PCB ASSY REF. NO PARTS NO. DESCRIPTION REMARKS 100-SR102020 TUNER PCB ASSY [T/C] 100-SR101020 TUNER PCB ASSY [E,SIN,HK] 062-SRL10001 TUNER PCB 053-F300N000 PVC - HF443CAB02 CF101 081-04550000 AM CER.FILTER SFU455B CF102,103 081-31070001 FM CER.FILTER L10.7MA-5 CF104 093-11070003 CER.FILTER 10.7MHZ CN101 082-10600100 CONNECTOR 6PIN P=2MM...
  • Page 12 TUNER PCB L107 L107 AM BAR ANT AM BAR ANT VR101 VR101 L105 L105 C110 C110 C121 C121 C122 C122 CN102 CN102 C105 C105 C111 C111 R102 R102 C117 C117 C116 C116 C120 C120 C119 C119 J101 J101 C109 C109 R103 R103 IC101...
  • Page 13 EQ/VOLUME PCB ASSY REMARKS REF. NO PARTS NO. DESCRIPTION 100-SR102030 EQ/VOLUME PCB ASSY [T/C] 100-SR101030 EQ/VOLUME PCB ASSY [E,SIN,HK] 062-SRL10002 EQ/VOLUME PCB CN402,403 058-41201001 CONNECTOR 2X6P P=2.5MM IC401,402 075-JR458007 IC - JRC4580D 094-06020501 LED401 LED - BLUE D3MM Q401-403 076-00C94500 TR - 2SC945 VR401,402 069-SR102302...
  • Page 14 BA4558 BA4558 AM LED PCB FM LED PCB FM ANT PIN PCB FUNCTION SW PCB CW202 CW202 LED403 LED403 LED402 LED402 R-1 FM ANT PCB R-1 FM ANT PCB 05-05-4 05-05-4 CW203 CW203 D401 D401 D402 D402 SW401 SW401 FUNCTION...

  • Page 15: Wiring Diagram

    6 WIRING DIAGRAM MAIN PCB CN205 TO SPEAKER CN201 TO EQ/VR PCB CN401 TUNER PCB CN102 TO AM/FM LED PCB CN101 CN103 TO MAIN PCB CW101 TO FM ANT PIN PCB...

  • Page 16: Included Accessories

    7 INCLUDED ACCESSORIES INCLUDED ACCESSORIES REF. NO PARTS NO. DESCRIPTION REMARKS 046-SRL10010 INSTRUCTION MANUAL - E/F/S [T/C] 046-R1EUR010 INSTRUCTION MANUAL - G/I/H [E,SIN,HK] 084-SR101200 AC ADAPTER UL 120V/60Hz - BLACK [T/C] 084-SR101201 AC ADAPTER UL 120V/60Hz - WHITE [T/C] 084-R1EU1100 AC ADAPTER VDE 230V/50Hz - BLACK W/MADE IN CHINA [E] 084-R1EU1102 AC ADAPTER VDE 230V/50Hz - BLACK W/O MADE IN CHINA [E]...
  • Page 17 7733 Telegraph Road, Montebello, California 90640 Phone: (323)726-0303 TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: (905)-890-8008 TEAC MEXICO, S.A.De C.V. Campesinos N 184,Colonia.Granjas Esmeraida, Delegacion Iztapalapa,CP 09810,Mexico DF Phone: (525)-581-5500 TEAC UK LIMITED Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE5, U.K. Phone:(0845) 130-2511...
  • Page 18 FM ANT C203 PHONE JACK R201 C102 4.7/50 CF101 SFU455B L101 R202 C204 0.1uH C103 C104 223M 4.7/50 223M C114 R107 R211 56K 1/50 CN103 R213 FM ANT C112 2.2/50 C101 C207 22PF L102 JK401 2PIN CW103 AM-IF1 FM A T P I P=2.5MM C223...
