Product Manual – INTUITION HT

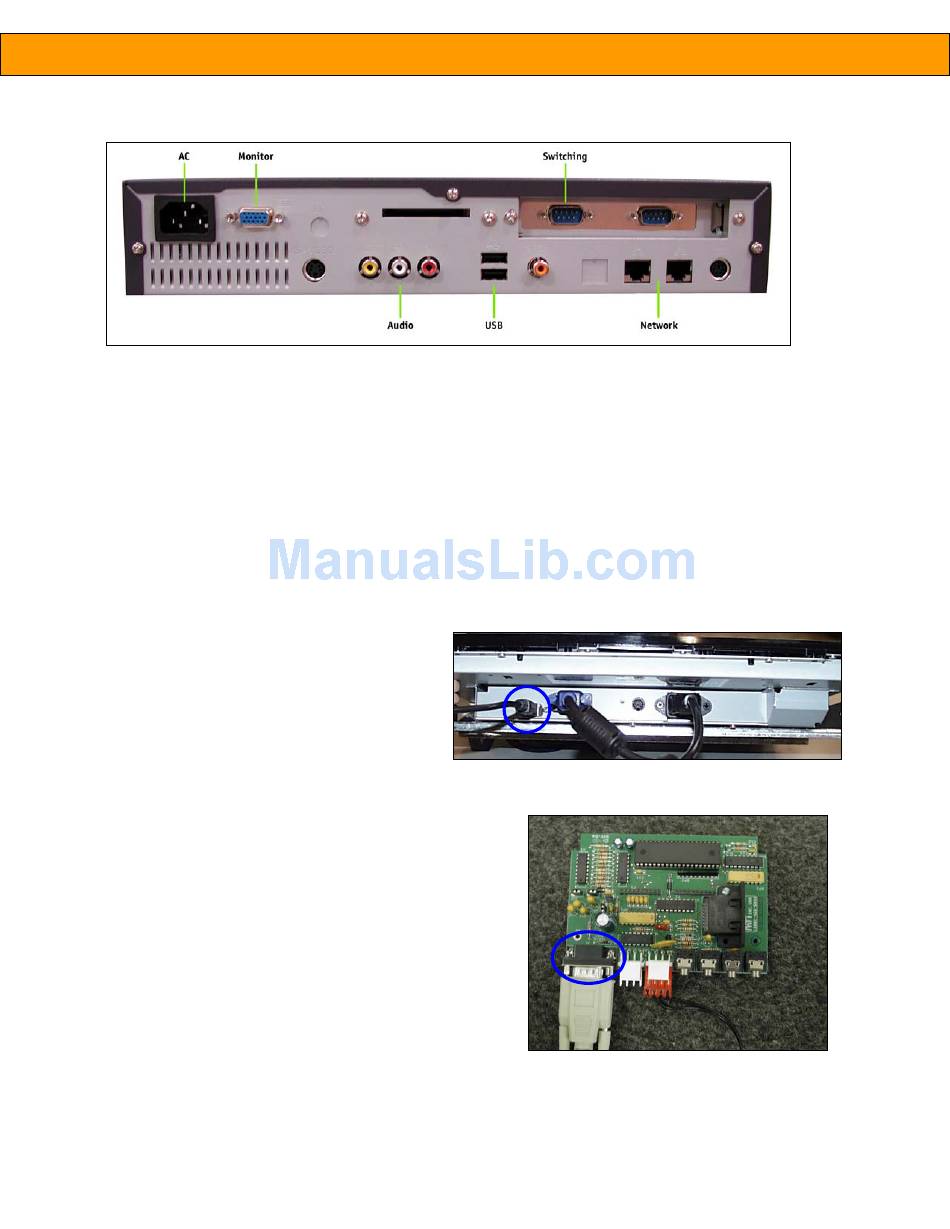

fig. 1 – Master Control Unit

INSTALLATION

MASTER CONTROL UNIT (MCU)
1. Insert a USB cable into the top USB slot in middle rear of MCU ( indicated as USB in fig. 1 ).
2. Insert blue, male-ended VGA monitor cable from the touchscreen into female monitor port on the left rear of
the MCU (Monitor, fig. 1) .
3. Insert white/grey female-ended serial cable from the switching system into left male serial port (Switching,
fig. 1) .
4. Insert red and white male RCA cables into same color ports (Audio, fig. 1) .
5. Insert power cable into power port (AC, fig. 1) .
TOUCHSCREEN
1. Insert a USB cable from the MCU into the USB
slot on the bottom of the touchscreen ( circled
in fig. 2 ).
2. Insert blue, male-ended VGA monitor cable
from the MCU into female monitor port on the
bottom of the touchscreen.
3. Insert power cable into power port.
SWITCHING INTERFACE BOARD
1. Insert white/grey female-ended serial cable from the MCU
into the interface board connected to your MTI switching
system. ( fig. 3 )
4
fig. 2 – Touchscreen
fig. 3 – Switching interface board
