X10 TM751 Installation And Operating Instructions

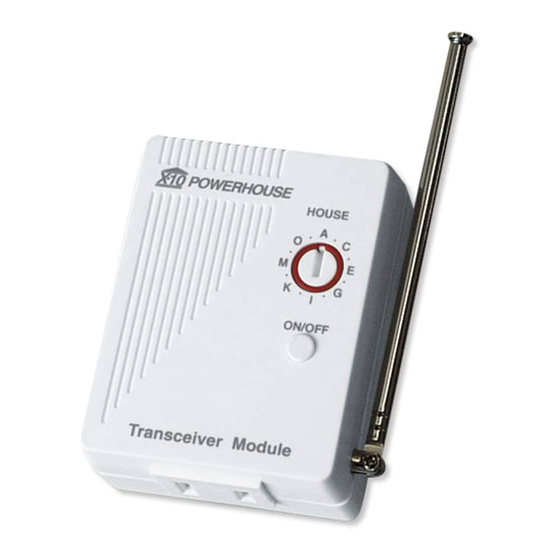

Transceiver Module TM751
INSTALLATION AND OPERATING INSTRUCTIONS
The TM751 Transceiver receives commands from X10 Remote controls and
turns on a light or appliance connected to its outlet. The Transceiver also
passes the signals onto your house wiring to control lights, appliances, or
Wireless Cameras around your home. You plug lights and appliances into
X10 Modules (sold separately). You plug Wireless Cameras into Addressable
Power Supplies (sold separately).
1. Plug the TM751 Transceiver into any 120V AC outlet. Fully extend its
antenna.
2. Use a dime to set the Housecode dial on the TM751 to match the X10
modules, cameras, and remote controls you will be using it with.
3. Plug a lamp or appliance into the outlet on the TM751 (observe the ratings
on the back of the TM751).
4. Press the small button on the TM751 to test that the lamp/appliance goes
on and off.
5. Install 4 AAA alkaline batteries in an HR12A PalmPad remote control,
or CR12A ScanCam remote control (each sold separately).
6. Press 1 ON and OFF on the remote control to control the light/appliance
connected to the TM751.
7. Press the corresponding ON or OFF button on the remote control to turn
other X10 Modules or cameras on/off.
Also see instructions included with X10 remote controls and cameras.
For help or more information on setup, please visit
www.x10.com/support
