Summary of Contents for T&D TR-71W
- Page 1 TR-71W/TR-72W User’s Manual Thank you for purchasing our product. Carefully read this instruction manual before using this unit. © Copyright T&D Corporation. All rights reserved. 2011.10 16507000008 (8th Edition)
- Page 2 Notices about this User’s Manual In order to properly use this product, please carefully read this manual before using. T&D Corporation accepts no responsibility for any malfunction of and/or trouble with this product or with your computer that is caused by the improper handling of this product and will deem such trouble or malfunction as falling outside the conditions for free repair outlined in the attached warranty.
-
Page 3: Software User's Agreement
Copyright All copyrights TR-7W for Windows, including all of the programs and all related documents, are the sole property of T&D Corporation. TR-7W for Windows is for use free of charge. Redistribution is permitted as long as it is to others for non-profit. -
Page 4: Safety Precautions And Instructions
Safety Precautions and Instructions Please carefully observe the following safety measures when using our product. To prevent any loss or damage to our customers, other people and/or property, and to ensure the proper use of our products we ask that before using our product you carefully read, understand and follow the safety rules and precautions for our products as outlined below. - Page 5 DANGER Do not take apart, repair or modify the main unit. It may cause fire, electrocution or damage. Ask the shop where you purchased the product or T&D Corporation to carry out any repairs. While installing and using this product, make sure to always follow your computer manufacturer's warnings and cautions.
- Page 6 DANGER CAUTION We are not responsible for any malfunction or trouble caused by the use of our product or by any problem caused by the malfunction of our unit. Please be fully aware of this before using our product. This product has been designed for private or industrial use only. It is not for use in situations where strict safety precautions are necessary such as in connection with medical equipment whether directly or indirectly.
- Page 7 Do not use or store the Thermo Recorder in any of the following places. Doing so may cause electrocution, fire and/or other adverse effects to the device and/or your computer. - Areas exposed to direct sunlight This will cause the inside of the device to become overheated and may cause fire, deformation, and/or other damage including malfunction.
-
Page 8: Table Of Contents
Getting Ready Functions ------------------------------------------------ 48 Data List Display Part Names and Functions -- 50 Getting the TR-71W / 72W Ready to Use --- 22 Making Changes to the Graph Display --- 51 Installing the Backup Battery ----------------------- 22 Changing Colors of Data Display Area ---------- 51... - Page 9 Troubleshooting --------------------------------- 92 TR-7W Settings Utility -------------------------------- 92 Web Viewer --------------------------------------------- 94 FAQ’s ---------------------------------------------- 96 Q&A about TR-71W / 72W -------------------------- 96 Q&A about Web Server Functions ---------------- 98 Q&A about Viewing the Web Site ----------------- 99 Q&A about Networks --------------------------------100 Q&A about the Internet -----------------------------103...
-
Page 10: What Is Tr-7W
What is TR-7W ? Outline Thermo Recorders TR-71W / 72W are a new type of temperature and humidity data logger equipped with a built-in function that enables connection to and use over the Internet or other network such as a LAN network. The downloading of recorded data, the monitoring of current readings and the sending of warning mails can all be done easily over the Internet or LAN network. -
Page 11: Basic Functions
Temperature Range : 60 ~ 155 °C (TR-71W) The standard temperature sensor that comes with TR-71W has a range of 40 ~ 110°C. With the optional sensor a wider range of 60 ~ 155°C can be measured and recorded. Please see and purchase our optional sensors to meet your specific needs. - Page 12 TR-7W Settings Utility Here, settings for TR-7W can be carried out for Detailed Network Settings, Warning Report Settings, Gather Current Readings Settings and Adjustment Settings. Network Initialization Settings Settings for helping to connect a TR-7W to a network. Detailed Network Settings Make detailed network settings here.
- Page 13 Temp / Humidity Graph Here, recorded data from TR-7W that has been downloaded and saved to a file can be viewed. View and Print Temp / Humidity Graphs View the data downloaded from the TR-7W in a list and print. - View 8 channels of data in 1 display Up to 8 channels of recorded data can be viewed in the same graph at one time.
-
Page 14: Package Contents
Package Contents The following items are included in the package. TR-71W Thermo Recorder TR-71W Temperature Sensor TR-0106 x 1 unit x 2 Sensors LAN Cable LN-20W AC Adaptor x 1 (AD-0605 or AD-05C1) Software CD-ROM Introductory Guide and Warranty x 1... - Page 15 TR-72W Temperature/Humidity Sensor TR-3110 x 1 Thermo Recorder TR-72W x 1 unit Sensor LAN Cable LN-20W AC Adaptor x 1 (AD-0605 or AD-05C1) Coin Type Lithium Battery Software CD-ROM (CR-2032) x 1 Introductory Guide and Warranty x 1...
-
Page 16: Tr-71W / 72W Part Names And Functions

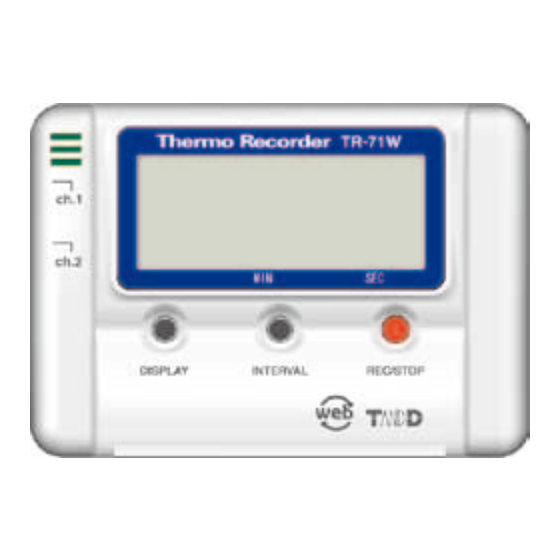

TR-71W / 72W Part Names and Functions Logger Body Front DISPLAY INTERVAL REC/STOP Button Button Button DISPLAY Button Pressing this button will change the LCD display mode. By pressing this button you can check or change the currently set INTERVAL Button recording interval. - Page 17 LEFT SIDE RIGHT SIDE Sensor Jack Channel 1 Reset Button Sensor Jack Channel 2 Data Display (Only for TR-71W) Ethernet Jack LINK Display AC Adaptor Jack Power Monitor LED 10Base-T / 100Base-TX Ethernet Jack Ethernet Jack Connect the LAN Cable AC Adaptor Jack Connect the supplied AC adaptor here.
-
Page 18: Lcd Display
LCD Display Channel Mark The channel number of the measurement being displayed will appear. Rec Mark The recording condition will appear. ON : Recording in progress. BLINKING :Waiting for programmed start. Recording Capacity After every 2000 readings the scale will be marked from left to right. COM Mark This will appear when data is being processed. -
Page 19: Other Displays
Other Displays If you have deactivated the buttons in the Web Viewer [Button Operation Settings], and you press a button “Loc” will appear in the display. E. P. When external power has been disconnected, the display will alternate CH1, CH2, E.P. If the display has been set for a fixed channel, that fixed CH and E.P. -
Page 20: Outline Of Use
Outline of Use Basic Operation Getting Ready Getting the TR-7W Ready to Use Get the TR-7W logger ready to measure temperature and humidity by inserting the backup battery, connecting the AC adaptor and the sensor(s). Checking your Operating Environment You also need to check your computer and network setup and be sure to prepare any necessary devices like routers to enable connection to your access point. - Page 21 Basic Operations Recording Settings..From the TR-7W Series Web Viewer By setting the recording interval, the recording start time and the recording mode, recording will begin at the set date and time. It is also possible to set the recording interval on the logger by using the [INTERVAL] button and to start and stop recording by using the [REC/STOP] button.
-
Page 22: Operational Settings
Operational Settings TR-7W Settings Utility IP address, Subnet Mask, Port Number Login ID, Password DNS, SNTP Detailed Network Settings SMTP Mail Server IP Block Wireless LAN POP Before SMTP Settings SMTP Authentication Settings Rebooting the TR7W (Restarting the System) Warning Report Settings Warning Report Settings Warning Report Mail Recipient Address Settings... - Page 23 TR-7W Series Web Viewer Monitoring Current Readings Monitor a Multiple Number of Current Readings Graph Display Recording Start Gather Recorded Data WEB Viewer Settings Clock and Calendar Settings Button Settings LCD Settings Channel Name Settings Main Unit Settings Warning Mail Transmission Test Forced Cancellation of Communication Restarting the System...
-
Page 24: Getting The Tr-71W / 72W Ready To Use
Insert the battery into the case making sure not to mistake +/-. Insert a new battery into the case. Replace the battery case. There are no POWER switches on the TR-71W/72W units. Once the battery is reinserted, power will go on. -
Page 25: Connecting The Ac Adaptor
Battery Functions Under normal conditions the AC adaptor should be used for measuring and recording data, but if there is a power shortage or the AC adaptor cable becomes unusable, the backup battery can be used for measuring and recording. NOTE: - Communication cannot occur with only the backup battery. -
Page 26: Connecting The Sensors
Connecting the Sensors TR-71W To ensure a proper connection make sure that the plug is completely inserted. TR-72W When using the temperature/humidity sensor in environments where the temperature is 0 to 15 and humidity under 30 RH, there may occur changes in measurement readings. This is not a malfunction. - Page 27 Handling the Temperature / Humidity Sensor The temperature/humidity sensor should probably be changed after a period of about one year. After removing the sensor from its package, please change the temperature/humidity sensor after one year’s usage. During use the temperature/humidity sensor will accumulate impurities (dirt) on the surface of the sensor causing the sensor's accuracy and sensitivity to decrease.
-
Page 28: Checking Your Operating Environment
Connect the provided LAN cable to the HUB that is connected to your computer. Connecting Directly to a PC Connect the TR-71W / 72W to your computer with the supplied LAN cable or a LAN cross cable. If communication is not possible with the supplied LAN cable; please purchase a cross LAN cable separately. -
Page 29: Connecting To A Network
Connecting to a Network Following are some examples of ways to connect a TR-7W logger to a network. Please select the connection method that suits your network environment. Connecting to a HUB for Intracompany Communication To ensure a proper connection make sure that the plug is completely inserted. To HUB Connection Examples Connecting Directly to PC for Communication... -
Page 30: Connecting To A Wireless Lan
Connecting to a Wireless LAN By inserting a Wireless LAN card into the TR-7W, it is possible to carry out communication in places where LAN wiring is difficult or troublesome. To ensure a proper connection make sure that the plug is completely inserted. NOTE: - Please do not use any CF type Wireless LAN cards that have not been proven to be compatible and are not on our LAN card list . -
Page 31: Connecting To The Internet
Connecting to the Internet In order to connect the TR-7W to the Internet you must first set up an Internet connection environment by making arrangements with a provider for a line and get a global IP address and domain. Also, if necessary, make all domain name server and / or router settings. - Page 32 Using Mail via LAN The TR-7W accesses the SMTP server and sends mail. The SMTP server delivers the received mail. The computer receives mail from the POP mail server. NOTE : - In order to receive mail, it is necessary to have a SMTP mail server and a POP or IMAP mail server located on the LAN.
-
Page 33: Installation
Installation Install the provided software. ® Is Windows operating properly? ® If Windows is not operating properly, "TR-7W Settings Utility" and "Temp /Humidity Graph" may not be installed correctly or it may not operate properly. Please quit all other applications. If other programs are open, please close and quit all of them, making sure to quit all Quick Start programs such as a virus checker. - Page 34 Select "Install TR-7W Settings Utility" and click the [Execute] button to start the installation. Continue the installation by following the directions as they appear. During installation, you can choose which modules you wish to install. Please select the modules you wish and follow the installation directions.
-
Page 35: Operating The Tr-7W Settings Utility
Operating the TR-7W Settings Utility How to Open From the list of programs in the Window’s Start Menu, click on "TR-7W for Windows"- "TR-7W Settings Utility. Using Help For details about how to use the software, please see the explanations in the Software Help Menu. -
Page 36: Tr-7W Settings Utility Functions
Please open it from only one computer at a time in the same network (same broadcast domain). [Menu] "Network Initialization" Tab Here you can make settings for connecting a TR-71W/72W to a network. "Detailed Network Settings" Tab Make detailed Network settings here. -
Page 37: Network Initialization Settings
Network Initialization Settings To connect a TR-7W to a network, it is necessary to make the correct IP Address and Subnet Mask settings appropriate to your network environment. NOTE : - To make IP address changes, connect one TR-7W unit at a time and carry out the changes. Please note that upon purchase, all TR-7W units are set with the same IP address. - Page 38 From the displayed list, select the TR7-W to which you wish to make settings by either double clicking on that address or select and click on the [Change Settings] button. The "Network Settings" window will then appear. Enter an IP Address and Subnet Mask. Enter an IP address and subnet mask that is appropriate for your network.
-
Page 39: Detailed Network Settings
Detailed Network Settings Make more detailed network settings for the TR-7W here. * Before making any settings here, please set the TR-7W with the proper IP address. Sending the Settings Click the [Detailed Network Settings] Tab. In the [Get Settings] Area, enter the information for the TR-7W you wish to make settings for and click the [Get Settings] button. -
Page 40: Changing The Settings
Changing the Settings Click the [Change Settings] button, and make any necessary changes to the [Detailed Network Settings]. [Send Settings] button Enter info of the TR-7W you [Restart TR-7W] wish to make settings for button After making the changes, enter the info for the recipient of the settings and click the [Send Settings] button. - Page 41 After the reactivation has been completed, the settings will have been successfully made. [Restart TR-7W] Button If the browser does not open, if there is an error in the clock settings when getting current readings from a number of loggers, or if any errors occur during communication, click the [Restart TR-7W] button.
-
Page 42: Returning The Network Settings To The Factory Default Settings
Returning the Network Settings to the Factory Default Settings If you have forgotten the IP address or the password you can easily return the logger to the default factory settings. * With the backup battery, the recorded data in the TR-7W will be saved as is. * The "warning settings"... -
Page 43: Operating The Tr-7W Series Web Viewer
Operating the TR-7W Series Web Viewer Opening the TR-7W Series Web Viewer Open Internet Explorer. If you wish to use the Internet, make sure that the power for the router and computer are on so as to enable connection to the Internet. Set the browser so as to enable Cookies. -
Page 44: Tr-7W Series Web Viewer Functions
Graph Measurements taken by the TR-71W loggers can be shown in graph form which updates every 10 minutes and can show up to 1 week's worth of data. Administrator Tools To open Administrator Tools, the Login ID and Password are needed. -
Page 45: Clock And Calendar Settings
Clock and Calendar Settings If the TR-71W's date and time are set incorrectly, the recording start time, the download data time, and the monitor current readings time will all be wrong. Please make sure to set correctly before beginning to use. -
Page 46: Recording Settings
Recording Settings Open the Web Viewer for the TR-7W you wish to make settings for. See page 41 for more details about the display. Under "Administrator Tools" select "Recording Settings". To open Administrator Tools, the proper Login ID and Password are needed. Setting the Recording Conditions. -
Page 47: Gathering Recorded Data
Gathering Recorded Data Open the Web Viewer for the TR-7W logger from which you wish to download data. See page 41 for more details about the display. Under"Administrator Tools" select "Recording Settings". To open Administrator Tools, the proper Login ID and Password are needed. Click the [OK] button. - Page 48 Click the [Download] button. [ Download ] button In the "File Download" Window, click the [Save] button, assign a name to the file and save to complete the process. NOTE: - By clicking the [Open] button, the "Temp / Humidity Graph" may not function properly. Please do not click the [Open] button.
-
Page 49: Temp / Humidity Graph
Operating the Temp / Humidity Graph How to Open From the list of programs in the Window’s Start Menu, click on "TR-7W for Windows"- "Temp / Humidity Graph". Using Help For details about how to use the software, please see the explanations in the Software Help Menu. -
Page 50: Temperature / Humidity Graph Display Names And Functions
Temperature / Humidity Graph Display Names and Functions A and B Cursor Movement Buttons By clicking the arrow buttons, you can simultaneously move the A/B cursors. A and B Cursor Buttons Click and drag the A or B button to move the cursor to the left or right. Toolbar Buttons appear for frequently used commands. - Page 51 Zoom in Using the Mouse With the left button drag the mouse to outline the area you want to zoom in on. Menu Display Using the Mouse By right clicking on the graph, the Menu will be displayed.
-
Page 52: Data List Display Part Names And Functions
Data List Display Part Names and Functions This is a list of the data that was displayed in graph form. ("View" Menu) [Date / Time] Button: By clicking this button, you can shift the display between the recorded date and the amount of elapsed time since recording started. -
Page 53: Making Changes To The Graph Display
Making Changes to the Graph Display Changing Colors of Data Display Area : [View] Menu You can change the letters used in the data list display for each channel between monochrome and channel color. Viewing and Hiding Channels in Graph : [View] Menu You can choose to view only the selected channels in the Graph. -
Page 54: Setting The Max. Min. Avg Calculation Range
Setting the Max. Min. Avg Calculation Range : [Tools] Menu Set the calculation range in the [Set High, Low, Avg. Calculation]. [OK] button [Entire Graph] button Enter the numerical values - By clicking the [Entire Graph] button, the dates and times for the entire graph will be displayed. -
Page 55: Editing Recording Conditions
Editing Recording Conditions : [Tools] Menu It is possible to make corrections to channel names and to recording start date and times. By clicking the [Channel. No.] button of the channel you wish to edit, the "Name" and "Started Date / Time" in the "Edit Items" display will show info for that channel number. Name: Up to 32 letters can be entered. -
Page 56: Reordering Channel Data
Reordering Channel Data: [Tools] Menu You can re-order the data during graph display. There are two methods to use when re-ordering channels : [Re-order by Dragging a Channel Number] and [Specify the Channel Numbers to be Moved]. Re-order by Dragging a Channel Number Drag the channel number you wish to move to the newly desired channel number position and drop it. -
Page 57: Deleting Selected Channel Data
Deleting Selected Channel Data: [Tools] Menu Put a check on the channel number you wish to erase. By clicking on the [OK] button, the deletion will be completed. [ OK ] button Check Shift Unit (°C °F) : [Tools] Menu By clicking on [Shift Unit (°C °F)], you can automatically change the temperature unit scale in the graph display and in the channel info list. -
Page 58: Change Graph Colors
Change Graph Colors : [Tools] Menu Click the channel number of which you wish to change the color. You can change the colors of the channel name, graph background, the scale lines, the enlarged box area, and the AB cursors. [OK] button [Default]... -
Page 59: Copy Display To Clipboard
Copy Display to Clipboard : [Tools] Menu By clicking [Copy Display to Clipboard], you can copy the currently displayed window to the clipboard and make use of the graph by pasting to other software. -
Page 60: Operating The Graph
Operating the Graph Returning to Original Size Clicking here will return the graph to its original size. Zooming In and Out Zooms in or out one step at a time. Moving the A/B Cursors Right and Left Simultaneously move the AB Cursors to the right or left. Moving Right and Left on the Graph Move the Graph Display to the right or left. -
Page 61: Saving Recorded Data
Saving Recorded Data If you have edited any graph displayed data we suggest that you save it as you see necessary. 3 Ways to Save Files. In the [File] Menu, select [Overwrite All Data] Will save any changes to file without changing File Name and Saving Location. The same operation can be carried out from [Save] in the Toolbar. -
Page 62: Creating Text File
Creating Text File By saving the recorded data as text file, you can create a file type that can be read by common spreadsheet software. Click [Save in Text File] in the [File] Menu. Select the [Save in Text File] and [Range to be Saved], and click [OK]. Comma, Tab, Space, and Semi-colon are codes used by common spreadsheet software, such as Excel and Lotus, when reading Text File to divide cells. -
Page 63: Opening A Saved File
Opening a Saved File To open a previously saved file, designate the file name to open it. Click [Open] in the [File] Menu. Select the name of the data you wish to open and click [Open] to view the data in graph form. -
Page 64: Auto-Clock Settings (Sntp Settings)
Auto-clock Settings (SNTP Settings) If you make the TR-7W clock settings manually, the clock will lose its settings upon removal of the AC adaptor or after restarting the system. However, by making settings to enable the SNTP server it is possible to have the clock automatically reset to the current time upon restarting the system. - Page 65 After making the settings, enter the info for the recipient of the settings and click the [Send Settings] button. [Send Settings] button Enter info of the TR-7W you wish to make settings for A message will appear asking you if it is OK to restart the system. Click the [Yes] button to restart the TR-7W.
-
Page 66: Monitoring Current Readings
Monitoring Current Readings Viewing Current TR-7W Readings the Web Viewer for the TR-7W of which you wish to view the current Open readings. See page 41 for more details about the display. The Monitor Current Readings display will automatically open. If the system has been restarted with the SNTP (for automatic clock settings) disabled, the [Clock and Calendar Settings] window will appear only the first time the Web Viewer is opened. - Page 67 Enter the Registrant Info. A list that shows all of the IP addresses and domain names with which successful communication has occurred until now can be viewed in the [History] pull down menu. You can select an IP address from the [History] pull down menu. - Note that if you have turned [OFF] the [Login History] in the [Menu], or if you have deleted the Login history by having clicked [Clear Login History] the Settings History will not appear.
- Page 68 Click the [OK] button to finish registration. If you wish to continue to register more units, repeat the process as in 4 and 5. Open the Web Viewer for the TR-7W you have set as the Registrant Logger. See page 41 for more details about the display. By clicking [Monitor Multiple Units], you will be able to view the current readings for all of the units which you have registered.
- Page 69 "TR-7W Settings Utility"-"Gather Current Readings Settings"Tab Window [Receive Registrant Info] button [Send List Info] button [ Delete ] button [ Delete All ] button [Receive Registrant Info] Button The remote TR-7W registration info that had been entered into the Registrant Info will be displayed.
-
Page 70: Warning Report Settings
Warning Report Settings With this you can send warning report mails to a registered Internet mail address. Also, in the Monitor Current Readings Window, the channel for which the warning occurred will appear RED. Temperature / Humidity Warning Report Mail The TR-7W checks the current reading every minute and sends a warning report mail if the upper or lower limit has been exceeded. - Page 71 Type of Unit Select the type of device. Monitoring Status "Monitoring Warnings" or "Warnings Stopped" will appear. Upper and Lower Limit Settings The setting ranges are as follows: Temperature: Celsius -60 to 155 / Fahrenheit -76 to 311.1 and Humidity: 0%~100% You can also select whether to measure and record in Celsius or Fahrenheit.
- Page 72 In the [Receive Settings] Area, select Domain Name or IP address and enter it, then start [Receive Settings]. n the [Detailed Network Settings] Tab, click on the [Change Settings] button, and the [Detailed Network Settings] Window will appear. In [Warning Report Mail], enter the SMTP server name. Make necessary settings for the gateway address, DNS server address, POP before SMTP and SMTP authentication.
- Page 73 After making the settings, enter the info for the recipient of the settings and click the [Send Settings] button. Enter info of the TR-7W you wish [Send Settings] button to make settings for In the"TR-7W Settings Utility"/ [Warning Report Settings] window, click on the [Warning Start] Button to complete the settings.
-
Page 74: Adjustment Function
Adjustment Function By entering the adjustment values beforehand, it is possible to view and record the adjusted measurement values. There are two methods of adjustment: adjusting by one point or adjusting by two points. Adjustment for differences will be based upon the following simple equation Y=aX+b. (X equals the measured value and Y equals the value after adjustment.) NOTE: - Adjustment settings cannot be made while a recording is in session. - Page 75 The adjustment equation will be calculated from two points: the slope (a) and the offset (b). For example, the TR-71W reads 0°C when the standard thermometer reads 0.4°C ,and reads 10 °C when the standard says the true measurement is 10.2°C. In this case the slope (a) is 10.2-0.4 /10-0 = 0.98.
-
Page 76: Viewing Current Readings Via Cell Phone
Viewing Current Readings via Cell Phone It is also possible to view current temperature and humidity readings via a cell phone browser. Open the URL entry display and enter the URL for the TR-7W logger you wish to view and press enter. Select the format that displays best on your phone. - Page 77 NOTE: - To view the current readings monitor via cell phone, it is necessary to open the TR-7W to the public on the Internet. - The current readings will not be automatically refreshed. You will have to use the browser refresh function on you cell phone.
-
Page 78: Graph
Graph Measurements taken by the TR-7W loggers can be shown in graph form which updates every 10 minutes and can show up to 1 week's worth of data. (The browser will be refreshed every 5 minutes.) Open the Web Viewer for the TR-7W of which you wish to view the current readings. -
Page 79: Web Viewer Settings
WEB Viewer Settings Make settings for names of the Web Viewer Main Title, Window Title and Footer. Open the Web Viewer for the TR-7W you wish to make settings for. See page 41 for more details about the display. Under "Administrator Tools", select "Web Viewer Settings". To open Administrator Tools, the proper Login ID and Password are needed. -
Page 80: Main Unit Settings
Main Unit Settings You can make Main Unit settings in TR-7W Web Viewer under "Administrator Tools" -"Main Unit Settings". To open Administrator Tools, the proper Login ID and Password are needed. Clock and Calendar Settings If the TR-7W's date and time are set incorrectly, the recording start time, the download data time, and the monitor current readings time will all be wrong. -
Page 81: Lcd Settings
LCD Settings Make settings here for the TR-7W logger LCD display, including whether to view in °C or °F and how to display i.e. View Ch 1 only / View Ch 2 only / View both channels alternately. Click the topic you wish to change. Click the [Set] button to finish. -
Page 82: Warning Mail Transmission Test
Warning Mail Transmission Test From the TR-7W Settings Utility, it is possible to run a warning mail test to confirm that settings have been made correctly. By clicking [Warning Mail Transmission Test], a confirmation message will appear. Warning Mail Transmission Test Click the [OK] button, and a test mail will be sent to the specified address. -
Page 83: Restarting The System
Restarting the System Click to restart the System. By clicking [Restart], a confirmation message will appear. [Restart] button Click the [OK] button to begin the restart process. -
Page 84: Checking And Making Changes To Computer Network Settings
Checking and Making Changes to Computer Network Settings In some network environments, it may be necessary to make changes to the IP address and subnet mask at the computer side in order to carry out a search. See the following procedures for checking and making changes to your computer network settings. - Page 85 In the [Internet Protocol (TCP / IP) Properties] window, under [Use the following IP address:] make sure that the IP address and Subnet mask are correct. Check the “IP address” and “Subnet mask”. Make sure to write down the following so that you can re-enter the settings later: the currently set “IP address”, the “Subnet mask”, “Default Gateway”, “Preferred DNS server”, and the “Alternate DNS server”.
- Page 86 Click the [OK] button. Click the [OK] button in the Network "Properties" Window, as seen in step 3 above, to close the window. Once again, in the "TR-7W Settings Utility" run a search and check whether the IP address for the TR-7W connected to the network is displayed.
-
Page 87: For Windows 7/Vista
For Windows 7/Vista In the [Control Panel], click on [Network and Internet] – [View network status and tasks]. For the “Classic View”, double click on the [Network and Sharing Center] icon. Click [Management network connections] under [Tasks]. Select the Network adapter that you are using, and right click with the mouse and open the Properties. - Page 88 Select [Internet Protocol Version 4 (TCP/IPv4)] and click on the [Properties] button. Make sure that there is a check and select [Properties] button Make sure that there is a check next to [Internet Protocol Version 4 (TCP/IPv4)].If there is no check, the [Properties] button cannot be clicked. In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window, under [Use the following IP address:] make sure that the IP address and Subnet mask are appropriate for your network.
- Page 89 Click the [OK] button in the Properties window to close the window. Once again, in the [TR-7W Settings Utility] run a search and check whether the IP address for the TR-71W/72W connected to the network is displayed. If it is displayed properly, make the Initial Network settings.
- Page 90 After making the Initial Network settings, return the computer network settings back to the original ones. Follow steps 1-4 above to open the [Internet Protocol Version 4 (TCP/IPv4) Properties] window. Re-enter the [IP address], [Subnet mask], [Default gateway], [Preferred DNS server], and [Alternate DNS server] that you had written down before and click the [OK] button.
-
Page 91: Re-Installing
Re-installing Before reinstalling or updating the "TR-7W Settings Utility" software, make sure to carry out the uninstall program first. Before you begin the uninstall program, first make sure to quit all "TR-7W Settings Utility" and Temp / Humidity Graph" programs. To install the "TR-7W Settings Utility", it may be necessary to have Administrator Rights for the computer into which it will be installed. -
Page 92: For Windows 7/Vista
For Windows 7/Vista In the "Control Panel", click "Program – Program Uninstall". From the list of currently installed programs, select [TR-7W for Windows] and click the [Uninstall] button. - Page 93 The "Install Shield Wizard" will appear. Check "Remove", and click [Next]. Check Remove Follow the directions to Uninstall. After the uninstall process is completed, reinstall by following the directions to [Install]. Even after uninstalling, saved data files will still remain in the folders and locations they were saved in.
-
Page 94: Troubleshooting
Troubleshooting TR-7W Settings Utility Q.1 A "Windows Security Alert" message keeps popping up, what should I do ? If you are using Windows XP SP2 or above, the following message may be displayed. There is no problem, so please click [Unblock]. Q.2 Is it possible to use the "TR-7W Settings Utility"... - Page 95 What are other causes of "Communication Error" messages ? One of the following may be the reason. - If the IP Block setting is ON and communication can occur with only specific PC’s. - If after several attempts a communication error continues to occur, turn OFF the TR-7W and restart.
-
Page 96: Web Viewer
Web Viewer Q.1 What does the message "Another communication is in progress" mean ? If another computer is downloading data, the breaking of communication will be forbidden and the message, "Another communication is in progress" will appear. If this message continually appears, in the Web Viewer under "Administrator Tools"-"Main Unit Settings", click on "Forced Cancellation of Communication"... - Page 97 When using the port forwarding function and accessing a multiple number of TR-7W units, it seems that I can log into the Web Viewer Administrator Tools without entering a Login ID or a Password, why ? With the TR-7W units, once you have logged into the Web Viewer Administrator Tools it is possible from the same browser to access the administrator tools again without re-entering a Login ID or a Password.
-
Page 98: Faq's
FAQ’s Q&A about TR-71W / 72W Q.1 The TR-7W loggers use an AC adaptor, what happens when there is power shortage ? During a power shortage the Web Server will not function and communication via LAN cannot occur, but with the backup battery, data measurement and recording will continue. - Page 99 Q.6 It is possible to connect the TR-7W to the network by using the LAN cable that connects the computer to the LAN network ? Inserting the LAN cable that connects the computer to the network into the TR-7W will physically connect the TR-7W to the network, but without making the necessary settings such as IP address, the TR-7W cannot be active in the network and hence is not really connected.
-
Page 100: Q&A About Web Server Functions
Q&A about Web Server Functions Q.1 Are the TR-7W data loggers web servers ? The TR-7W loggers have web server functionality built into them. This function allows for the provision or the serving up of temperature and humidity data, current readings and graphs. -
Page 101: Q&A About Viewing The Web Site
Q&A about Viewing the Web Site Q.1 Can I use a TR-7W logger without connecting it to a network ? If the TR-7W is not connected to a network, the downloading of recorded data, the display of current readings, recording settings and all other types of settings cannot be carried out. Q.2 Is it possible to view the current readings of other loggers ? Yes it is possible. -
Page 102: Q&A About Networks
Q&A about Networks Q.1 What is a network ? A network is a system in which a group of computers are connected by cable (copper wire, optical fiber, etc), infrared ray, radio waves or other means in order to share and exchange information. - Page 103 Q.4 How should I make settings for the IP address / Subnet mask ? The IP address and Subnet mask settings vary depending upon your networking environment (structure). Please consult your network administrator for details. Below is a simplified explanation of a company LAN set up for your reference. If the computer connected to your company LAN has a Subnet mask of "255.255.255.0"...
- Page 104 Q.7 What is a gateway ? A gateway is a term used to refer to a device or software that is used to link networks with different standards. For example, a gateway is needed when connecting a cell phone to the Internet or in any case where you wish to connect two devices that are completely different.
-
Page 105: Q&A About The Internet
Q&A about the Internet What is a fixed IP address ? Usually, when you connect to the Internet, the provider with which you have contracted service automatically assigns an IP address which may be different each time you connect, or may change after a certain length of time. With this type of changing IP address, it is more difficult for outsiders to illegally enter your computer. - Page 106 Q.4 I want to use a URL without a fixed IP address, how can I do that ? If you wish to access a TR-7W by URL but without a fixed IP address, it is possible to use a dynamic IP address. The DNS or Domain Name Server helps to switch difficult to understand IP address of just numbers, such as "61.197.203.107"...
- Page 107 Q.7 If I wish to view the current readings of a multiple number of TR-7W units via 1 specific unit, do I need to have affixed IP address for each unit ? How about when there are multiple units being used with 1 router ? If the units are all interspersed on the same independent network, you will need to have a fixed IP address for each unit.
-
Page 108: Specifications
Specifications TR-71W / TR-72W Unit TR-71W TR-72W Measurement Channel 2 Channel 2 Channel Measurement Item Temperature only Temperature Humidity External Sensor -40 to 110°C 0 to 50°C 10 to 95%RH Optional Sensor -60 to 155°C *1 -40 to 110°C Average +/-0.3°C(-20 to 80°C) -
Page 109: Pc Operating Environment
TR-7W Settings Utility Compatible Devices TR-71W / TR-72W Communication Network Initialization Settings, Detailed Network Settings, Warning Report Settings, Functions Measurement Reading Adjustment and Gather Current Reading Settings TR-7W Series Web Viewer Compatible Devices TR-71W / TR-72W Communication Recording Start (Immediate/Programmed), Recording Stop, Downloading of Recorded Data,... -
Page 110: Options
Options Temperature Sensors (For TR-71W) unit : millimeters TR-0106 TPE-resin-shielded Sensor 0.6 m Cable Length: Thermal-Constant In the air : Approx. 75 Sec. TR-0206 Stainless Protection Sensor 0.6 m Cable Length: Thermal-Constant In the air : Approx. 75 Sec. TR-0306 Stainless Protection Sensor 0.6 m... - Page 111 unit : millimeters TR-1106 Fluoropolymer-Coated Sensor Cable Length: 0.6 m Thermal-Constant In the air: Approx. 30 Sec. In agitated water: Approx. 4 Sec. TR-1220 Stainless Protection Sensor Cable Length: 2 m Thermal-Constant Time In the air: Approx. 36 Sec. In agitated water: Approx. 7 Sec. TR-1320 Stainless Protection Sensor Cable Length: 2 m Thermal-Constant Time...
- Page 112 Humidity and Temperature Sensors (For TR-72W) unit : millimeters TR-3110 Humidity and Temperature Sensors Cable Length: 1m Sensor Response Time: Approx. 7 min.(90% response) Materials : Temperature/Humidity sensor Polypropylene resin Vinyl Coated Electrical Possible Temperature Measurement Range : 0 to 50 °C Possible Humidity Measurement Range : 10 to 95%RH Sensor Temperature Durability : -10 to 55 °C Humidity Measurement Accuracy : +/- 5%RH (at 25°C, 50%RH)
- Page 113 For product information or questions contact us at: T&D Corporation 817-1 Shimadachi, Matsumoto, Nagano, JAPAN 390-0852 Fax: +81-263-40-3152 E-mail: support@tandd.com Website http://www.tandd.com/ Thermo Recorder TR-71W / TR-72W User’s Manual Published by T&D CORPORATION © Copyright T&D Corporation. All rights reserved.
