QUICK START GUIDE
EXTREME PERFORMANCE LIQUID CPU COOLER
Note: Most newer PC cases include a CPU cutout to allow access to the bottom of
the motherboard. If your case does not include a cutout, you will need to remove
your motherboard from the case before installation.
H110i
TM

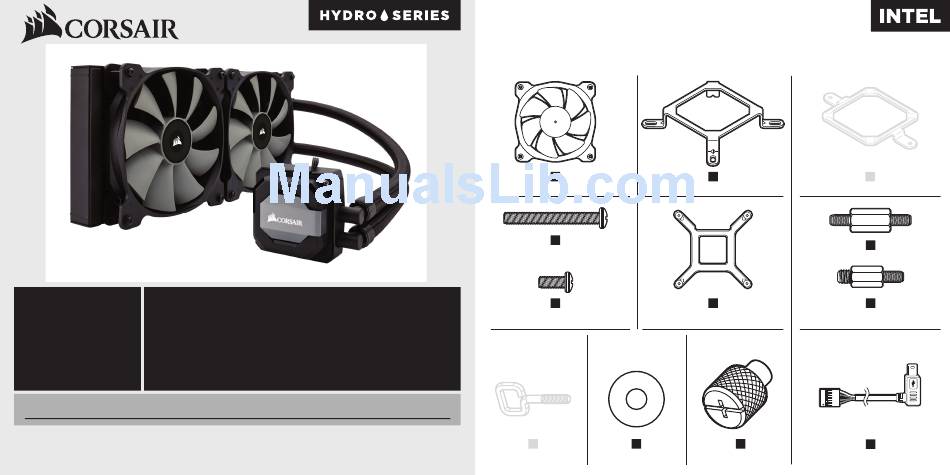

Included Hardware
Highlighted parts for Intel installation only
A
x2 SP140L FANS
D
x8
E
x8
I
x2 AMD
x8 WASHER
B
INTEL
x4 LGA 1150/1155/1156 STANDOFF SCREWS
F
Intel LGA 1150/1155/1156/1366 BACK PLATE
x4 LGA 2011 STANDOFF SCREWS
J
K
x4 THUMBSCREWS
C
AMD
G
H
L
CORSAIR LINK USB CABLE
(Included)
Advertisement
Related Manuals for Corsair H110i
Summary of Contents for Corsair H110i
- Page 1 Note: Most newer PC cases include a CPU cutout to allow access to the bottom of the motherboard. If your case does not include a cutout, you will need to remove x2 AMD x8 WASHER x4 THUMBSCREWS CORSAIR LINK USB CABLE your motherboard from the case before installation. (Included)
- Page 2 Install the Fans and Radiator Install the Intel Backplate Attach the radiator and the fans as shown. For the best Install the Intel Backplate as shown, with the cooling performance, we recommend mounting the fans indentation facing up, onto the back of your as an air-intake to your PC case.
-
Page 3: Install The Mounting Bracket
Install the Stando Screws Install the Mounting Bracket Install the provided stando screws. Use G for LGA Insert the mounting bracket onto the top 1150/1155/1156, and H for LGA 2011. Tighten the screws of the pump as shown. LGA 1150/ until the backplate is secure. - Page 4 Install the Pump Unit Connect Pump to Power Align the bracket and pump over the stando screws Connect the pump power header to the PSU and the 3-pin pump RPM connector to the CPU_FAN power header. NOTE: The 3-pin as shown. Tighten the thumb screws until all four corners RPM connector only reports pump RPM speed and does not provide are secured.
- Page 5 Connect Fans to Power Connect Pump to USB Header Connect the fans to the included fan header wires Using the included Corsair Link USB cable, ™ coming o the pump. attach pump unit to a motherboard USB header.
-
Page 6: Included Hardware
PC case. x2 SP140L FANS INTEL x4 LGA 1150/1155/1156 STANDOFF SCREWS Intel LGA 1150/1155/1156/1366 BACK PLATE x4 LGA 2011 STANDOFF SCREWS x2 AMD x8 WASHER x2 THUMBSCREWS CORSAIR LINK USB CABLE (Included) - Page 7 Install the Mounting Bracket Prepare the Mounting Bracket Insert the mounting bracket onto the top of Insert the AMD screw clips and secure with the screws as shown. the pump as shown. Do not tighten the thumb screws all the way.
- Page 8 Install the Pump Unit Connect Pump to Power Align the bracket with the Stock AMD mounting clips as shown. Tighten the thumb screws until secure. Connect the pump power header to the PSU and the 3-pin pump RPM connector to the CPU_FAN power header. NOTE: The 3-pin RPM connector only reports pump RPM speed and does not provide power or control.
- Page 9 Connect Fans to Power Connect Pump to USB Header Connect the fans to the included fan header wires Using the included Corsair Link ™ USB cable, attach pump coming o the pump. unit to a motherboard USB header.
- Page 10 An arrow located on the side of the fan indicates the direction of air flow. 2. Can I reuse the pre-applied thermal paste on the H110i for a re-installation? Re-installation of the H110i cooler will require you clean o the pre-applied thermal paste and apply an aftermarket paste.
