SERVICE MANUAL
BLU-RAY DISC PLAYER
BDP5110/F7 D

Advertisement

Table of Contents
loading

Related Manuals for Philips BDP5110/F7 D

Summary of Contents for Philips BDP5110/F7 D

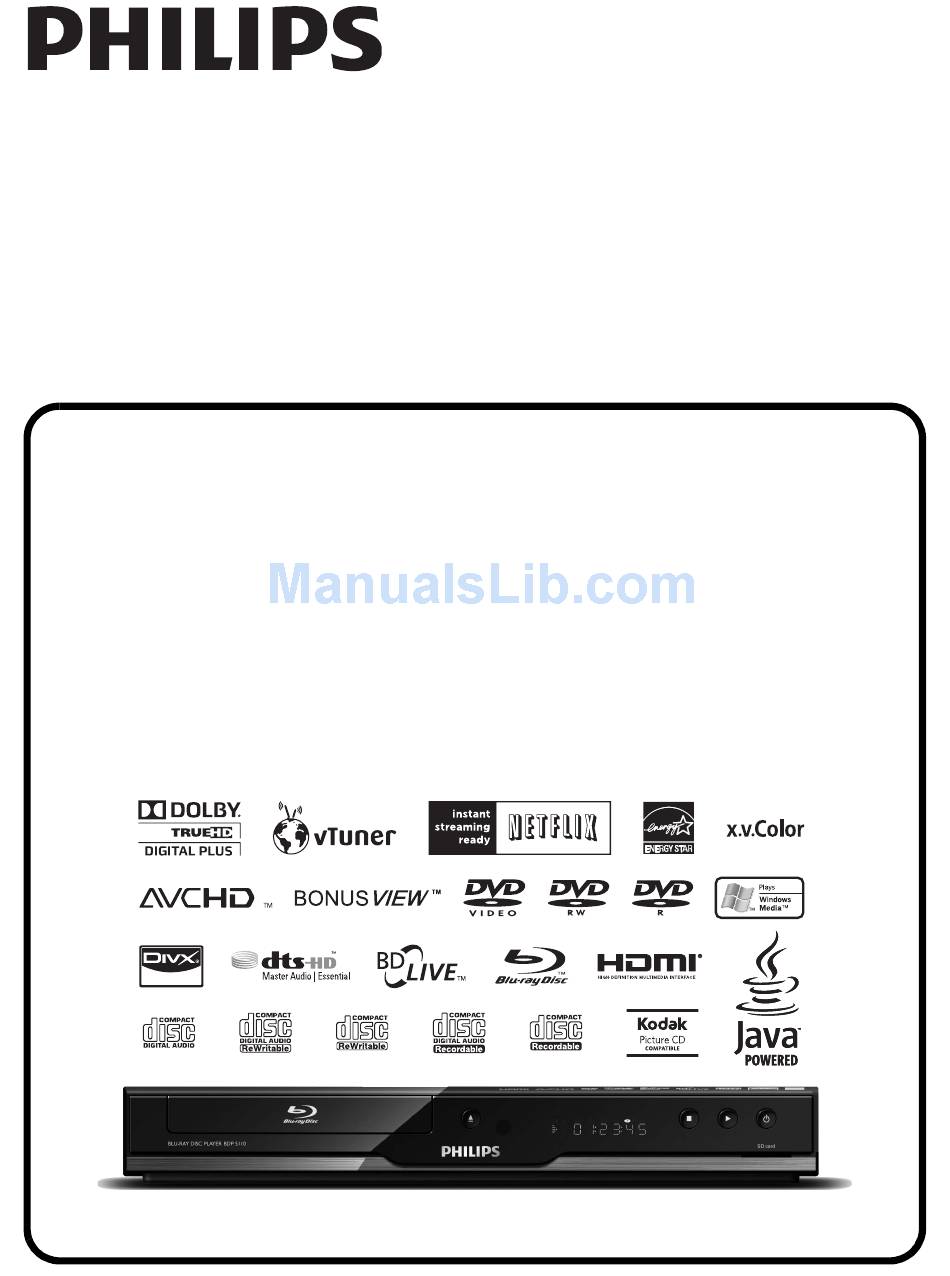

  • Page 1 SERVICE MANUAL BLU-RAY DISC PLAYER BDP5110/F7 D...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY NOTICE Proper service and repair is important to the safe, reliable operation of all P&F Equipment. The service procedures recommended by P&F and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

  • Page 3: Specifications

    SPECIFICATIONS 1-1-1 E5S50SP...

  • Page 4: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This BD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on.

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set. safety-related characteristics which are often not K.
  • Page 6 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards. 1.

  • Page 7: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder 1. The output pin of the 3 pin Regulator ICs is When soldering, be sure to use the Pb free solder. indicated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 8 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each 1. Using desoldering braid, remove the solder from pin or the solder lands under the IC when all pins of the flat pack-IC.
  • Page 9 2. Installation With Iron Wire: 1. Using desoldering braid, remove the solder from 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder the foil of each pin of the flat pack-IC on the CBA flux which is applied to all pins of the flat pack-IC, so you can install a replacement flat pack-IC more you can remove it easily.
  • Page 10 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

  • Page 11: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart Note: (1) Identification (location) No. of parts in the figures This flowchart indicates the disassembly steps to gain (2) Name of the part access to item(s) to be serviced. When reassembling, (3) Figure Number for reference follow the steps in reverse order.
  • Page 12 (S-7) [5] *BD Main CBA & BD Mechanism Assembly CN7101 (S-6) (L-1) CN6101 CN6000 (L-3) [3] Front CBA (L-1) (L-2) [2] Front Assembly Fig. D2 * See Reference Notes 3. Fig. D4 *See Reference Notes 2. [4] *Rear Panel Main PCB Bracket (S-8) (S-2) (S-8)
  • Page 13 3. How to Eject Manually 1. Remove the Top Cover, Front Assembly and BD Main CBA & BD Mechanism Assembly. 2. Slide the portion A in the direction of the arrow. 3. Pull the tray out manually and remove a disc. Portion A 1-5-3 E5S50DC...

  • Page 14: How To Initialize The Blu-Ray Disc Player

    HOW TO INITIALIZE THE BLU-RAY DISC PLAYER To put the program back at the factory-default, initialize the BD player as the following procedure. Note: By initializing, network is reset to disconnected state and “Network Service Disclaimer” appears on the screen. 1.

  • Page 15: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE Note: The file extension of the available firmware is The appearance shown in (*1) of Fig. c is “b35”. described as follows: 1. Turn the power on and remove the disc on the tray Appearance State and close the tray. Now Loading...
  • Page 16 How to Verify the Firmware Version 1. Turn the power on. 2. Remove the disc on the tray and close the tray. 3. Press [1], [2], [3], [4], and [INFO] buttons on the remote control unit in that order. Fig. h appears on the screen. "...
  • Page 17 FIRMWARE RENEWAL MODE (for User) 1. Press [ ] button to display Setup menu. 6. Firmware loading starts. Fig. f will appear on the screen and Fig. g appears on the VFD. 2. Select Settings - Advanced Setup - Others - Software Upgrade - Disc Upgrade.

  • Page 18: Troubleshooting

    TROUBLESHOOTING FLOW CHART NO.1 The power cannot be turned on. See FLOW CHART No.2 <The fuse blows out.> Is the fuse normal? Is normal state restored when once unplugged Check if there is any leak or short-circuiting on the power cord is plugged again after several seconds? primary circuit component, and service it if defective.
  • Page 19 FLOW CHART NO.6 P-ON+13V-A(-B) is not outputted. Is 13V voltage supplied to the emitter of Q2603? Check D1023, C1018, C1024, L1003 and their periphery circuit, and service it if defective. Check Q2601, D2601 and PWSW4 line and service Is 12V voltage supplied to the base of Q2603? it if defective.
  • Page 20 FLOW CHART NO.11 P-ON+1.8V is not outputted. Is 5V voltage supplied to Pin(2) of IC2602? Check D1011, D1013, D1014, C1019, C1025 and their periphery circuit, and service it if defective. Is the "H" signal inputted to the Pin(7) of IC2602? Replace IC2000.
  • Page 21 FLOW CHART NO.15 The key operation is not functioning. Are the contact point and the installation state Re-install the switches (SW6000, SW6001, SW6003, SW6004) correctly or replace the of the key switches (SW6000, SW6001, SW6003, SW6004) normal? poor switch. Check the switches (SW6000, SW6001, SW6003, When pressing each switches (SW6000, SW6001, SW6003, SW6004), do the voltage of Pin(1) of SW6004) and their periphery, and service...
  • Page 22 FLOW CHART NO.18 The disc tray cannot be opened and closed. [No Disc] indicated. Both functions of picture and sound do not operate normally. Replace the BD Main CBA & BD Mechanism Assembly. FLOW CHART NO.19 Picture does not appear normally. Set the disc on the disc tray, and playback.
  • Page 23 FLOW CHART NO.20 Audio is not outputted normally. Set the disc on the disc tray, and playback. Replace the BD Main CBA & BD Mechanism Are the analog audio signals outputted to each pin Assembly. of CN2200? CN2200 16PIN AUDIO(L) CN2200 18PIN AUDIO(R) Are the analog audio signals inputted to each pin Check each line between each pin of CN2200...

  • Page 24: Internet Radio (Vtuner) Error Code

    INTERNET RADIO (vTuner) ERROR CODE Error Code appears in the error screen when the unit “Summary Error Code” are shown in the list below. detects an error, as shown below. The code is used to Summary specifically determine the cause of error. Error message Error Code Network Error...
  • Page 25 Detailed Error Code table (vTuner – HTTP Status Code) Status Code Description 201 Created A new resource was created by this unit’s request. 202 Accepted This unit’s request was accepted but its processing is not completed. 204 No Content Though the server processed the request, there was no content. This unit caches latest resource and the requested resource is not modified.
  • Page 26 Status Code Description An exception error occurred during communication between the server or the 701 Protocol Error broadcast. 702 Start Up Error The application of this unit failed to start. 703 URL Error The URL which this unit specified is in invalid form. Connection with the proxy which exists between this unit and the server or the 705 Connect Failed broadcast has failed.

  • Page 27: Block Diagrams

    BLOCK DIAGRAMS System Control Block Diagram 1-10-1 E5S50BLS...
  • Page 28 Digital Signal Process 1 Block Diagram 1-10-2 E5S50BLD1...
  • Page 29 Digital Signal Process 2 Block Diagram 1-10-3 E5S50BLD2...
  • Page 30 Video Block Diagram TMDS SERIALIZER TMDS ENCODER HDCP CIPHER/ ENCRYPTOR CONTROLLER AUDIO 1-10-4 E5S50BLV...
  • Page 31 Audio Block Diagram 1-10-5 E5S50BLA...
  • Page 32 Power Supply Block Diagram 1-10-6 E5S50BLP...

  • Page 33: Schematic Diagrams / Cba And Test Points

    SCHEMATIC DIAGRAMS / CBA AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
  • Page 34 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE-REPLACE FUSE AS MARKED.
  • Page 35 AV 1 Schematic Diagram CAUTION ! CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. NOTE: For continued protection against fire hazard, If Main Fuse (F1001) is blown , check to see that all components in the power supply replace only with the same type fuse.
  • Page 36 AV 2 Schematic Diagram 1 NOTE: Either IC2001 or IC2002 is used for AV CBA. E5S50SCAV2 1-11-4...
  • Page 37 AV 3 Schematic Diagram E5S50SCAV3 1-11-5...
  • Page 38 Front Schematic Diagram FL5001 MATRIX CHART E5S50SCF 1-11-6...
  • Page 39 BD Main 1 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD1 1-11-7...
  • Page 40 BD Main 2 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD2 1-11-8...
  • Page 41 BD Main 3 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD3 1-11-9...
  • Page 42 BD Main 4 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD4 1-11-10...
  • Page 43 BD Main 5 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD5 1-11-11...
  • Page 44 BD Main 6 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD6 1-11-12...
  • Page 45 BD Main 7 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD7 1-11-13...
  • Page 46 BD Main 8 Schematic Diagram E5S50SCBD8 1-11-14...
  • Page 47 BD Main 9 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD9 1-11-15...
  • Page 48 BD Main 10 Schematic Diagram E5S50SCBD10 1-11-16...
  • Page 49 BD Main 11 Schematic Diagram 1 NOTE: The order of pins shown in this diagram is different from that of actual IC6001. IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section. E5S50SCBD11 1-11-17...
  • Page 50 AV CBA & Front CBA Top View CAUTION ! Because a hot chassis ground is present in the power supply CAUTION ! circuit, an isolation transformer must be used when repairing. Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. For continued protection against fire hazard, If Main Fuse (F1001) is blown , check to see that all components in the power supply Also, in order to have the ability to increase the input slowly,...
  • Page 51 AV CBA & Front CBA Bottom View CAUTION ! Because a hot chassis ground is present in the power supply CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. circuit, an isolation transformer must be used when repairing. For continued protection against fire hazard, If Main Fuse (F1001) is blown , check to see that all components in the power supply Also, in order to have the ability to increase the input slowly,...

  • Page 52: Waveforms

    WAVEFORMS Pin 7 of CN2200 Pin 16 of CN2200 VIDEO-Pr/Cr 0.2V 10µs AUDIO(L) 0.5ms Pin 9 of CN2200 Pin 24 of CN2200 SPDIF 0.1µs VIDEO-Pb/Cb 0.2V 10µs C2303 PLUS LEAD VIDEO-CVBS 0.5V 20µs NOTE: Input Signal (DVD) VIDEO: 75% COLOR BAR AUDIO: 1KHz, 0dB 1-12-1 B3NWF...

  • Page 53: Wiring Diagram

    WIRING DIAGRAM EXPB(+) EXPB(-) EXPA(+) EXPA(-) SA-INT THERMO P-ON+1.8V P-ON+1.8V P-ON+1.8V P-ON+5V(1) RF(+) RF(-) P-ON+1.2V P-ON+10.5V BDRF(+) P-ON+1.2V BDRF(-) P-ON+10.5V P-ON+1.2V VC-PD LD-TYPE P-ON+3.3V +3.3V P-ON+3.3V SDDAT1 P-ON+5V(2) SDDAT0 BD-LD SDATA2 SDDAT2 SCLK2 CD-LD SEN-LDD SDDAT3 FAN-VCC LDEN PD-LD SDCLK FAN-GND TEST-V DVD-LD...

  • Page 54: System Control Timing Charts

    SYSTEM CONTROL TIMING CHARTS Power on Hand close [ Tray Close ] [ Tray Open ] SLED moves Start Start Start Start SLED position Hand close Tray close SLED inner initialization detection around moves SLED position Pick-up position Tray open initialization moves [ Tray Open ]...
  • Page 55 Parameter V*: Voltage T*: Event timer V0: 1.5 V T1: 0.3 s V1: 6.8 V T3: 0.4 s V2: 3.5 V T4: 2.0 s V3: -3.5 V T5: 0.2 s V4: -2.5 V T6: 3.0 s V5: -6.8 V T7: 3.0 s V6: 0.8 V T8: 2.0 s V7: -4.0 V...

  • Page 56: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS IC2000 (SUB MICRO CONTROLLER) Signal Function Name Signal Function I2C-CLK Not Used Name FLASH- IN AD-KEY1 Key Date Input Not Used Not Used FLASH- Not Used Not Used Not Used 37 OUT PWSW2 Power On Signal Output 2 Not Used 38 OUT PWSW3 Power On Signal Output 3...
  • Page 57 IC6001 ( VFD DRIVER ) Signal Function Name Signal Function Name Not Used Not Used Not Used Grid Output Not Used IN OSC Oscillator Input Not Used IN VFD-DIN Serial Data Input Power Supply IN VFD-CLK Serial Clock Input IN VFD-STB Serial Interface Input Ground Not Used...

  • Page 58: Lead Identifications

    LEAD IDENTIFICATIONS SL431A-AT 2SA1980M Y 2SA1981Y-AT 2SA1980MG-AT 2SC5344 Y 2SC5343MG-AT STB1277LY-AT E C B R A K E C B 2SA1980SFY BD9321EFJ-E2 2SC5343SFG FA5573N-D1-TE1 PS2561A-1(W) PST8229NR SRA2205SF PST8229UR SRC1203SF 1: Anode 2: Cathode 3: Emitter 4: Collector 1 2 3 M101C77AGE1 BH76071FJ-E2 UTC4580TE...

  • Page 59: Exploded Views

    EXPLODED VIEWS Cabinet 2L082 2L082 2L085 2L082 BD Main CBA & BD Mechanism Assembly 2L049 2L034 2L081 2L070 2L083 2L071 F1001 2L034 AV CBA AC1001 FM1001 2L034 Front CBA See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence.
  • Page 60 Packing Upper Side Lower Side X2-A S1-A S1-B Some Ref. Numbers are not in sequence. 1-17-2 E5S50PEX...
  • Page 61 BDP5110/F7 D(E5S50UD) BDP5110/F7 D(E5S50UD) 20100624 C1009 ELECTROLYTIC CAP. 47UF/35V/M CEE47RENW016 BDP5110/F7 D(E5S50UD) C1010 METALIZED FILM CAP. 0.0022UF/400V K CT2H222DT034 C1012 CHIP CERAMIC CAP. B K 0.068UF/50V CHD1JK30B683 C1013 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V CHD1JK30B103 C1016 ELECTROLYTIC CAP. 47UF/16V/M CEC47RENW016 Ref.
  • Page 62 BDP5110/F7 D(E5S50UD) BDP5110/F7 D(E5S50UD) C2627 CHIP CERAMIC CAP. F Z 1UF/10V CHD1AZ30F105 D2601 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F C2629 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 D2605 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F C2630 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104 D2608 DIODE SWITCHING 1N4148-F0021...
  • Page 63 BDP5110/F7 D(E5S50UD) BDP5110/F7 D(E5S50UD) Q2606 PNP TRANSISTOR STB1277LY-AT NQSYSTB1277L R2042 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 Q2608 PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M R2043 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103 Q2609 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S R2049 CHIP RES. 1/10W J 10K OHM...
  • Page 64 BDP5110/F7 D(E5S50UD) R2661 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R2662 CHIP RES. 1/10W F 1.5K OHM RRXAFR5H1501 R2663 CHIP RES. 1/10W F 2.2K OHM RRXAFR5H2201 R2664 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301 R2669 CHIP RES. 1/10W J 27K OHM...
  • Page 65 Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law. BDP5110/F7 D E5S50UD 2010-08-03...
