Recommended Digital/Traceable Thermometer
DIGITAL/TRACEABLE
THERMOMETER INSTRUCTIONS
SPECIFICATIONS
Range: -58.0 to 158.0 °F / -50.0 to 70.0 °C
Resolution: 0.1°
Update Rate: 10 seconds
Battery: AAA (1.5V)

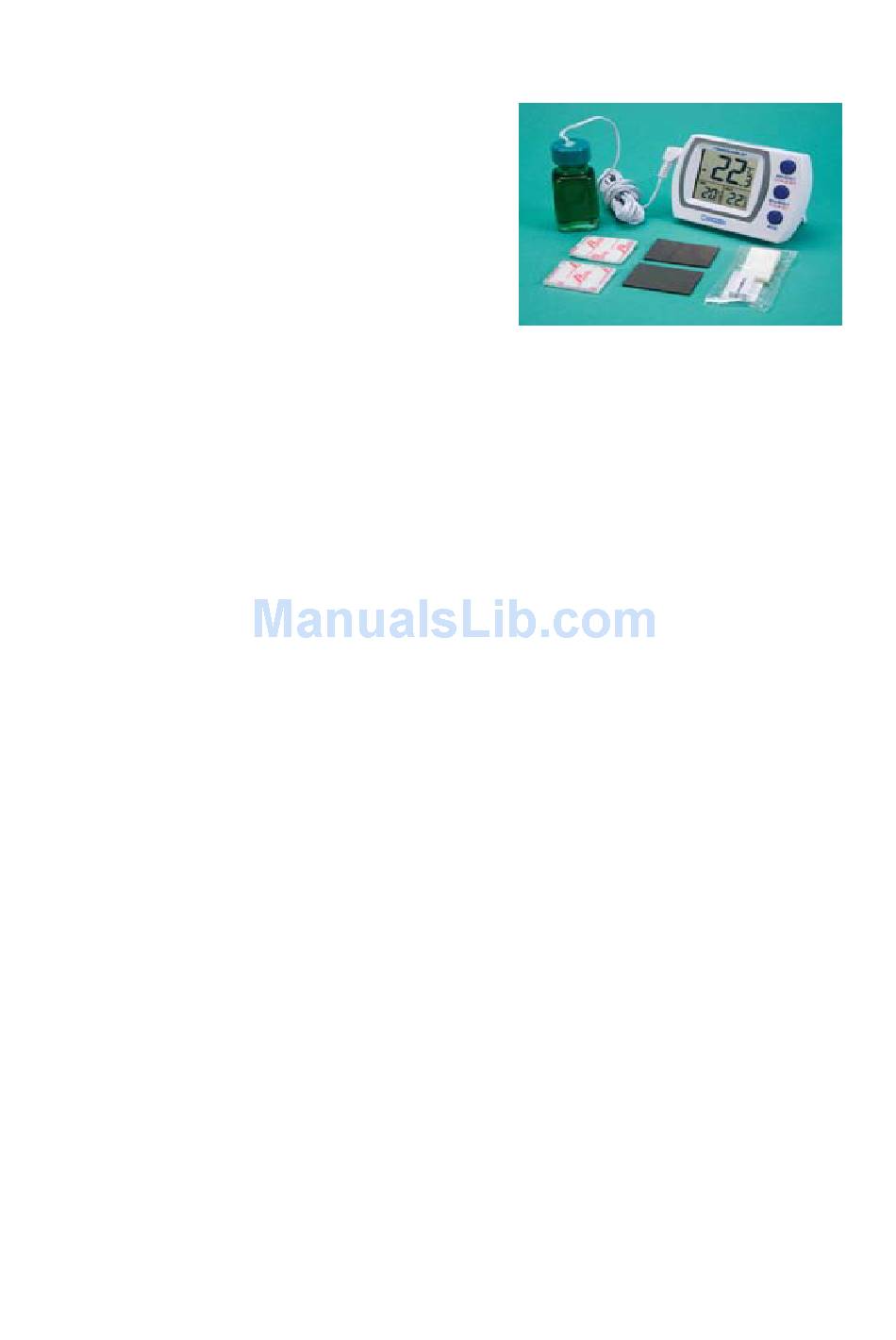

Probe Supplied:
Model 4227 - Supplied with a bottle sensor and cable. Bottle sensor is filled
with a patented non toxic glycol solution that is GRAS (Generally Recognized
As Safe) by the FDA (Food and Drug Administration) eliminating concerns
about incidental contact with food or drinking water. The solution filled bottle
simulates the temperature of other stored liquids. Velcro® and a magnetic
strip are provided to mount the bottle to the inside of a refrigerator/freezer and
to mount the display on the outside. The micro-thin probe cable permits
refrigerator/freezer doors to close on it.
TEMPERATURE DISPLAY MODES
Ambient Temperature Display Mode (IN):
Indicated by "IN" appearing on the display, displays the current ambient
temperature and either the ambient temperature memory (MIN/MAX) or the
ambient temperature alarm limits (LO/HI). For the purpose of temperature
monitoring there is no requirement to display the 'IN' Mode
Probe Temperature Display Mode (OUT):
Indicated by "OUT" appearing on the display, the current probe temperature
and either the probe temperature memory (MIN/MAX) or the probe
temperature alarm limits (LO/HI). The 'OUT' Mode is the screen that is
used to record temperature monitoring. Please ensure that this screen
is displayed at all times.
To change between ambient (IN) and probe (OUT) temperature display
modes, press the IN/OUT button located on the back of the unit. Please
ensure that the 'OUT' screen is displayed at all times ,
DISPLAYING °F OR °C
To display the temperature readings in Fahrenheit or Celsius, press the °C/°F
button located on the back of the unit. Temperature montoring should
always be recorded in Celsius -°C.
Advertisement
Related Manuals for Control Company 4227
Summary of Contents for Control Company 4227
- Page 1 Battery: AAA (1.5V) Probe Supplied: Model 4227 - Supplied with a bottle sensor and cable. Bottle sensor is filled with a patented non toxic glycol solution that is GRAS (Generally Recognized As Safe) by the FDA (Food and Drug Administration) eliminating concerns about incidental contact with food or drinking water.
- Page 2 ALARM SOUNDING With the alarm enabled (a bell logo on current screen situated on the top left), the unit will sound an alarm when the temperature being displayed is outside the alarm limits that have been set for that display mode (equal to or lower than the low alarm set point, or equal to or greater than the high alarm set point).
- Page 3 QUICK GUIDE THERMOMETER SET UP Plug the probe (green bottle attachment) into the side of the unit. Install the battery into the back of the unit. Place the probe sensor (green glycol bottle) in the middle of the refrigerator Place the display unit outside the refrigerator using the magnet supplied Allow sufficient time (approximately 1 hour) before switching the thermometer unit on using the on/off button at the back of the unit.
-
Page 4: Battery Replacement
• Minimum Temperature Reading (MIN) • Maximum Temperature Reading (MAX) 2. Once the above items have been manually recorded, clear both the minimum and maximum temperature memory. By clearing the memory each day, the minimum and maximum temperature memory will provide a record of the minimum and maximum temperature that has been achieved inside the refrigerator over the past 24 hour monitoring period. - Page 5 Supplies Department, Ninewells Hospital using either Pecos or Non Stock Requisition Description: Traceable Memory Monitoring Refrigerator/Freezer Thermometer Order code: 14140 Manufacturer: Control Company Price: Available from supplier upon request Supplier: Distinctive Medical Products, 3 Seymour Court, Runcorn, Cheshire, WA7 1SY...
