Summary of Contents for RCA LCDX2619W

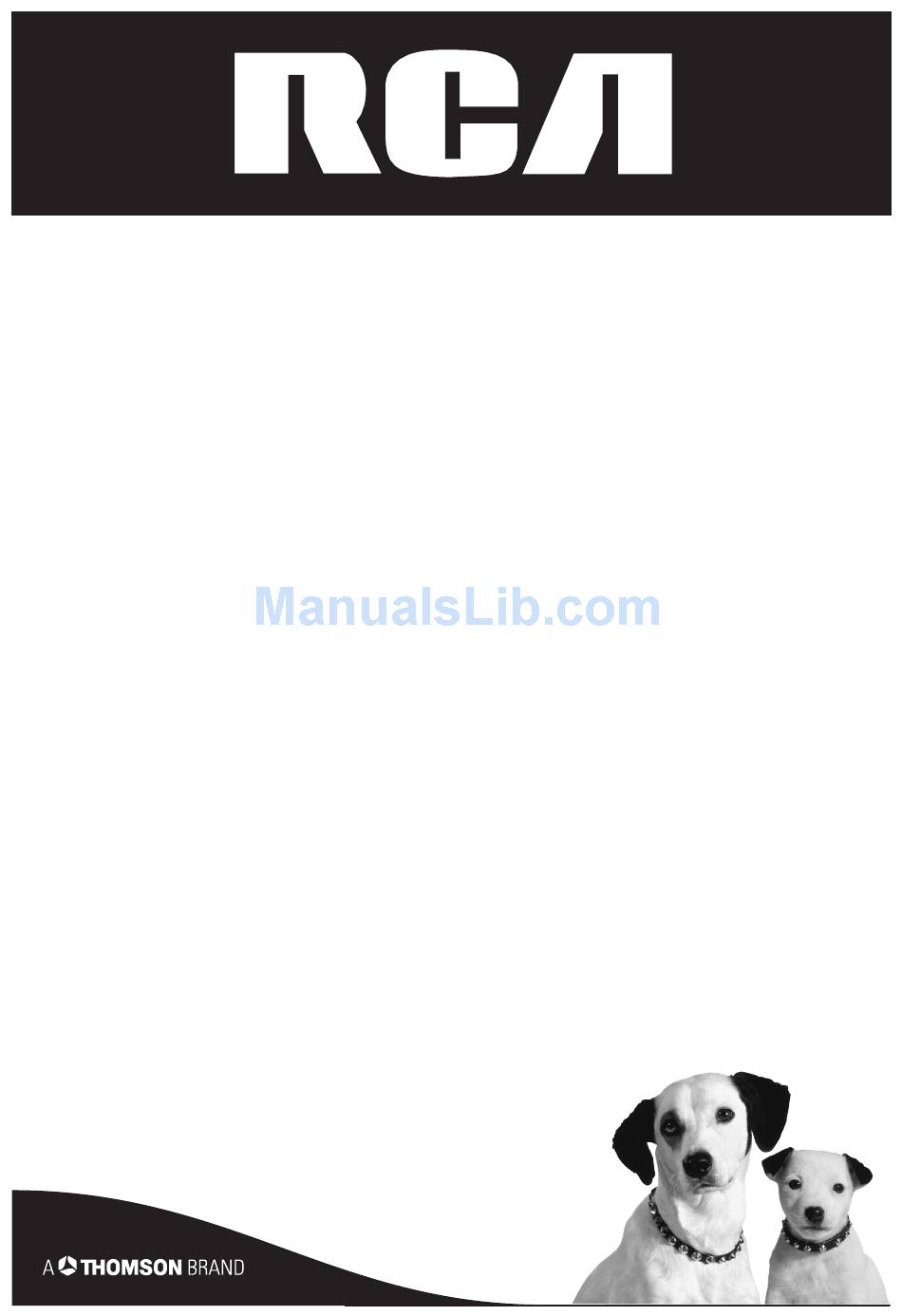

- Page 1 LCD Television User’s Guide Changing Entertainment. Again.
-
Page 2: Important Information
Product Registration Please fill out the product registration card (packed separately) and return it immediately. For U.S. customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/productregistration. Registering this product allows us to contact you if needed. -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 This page left intentionally blank.
-
Page 5: Table Of Contents
Chapter 1: Connections & Setup Things to Consider Before You Connect ... 3 Protect Against Power Surges ... 3 Protect Components from Overheating ... 3 Important Stand and Base Safety Information ... 3 Position Cables Properly to Avoid Audio Interference ... 3 Use Indirect Light ... - Page 6 Table of Contents Chapter 4: Using the Menu System Menus, On-screen Help, and Control Panels ... 24 Exiting a menu ... 24 Controls ... 24 Picture Menu ... 25 Sound Menu ... 26 Parental Control Menu ... 27 Preferences Menu ... 27 Setup Menu ...
-
Page 7: Chapter 1: Connections & Setup
Things to Consider Before You Connect Protect Against Power Surges • Connect all components before you plug any of their power cords into the wall outlet or power strip. NEVER plug your TV into an outlet that is controlled by a wall switch. •... -
Page 8: Explanation Of Jacks
Connections & Setup Explanation of Jacks This section describes the jacks and cables you might use to make connections. There are several ways to connect components to your TV. Different jacks and cables provide a different level of performance. It’s important to remember the different degrees of picture improvement for comparison. - Page 9 CMPT (Component) Input • Y Pb Pr VIDEO IN For connection of components that have component output jacks (Y, Pb, Pr), such as a personal computer, HD receiver, DVD player, or other device with component outputs. The Y Pb Pr jacks provide excellent picture quality because the video is separated into three signals. •...
-
Page 10: Connect Your Cable
Main Menu. AUDIO ˇ˝ ˇ˝ ˇ ˝ ˇ˝ ˇ˝ ˇ ˝ ˇ˝ ˇ˝ ˇ˝ ˇ ˝ ˇ˝ HD receiver (RCA Scenium ATSC21, for example) Graphics contained within this publication are for representation only. CABLE OFF-AIR ANTENNA ˇ˝ ˇ˝ ˇ˝ ˇ ˝... - Page 11 Using the CMPT Jack Connect a component, such as a VCR, DVD player or Satellite Receiver, to the TV using the CMPT jacks. Connect Component cables to the Y Pb Pr VIDEO IN jacks on the bottom panel of the TV and to the Component Out jacks on the component. Then connect audio cables to the CMPT AUDIO IN jacks (R and L) on the bottom panel of the TV and to the Audio Output jacks on the component.
-
Page 12: Connection To A Personal Computer
Connections & Setup Connection to a Personal Computer Using RGB Connect a personal computer to the TV using the RGB jack. Connect a 15-pin monitor cable to the computer and the other end to the bottom of the TV. Note: Your computer will most likely output the signal in a 4:3 aspect ratio. Be sure to change the monitor setting for the best picture quality. -
Page 13: Set Up Your Tv
Set Up Your TV There are several options you might need to set up in order for your TV to work properly. Turn on your TV, then press the MENU button on your remote control. Read the instructions that follow. MAIN MENU Picture Sound... -
Page 14: Complete Channel Search
Connections & Setup Setup Signal Type Cable. . . Auto Channel Search Start. . . Autotuning. . . Channel List. . . Press </> to start. Press MENU to go to Main Menu. Press OK to stop search. Graphics contained within this publication are for representation only. Complete Channel Search To search for all channels viewable through your antenna or cable TV system:... -
Page 15: Chapter 2: Using The Remote Control
To turn off most RCA, GE, and Proscan components that are connected to the TV, press ON•OFF twice within two seconds. This feature only works with most RCA, GE, and Proscan products. Chapter 2 Graphics contained within this publication are for representation only. -
Page 16: Using The Input Button
The universal remote can be programmed to operate most brands of remote controllable components. The remote is already programmed to operate most RCA, GE, and Proscan components. Notes: The TV button can’t be programmed on this remote. The remote may not be compatible with all brands and models of components. -
Page 17: How To Use The Remote After You've Programmed It
Using Automatic Code Search The following instructions can be used to program the remote to operate each of your components. If you want to stop the automatic code search without programming any of your components, press CLEAR until the indicator on the remote turns off. 1. -
Page 18: Remote Control Codes
Quarter ... 2011 Quartz ... 2011 Quasar ... 2021, 2022, 2125 RCA ... 2000, 2001, 2003, 2013, 2021, 2055, 2056, ... 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089, ... 2090, 2091, 2107, 2115, 2120, 2125, 2131, 2133 Radioshack/Realistic ... 2011, 2013, 2014, 2021, ... -
Page 19: Chapter 3: Using The Tv's Features
Chapter 3: Using the TV’s Features Commercial Skip Timer 00:00:30 Sleep Timer 01:30 Why You Should Use the Autotuning Feature The autotuning feature tunes the TV to the correct channel for different components you have connected to your TV (like a VCR or DVD Player). When you set up autotuning in the menu system, you don’t have to remember to change your TV to channel 3, for example, when you want to watch the tape in your VCR. -
Page 20: Pip (Picture-In-Pc) Operation
Using the TV’s Features Autotuning Set VCR Ch/Input 03. . . Set DVD Ch/Input VID1. . . Set SAT Ch/Input CMPT. . . Set AUX Ch/Input DVI. . . Press </> or OK to select. Press MENU to go to Setup Menu. Graphics contained within this publication are for representation only. -
Page 21: Parental Controls
Parental Control US V-Chip. . . Canada V-Chip. . . V-Chip Unrated/Exempt View. . . Front Panel Block Channel Block. . . Lock Parental Controls. . . Press </> or OK to go to the sub-menu. Press MENU to go to Main Menu. How V-Chip Works The V-Chip software reads a code that most broadcasters send with programs. -
Page 22: Canadian English V-Chip Rating System
Using the TV’s Features Canadian English V-Chip Rating System 18+ (Adults) Programming intended for adults 18 and older. It may contain elements of violence, language, and sexual content which could make it unsuitable for viewers under 18. Violence Guidelines: May contain violence integral to the development of the plot, character or theme, intended for adult audiences. -
Page 23: V-Chip Tv Ratings
Parental Control US V-Chip. . . Canada V-Chip. . . US V-Chip V-Chip Unrated/Exempt View. . . Front Panel Block V-Chip TV Ratings. . . Channel Block. . . V-Chip Movie Ratings. . . Lock Parental Controls. . . V-Chip TV Ratings Rating TV-MA. -
Page 24: Blocking Specific Content Themes
Using the TV’s Features Hierarchy of Age-Based Ratings TV-MA Mature Audience Only TV-14 Parents Strongly Cautioned TV-PG Parental Guidance Suggested TV-G General Audience TV-Y7 Directed to Children 7 years and older TV-Y All Children V-Chip TV Ratings Rating TV-14. . . Status View. -
Page 25: Viewing Specific Content Themes
Viewing Specific Content Themes 1. Determine the content themes you want to change to View. 2. Highlight Rating. 3. Press the right arrow button to select the rating whose content theme you want to change, such as Block next to language (L) corresponding with TV-14. 4. -
Page 26: Blocking Canadian V-Chip Ratings
Using the TV’s Features Viewing Movie Ratings After you block movie ratings, you have the option of changing some of the rating status buttons back to View: 1. Highlight the rating you want to view. 2. Press the OK button to change the button from Block to View. For example, if movies with a rating of PG-13 and higher are blocked, you can change the rating status corresponding with NC-17. -
Page 27: Front Panel Block
Front Panel Block Selecting this option lets you block (disable) or unblock (enable) the TV’s front panel buttons. The remote still tunes to any channel. Front Panel Block can: • Keep children from watching TV when the parent is not present. •... -
Page 28: Chapter 4: Using The Menu System
Chapter 4: Using the Menu System Menus, On-screen Help, and Control Panels This section explores menus of your TV beginning with some information on using menus and control panels. Each menu is outlined and detailed to help you get the most from your TV. The Parental Control menu is discussed in the Features chapter. -
Page 29: Picture Menu
Film Mode Noise Reduction Level 1. . . Check Box Menu Position Menu Background Opaque. . . Icon Selections Enter Password: _ _ _ _ Menu Position Menu Background Opaque. . . Sleep Timer 30 Minutes. . . Picture Brightness Contrast Color Saturation Tint... -
Page 30: Sound Menu
Using the Menu System Adv. Picture Settings Black Level 0 IRE. . . Backlight Adjust Normal. . . Film Mode Noise Reduction Level 1. . . Zoom Mode Press </> to select. Press MENU to go to Picture Menu. Sound Volume Treble Bass... -
Page 31: Parental Control Menu
Auto Volume Level Turn on this feature to reduce blasts in volume during commercial breaks to create more consistent audio output. Audio Output If you have an amplifier connected to the audio output jacks, choose Fixed to turn the TV speakers off and control the volume through the amplifier. Choose Variable when a component isn’t connected to the audio output jacks. -
Page 32: Setup Menu
Using the Menu System Menu Time-out Set how long you want the menus to appear on-screen (starting at 10 seconds up to 180 seconds) by pressing the left or right arrow button. Menu Position Select where you want the menu to appear on the TV. Menu Background Select the appearance of menu background: Opaque for a solid background;... -
Page 33: Pc Picture Quality Menu
Picture Brightness Contrast Picture in PC Color Warmth Normal. . . DVI Source Video. . . Press </> to adjust.Press MENU to go to Main Menu. Picture Size Auto Adjustment OK... H. Position V. Position Phase Adjustment Sync Adjustment Press </> to adjust.Press MENU to go to Main Menu. Sound Volume Treble... -
Page 34: Pc Preferences Menu
Using the Menu System Preferences Language English. . . Menu Time-out 10 Seconds Menu Position Menu Background Opaque. . . Timers. . . Backlight Bright. . . Press </> or OK to select. Press MENU to go to Main Menu. Information Center Signal Information Resolution... -
Page 35: Chapter 5: Other Information
Authorized Service Representative who will visit your home for a fee to install your electronic entertainment system and to instruct you in its operation. For details about this service, call 1-888-206-3359. For additional assistance while using your RCA product, please visit www.rca.com/customersupport. -
Page 36: Care And Cleaning
Other Information No picture, no sound but TV is on • Maybe the signal type is set wrong. Go to page 28 for detailed instructions. • The channel might be blank — change channels. • If you’re watching your VCR and it’s connected with coaxial cable to the Antenna/Cable jack, tune the TV to channel 3 or 4 (whichever channel is selected on the 3/4 switch on the back of your VCR). -
Page 37: Limited Warranty
Please complete and mail the Product Registration Card packed with your TV or register on-line at www.rca.com. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage. -
Page 38: Other Information
Other Information • REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. -
Page 39: Accessory Information
VH82 (6-ft) $4.95 Chapter 5 Graphics contained within this publication are for representation only. Other Information Standard Audio/Video cable with RCA-type phono plugs. VH83 $5.95 2-way Signal Splitter: Helps you connect to a second TV or VCR. VH47 $3.95 Amplified VHF/UHF/FM... - Page 40 · Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Visit the RCA web site at www.rca.com Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.
