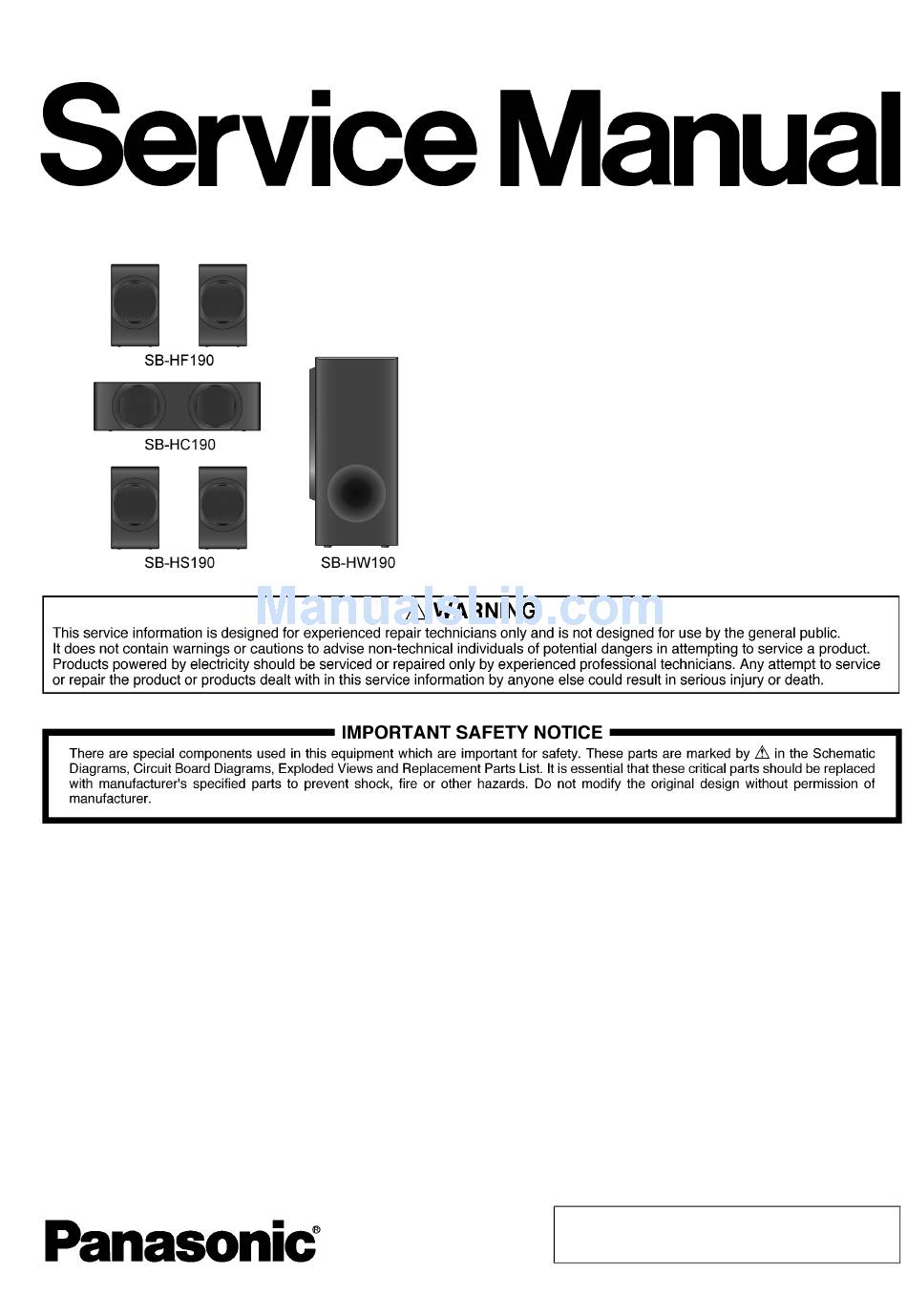

Product Color : (K)... Black Type TABLE OF CONTENTS PAGE PAGE 1 Service Navigation ----------------------------------------------- 2 5.1. Front Speakers (SB-HF190P-K) Cabinet Parts 1.1. System Information (SB-BTT190P-K/PCK) --------- 2 Location ---------------------------------------------------- 13 1.2. Front Speakers (SB-HF190P-K) ----------------------- 2 5.2. Center Speaker (SB-HC190P-K) Cabinet 1.3.
SC-BTT190GNK SC-BTT190EGK SC-BTT190EBK SC-BTT190EPK 1.2. Front Speakers (SB-HF190P-K) Please refer to original service manual, SB-XH170P/PC-K (Order No. PSG1201002CE) for following. • Disassembly and Assembly Instructions • Wiring Connection Diagram The illustrations for the speakers will be described in this manual.
2 Specifications Front Speakers (SB-HF190P-K) Full range: 6.5 cm (2 1/2”) Cone type Dimensions (W x H x D): 80 mm x 139 mm x 71 mm (3 5/32” x 5 1/2” x 2 13/16”) Mass [Weight]: Approx. 0.37 kg (0.8 lbs)
3 Disassembly and Assembly Instructions Caution Note: • This section describes procedures for checking the operation and replacing the main components. • For reassembly after operation checks or replacement, reverse the respective procedures. • Special reassembly procedures are described only when required. •...
3.1. Center Speaker (SB-HC190P-K) 3.1.1. Disassembly of Full Range Speaker Step 4 : Lift up the Full Range Speaker (SP21) slightly. Caution : Do not exert too much force as it may damage (SP21) the speaker wires within. Step 1 : Remove 8 screws. Step 2 : Upset the unit.
Page 6
3.1.2. Disassembly Front Cabinet Step 4 : Remove Piezo Network Assembly. Step 5 : Remove Front Cabinet Assembly. Assembly • Refer to “Disassembly of Full Range Speaker (SP21)” Step 1 : Detach the Black (-) and Red (+) wires. Step 2 : Remove Rear Cabinet Assembly. Step 3 : Remove Hot-melt Glue.
Page 7
3.1.3. Replacement Piezo Network Step 3 : Remove Piezo Network Assembly from Piezo Cover. Assembly, Piezo Cap & Piezo Cover • Refer to “Disassembly of Full Range Speaker (SP21)” • Refer to “Disassembly of Front Cabinet Assembly” 3.1.3.1. Disassembly of Piezo Network Assembly, Piezo Cap &...
Page 8
3.1.3.2. Assembly Piezo Network Step 3 : Place Piezo Network Assembly to the Piezo Cover as shown. Assembly, Piezo Cap & Piezo Cover Step 1 : Place Piezo Cap as shown. Step 4 : Place Piezo Network Assembly to the Piezo Cap. Step 2 : Apply Glue to the Piezo Cap.
Page 9
Step 5 : Apply Hot-melt Glue to the Piezo Network Assembly.
3.2. Replacement of Speaker Connector Housing 3.2.1. Disassembly Step 2: Insert the (+) speaker wire into the (+) hole of the Speaker Connector Housing. Step 1: Use a paper clip push the Speaker Wire head until it Note: Push in the speaker wire until hear the “click” sound. hide inside the Speaker Connector Housing.
5.6. Replacement Parts List 5.6.1. Front Speakers (SB-HF190P-K) 5.6.2. Center Speaker (SB-HC190P-K) Safety Ref. No. Part No. Part Name & Qty Remarks Safety Ref. No. Part No. Part Name & Qty Remarks Description Description CABINET AND CABINET AND CHASSIS CHASSIS...
Page 20
5.6.3. Surround Speakers (SB-HS190P-K) 5.6.5. Accessories and Packing Materials (SB-BTT190P-K/PCK) Safety Ref. No. Part No. Part Name & Qty Remarks Description Safety Ref. No. Part No. Part Name & Qty Remarks Description CABINET AND CHASSIS ACCESSORIES RYP1726-KJ FRONT PANEL REEX1267A-J SP CORD WHITE ASS’Y A1-1...
