Navaio NAC-HD-226V-W User Manual

Specification
Model
NAC-HD-226V-W
Image Sensor 1/2.9" SONY 2.4MP CMOS Sensor
Resolution 1080P
Signal System PAL / NTSC
Minimum Illumination 0.001Lux/F1.2
S/N Ratio More than 50dB
Synchronous System Internal
IR Distance 30 Meters (with 14µ x 24PCS Infrared LED)
IR Power On Photodiode AUTO Control
Video Output CVBS / CVI / TVI / AHD
Power/Current DC12V(+/-10%)/700mA
Lens 2.8-12mm Manual Zoom Lens
Weather Proof IP66
￠131 x 93(H)
Dimension (mm)
Weight (g) 800
OperatingConditions -40~+50℃ RH95% MAX
Accessories list
Name
Camera
User Guide
Notes:
Number
Do not attempt to disassemble the camera. If the camera
1
can not work, please contact local franchiser or our company.
1

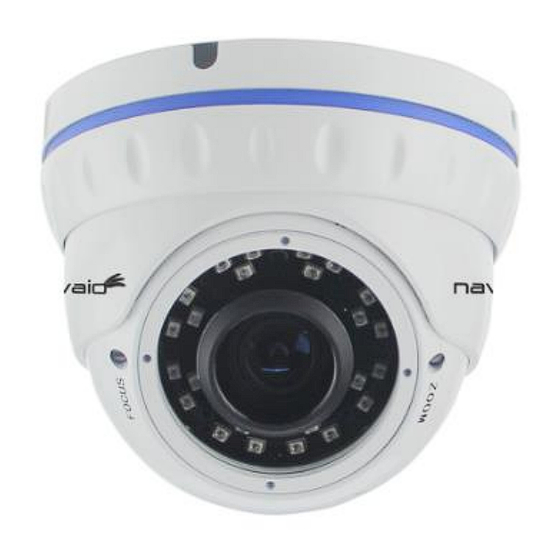

NAC-HD-226V-W
Varifocal Dome Camera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-j amming, rich and real color. F ixing an d
using this mod el are co nvenient too. It is ver y good
for you to apply to your CCTV system.
