INTRODUCTION
Your FRS radio is a portable, easy-to-use, two-way radio with clock and NOAA receiver
that you can carry almost anywhere. It makes you can contact others as well as watching
NOAA W X broadcasts in one unit meanwhile grasping time. Use it at shopping malls,
amusement parks, sports events, or at the beach to contact family and friends, or for vital
communications in a neighborhood watch.
Your radio has 14 channels and 38 different quiet codes. If someone else is using the
channel you selected and you do not want to hear that person, select another channel or
use the quiet feature. You can talk with a person who has a FRS radio if both radios are
tuned to the same channel and quiet code.
Your radio has auto-squelch (FRS only), which means you will not hear anything on a
channel unless someone is transmitting nearby on the same channel.
auto-squelch to hear weaker, distant transmissions.
Also, if the radio is idle for a period of time of 2 hours, it automatically shuts off. It turns
on again when you press POWER/VOL key for 2 seconds.
You can connect an optional earphone/microphone and a charger (not supplied) to the
radio. And, the belt clip lets you take your radio almost anywhere.
FCC INFORMATION
Important:
Do not open your radio to make any internal adjustments. Your radio is set
up to transmit a regulated signal on one of 14 assigned frequencies. It is against the law
to alter or adjust the settings inside the radio to exceed those limitations.
adjustments to your radio must be made by a qualified technician using the proper test
equipment.
To be safe and sure:
!
Never open your radio's case.
!
Never change or replace anything in your radio except the batteries.
Your radio might cause TV or radio interference even when it is operating properly. To
determine whether your radio is causing the interference, turn it off. If the interference
goes away, your radio is causing it. Try to eliminate the interference by:
OWNER'S MANUAL
FRS RADIO
WRF 108
1
You can turn off
Any
Advertisement
Table of Contents
Related Manuals for Oregon Scientific WRF 108
Summary of Contents for Oregon Scientific WRF 108
-
Page 1: Fcc Information

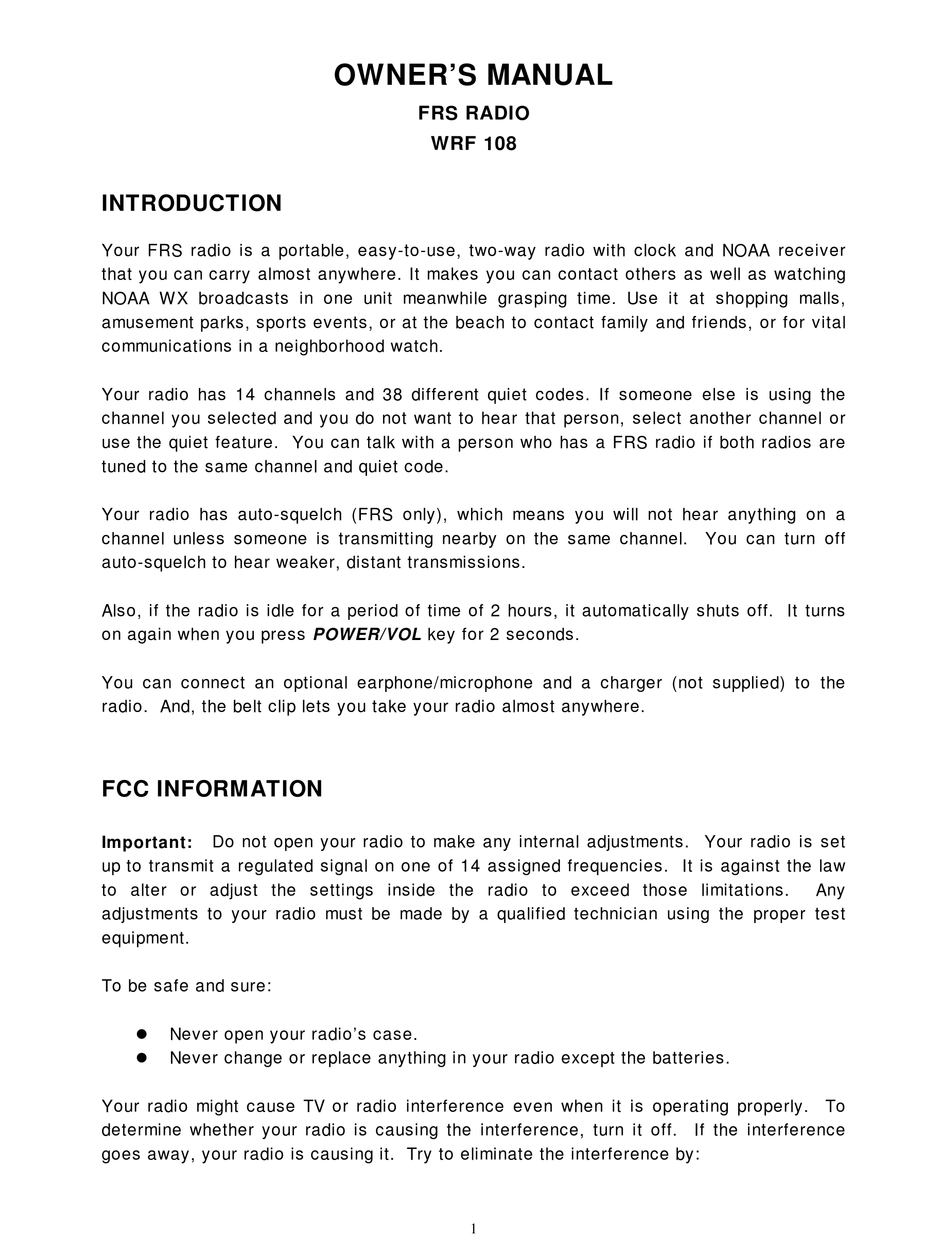

OWNER’S MANUAL FRS RADIO WRF 108 INTRODUCTION Your FRS radio is a portable, easy-to-use, two-way radio with clock and NOAA receiver that you can carry almost anywhere. It makes you can contact others as well as watching NOAA W X broadcasts in one unit meanwhile grasping time. Use it at shopping malls, amusement parks, sports events, or at the beach to contact family and friends, or for vital communications in a neighborhood watch. -
