Lenovo ThinkServer TS440
Product Guide
The Lenovo ThinkServer TS440 is the ideal server for small and medium businesses, remote or branch
offices, and retail environments. It features Intel Xeon processor E3-1200 v3 product family with four cores
and support for up to 32 GB of 1600 MHz DDR3 memory. Also, it offers an integrated 1 GbE NIC and
additional PCIe expansion slots for advanced RAID protection and network and peripheral port scalability.
Up to 48 TB of internal enterprise-class storage supports storage-intensive workloads, such as office
applications, web, e-mail and file and print serving, and provides growth capacity.
The following figure shows the Lenovo ThinkServer TS440.

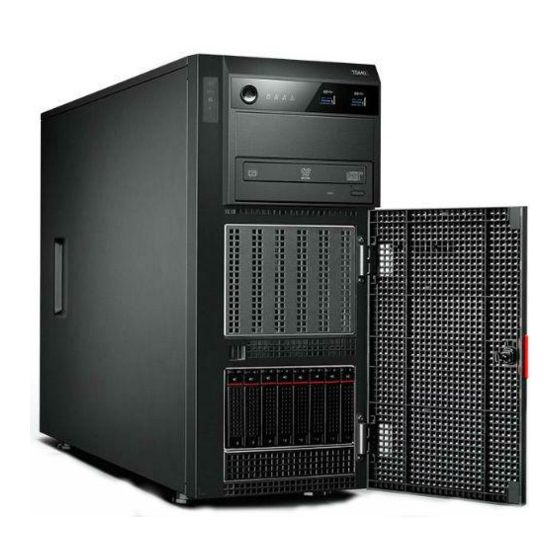

Figure 1. Lenovo ThinkServer TS440
Did you know?
The TS440 offers enterprise-class reliability features such as error correcting code (ECC), hot-swap
components, and advanced RAID protection with flexible storage configurations at an affordable price.
Intel Active Management Technology (AMT) built into the TS440 offers easy-to-use, industry-standard
management tools for remote monitoring, updates, and repairs.
The TS440 runs a wide range of server operating systems, and it also supports client OS capability.
Click here to check for updates
Lenovo ThinkServer TS440
1
Advertisement
Table of Contents
Related Manuals for Lenovo ThinkServer TS440
Summary of Contents for Lenovo ThinkServer TS440
-
Page 1: Product Guide
Lenovo ThinkServer TS440 Product Guide The Lenovo ThinkServer TS440 is the ideal server for small and medium businesses, remote or branch offices, and retail environments. It features Intel Xeon processor E3-1200 v3 product family with four cores and support for up to 32 GB of 1600 MHz DDR3 memory. Also, it offers an integrated 1 GbE NIC and additional PCIe expansion slots for advanced RAID protection and network and peripheral port scalability. -
Page 2: Key Features
Key features The ThinkServer TS440 server is a tower server that has been optimized to provide enterprise-class features to growing small-to-medium-sized businesses, retail stores, and distributed enterprises. Scalability and performance The TS440 offers numerous features to boost performance, improve scalability, and reduce costs: The Intel Xeon processor E3-1200 v3 improves productivity by offering affordable single-socket system performance with 4-core processors with up to 3.7 GHz core speeds and up to 8 MB cache. - Page 3 Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw. Lenovo ThinkServer TS440...
-
Page 4: Components And Connectors
Components and connectors The following figure shows the front of the TS440. Figure 2. TS440 front view Lenovo ThinkServer TS440... - Page 5 The following figure shows the rear of the TS440. Figure 3. TS440 rear view The following figure shows the internal components of the TS440. Figure 4. TS440 internal view Lenovo ThinkServer TS440...
-
Page 6: System Specifications
RAID 0, 1, 10, 5, 50, 6 with ThinkServer RAID 700. Optical drive bays Two without a backup drive or one with a backup drive. Support for DVD-ROM or DVD-RW. Backup drive bays One. Support for RDX backup drive. Lenovo ThinkServer TS440... -
Page 7: Relationship Models
One-year or three-year (model dependent) customer-replaceable unit (CRU) and on-site limited warranty with 9x5 next business day (NBD). Service and Optional service upgrades (country-specific) are available through Lenovo Services offerings: support 8-hour or 4-hour response time, warranty extension up to 5 years, Priority Technical Support, and Keep Your Drive Multi-Drive. -
Page 8: Topseller Models
(http://psref.lenovo.com/Product/ThinkServer_TS440) or contact a Lenovo or Lenovo Business Partner representative in your country. Product availability: TopSeller models of the ThinkServer TS440 are withdrawn and no longer available for ordering. Note: TS440 server models are available in North America (United States and Canada); Latin America (Argentina, Chile);... - Page 9 84 W Yes Yes Yes Yes AMT E3-1286L v3 3.2 / 4 GHz 4 / 8 8 MB 1600 MHz 65 W Yes Yes Yes Yes AMT * Mgt = Management # IG = Intel Integrated HD Graphics Memory Lenovo ThinkServer TS440...
-
Page 10: Internal Storage
Memory Lenovo DDR3 memory is compatibility tested and tuned for optimal ThinkServer performance and throughput. From a service and support standpoint, Lenovo memory automatically assumes the system warranty, and Lenovo provides service and support worldwide. The TS440 server has four DIMM slots, and it supports DDR3 UDIMMs with ECC memory protection. The processor has two memory channels and supports two DIMMs per channel. - Page 11 ThinkServer 3.5" Hot-Swap HDD Expansion Kit for Tower 4XF0G45888 Configuration note: The ThinkServer 3.5" Hot-Swap HDD Expansion Kit for Tower adds 4x 3.5-inch hot- swap drive bays to the TS440 models with 4x 3.5-inch hot-swap drive bays for a total of eight drive bays. Lenovo ThinkServer TS440...
-
Page 12: Controllers For Internal Storage
SAS, SATA SAS, SATA SAS, SATA Drive type HDD, SSD HDD, SSD HDD, SSD HDD, SSD Maximum number of drives RAID levels 0/1/10/5 0/1/10, Optional 5/50 0/1/10/5/50/6 None (4XC0G88835) JBOD mode Cache None None 512 MB 1,024 MB Lenovo ThinkServer TS440... - Page 13 NL SATA HDD No support SATA SSD No support Yes (Max 4)** Yes (Max 4)** * There are no 3.5-inch non-hot-swap SSDs available for the TS440 server. ** Up to four SSDs is supported in the TS440 server. Lenovo ThinkServer TS440...
-
Page 14: Drives For Internal Storage
ThinkServer 2.5" 240GB Value Read-Optimized SATA 6Gbps HS SSD with 3.5" Tray 4XB0F28623 ThinkServer 2.5" 300GB Value Read-Optimized SATA 6Gbps HS SSD with 3.5" Tray 4XB0G88718 ThinkServer 2.5" 480GB Value Read-Optimized SATA 6Gbps HS SSD with 3.5" Tray 4XB0F28624 Lenovo ThinkServer TS440... -
Page 15: Optical Drives
Two optical drive are supported only when the RAID 500, RAID 700, or 8885e adapters are used for internal storage. If the RAID 100 controller is used, the maximum number of optical drives in the server is limited to one. Internal backup units Lenovo ThinkServer TS440... -
Page 16: Network Adapters
Part number Maximum supported PCIe adapters ThinkServer Dual Serial Port PCIe Adapter 0C19511 PCI adapters ThinkServer Single Parallel Port PCI Adapter 0C19508 ThinkServer Single Serial Port PCI Adapter 0C19509 ThinkServer Dual Serial Port PCI Adatper 0C19510 Network adapters Lenovo ThinkServer TS440... - Page 17 8088 connectors) Options for RAID adapters ThinkServer RAID 700 Battery (optional battery for 4XB0F28645) 67Y2647 Host bus adapters - 12 Gb SAS ThinkServer 8885e PCIe 12Gb SAS Adapter by PMC (2x external Mini-SAS HD SFF- 4XB0G88714 8644 connectors) Lenovo ThinkServer TS440...
-
Page 18: Gpu Adapters
GPU adapter is optional for server models that use processors with integrated graphics. Table 18. GPU adapter options Description Part number Maximum supported ThinkServer 1GB NVS 315 PCIe x16 Graphic Adapter by NVIDIA 4X60G88210 Power supplies Lenovo ThinkServer TS440... -
Page 19: Systems Management
A third-party platform management software, including but not limited to the following tools: RealVNC Viewer Plus (for remote KVM) Intel Platform Solution Manager (for comprehensive support of AMT features) Lenovo offers the following software tools that can help you set up, use, and maintain the server at no additional cost: ThinkServer EasyStartup... -
Page 20: Rack Installation
Rack installation The ThinkServer TS440 can be mounted in a rack cabinet by using the tower to rack conversion kit that is listed in the following table. The tower to rack conversion kit includes a shelf on which the server is placed, sliding rails for mounting a shelf, and a cable management arm (CMA). -
Page 21: Physical Specifications
Altitude: 0 m - 3,048 m (0 ft - 10,000 ft) in an unpressurized environment Humidity: Operating: 10% - 80% (non-condensing) Storage: 10% - 90% (non-condensing) Electrical: 100 - 127 (nominal) V AC; 50 Hz or 60 Hz 200 - 240 (nominal) V AC; 50 Hz or 60 Hz Regulatory compliance Lenovo ThinkServer TS440... -
Page 22: Warranty
Japan VCCI, Class A Warranty The ThinkServer TS440 has a three-year or one-year warranty (model dependent) with 24x7 standard call center support and 9x5 next business day onsite coverage. Lenovo offers warranty maintenance upgrades and post-warranty maintenance agreements with a well-defined scope of services, including service hours, response time, and length of service coverage. -
Page 23: External Storage Systems
Lenovo server. In the unlikely event of a hard drive failure, you retain possession of your hard drive while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands. - Page 24 Description Part number Lenovo Storage S3200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD 64116B2 Lenovo Storage S3200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD 64116B3 Lenovo Storage S3200 SFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD 64116B4 Lenovo Storage V Series (iSCSI connectivity)
-
Page 25: External Backup Units
ThinkServer 2TB SATA 3Gbps RDX Cartridge 4XB0G88711 For more information, see the Product Guide: http://lenovopress.com/tips0894-rdx-usb-30. Top-of-rack Ethernet switches The following table lists the top-of-rack Ethernet switches that are offered by Lenovo that can be used in ThinkServer TS440 solutions. Table 25. Top-of-rack Ethernet switches Description... -
Page 26: Kvm Switches And Consoles
Rack cabinets The following table lists the rack cabinets that are offered by Lenovo that can be used in ThinkServer TS440 solutions. Table 26. Rack cabinets Description Part number 11U Rack Office Enablement Kit 201886X 25U S2 Standard Rack 93072RX... - Page 27 43V6147 USB Conversion Option (4 Pack UCO) 39M2895 Virtual Media Conversion Option Gen2 (VCO2) 46M5383 Serial Conversion Option (SCO) 46M5382 For more information, see the list of Product Guides in the KVM Switches and Consoles category: http://lenovopress.com/servers/options/kvm Lenovo ThinkServer TS440...
-
Page 28: Power Distribution Units
Power distribution units The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in ThinkServer TS440 solutions. Table 28. Power distribution units Part Description number 0U Basic PDUs 0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord... -
Page 29: Uninterruptible Power Supply Units
For more information, see the list of Product Guides in the Power Distribution Units category: http://lenovopress.com/servers/options/pdu Uninterruptible power supply units The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in ThinkServer TS440 solutions. Table 29. Uninterruptible power supply units... -
Page 30: Related Publications And Links
For you, this dedication provides a high-quality, easy, and positive financing experience. For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: http://www.lenovofs.com... - Page 31 Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment.
- Page 32 Trademarks Lenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at http://www3.lenovo.com/us/en/legal/copytrade/. The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo Services Lenovo®...
