Operating Manual
Intelligent Digital
Battery Charger
PST-DCN50-II
Microprocessor controlled, high-performance, all-purpose charger/discharger for 3-12 cells
NiCd/NiMH, 1-4 series Li-ion/Li-polymer, 6V and 12V lead-acid (Pb) batteries and
battery-pack. Charge current up to 2.5A.
March 2007
PowerStream.com
Advertisement
Table of Contents
Summary of Contents for PowerStream PST-DCN50-II
- Page 1 Operating Manual Intelligent Digital Battery Charger PST-DCN50-II Microprocessor controlled, high-performance, all-purpose charger/discharger for 3-12 cells NiCd/NiMH, 1-4 series Li-ion/Li-polymer, 6V and 12V lead-acid (Pb) batteries and battery-pack. Charge current up to 2.5A. March 2007 PowerStream.com...
-

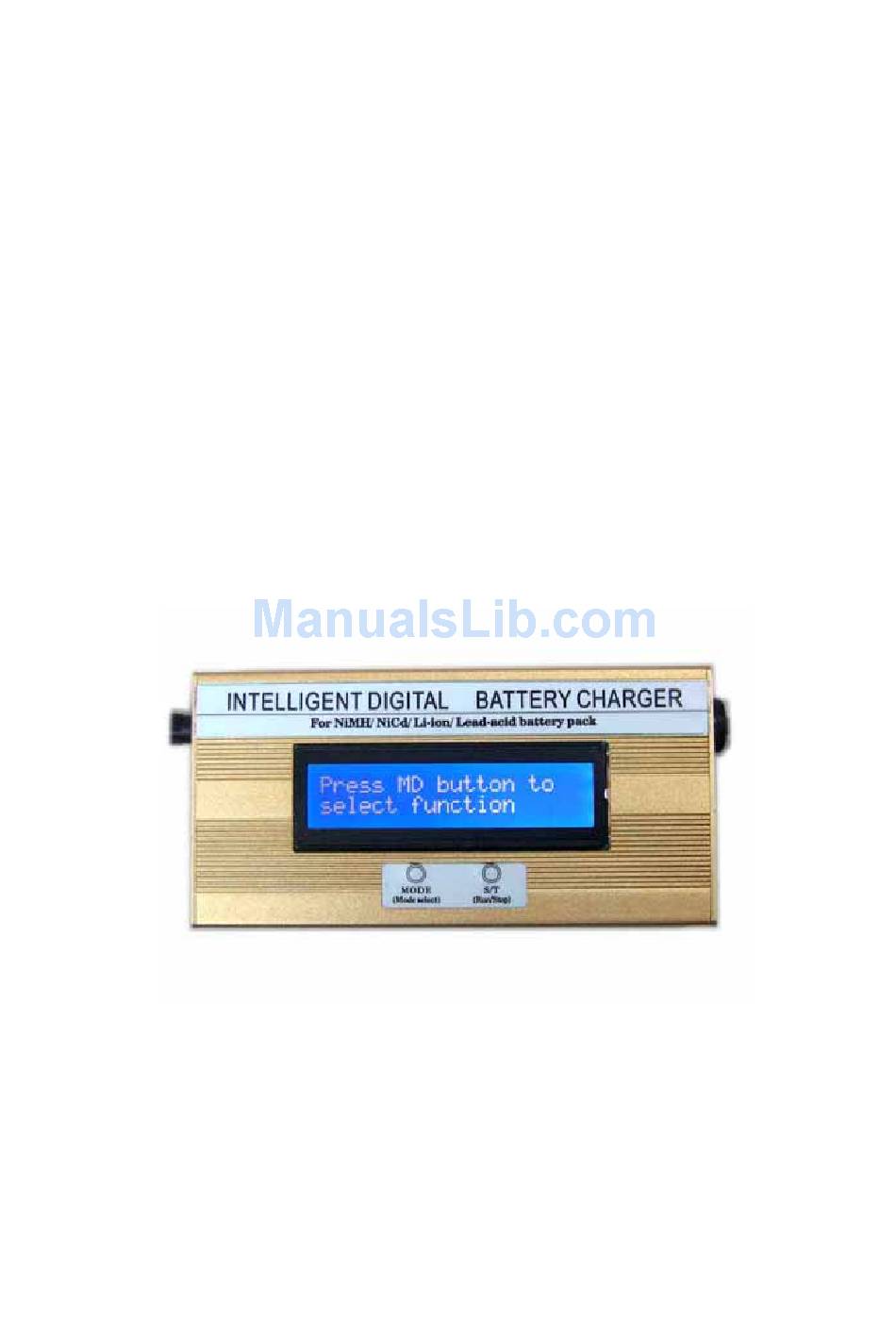

Page 2: Exterior Of The Unit
Thank you for choosing the Intelligent Digital Battery Charger/Discharger DCN50-II. You get a rapid charger/discharger that is computerized with a high performance microprocessor and specialized operating software. It can maintain your battery at its best condition and also control them safely. Please read this entire operating manual completely and attentively as it contains a wide variety of specific programming and safety information. -
Page 3: Warnings And Safety Notes
● Warnings and safety notes Be sure to understand the information of the battery to be charged or discharged accurately. If the program is set up incorrectly the battery can severely be damaged. Especially Lithium battery can cause a fire or an explosion by over-charging. -
Page 4: General Notes
General notes How to select charge current level? This device provide four charge current levels(0.5A, 1.0A, 2.0A, 2.5A) for user select. The charge current level depend on the capacity of the battery-pack and the charge time you wanted. The maximum permissible charge current varies according to the battery type or its performance, and can be found in the information provided by the battery manufacturer. -
Page 5: Program Flow
Program flow Li-ion Battery NiMH/NiCd Lead-acid program Battery Battery 3.6V Li-ion Select Function Lead-acid BAT 7.2V Li-ion 0.5 A Lead-acid BAT Charge Mode 10.8V 1.0 A Li-ion BAT Charge Mode 14．4V Li-ion BAT 2.0 A Charge Mode 2.5 A Charge Mode Discharge Mode... - Page 6 ● NiMH/NiCd battery program: 1) Connecting to the battery. Connect the Red clip to the Positive terminal of the NiMH/NiMd battery, this terminal is usually marked ‘+’or marked in RED. Connect the Black clip to the Negative terminal of the NiMH/NiCd battery, this terminal is usually marked ‘-‘or marked in BLACK.
- Page 7 ● Li-ion battery program: 1) Connecting to the battery. Connect the Red clip to the Positive terminal of the Li-ion battery,thi s terminal is usually marked ‘+’or marked in RED. Connect the Black clip to the Negative terminal of the Li-ion battery,this terminal is usually marked ‘-‘or marked in BLACK.
- Page 8 Lead-acid battery program: 1) Connecting to the battery. Connect the Red clip to the Positive terminal of the Lead-acid battery,thi s terminal is usually marked ‘+’or marked in RED. Connect the Black clip to the Negative terminal of the Lead-acid battery,this terminal is usually marked ‘-‘or marked in BLACK.
- Page 9 (invoice or receipt).This warranty does not cover the damage due to wear,overloading,incompetent handing or using of incorrect accessories. PowerStream.com Dealer: http://www.PowerStream.com...
