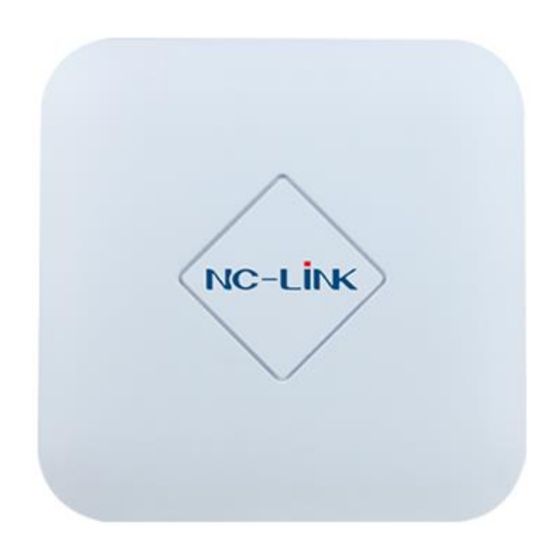

NC-link NC-AC44APP User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual of NC-AC44APP/NC-AC21AP
Version V1.0

Advertisement

loading

Related Manuals for NC-link NC-AC44APP

Summary of Contents for NC-link NC-AC44APP

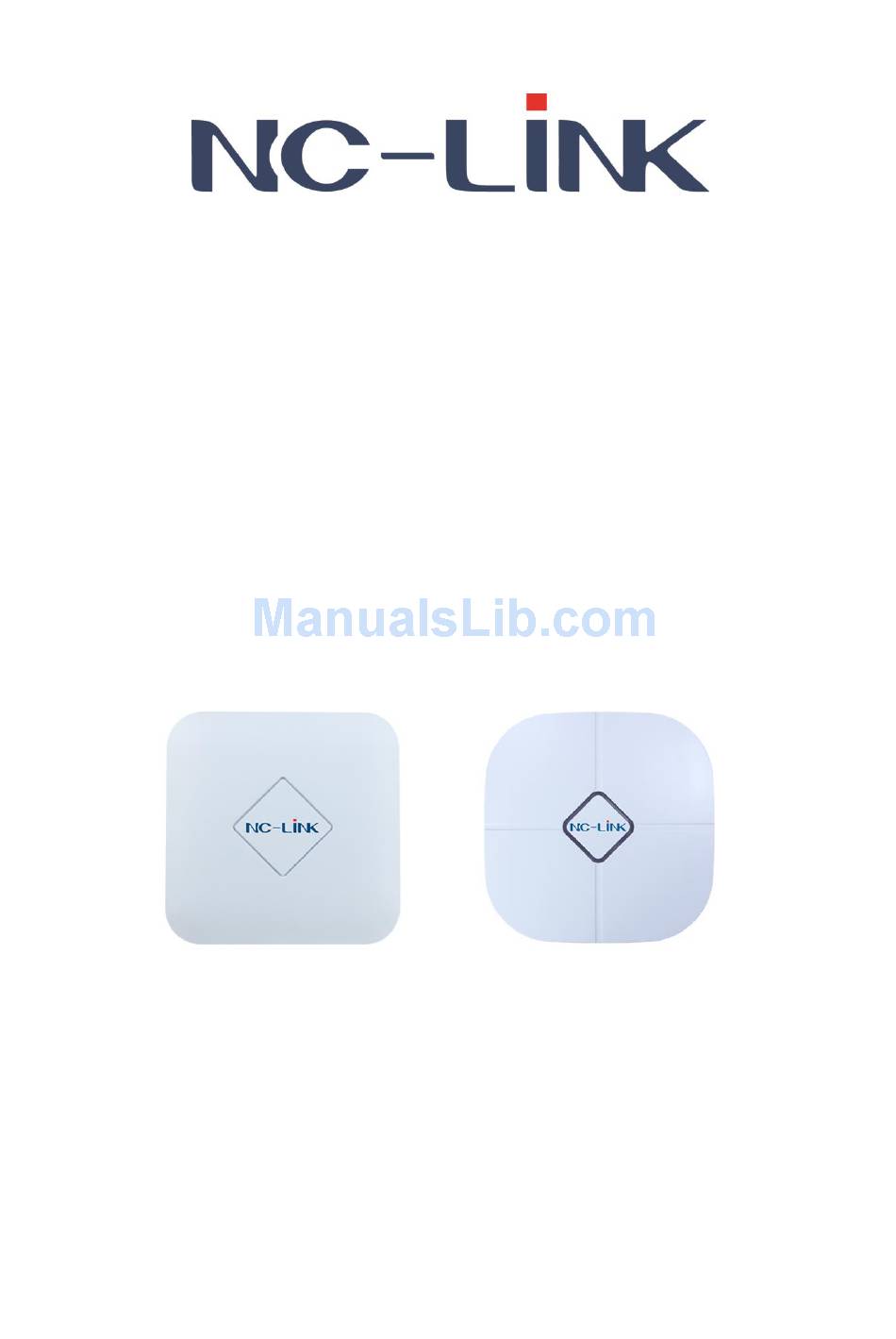

  • Page 1 User Manual of NC-AC44APP/NC-AC21AP Version V1.0...

  • Page 2: Manual Instruction

    Thank you for purchasing NC-Link Access Point. This manual will instruct you how to configure and the AP, enable you to use it in a perfect status. Please check the Package before use it. Package Contents Item Description Unit Access Point...
  • Page 3 Ethernet Port NC-AC21AP with 2 x 10/100Mbps auto-negotiation RJ45 Ethernet Port 3. Login Connect your PC to the NC-AC44APP LAN Port, then login Web Management Page with default IP Address: http://192.168.188.253 Default password: admin. Below base on Chrome browser. Login Steps: pen Chrome browser, input http://192.168.188.253 in the address bar to login...
  • Page 4 Click “Wizard” to start operating mode configuration. www.nc-link.cn...
  • Page 5 4. Repeater Mode Configuration a) Select the AP radio frequency and “Scan AP” www.nc-link.cn...
  • Page 6 Select the AP signal you want to repeat c) Input the Password and click “Next” www.nc-link.cn...
  • Page 7 Configure wireless parameter then click “Next” e) Configuration complete, device will reboot in 2 minutes www.nc-link.cn...
  • Page 8 5. AP Mode Configuration a) Configure the wireless parameter as you want then click “Next” b) If Internet to LAN Port is DHCP, just click “Next” www.nc-link.cn...
  • Page 9 If Internet to LAN Port need static IP, input as it required then “Next” d) Configuration complete, device will reboot in 2 minutes www.nc-link.cn...
  • Page 10 6. Gateway Mode Configuration a) WAN is DHCP access type, just click “Next” b) WAN is PPPoE access type, input the Username and Password then click “Next” www.nc-link.cn...
  • Page 11 WAN is Static IP access type, input all the information require then click “Next” d) Configure the wireless parameter as you want then click “Next” www.nc-link.cn...
  • Page 12 Configuration complete, device will reboot in 2 minutes 7. WISP Mode Configuration a) Select the AP frequency then “Scan” www.nc-link.cn...
  • Page 13 Select the AP signal you want to repeat c) Input the Password and click “Next” www.nc-link.cn...
  • Page 14 WAN is DHCP access type, just click “Next” e) WAN is PPPoE access type, input the Username and Password then click “Next” www.nc-link.cn...
  • Page 15 WAN is Static IP access type, input all the information require then click “Next” g) Configure the wireless parameter as you want then click “Next” www.nc-link.cn...
  • Page 16 Configuration complete, device will reboot in 2 minutes 8. Advanced Device Status 8.1.1 Status 8.1.2 2.4G Wireless Status www.nc-link.cn...
  • Page 17 8.1.3 5.8G Wireless status 8.1.4 LAN Status 2.4G Wireless www.nc-link.cn...
  • Page 18  WMM: Enable or Disable WMM function  Band Width: Set the Band Width of wireless signal  Channel: Set the Channel of the wireless signal  Encryption: Choose the encryption type or open  8.2.2 2.4G Virtual AP www.nc-link.cn...
  • Page 19 Broadcast SSID: Enable or Disable broadcast SSID  WMM: Enable or Disable WMM function  Encryption: Choose the encryption type or open  8.2.3 2.4G Access Control Allow or deny the Access Control based on MAC address 8.2.4 2.4G Advanced Setting www.nc-link.cn...
  • Page 20 Coverage threshold: limit the number of connect client  Other advanced Setting: Professional installation or maintenance  person can set it accordingly. General, keep it default. Click Apply after setting 5.8G Wireless 8.3.1 5.8G Basic Setting Wireless Status: ON/OFF the 5.8GHz wireless  www.nc-link.cn...
  • Page 21 Wireless Status: ON/OFF the Virtual AP  SSID: Set the SSID  Broadcast SSID: Enable or Disable broadcast SSID  WMM: Enable or Disable WMM function  Encryption: Choose the encryption type or open  8.3.3 5.8G Access Control www.nc-link.cn...
  • Page 22 MAX user: limit the number of connect client  Coverage threshold: limit the number of connect client  Other advanced Setting: Professional installation or maintenance  person can set it accordingly. General, keep it default. Click Apply after setting www.nc-link.cn...
  • Page 23 Network 8.4.1 LAN Settings Setting the Access Type of Internet 8.4.2 VLAN Setting the VLAN base on SSID Management 8.5.1 System Time www.nc-link.cn...
  • Page 24 System Time: Set CPE’s time 8.5.2 Logs Logs: the system logs can be enable or disable, user can view the system log www.nc-link.cn...
  • Page 25 8.5.3 Upgrade Firmware Upgrade Firmware: Upgrade new firmware to access stable function for CPE 8.5.4 System System: from here you can reload the backup file to restore the system, or restore to factory default, reboot the CPE through firmware www.nc-link.cn...

  • Page 26: Troubleshooting
