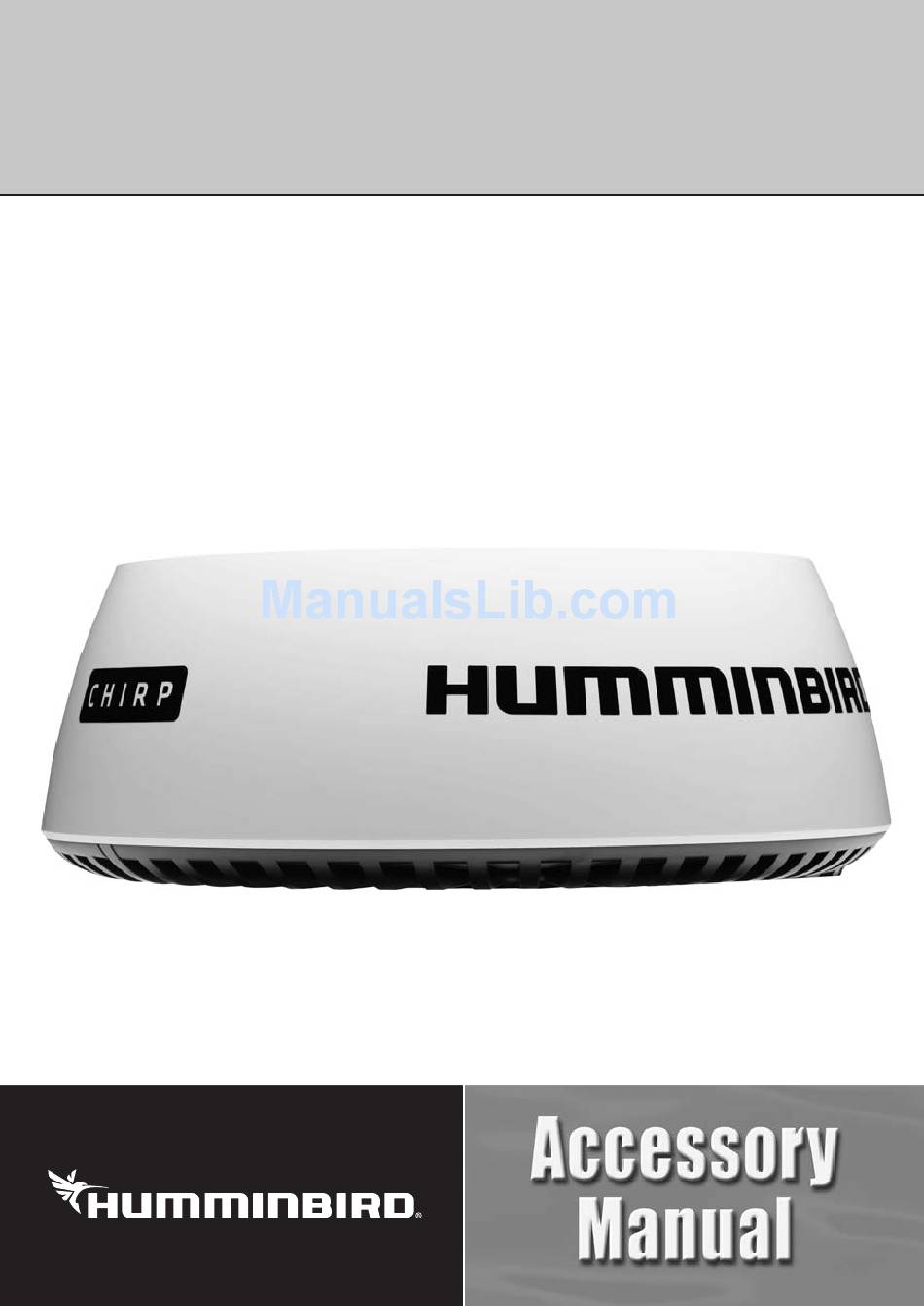

- Page 1 Humminbird CHIRP Radar Humminbird ® CHIRP Radar ® Installation Manual Installation Manual...
-
Page 2: Thank You
Certified Installation WARNING! Humminbird recommends certified installation by a Humminbird approved installer. Contact your Humminbird dealer for further details, and refer to the warranty information included at the end of this manual. WARNING! This product must be installed and operated in accordance with the instructions provided. - Page 3 Always operate the boat at very slow speeds if you suspect shallow water or submerged objects. WARNING! The electronic chart in your Humminbird unit is an aid to navigation designed to facilitate the use of authorized government charts, not to replace them. Only official government charts and notices to mariners contain all of the current information needed for the safety of navigation, and the captain is responsible for their prudent use and the safety of the vessel and its passengers.
- Page 4 Humminbird. NOTE: Humminbird is not responsible for damages or injuries caused by your use or inability to use the product, by the interaction of the product with products manufactured by others, or by errors in information utilized by the product supplied by third parties.
- Page 5 You are strongly advised to check with the requirements of the licensing authority of your national administration. In case of any difficulties, contact your local Humminbird dealer. FCC NOTICE – RADAR: Changes or modifications to this equipment not expressly approved in writing by Johnson Outdoors Marine Electronics, Inc.
-
Page 6: Emc Installation Guidelines
EMC performance throughout the installation. HELIX®, Humminbird®, ONIX®, and SOLIX® are registered trademarks of Johnson Outdoors Marine Electronics, Inc. Adobe, Acrobat, Adobe PDF, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. -
Page 7: Table Of Contents
Power On the Control Head ..............22 Two Year Limited Warranty & Service Policy Maintenance Troubleshooting Specifications Contact Humminbird... -
Page 9: Introduction
Introduction The Humminbird Radar scanner is a compact, solid-state radar that utilizes CHIRP pulse compression for improved range resolution. Connect the Radar scanner to your Humminbird control head to view a map-like representation of the area surrounding your vessel, enabling you to identify other vessels, buoys, and land features such as coastlines and hills. -
Page 10: Installation Preparation
Following are instructions for the installation of this accessory. Before you start installation, we encourage you to read these instructions carefully in order to get the full benefit from your Humminbird accessory. Supplies: In addition to the hardware included in this box, you will need a separate 12 or 24 VDC power supply from that used for engine start, adhesive tape, a powered hand drill and various drill bits, various hand tools, safety glasses, and a dust mask. -
Page 11: Determine The Cable Requirements
2. Determine the Cable Requirements Depending on your Humminbird model and network configuration, you may need to purchase additional accessories to connect your Radar scanner to your control head or Ethernet network. Before starting the installation, determine whether you will need to purchase Ethernet Adapter Cables or extension cables. -
Page 12: Clear The Mounting Holes
Example of a Schematic Diagram with an Ethernet Switch Connection Radar scanner AS EC M12 to RM data cable (32.8 ft [10 m]) separate 12/24 V Radar scanner power power supply cable (32.8 ft [10 m]) HELIX control head Ethernet Switch power supply control head Ethernet Switch... -
Page 13: Choose The Mounting Location
2. Choose the Mounting Location It is important to consider the following information when installing the Radar scanner on the vessel. The Radar scanner must be mounted where it is: • Near the vessel's centerline • Above head height • Clear of large objects such as the flybridge, large engine stacks, searchlights, horns, masts, etc. •... - Page 14 Centerline The scanner unit should be mounted on the centerline of your boat in a location that has an unobstructed view forward and is as clear as possible the rest of the way around the unit. Locating the Vessel’s Centerline centerline of boat Height...
- Page 15 Potential Interference For optimum EMC performance, we recommend that wherever possible: • Humminbird equipment and cables connected to it are: – At least 3 feet (1 m) from any equipment transmitting or cables carrying radio signals (e.g. VHF radios, cables and antennas). In the case of SSB radios, the distance should be increased to 7 feet (2 m).
- Page 16 Compensating for Bow Rise wedge or washers Mounting Base The Radar scanner can be installed directly to a roof or other flat surface. The mounting location must be secure enough to support the Radar scanner under seagoing conditions. You can also use a mounting bracket (separate purchase required).
- Page 17 Do NOT attach other equipment to either the Radar scanner or the bracket. • Maintenance: Humminbird strongly recommends that you check the condition and security of the bracket mounting feet, the security lanyard(s), the Radar scanner guard, and the Radar scanner itself, on a yearly basis (or more frequently depending on environmental applications).
- Page 18 Example of a Mast Platform Mount with a Safety Lanyard mast safety lanyard attachment point to mast mounting safety lanyard attachment platform point to M8 bolt Multiple Radar Installation It is important to note that multiple radars cannot be connected to the same network. If you are installing more than one radar on the same vessel, review the following important location requirements: •...
-
Page 19: Test Route The Cables
3. Test Route the Cables Using the information in this section, test route the cables from the planned mounting location to the control head or Ethernet Switch location and the power source. Cables must be routed correctly to maximize performance and prolong cable life. See Connect to Power and Ethernet for more information. CIRCUIT ISOLATION WARNING! Proper circuit isolation is required for installations using both AC and DC current. -
Page 20: Install The Scanner
4. Install the Scanner Confirm that you have read and understood the warnings and cautions provided in the Important Information section before proceeding with the installation. WARNING! Confirm the vessel’s power supply is switched OFF before starting the installation. Do NOT connect or disconnect equipment with the power switched on. -
Page 21: Connect The Power And Data Cables To The Radar Scanner
8. Test the hardware: Check that each bolt (with spring washer and flat washer) protrudes through the mounting surface at least 5/8" (16 mm) but less than 7/8" (22 mm). CAUTION! The Radar scanner may be damaged if bolts protrude through the mounting surface more than 7/8"... - Page 22 Cable Routing Examples data port power port power cable data cable cable latch in closed position strain relief data port power port power cable data cable data port power port power cable data cable cable latch in closed position Installation...
-
Page 23: Install The Radar Scanner
3. Install the Radar Scanner Use the following instructions to install the Radar scanner on your vessel. Confirm you have read the mounting requirements in the section Choose the Mounting Location. 1. Place the Radar scanner on the mounting surface. 2. - Page 24 NOTE: If you need to limit the length of the bolts entering the Radar scanner base, use appropriate risers (shims) or additional washers. Mounting the Scanner Unit mounting surface (partial view) flat washer spring washer bolt 6. Hand-tighten the bolts to a torque of 11 ft·lbf (15 Nm). CAUTION! Do not use a high speed driver on this combination of fasteners.
-
Page 25: Route The Cables
5. Route the Cables After connecting the power cable and data cable to the Radar scanner unit, you must route the cables to the control head and power source. Cable routing depends on whether you mount the scanner on a platform or pole. -
Page 26: Connect To Power And Ethernet
WARNING: GROUNDING NOT REQUIRED! The Radar scanner power cable is fully insulated and does not require separate grounding. WARNING! Humminbird is not responsible for over-voltage or over-current failures. The Radar scanner must have adequate protection through the proper selection and installation of circuit protection (i.e. fuse, thermal breaker, etc.). -
Page 27: Connect To Power
The suitable fuse rating for the thermal breaker is dependent on the number of devices you connect. NOTE: Humminbird recommends that best practice is observed in all vessel electrical installations, as detailed in the following standards: • BMEA Code of Practice for Electrical and Electronic Installations in Boats •... -
Page 28: Connect To The Control Head
Radar Scanner Power Cable red cable (positive) black cable (negative) cable connector 3. Connect to the Control Head Refer to your control head installation guide for additional information and instructions about connecting cables. Connect to ONIX/SOLIX 1. Insert the data cable connector into the Ethernet port on the control head. 2. - Page 29 Connect to an Ethernet Switch Use the following instructions to connect the data cable to an Ethernet Switch. See the Ethernet Switch installation guide for information about connecting cables. 1. Connect the data cable connector to an available port on the Ethernet Switch. Hand-tighten the screw nut on the cable to secure the connection.
-
Page 30: Test The Installation
2. Confirm all connections are secure. 3. Confirm all connecting cables and wires are secured and protected as necessary. Power On the Control Head See your Humminbird operations manual to configure the radar and start transmission. Test the Installation... -
Page 31: Two Year Limited Warranty & Service Policy
Two Year Limited Warranty & Service Policy Registering Your Product As you build your Humminbird network, it is important to register your control heads and accessories and keep the software up to date. • Go to humminbird and select My Humminbird to sign in or set up a new account. - Page 32 Humminbird Service Policy Even though you’ll probably never need to take advantage of our incredible service policy, it’s good to know that we back our products this confidently. We do it because you deserve the best. We will make every effort to repair your unit within three business days from the receipt of your unit at our factory.
- Page 33 • Include a brief written description of the problem. • Include a copy of your receipt (to show proof and date of purchase). • Return product freight prepaid to Humminbird, using an insured carrier with delivery confirmation. For OUT-OF-WARRANTY service, complete the following steps: •...
-
Page 34: Maintenance
Maintenance Use the following procedures to ensure your Humminbird product continues to deliver top performance. HIGH VOLTAGES WARNING! This product may contain high voltages. Do NOT remove any covers or otherwise attempt to access internal components. Recommended Yearly Maintenance Tasks Clean the Hardware 1. -
Page 35: Troubleshooting
Troubleshooting Before contacting Humminbird Customer Service, please read the following section. Taking the time to review these troubleshooting guidelines may allow you to solve a performance problem yourself, and therefore avoid sending your unit back for repair. No Connection to the Radar Scanner •... -
Page 36: Specifications
CHIRP Bandwidth ........ - Page 37 Receiver IF Bandwidth ..............26 MHz Noise Figure .
- Page 38 Radar Scanner Dimensions Radar Scanner Dimensions - Side View Dimension Description Measurement Distance from the centerline of the Radar scanner to the front 4.57 in (116 mm) of the mounting base. Distance from the rear of the mounting base to the front of the 13.95 in (355 mm) mounting base.
- Page 39 Radar Scanner Dimensions - Underside View Dimension Description Measurement Distance from the centerline to the rear mounting hole. 4.59 in (116.5 mm) Distance between mounting holes. 9.17 in (233 mm) Distance from the centerline to the front mounting hole. 1.08 in (27.5 mm) Distance between front and rear mounting holes.
- Page 40 Radar Scanner Dimensions 8.25 in (209.5 mm) 4.57 in 12.58 in (319.5 mm) (116 mm) 13.98 in (355 mm) 21.3 in (541 mm) 4.59 in (116.5 mm) 9.17 in (233 mm) 1.08 in (27.5 mm) 5.57 in (141.5 mm) Shop the largest selection of reliable marine electronics and navigation in our online store. Specifications...
