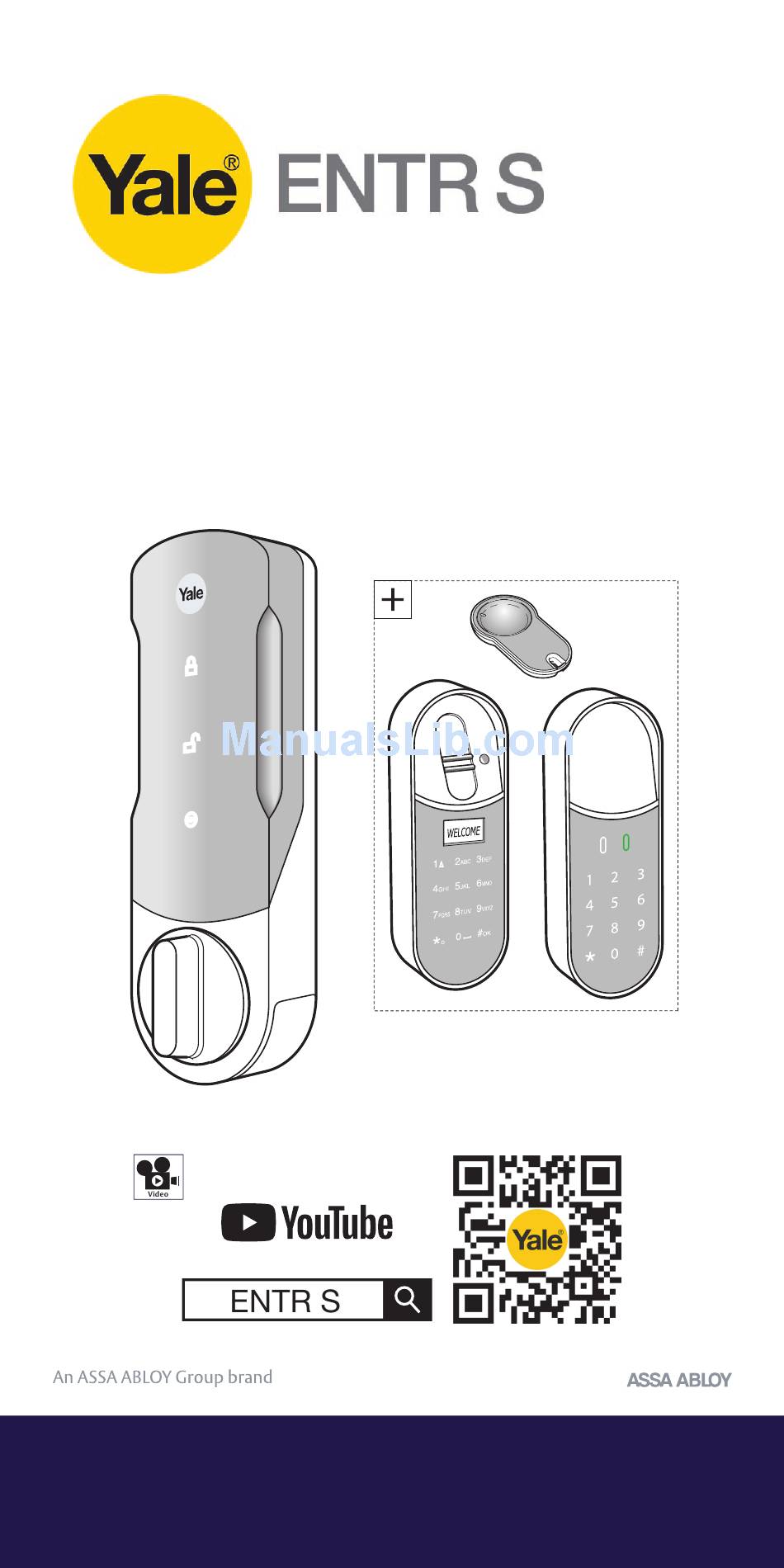

- Page 1 Smart Lock Quick Guide The smarter way to protect your home.
- Page 2 The software upgrades can be done in most of the cases with help of the Yale App. Kindly make sure you always update to the latest software when received a notification.
- Page 3 In the box Manual: www.yale.se/entrs www.yale.no/entrs www.yale.dk/entrs Warning: Do not attempt to operate the unit until assembled on the door. Download Application ENTR S Android...
- Page 4 Uninstall existing lock OUTSIDE of the door INSIDE of the door...
- Page 5 Uninstall existing lock INSIDE of the door Choose long or short Inside Outside IMPORTANT! Make sure both are pointing down before installation.
- Page 6 Install ENTR S If flush continue to next page Hold firm against door and check lock action If not flush follow instruction Adjust length of existing part. If necessary replace with supplied part. min 3 mm max 8 mm...
- Page 7 Install ENTR S...
- Page 8 Check lock action Test function Adding magnet Clean surface area before applying magnet...
- Page 9 Insert batteries - Power ON IMPORTANT! Download the app before inserting the batteries. The SETUP of the lock HAS TO BE STARTED WITHIN 5 minutes of inserting the batteries. This is for security reasons. If 5 minutes would be exceeded, a MASTER RESET OR A SOFT RESET is required before the SETUP of the lock can be initiated again.
- Page 10 App setup Close the door. IMPORTANT! Make sure you are inside your apartment. Follow setup instructions in App name e-mail telephone No. REST DOOR AGAINST LATCH DURING SETUP “Do not shut the door”...
- Page 11 Lock operations Unlock and lock LOCKED UNLOCKED Update Update “lock name” “lock name” SWIPE DOWN SWIPE UP TO UNLOCK TO LOCK Update ALWAYS UPDATE WHEN AVAILABLE...
- Page 12 Fob remote setup Follow setup instructions in App NOTE! Only administrator can add accessories. Open App owner owner owner Click several times continuously, until connected. owner ! Remote can not operate lock at the same time as App on Smartphone ! To UNLOCK To LOCK...
- Page 13 Fingerprint reader/Keypad battery insertion and wall mounting IMPORTANT ! Keep your door open whilst installing and configuring accessories. Insert batteries before starting pairing setup. ! Do not mount to the wall until pairing setup is complete. !
- Page 14 Keypad setup - pairing Start by opening the app to ensure that the setup procedure does not timeout! Hold # for 5 sec. Tap keys to connect to turn ON first time. Unlock door “Owner” “Owner” Tap keys to light up Click Mastercode setup 77 #...
- Page 15 Input a Master code 4 to 10 digits, then press # Repeat Master code , then press # Your Master code can now be used to unlock the ENTR S -- UNLOCKING is done by using the Master code (4-10 digits)
- Page 16 Fingerprint reader setup - pairing Start by opening the app to ensure that the setup procedure does not timeout! Hold # for 5 sec. Tap keys to connect to turn ON first time. Unlock door “Owner” “Owner” Tap keys to light up Mastercode and fingerprint setup for your Keypad...
- Page 17 Your Master code can now be used to unlock the ENTR S You can add USER CODES and new users via the menu. -Wake up the unit -Enter * Master code # -Choose "USERS -->...
- Page 18 Notes...
- Page 19 Limited Warranty If your ENTR S ("Product") ceases to function as a result of material or manufacturing defects on the product, the product is subject to product warranty - provided you have purchased the product within the last 24 months. There can be local extensions of the warranty period depending on the type of the defect and the country of purchase.
- Page 20 PACKAGING THE YALE BRAND, with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution. THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to...
