Summary of Contents for Broadata LB-H2-SP8

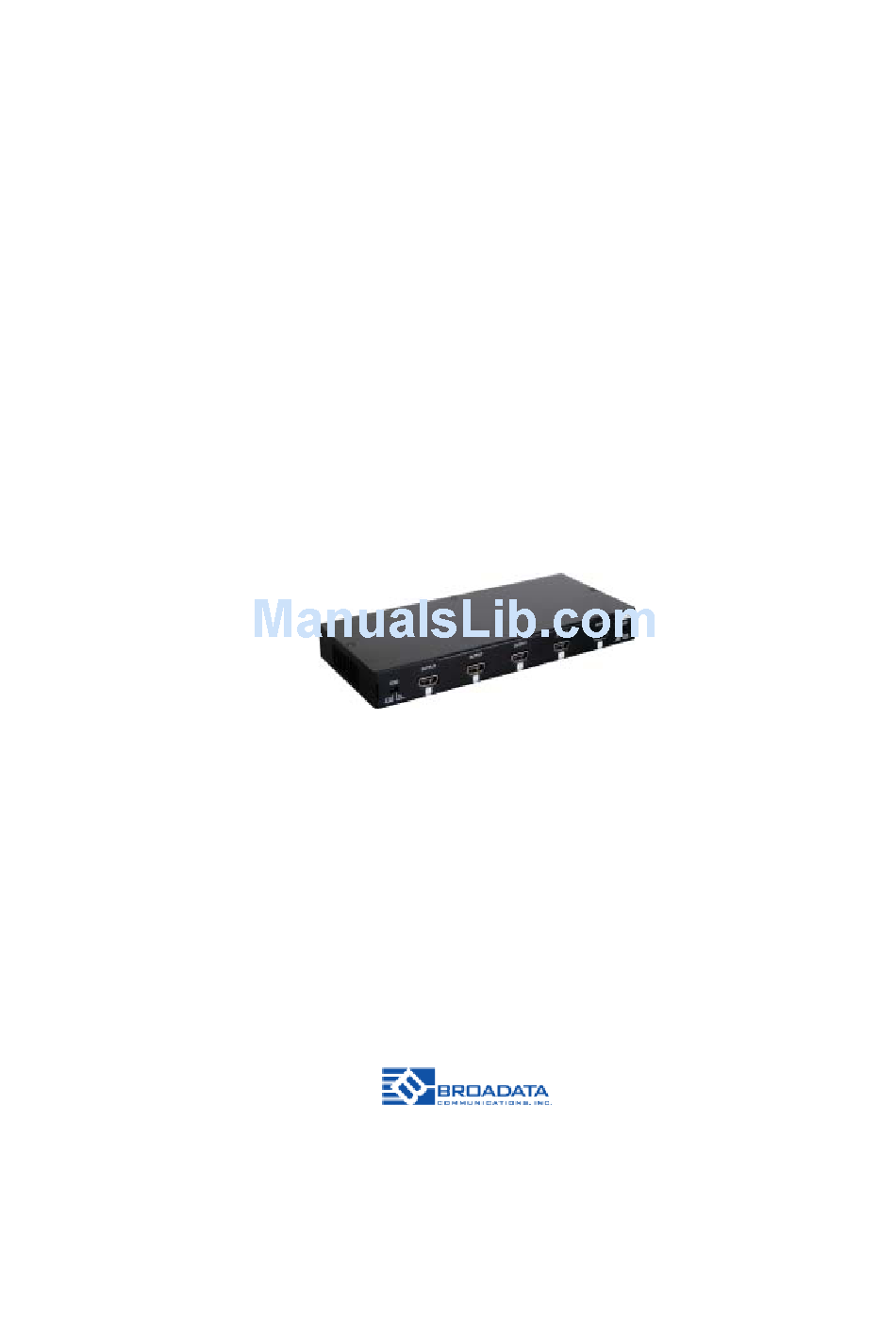

- Page 1 HDMI 2.0 ISTRIBTUTION MPLIFIER PLITTER BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2016 Broadata Communications, Inc.
- Page 2 BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
-
Page 3: Table Of Contents
BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROLS AND FUNCTIONS ....6 3.0 SPECIFICATIONS ............8 4.0 SERVICE PROCEDURE ..........9 4.1 REPLACEMENT POLICY ..........9 4.2 RETURN AND REPAIR SERVICE ........9 5.0 LIMITED WARRANTY ............ -
Page 4: Product Description
BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter 1.0 PRODUCT DESCRIPTION - A 1x8 HDMI 2.0 splitter with HDCP 2.2 compliance - Supports video resolutions up to 3840×2160@60Hz and 4096×2160@60Hz with 4:4:4 YUV and HDR format - Supports pass-through of audio formats including LPCM 2.0~7.1,... -
Page 5: Operation Controls And Functions
BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter 2.0 OPERATION CONTROLS AND FUNCTIONS Front Panel OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT EDID SYS-RST STD TV ON OFF 1. EDID: The dip switch has two EDID modes to select: Standard (STD) mode or TV mode. - Page 6 BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter Rear Panel POWER SYNC OUTPUT OUTPUT INPUT OUTPUT SERVICE DC 5V 1. SERVICE: This is reserved for firmware update use only. 2. OUTPUT 6~8: Connect to HDMI 6G TV/display or HD amplifier for output signal display.
-
Page 7: Specifications
BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter 3.0 SPECIFICATIONS Array Size Input One (1) HDMI 2.0 port Output Eight (8) HDMI 2.0 ports Control EDID Selection: Internal standard mode or external TV mode Service USB, for firmware upgrade... -
Page 8: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 4.2 Return/Repair Service The BCI LB-H2-SP8 System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 9: Limited Warranty
HDMI 2.0 Distribution Amplifier 1x8 Splitter 5.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... -
Page 10: Appendix - Supported Resolutions
BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter 6.0 APPENDIX - SUPPORTED RESOLUTIONS Broadata Technical Support, CustomerService@Broadatacom.com... - Page 11 BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter Broadata Technical Support, (800) 214-0222...
- Page 12 BCI LB-H2-SP8 User’s Manual HDMI 2.0 Distribution Amplifier 1x8 Splitter Broadata Technical Support, CustomerService@Broadatacom.com...
- Page 13 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBH2SP8...
