- Page 1 Fleet One V. 1.2...

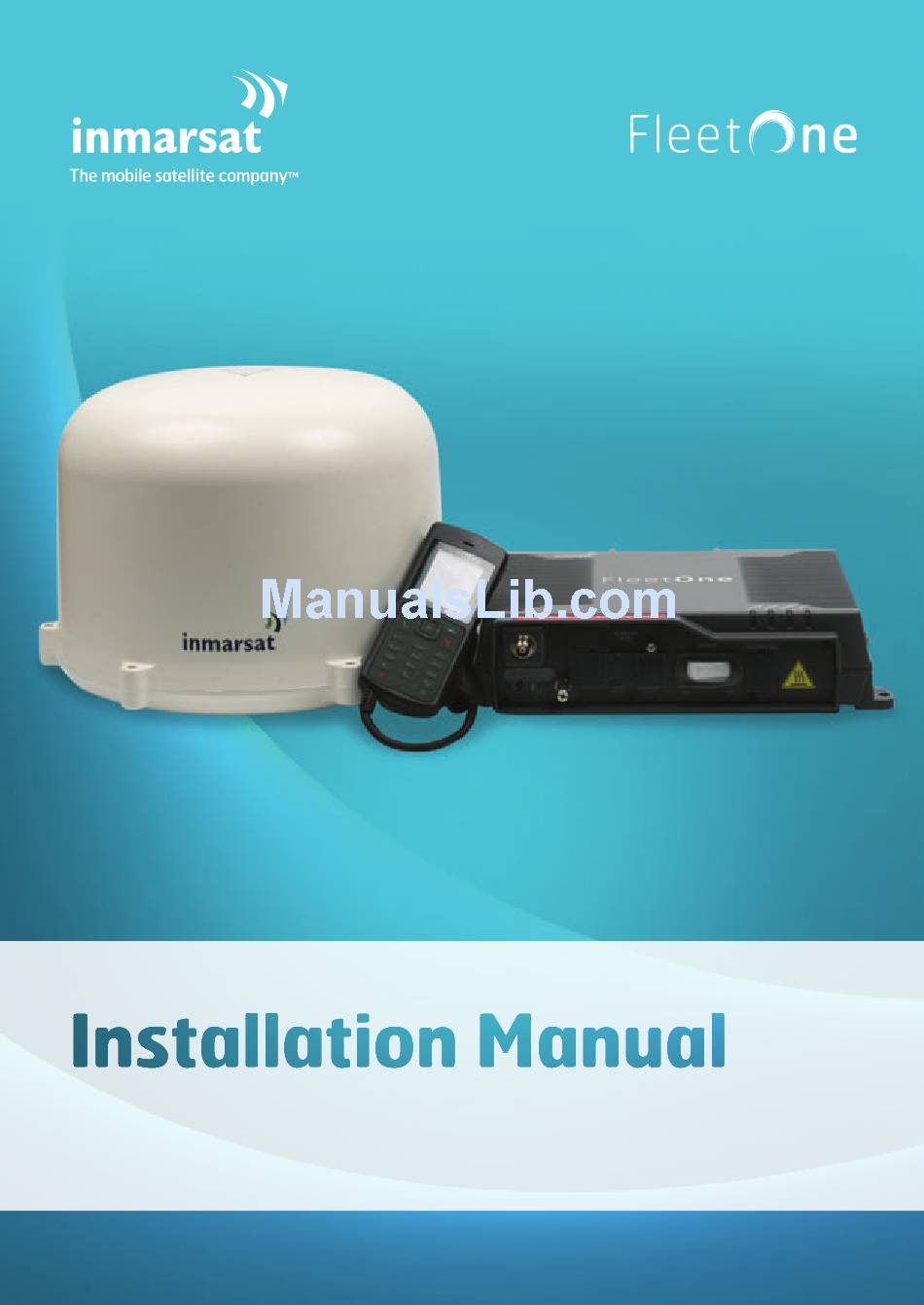

- Page 3 Installation Manual Fleet One...
- Page 5 Installation Manual Fleet One V.1.2...
- Page 6 Inmarsat shall not be liable for any loss or damage of any kind, including indirect or consequential loss, arising from use of the information and all warranties and conditions, whether express or implied by statute, common law or otherwise, are hereby excluded to the extent permitted by English law.
-
Page 7: Table Of Contents
EC Declaration of Conformity ......................VIII Safety Instructions ..........................IX System Configuration ..........................XI User Equipment Lists ..........................XII Fleet One User Equipment ............1 Introduction ..........................1 Above Deck Unit .......................... 1 Below Deck Unit .......................... 2 Wired Primary Handset with Cradle ..................2 Installation of the User Equipment ........3... - Page 8 Installation Manual - Fleet One Getting Started On The System ..........14 Installing the SIM card ......................14 Powering up the terminal .......................15 4.2.1 Switching on the BDU ......................15 Settings On Web Console ..................... 16 4.3.1 Activating on Web Console ....................16 4.3.2 Satellite Selection .........................17 4.3.3 Data Connection Settings ....................18...
-
Page 9: Certifications
FCC CAUTION Any Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the FCC, to operate this Fleet One satellite Communication System . © INMARSAT MARITIME... -
Page 10: Industry Canada Statement
100cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. EC Declaration of Conformity Fleet One Satellite communication system, to which this declaration relates, is in con- formity with the following standards and/or other normative documents: RoHS2 Directive 2011/65/EU ETSI EN 301 444, ETSI EN 301 489-1, -19 &... -
Page 11: Safety Instructions
Failure to comply with these precautions or with specific warnings elsewhere in this user guide violates safety standards for the intended use of the UE. Inmarsat assumes no liability for the customer’s failure to comply with these requirements. Hazard Symbols... - Page 12 To legally operate Inmarsat equipment, it is necessary to obtain permission from the local telecommunications regulatory authorities of the country from which you are operating.
-
Page 13: System Configuration
1.2 System Configuration FLEET ONE ADU Above Deck Unit (To be installed in an exposed area) Below Deck Unit (To be installed in protected area) +12V / 24V DC FLEET ONE BDU Primary Handset AC/DC Power Supply Unit RJ45 (PoE) -
Page 14: User Equipment Lists
Installation Manual - Fleet One User Equipment Lists Fleet One Complete Standard Package Description Order Code Fleet One Terminal includes Fleet One Below Deck Unit (BDU) > Fleet One Above Deck Unit (ADU) > Fleet One Primary Handset > Handset Wall Mount Cradle >... -
Page 15: Fleet One User Equipment
1.2 Fleet One User Equipment Introduction The Fleet One UE consists of three units; > Below Deck Unit (BDU) which is a communication unit > Above Deck Unit (ADU) which is an antenna unit > Wired Primary handset with cradle Above Deck Unit The ADU is a 3-axis controlled antenna unit which is self-tracking. -
Page 16: Below Deck Unit
Installation Manual - Fleet One Below Deck Unit The BDU is the heart unit of the Fleet One UE. It has several interface ports and handles all communication links between the ADU, primary handset and the local communication devices such as analog telephone, computer, network equip- ment, navigation equipment etc. -
Page 17: Installation Of The User Equipment
Radio waves can pose a hazard to the human body. Safe distances are changed, subjected to country guidelines and ship construction. There is no standard for- mula to calculate the safe distance. The below guidelines are to be noted. Fleet One ADU MICROWAVE RADIATION ! NO ADMITTANCE WITHIN... -
Page 18: Interference
The antenna unit must be mounted as far as possible away from the ship’s radars, MF/HF antennas, communication/navigation antennas, VSAT systems and any high power radio transmitter (including other Inmarsat-based systems). As for a ship’s radar (see below), it is difficult to provide the exact minimum distance between a radar and the antenna unit due to different type of radars in terms of power, radiation pattern and operating frequency band. -
Page 19: Obstruction
It is very important to choose the ideal installation site on the upper deck to minimise the satellite blocking. Examples of the large obstacles are: > Upper Deck and funnel of ship > VSAT with its radome © INMARSAT MARITIME... -
Page 20: Antenna Mast
15cm. For Fleet One ADU, if the antenna mast is available on the vessel and it is free of any shock or vibration, its physical size shall support the weight and size of that Fleet One ADU. - Page 21 The rubber gasket is required to be inserted between the ADU mounting base and the flange. A: Use Hex Head Screw bolts (6x) into the threaded holes of ADU Mounting Base for mounting the ADU. Clearance holes for M6 (Recommended > ø 6.5mm) Cut-hole Dimension © INMARSAT MARITIME...
-
Page 22: Installing Antenna Unit
2.1.6 Installing Antenna Unit The antenna unit should be carefully unpacked and checked for any damage. For the Fleet One Antenna Unit The procedure for the installation of the antenna unit is as follows: > Attach the coaxial cable to the RF connector on the antenna unit’s base. -
Page 23: Installation Of Bdu
> 1x Telephone Cord > 1x DC Power Cable with connector > 1x Inmarsat 505 laminated card > Hardcopy Quick Start Guide > CD format User manual The following important notes are to be followed for the selection of a location before installing the BDU: >... - Page 24 Installation Manual - Fleet One The BDU can be installed on a desktop, bulkhead, top ceiling or under the cap- tain’s console. The procedure of the installing the BDU is simple as follow: > Place the BDU on the desired installation area.
-
Page 25: Installation Of Primary Handset
Reattach the plastic cover onto the cradle. Secure the handset onto the cradle. Place the clamp on top of the Primary handset cable strain relief. Plastic Cover M5 x 12mm Screw Handset Clamp Cradle Primary Handset Cable © INMARSAT MARITIME... -
Page 26: Connections
Installation Manual - Fleet One Connections Below is the interconnection diagram of Fleet One UE with the cables FLEET ONE ADU 10m Antenna Cable BDU (FLEET ONE) 1.8m DC Power Cable Bolt to vessel’s hull 1m Handset 12V/24V DC Cable Vessel’s power... -
Page 27: Bdu's Outputs Connection
The BDU has a grounding stud with a locking screw for the earth cable ( with its colors of green and yellow) with its UE lug. It is recommended to include spring washers to secure the UE lug to the grounding stud. © INMARSAT MARITIME... -
Page 28: Getting Started On The System
Getting Started On The System Installing the SIM card The terminal requires a Fleet One SIM card to access the Inmarsat’s network and it is provided by your Airtime Service Provider. Insert the SIM card to the BDU as follow: >... -
Page 29: Powering Up The Terminal
Ready for voice only. Blinking Green Ready for packet data only. Steady Green Ready for all (Voice and Data). Steady Amber Acquiring GPS (Using Stored GPS) Steady Green Using new GPS fix Steady Red GPS acquisition failure (GPS Error) © INMARSAT MARITIME... -
Page 30: Settings On Web Console
Installation Manual - Fleet One Settings On Web Console 4.3.1 Activating on Web Console Open the web browser (for example: Internet Explorer, Google Chrome or Firefox.) and type http://192.168.1.35 in the Address field. Username and Password will be prompted. Default Username :... -
Page 31: Satellite Selection
1.2 4.3.2 Satellite Selection The latest generation of Inmarsat satellites which are located directly over the equator at: I-4 Americas Satellite at 98° W Longitude I-4 Asia-Pacific Satellite at 143.5° E Longitude I-4 EMEA Satellite at 25° E Longitude The default Satellite Selection is in Auto mode. -
Page 32: Data Connection Settings
Installation Manual - Fleet One > Click on your choice of visible satellites. > Click “Select” to point the antenna to the selected satellite in exclusive mode. The satellite selection will be saved and each time you power up the UE, the satellite selection choice will remain until you make the next selec- tion change. - Page 33 Click “Update“ to allow the selection to take effect. > Click “Refresh“ to query the current mode. Click “Connection“ To activate the PDP context, click “Activate Default Profile“. © INMARSAT MARITIME...
-
Page 34: Gps Settings
Installation Manual - Fleet One After about 30 to 40 seconds, the data connection will be activated with a noti- fication of the public IP address assigned to the active data connection. An user may now browse the internet, do file transfer (FTP) or run any IP-based applica- tion services. -
Page 35: Save Settings
1.2 4.3.5 Save Settings It is recommended to save the recent setting changes. To save the recent changes, click “Save Now“. © INMARSAT MARITIME... -
Page 36: Glossary
Installation Manual - Fleet One Glossary Alternating Current Above Deck Unit Below Deck Unit Direct Current Global Position System User Equipment © INMARSAT MARITIME... -
Page 37: Appendix A: Outline Drawings
1.2 APPENDIX A: Outline Drawings ADU Outline Dimensions Weight : 2 kg. Dimensions are expressed in terms of mm. © INMARSAT MARITIME... -
Page 38: Adu Hole Pattern (Cut-Out Holes)
Installation Manual - Fleet One ADU Hole Pattern (Cut-out Holes) Dimensions are expressed in terms of mm. © INMARSAT MARITIME... -
Page 39: Bdu Outline Dimensions
1.2 BDU Outline Dimensions Dimensions are expressed in terms of mm. © INMARSAT MARITIME... -
Page 40: Primary Handset Outline Dimensions
Installation Manual - Fleet One Primary Handset Outline Dimensions Dimensions are expressed in terms of mm. © INMARSAT MARITIME... - Page 42 inmarsat.com...
