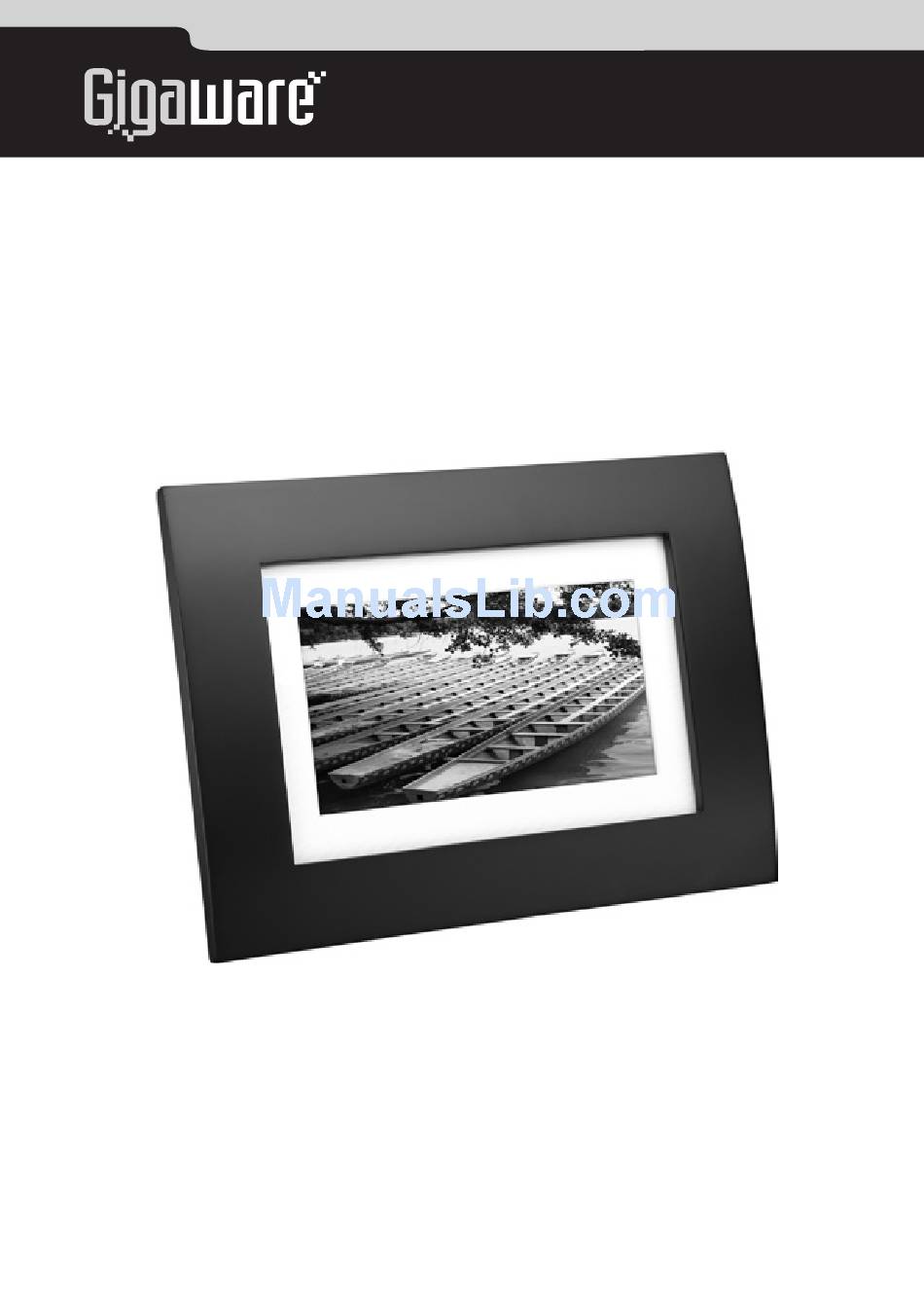

- Page 1 16-953 User’s Guide 8” Digital Photo Frame with Remote Control Please read this user’s guide before using your new photo frame.
-
Page 2: Package Contents
Package contents • Photo Frame • User’s Guide • Remote Control Holder Features • 16Mb built-in flash memory stores up to 14 pictures • Add additional pictures with the 4-in-1 Card Slot (supports up to 8GB memory card) Power the Photo Frame Connect the supplied AC adapter to the DC 9V jack and plug into a standard household outlet. - Page 3 Position the Frame Keep the frame away from strong magnets, heat sources, direct sunlight, and excessive dust. Remote Control Holder Hanging Slots Hang your frame vertically or horizontally or mount the remote control holder. Adjustable Stand Pull down and rotate to position the frame vertically or horizontally.
- Page 4 Setup To define frame settings, complete the following steps: 1. Press MENU to enter the main menu. 2. Press PREV or NEXT to navigate to SETUP and press PLAY/PAUSE/MODE. The setup menu appears. 3. Use the PREV, NEXT, UP, or DOWN buttons to navigate to a setting.
- Page 5 POWER Turn the frame on or off. PLAY/PAUSE/MODE Select functions. MENU Access the main menu. UP/COPY/DELETE Navigate to, copy, or delete a photo. DOWN/ROTATE Navigate to or rotate a photo. PREV Navigate to or view the previous photo. NEXT Navigate to or view the next photo.
-
Page 6: Use The Remote Control
Use the Remote Control SETUP Access setup menu. MENU Access the main menu. Zoom Zoom in or out a photo. SLIDE SHOW Start the slide show. Navigate menus or go to a photo. Select functions: PLAY/PAUSE/ MODE. COPY/DEL Copy or delete a photo. NEXT Navigate menus or view the next photo. - Page 7 Viewing Photos on Your Frame Your frame can read memory cards up to 8GB. It automatically displays saved photos and photos from a memory card in the SD/MMC/XD/MS slot. 1. Press the POWER button to turn on the frame. 2. Insert a memory card into the labeled slot. The frame enters Slide Show mode after several seconds.
- Page 8 2. Select YES when asked if you want to copy the photo, then press PLAY/PAUSE/MODE. The frame can copy up to 14 photos to the frame’s memory. Note: You can rotate photos clockwise by pressing ROTATE repeatedly while the photo is displayed. Rotated photos are copied in the rotated position.
- Page 9 Battery Notes: • Keep button-cell battery away from children. Swallowing a button-cell battery can be fatal. • Dispose of the old battery promptly and properly. Do not burn or bury it. • Use only a fresh battery of the required size and recommended type.
-
Page 10: Specifications
Specifications File format ...JPEG Screen Resolution ...800 × 600 Power source... DC 9V 1.5A Compatible RAM ... SD/MMC/XD/MS Operating temperature ...32 – 104°F (0 – 40°C) Dimensions (W × H × D) ...10.35 × 8.72 × 1.5 in ...(26.3 × 22.1 × 3.9 cm) Specifications are subject to change and improvement without notice. -
Page 11: Limited Warranty
Limited Warranty This product is warranted against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from an authorized retailer. THERE ARE NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current;... - Page 12 above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. You may contact the warrantor at: Service Center, 100 Exchange Place, Pomona, CA, 91768, U.S.A. Protect the environment by recycling used electronics.
