Motion Detection

Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A
total of 10 Include and/or Exclude windows can be configured.
• Included windows target specific areas within the whole video image
• Excluded windows define areas within an Include window that should be ignored (areas outside
Include windows are automatically ignored)
Once configured, the motion detection windows will appear in the list of available triggers, for triggering
events. See How to set up a triggered event above.
Note:
Using the motion detection feature may decrease the camera's overall performance.

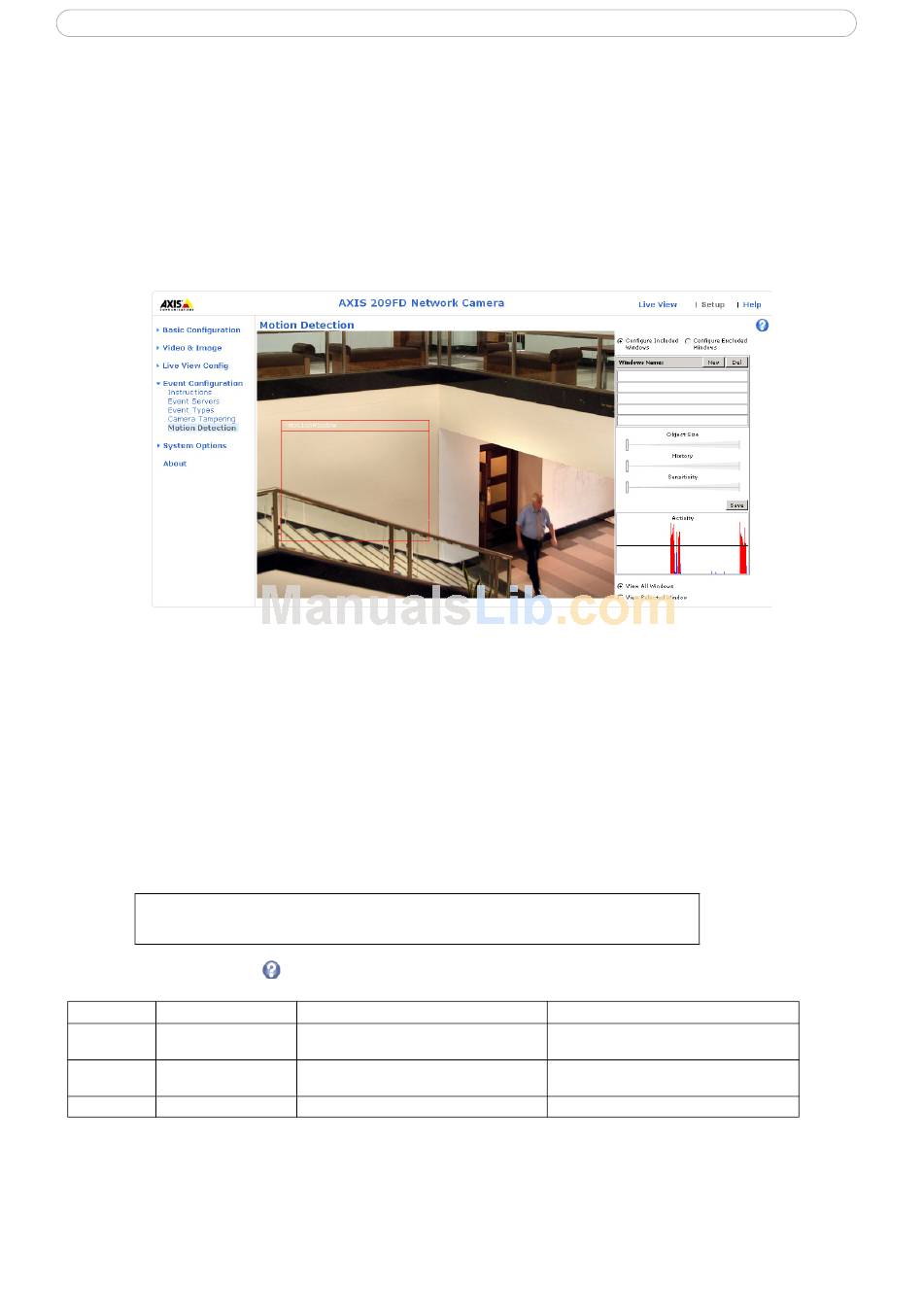

Configuring Motion Detection
1. Click Motion Detection in the Event Configuration menu.
2. Click the Configure Included Window radio button and click New.
3. Enter a descriptive name under Window name.
4. Adjust the size (drag the bottom right-hand corner) and position (click on the text at the top and
drag to the desired position).
5. Adjust the Object size, History and Sensitivity profile sliders (see table below for details). Any
detected motion within an active window is then indicated by red peaks in the Activity window
(the active window has a red frame).
6. Click Save.
To exclude parts of the Include window, click the Configure Excluded Windows button
and position the Exclude window as required, within the Include window.
Please see the online help
Object Size
High level Only very large objects
trigger motion detection
Low level Even very small objects
trigger motion detection
Default value Low
for descriptions of each available option.
History
An object that appears in the region will trigger
the motion detection for a long period
An object that appears in the region will trigger
motion detection for only a very short period
Medium to High
AXIS 209FD/FD-R/FD-R M12
Sensitivity
Ordinary colored objects on ordinary back-
grounds will trigger the motion detection
Only very bright objects on a dark background
will trigger motion detection
Medium to High
