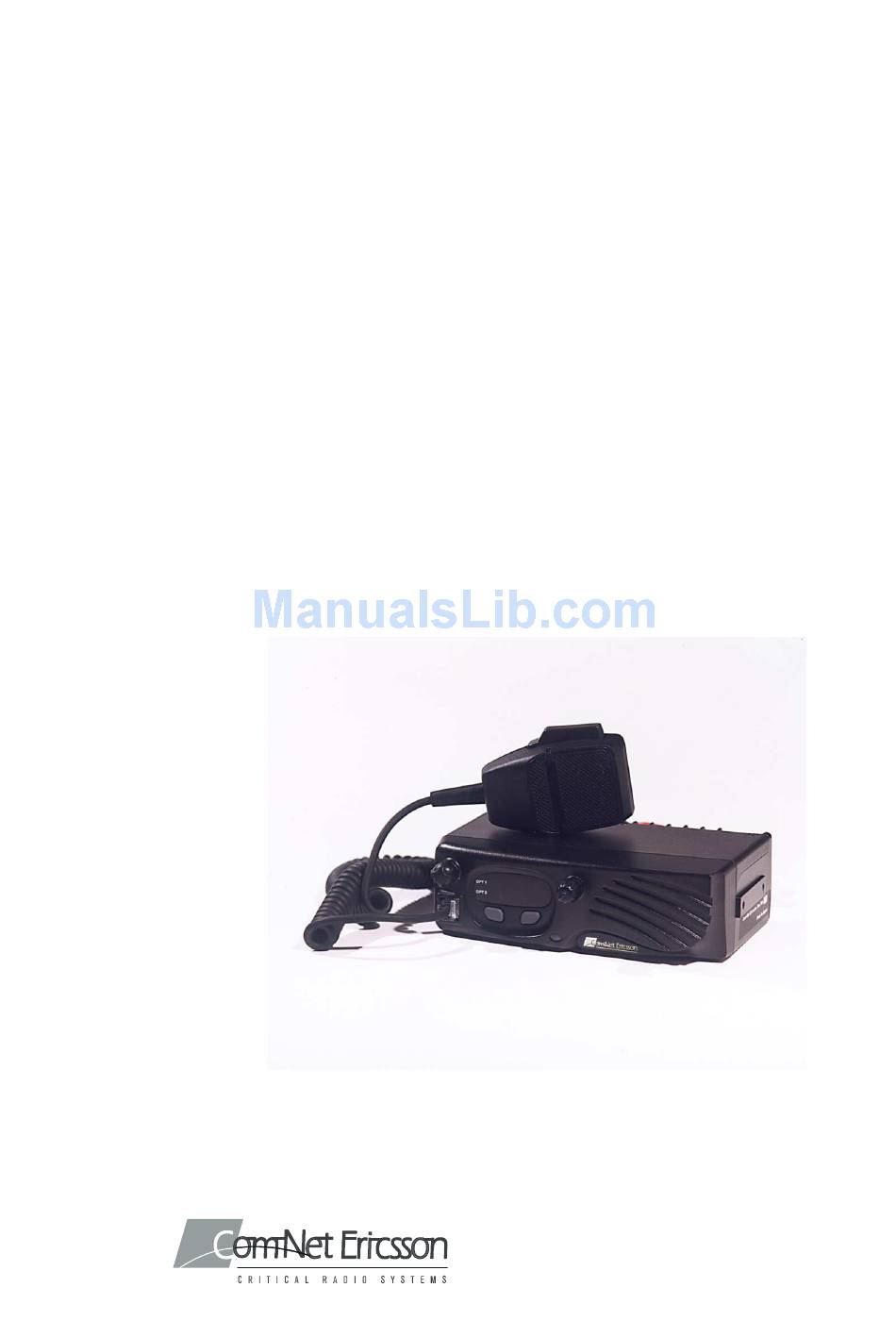

- Page 1 MM101031V1 R1A Installation Manual 300M ANTHER Mobile Radio...
- Page 2 Com-Net Ericsson Critical Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ..................4 MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS ........5 DETERMINING MPE RADIUS ...............5 SAFETY TRAINING INFORMATION ..............6 INTRODUCTION....................8 UNPACK AND CHECK THE EQUIPMENT............8 OPTIONS AND ACCESSORIES ..............9 INSTALLATION ....................10 STEP 1 - PLAN THE INSTALLATION ............10 STEP 2 - LOCATE THE TOOLS REQUIRED ..........10 STEP 3 –... -
Page 4: Safety Information
SAFETY INFORMATION The operator of any mobile radio should be aware of certain hazards common to the operation of vehicular radio transmissions. A list of several possible hazards is given: Explosive Atmospheres - Just as it is dangerous to fuel a vehicle with the motor running, similar hazards exist when operating a mobile radio, be sure to turn the radio off while fueling the vehicle. -
Page 5: Maximum Permissible Exposure (Mpe) Limits
MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS Do not transmit with this radio and antenna when persons are within the MPE Radius of the antenna, unless such persons (vehicle occupants or bystanders, for example) are shielded from the antenna field by a grounded metallic barrier (such as the user’s vehicle rooftop). -
Page 6: Safety Training Information
This radio has been examined and complies with the FCC RF exposure limits when persons are beyond the MPE radius of the antenna. In addition, your Com-Net Ericsson radio complies with the following Standards and Guidelines with regard to RF energy... - Page 7 TO ENSURE THAT YOUR EXPOSURE TO RF ELECTROMAGNETIC ENERGY IS WITHIN ALLOWABLE LIMITS OCCUPATIONAL USE, ALWAYS ADHERE CAUTION TO THE FOLLOWING GUIDELINES: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio, and may also cause you to exceed FCC RF exposure limits.
-
Page 8: Introduction
INTRODUCTION The P 300M mobile radio is designed for installation as a ANTHER front mount radio. This manual provides the mobile installation instructions and includes the instructions to install the external horn or external speaker options. UNPACK AND CHECK THE EQUIPMENT Carefully unpack the equipment and verify the items listed below are included in the shipping container. -
Page 9: Options And Accessories
OPTIONS AND ACCESSORIES The following table lists the options and accessories available for the 300M Mobile Radio. ANTHER Table 1 - P 300M Mobile Radio Options and Accessories ANTHER DESCRIPTION PART NUMBER OPTION NUMBER Microphone, Standard KRY 101 1654/1 KAMC7J KRY 101 1654/10 KAMC7K Microphone, DTMF... -
Page 10: Installation
INSTALLATION STEP 1 - PLAN THE INSTALLATION Figure 1 shows an example of a typical connection diagram. Before beginning, plan the radio installation carefully so that it will: ! Be safe for the operator and passengers, ! Be convenient for the operator to use, ! Be neat in appearance, ! Be protected from water damage, ! Be easy to service,... -
Page 11: Step 3 - Equipment Preparation
• Drills and circle cutters as follows: No. 31 (1/8-inch) drill 1/2-inch drill or circle cutter 3/4-inch circle cutter, hole saw or socket punch • Phillips and flat-blade screwdrivers • No. 10 Torx driver Torx is a registered trademark of CAMCAR Division TEXTRON, Inc. STEP 3 –... -
Page 12: Figure 1 - Typical Connection Diagram
Figure 1 – Typical Connection Diagram... -
Page 13: Figure 2 - Removing Top Cover
4. Remove the top cover by lifting the back and sliding it forward away from the chassis. Figure 2 – Removing Top Cover... -
Page 14: Figure 3 - Factory Default Internal Speaker Jumper Setting (Enabled)
Figure 3 – Factory Default Internal Speaker Jumper Setting (Enabled) Configure the Internal Radio Speaker Jumper (JP701) The P 300M radio is shipped from the factory with the ANTHER internal radio speaker jumper (JP701) set to 1-2 as shown in Figure 3.
