User Guide - i355/i615
Display Screen
Soft Key Functions*
Push to Talk Button
RIGHT "Soft" Key*
LEFT "Soft" Key*
Power Button
MENU Key
Hang-Up Key
Arrow Keys
OK Button
Number Keys

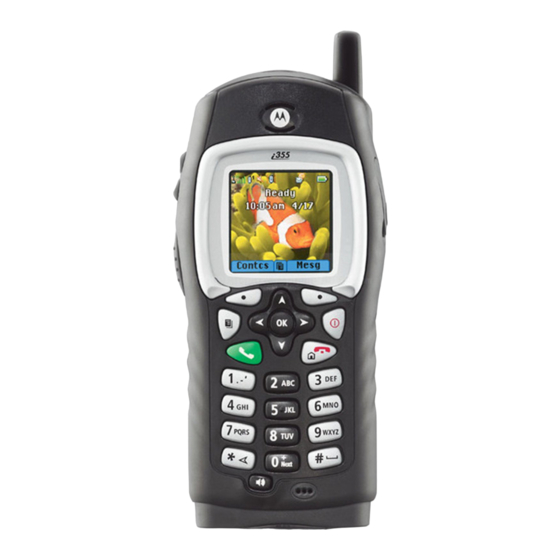

Diagram of i355 Handset
*Note: The Left and Right "Soft" keys perform different functions from time to time. The function that
they will perform if pressed is indicated above the key on the Display Screen.
1. Starting TranAir
Note: The display back-light is on a timer. If it goes dark, press any arrow key to re-light the
screen.
To Start the TranAir java program, press the MENU button and scroll to Java Apps with the right arrow
key. Press OK. Then, scroll to the diamond shaped icon until you see TranAir and then select this
.
program by pressing OK
You should see a message similar to "Starting..." for a few seconds. Then you will see "TranAir" at the
top, "Log On" and "Ready".
Note that if your phone gets stuck on Starting... -then end the TranAir program by pressing the
Red
Hang-Up key
once, then the soft key that says END –this will force TranAir to shut down. Then,
start it back up again as described above. If it gets stuck on Starting... again, then call and advise
the Dispatcher.
Note that the dispatcher must have assigned you as a driver to a vehicle at the beginning of
your shift in order for the system to recognize you. If this has not been done, then your
java application will get stuck on starting.
Suspending TranAir
Before logging on, please read the next section
Advertisement
Related Manuals for Motorola i355
Summary of Contents for Motorola i355
- Page 1 User Guide - i355/i615 Display Screen Soft Key Functions* Push to Talk Button RIGHT “Soft” Key* LEFT “Soft” Key* Power Button MENU Key Hang-Up Key Arrow Keys OK Button Number Keys Diagram of i355 Handset *Note: The Left and Right “Soft” keys perform different functions from time to time. The function that they will perform if pressed is indicated above the key on the Display Screen.
- Page 2 2. Suspending and Shutting Down TranAir Using a java application, such as TranAir, makes other phone functions inaccessible or no longer in view. If you need to access other phone functions while TranAir is running, you will need to Suspend TranAir.
- Page 3 5. Book In NOTE: In most cases, TranAir puts the next most logical step at the top of the display to make it easier to operate. For example, now that you have logged on, your phone displays Book In at the top of the display.
- Page 4 No-Show or Void: If you arrive to your pickup location and you are unable to locate your passenger, you can select No Show from the menu when you are in an Assigned status. Press Change, select No Show with OK, then press Select.
- Page 5 Cash Note –if the payment type is CASH, it is the default selection, so you can just press GO without selecting anything. The phone will now prompt you to ENTER TOTAL PRICE. Enter the actual price of the trip, including tip and press GO. For example, if the price is $24.93 and the customer added a tip of 3.07, you would enter 2800, then press GO.
- Page 6 Note that TranAir automatically books you into the zone you completed your trip in, if the trip had a destination specified or if you had booked a Soon-To-Clear or. For example, if the trip had a destination address of 123 Main Street, which is in zone 3, then upon completing the trip, the system would post your vehicle in zone 3 automatically.
- Page 7 Busy Clear –If you are now marked Busy, then the phone will display “Book-In” at the top of the screen because that is the most logical next function. When you are busy, you can become CLEAR and Book yourself into a Zone at the same time, simply by pressing “...
- Page 8 14. Message Sending Messages The company management may give you a list of 2 digit numeric message codes that you can use to send canned messages to dispatch. For example, a code “11” may mean that you are “broken down” and a code “99” may mean you need help in an emergency, etc. To send a message, press “Change”, highlight and select “Message”...
