Caution! To meet the high quality demands required by Bosch, every tumble dryer This signal word indicates a possibly that leaves our factory is carefully dangerous situation. Not heeding the checked to ensure that it functions caution can cause property and/or correctly and is in perfect condition.
Intended use Intended use Safety instructions The following safety information This appliance is intended for private ■ I n t e n d e d u s e S a f e t y i n s t r u c t i o n s and warnings are provided to domestic use only.
Page 5
Safety instructions Do not allow children to Warning ■ clean or maintain this Risk of suffocation! appliance unsupervised. If allowed to play with the Keep children under 3 years packaging/plastic film or ■ and pets away from this packing components, children appliance.
Safety instructions The mains plug must be Installation ■ freely accessible at all times. Warning If this is not possible, in Risk of electric shock/fire/ order to comply with the material damage/damage to relevant safety regulations, a the appliance! switch (2-pole switch-off) If the appliance is not installed must be built into the properly, this may lead to a...
Page 7
Safety instructions Incorrectly placing (stacking) Warning ■ this appliance on top of a Risk of fire/material damage/ washing machine may result damage to the appliance! in injury, material damage The use of extension cords or and/or damage to the power strips may result in fire appliance.
Safety instructions The appliance has sharp Warning ■ edges on which you could Risk of explosions/fire! cut your hands. If there is any residual ■ Do not take hold of the material left in the fluff filter, appliance by its sharp this may ignite when drying edges.
Page 9
Safety instructions Warning Warning Risk of fire/material damage/ Risk of poisoning! damage to the appliance! Poisonous fumes may be given If a program is terminated off by cleaning agents that before the drying cycle has contain solvents, e.g. cleaning finished, this prevents the solvent.
Safety instructions If you pour the wrong Caution! ■ quantity of detergent or Material damage/damage to cleaning agent into the the appliance appliance, this may result in If the amount of laundry in ■ material damage or damage the appliance exceeds its to the appliance.
Page 11
Safety instructions When removing the mains Warning ■ plug from the socket, always Risk of injury/material take hold of the plug itself damage/damage to the and never the mains cable, appliance! otherwise this may damage The use of spare parts and the mains cable.
Environmental protection Energy-saving tips Environmental protection Spin the laundry before drying. ■ The drier the laundry, the shorter the drying time will be, thus Packaging/old appliance consuming less energy. E n v i r o n m e n t a l p r o t e c t i o n Load the dryer with the maximum Dispose of packaging in an ■...
Installation and connection Warning Installation and Risk of fire/risk of poisoning/risk of connection material damage and damage to the appliance! Scope of delivery The dryer contains refrigerant which, I n s t a l l a t i o n a n d c o n n e c t i o n although it is environmentally friendly, is flammable R290.
Installation and connection During installation, ensure that: Remove the screws from the dryer and then remove the dryer door. The dryer is placed on a clean, level ■ Use a T20 (Torx) screwdriver Note: and firm surface, only. Do not use any other tools to The mains plug can be accessed at ■...
Page 15
Installation and connection Remove the screws from the door Put the door hinge and door handle handle on the dryer door and in place as shown in the picture, and remove the door handle. screw them back onto the dryer door.
Page 16
Installation and connection Insert the door lock (1.) on the other side of the dryer and screw the cover (2.) back on. Now also screw the dryer door back You can now reconnect the dryer, close the door and start a programme.
Installation and connection Optional accessories Transport and frost protection Order optional accessories from the Empty the condensate container. after-sales service: Select any programme using the programme selector. Washer-dryer stack connection set: Press the Start button. ■ To save space, the dryer can be Wait for 5 minutes.
Draining the condensation water Disconnect the hose from the Œ Draining the connecting piece and put it in the "parked" position. condensation water Condensation will form in the appliance D r a i n i n g t h e c o n d e n s a t i o n w a t e r as it dries the laundry.
Page 19
Draining the condensation water Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C). Caution! Accumulated water can be drawn back into the dryer and may cause material damage. Check that the water drains away from the wash basin quickly.
Page 20
Draining the condensation water Pull out the condensation container Slide in the condensation container fully. until it clicks into place. Turn the condensation container The condensation is now discharged via 180° onto its underside and remove the drain hose into the waste-water the stopper that is fitted.Turn the system or into a wash basin condensation container back over...
The main points in brief The main points in brief T h e m a i n p o i n t s i n b r i e f Load the laundry and close Switch the dryer on. Select a programme, and the door.

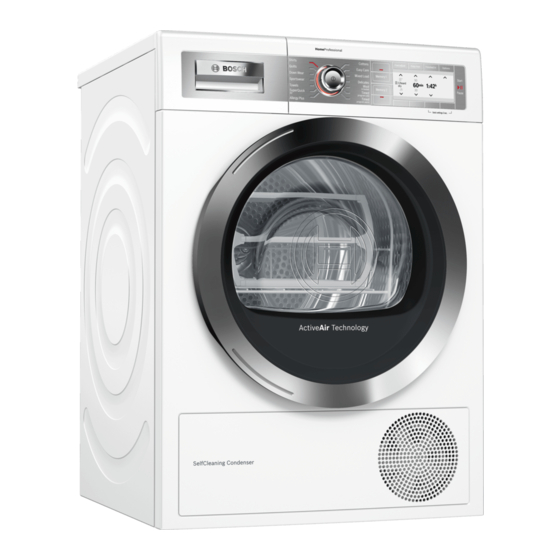

Getting to know your appliance Getting to know your appliance Dryer G e t t i n g t o k n o w y o u r a p p l i a n c e ( Condensate container 0 Control and display panel 8 Drum interior light (depending on the model) @ Dryer door...
Getting to know your appliance Control panel ( Programmes ~ Page 26. 0 Programme selector and On/Off button. 8 Display panel with buttons ~ Page 23. @ Start button for starting, interrupting or cancelling the programme. H Buttons ~ Page 28.
Getting to know your appliance Display panel Buttons Buttons Description Indicators/symbols Select a dryness level. ö Iron Dry e Cupboard Dry Ò Cupboard Dry+ Select Anti-Crease. Anti-Crease function in minutes Select Ready in. 1:40 Expected programme duration in hours and minutes or timed programme selected Programme delay in hours when "Ready in"...
Laundry Some detergents and care products, ■ Laundry e.g. starch or softeners, contain particles which may be deposited on P reparing the laundry the moisture sensor. This may impair L a u n d r y the sensor function and in Warning consequence the drying result.
Programmes and buttons Programmes and buttons Programmes P r o g r a m m e s a n d b u t t o n s Programme and fabrics Maximum load and programme settings/info Name of the programme The maximum load is based on the dry weight of the fabrics Which fabrics is the programme suitable for? Possible programme settings...
Page 27
Programmes and buttons Down Wear 1.5 kg Fabrics, pillows, bedspreads or eiderdowns filled with down. Dry large items individually. Sportswear 1.5 kg Weatherproof and outdoor clothing with a membrane coating and water-repellent fabrics. Towels 6 kg Hard-wearing towels made of cotton. SuperQuick 40’...
Programmes and buttons Buttons Buttons Explanations and notes Not all buttons and their functions can be selected in all programmes. Note: Fine adjust: Select the dryness level (e.g. Cupboard Dry) or the drying time (20 mins up to 3 hrs 30 mins, depending on the model and programme).
Operating the appliance The basket for woollens Operating the appliance The basket for woollens is Note: supplied with your dryer or it can be purchased as an accessory from the Loading laundry and after-sales service. O p e r a t i n g t h e a p p l i a n c e switching on the dryer Caution! The dryer must be correctly...
Operating the appliance Drying with the basket for b) Pullover woollens Insert the feet of the basket for woollens into the holes on the fluff filter. c) Sports shoes Place sports shoes in the basket for woollens without the insert. Pull out the tongues of the shoes and remove the insoles or heel cushions.
Operating the appliance Place the insert or the sports shoes Setting a programme in the basket for woollens. If you have activated the Caution! Note: childproof lock, you must deactivate it Risk of material damage to before you can set a programme, see the fabrics.
Operating the appliance Changing the programme or Removing laundry and adding laundry switching off the dryer You can remove or add laundry and Remove the laundry. change or alter the programme at any Press the # button to switch the time during drying.
Operating the appliance Remove the fluff from the recess in Dry the fluff filter, close it and reinsert the fluff filter. the two-part fluff filter. Ensure that no fluff falls into Note: Caution! the open shaft. The dryer may be damaged. Pull apart the two-part fluff filter.
Noises Pour out the condensation water. > Noises During drying, particularly in the N ote: N o i s e s initial phase, operation of the appliance results in noise from the compressor and pump. This is perfectly normal and does not impair proper functioning of the appliance.
Cleaning The automatic cleaning of the dryer Cleaning causes a clicking sound. C leaning the dryer and the C l e a n i n g control panel Warning Risk of death! There is a risk of electric shock as the dryer is operated with electricity.
Cleaning Cleaning the moisture sensor Cleaning the filter in the condensate container The dryer is equipped with a Note: stainless-steel moisture sensor. The The filter in the condensate Note: moisture sensor measures how damp container cleans the condensation the laundry is. water that is used during the dryer's After long periods of usage the moisture automatic cleaning cycle.
Faults and what to do about them Faults and what to do about them F a u l t s a n d w h a t t o d o a b o u t t h e m Faults Cause/remedy Empty the condensate container;...
Page 38
Faults and what to do about them Faults Cause/remedy Laundry is not dried cor- After the end of the programme, warm laundry feels damper than it actually ■ rectly or is still too damp. is. Spread the laundry out and allow the heat to disperse. Finely adjust the dryness level –...
After-sales service After-sales service After-sales service A f t e r - s a l e s s e r v i c e If you cannot rectify the fault yourself (faults, what to do?), please contact our after-sales service. We will always find an appropriate solution to avoid unnecessary visits by engineers.
Consumption values Consumption values Consumption values table C o n s u m p t i o n v a l u e s Spin speed used for Programme Duration** Energy consumption** spinning the laundry Cottons 9 kg 9 kg Cupboard Dry* 1400 rpm 214 min...
Technical data Technical data Dimensions: T e c h n i c a l d a t a 85 x 60 x 60 cm Height x width x depth Weight: Approx. 57 kg Maximum load: 9 kg Condensate container: 4.6 l Connected voltage: 220 - 240 V Connected load:...
Page 44
0344 892 8979 (Calls charged at local or mobile rate.) 01450 2655 (0.03 € per minute at peak. Off peak 0.0088 € per minute.) You can find the contact information for all countries in the attached after-sales service directory. Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY *9001287791*...
