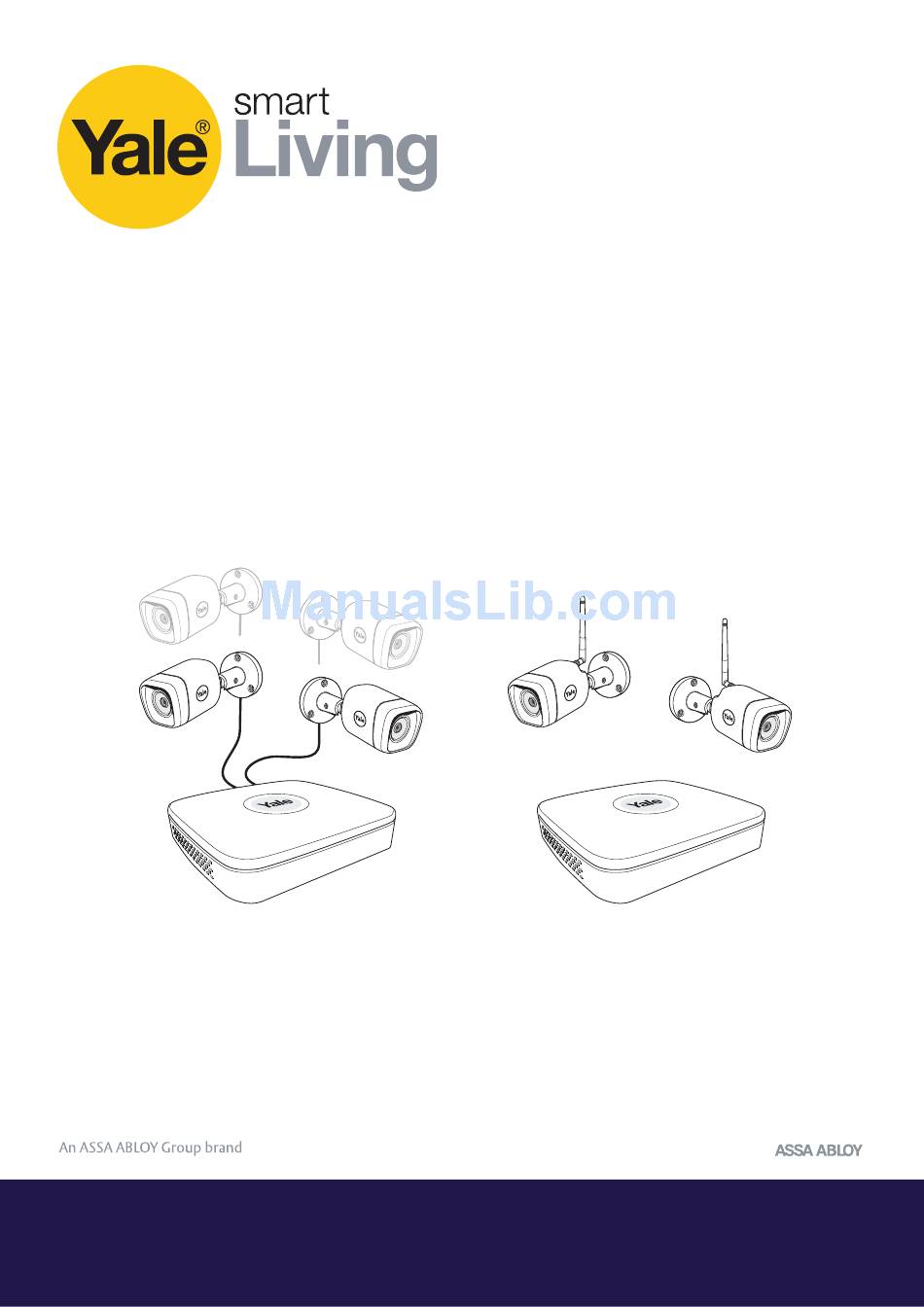

CCTV Menu Operations
Manual
English
SV-4C-2ABFX / SV-8C-4ABFX
SV-4C-2DB4MX
Disclaimer!
This Manual will guide you through the standard settings and operations for normal Residential
CCTV usage. The system is based on a professional system and may contain advanced
features and settings that are typically not needed for residential use.
This manual will be continuously updated and be available at www.yalelock.com/smart-living.
The smarter way to protect your
home.
Advertisement
Related Manuals for Yale SV-4C-2ABFX
Summary of Contents for Yale SV-4C-2ABFX
- Page 1 CCTV Menu Operations Manual English SV-4C-2ABFX / SV-8C-4ABFX SV-4C-2DB4MX Disclaimer! This Manual will guide you through the standard settings and operations for normal Residential CCTV usage. The system is based on a professional system and may contain advanced features and settings that are typically not needed for residential use.
-
Page 2: Table Of Contents
(It is better to have the App ready before starting the setup of the system. ) 05-06 Initial setup: Wired Kit 07-11 WiFi Kit Menu overwiev 13-15 Setting up recording and motion detection 16-17 Searching in recorded video Backing up a video sequence Yale info and help desk... - Page 3 Plan camera locations and connect cables Plan the camera location Connect cables according to the manual that came with your Kit. IP-cam IP-cam HDMI Router Not included Nicht enthalten Non inclusa Non inclus No incluido HDMI Router Not included Nicht enthalten Non inclusa Non inclus No incluido...
- Page 4 Download App - Personal registration in the App Download App for Android or IOS: “Yale Smart Living VIEW” Yale Smart Living VIEW Personal registration in the App App Log-in page: Initial setup: 1) Click Registrér After registration/initial setup, you open from this page.
- Page 5 Initial setup - Wired Kit Initial setup for system with wired cameras. 1) Key in password (Click in box and keybord display will appear) 2) Confirm password 3) Click NEXT 4) Draw unlock pattern (Min. 4 dots) Draw again to confirm Draw unlock pattern Remember this pattern! This will be your key to access the system.
- Page 6 (WiFi cameras can be added later if needed) The App needs to be installed and registered before scanning. 14) If you want access to your system via the Yale View App, scan the QR code to connect to your DVR system. (If not click NEXT)
-
Page 7: Wifi Kit
Initial setup - WiFi Kit Initial setup for system with WiFi cameras. 1) Key in password (Click in box and keybord display will appear) 2) Confirm password 3) Click NEXT 4) Draw unlock pattern (Min. 4 dots) Draw again to confirm Draw unlock pattern Remember this pattern! This will be your key to access the system. - Page 8 11) Click Refresh to update Network connection. 12) Click Next 13) If you have WiFi cameras in your Kit (wiereless camera) click YES. 14) Connect Ethernet cables as described in the Yale Quick guide included in the box with the DVR unit. 15) Click Next...
- Page 9 Initial setup - WiFi Kit Initial setup for system with WiFi cameras. 16) Click Scan xxx.xxx.x.xx SV-DB4MX-B 17) All your connected cameras (WiFi) should now show up on the list. xxx.xxx.x.xx SV-DB4MX-B If all your cameras do not show up on the list, click Scan again. xxx.xxx.x.xx SV-DB4MX-B If they still do not show up, check that they are all connected to power and...
- Page 10 Initial setup - WiFi Kit Initial setup for system with WiFi cameras. 20) Click Next xxx.xxx.x.xx SV-DB4MX-B xxx.xxx.x.xx SV-DB4MX-B xxx.xxx.x.xx SV-DB4MX-B 21) Click Next 22) Select the router you want to connect to. “Your Router WiFi” 23) Write Connection Password for your Router. (Same as when you connect any computer or smartphone to you lokal router/network.) 24) Click Connect...
-
Page 11: Wifi Kit
Initial setup for system with WiFi cameras. The App needs to be installed and registered before scanning. 26) If you want access to your system via the Yale View App, scan the QR code to connect to your DVR system. (If not click NEXT) 27) Click NEXT 28) Setup is now complete. -
Page 12: Menu Overwiev
Menu overwiev Menu overwiev Right Click in the live view > brings up the top menu for the live view screen options. CAM 1 CAM 2 CAM 3 CAM windows can be dragged to rearrange order. CAM 4 CAM 5 CAM 6 The system is flexible for you to set to your personal preferences and it can... -
Page 13: Setting Up Recording And Motion Detection
Setting up recording and motion detection Setting up recording schedule and recommended residential motion detection (MD) Click STORAGE Setting up SCHEDULE (week planning) for recordings and event triggers. Click Event Setting up movement-triggers for recordings. Mode: VIDEO DETECT = MD (Motion Detect) (Detection of simple movement) IVS = INTEL (Detection of specific movement) FACE DETECT (Triggers when it detects a face-shape,... - Page 14 Setting up recording and motion detection Setting up advanced IVS motion detection (wired cameras only). (C) IVS = Intel EVENT- IVS = Intel (To add IVS functionlity to your wired cameras go through the following steps. ) 1) Select Channel (Channel = Camera) 2) Click Add Message 3) Click OK...
-
Page 15: Setting Up Recording And Motion Detection
Setting up recording and motion detection Setting up face detection (wired camera only). The face detect function only works with Wired camera on CHANNEL 1 (D) FACE DETECT EVENT- FACE DETECT (Triggers when it detects a face-shape, ! not a specific face !) 1) Select Channel 1 2) Tick Enable 3) Click Set... -
Page 16: Searching In Recorded Video
Searching in recorded video Searching in recorded video by Time/Date, Motion detection, Face detection When you have setup your system, this menu is where you can find video recordings to investigate or document events. OPERATE: (A) SEARCH: Search for and playback recorded video by Date and Time. -
Page 17: Searching In Recorded Video
Searching in recorded video Searching in recorded video by Time/Date, Motion detection, Face detection FACE SEARCH will show a picture taken of the face shape, captured by the camera. SEARCH by Year / Month / Date... -
Page 18: Backing Up A Video Sequence
Backing up a video sequence Backing up a video sequence to storage media. OPERATE: BACKUP: Plan backup of recorded video, to external media (Extenal HDD og USB memory). Backup - recorded video Backup from SEARCH Menu Extenal storage media, HDD or a USB memorystick, need to be plugged in to USB (back of unit). - Page 19 Support www.yalelock.com/smart-living www.yalelock.com/smart-living THE YALE BRAND, with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution. THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.
