1262204 Rev B

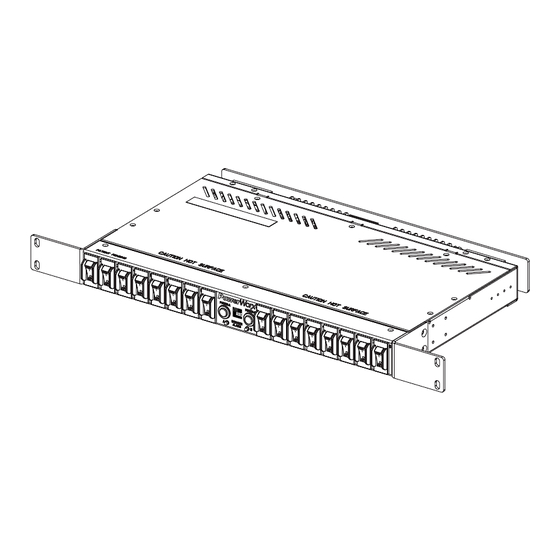

PowerWorx
Power Distribution Panel User Manual
Power Buses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Input Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Output Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chassis Ground Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Power-On Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Circuit Breaker Alarm Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ADCP-80-531 • Issue 4 • July 2004
®
Power Distribution Products
Select Series Circuit Breaker
© 2006, ADC Telecommunications, Inc.
16755-B
Page
(continued)
Page 1
Advertisement
Table of Contents
Related Manuals for ADC PowerWorx Select Series
Summary of Contents for ADC PowerWorx Select Series
-
Page 1: Table Of Contents
1.10 Alarm Relay Contacts ............. .11 (continued) 1262204 Rev B Page 1 © 2006, ADC Telecommunications, Inc. - Page 2 CUSTOMER INFORMATION AND ASSISTANCE........... 32 _________________________________________________________________________________________________________ Page 2 © 2006, ADC Telecommunications, Inc.
-
Page 3: Introduction
The capacity of each bus is one to eight circuit breakers. Each bus has Power-On and Alarm indicators on the front of the chassis and input, output, ground, and alarm contact connections on the rear of the chassis. Page 3 © 2006, ADC Telecommunications, Inc. -
Page 4: Options
Original Issue 2 03/2002 Updated to cover replaceable circuit breaker feature Issue 3 07/2004 Updated to add warning saying use of one bus only on dual bus panel will result in false alarms Page 4 © 2006, ADC Telecommunications, Inc. -
Page 5: Trademark Information
ADCP-80-531 • Issue 4 •July 2004 Trademark Information ADC and PowerWorx are registered trademarks of ADC Telecommunications, Inc. Admonishments Important safety admonishments are used throughout this manual to warn of possible hazards to persons or equipment. An admonishment identifies a possible hazard and then explains what may happen if the hazard is not avoided. - Page 6 GROUND, AND ALARM FOR 23-IN. (58.42 CM) CONNECTIONS RACK MOUNTING REAR VIEW Figure 1. Front and Rear View of ADC PowerWorx Select Series Circuit Breaker Panel with Protective Cover Attached (8/8-Position Panel Shown) Page 6 © 2006, ADC Telecommunications, Inc.
-
Page 7: Power Buses
100 Amps total capacity may be installed in the circuit breaker mounting positions for each power bus. Other circuit breaker capacity configurations may be available by special order. When a circuit breaker trips, the input power bus is disconnected from the corresponding output circuit. Page 7 © 2006, ADC Telecommunications, Inc. -
Page 8: Input Voltage
• –24 Vdc nominal, within range of –21 Vdc to –30 Vdc • –48 Vdc nominal, within range of –42 Vdc to –56 Vdc Page 8 © 2006, ADC Telecommunications, Inc. -
Page 9: Input Connectors
2-hole lugs and up to #6 AWG wire. Two crimp ring lug terminals for use with two #10 AWG wires are provided with the circuit breaker panel. The circuit breaker panel can be properly grounded using only one stud. Page 9 © 2006, ADC Telecommunications, Inc. -
Page 10: Circuit Breakers
If the LED indicator is on, power is applied to the bus input connectors. If the green LED indicator is off, power is not applied to the bus input connectors. The Power-On LED is field-replaceable (see Subsection 7.4, Power-On LED Replacement). Page 10 © 2006, ADC Telecommunications, Inc. -
Page 11: Circuit Breaker Alarm Indicator
The wire wrap pin terminal block consists of nine wire wrap pins mounted in a terminal block. Three sets of three wire wrap pins (NO, C, NC) are provided for connection with external alarm systems. The wire wrap pins will accept #22 to #26 AWG copper wire. Page 11 © 2006, ADC Telecommunications, Inc. -
Page 12: Circuit Breaker Designation Card And Holder
(2.54 CM) Figure 5. Voltage Designation Label 1.14 Material and Finish The circuit breaker panel chassis and brackets are made of 16-gauge cold rolled steel. The panel and brackets are finished with powder paint. Page 12 © 2006, ADC Telecommunications, Inc. -
Page 13: Cooling
(58.42 CM) 22.31 IN. (4.45 CM) (56.67 CM) 16762-B 1.13 IN. (2.86 CM) Figure 6. Dimensions of Circuit Breaker Panel (8/8-Position Panel with Mounting Brackets Attached for 23-Inch [58.42 cm] Rack Mounting Shown) Page 13 © 2006, ADC Telecommunications, Inc. -
Page 14: Weight
ADC. The slotted mounting hole pattern in the mounting brackets compensates for vertical rack differences and allows mounting the circuit breaker panel in either 1.75- or 2-inch (4.45 or 5.08 cm) rack spaces. Page 14 © 2006, ADC Telecommunications, Inc. -
Page 15: Environmental Characteristics
Figure 7. Mounting Brackets for Mounting Circuit Breaker Panel in 19- and 23-Inch (48.26 or 58.42 cm) Racks 1.21 Environmental Characteristics Table 2 lists the environmental characteristics of the PowerWorx Select Series circuit breaker panel. Table 2. PowerWorx Select Series Circuit Breaker Panel Environmental Characteristics PARAMETER... -
Page 16: Accessories
2. Unpack each container while carefully checking the contents for damage and verify with the packing slip. 3. File a claim with the commercial carrier and notify ADC Customer Service if damage is detected or if parts are missing. Save damaged cartons for inspection by the carrier. -
Page 17: Recommended Installation Tools
• Power screwdriver with bits for Phillips and slotted head screws PHILLIPS SCREW HEAD BIT 16776-A • Set of sockets and driver 12504-A • Set of open end or box end wrenches Page 17 © 2006, ADC Telecommunications, Inc. -
Page 18: Use Of Screws In Accessories Package
Screws to Attach Brackets to Rack To fasten the brackets to the rack, use the nickel plated 12-24 screws as shown in Figure 9 (2 for each bracket). Four screws are in the package. Page 18 © 2006, ADC Telecommunications, Inc. -
Page 19: Protective Cover Installation/Removal
Slide the cover to the right and then pull the cover directly outward and away from the panel. The screws do not need to be completely removed to remove the protective cover. Page 19 © 2006, ADC Telecommunications, Inc. -
Page 20: Cable Management Bar (Optional Accessory For Circuit Breaker Panels)
Use of any other hardware could cause contact with internal parts of the circuit breaker panel. If parts are missing, please contact ADC. Note: A circuit breaker panel with the cable management bar attached may exceed the 12-inch (3.05 mm) overall depth objective described in GR-63 CORE, 02-14. -
Page 21: General Wiring Recommendations
Figure 13. After routing the cables, tie them to the cable management bar (if optional accessory ordered). Caution: Connect both buses of the circuit breaker panel to only –24 Vdc or –48 Vdc. Page 21 © 2006, ADC Telecommunications, Inc. -
Page 22: Chassis Ground Connection
This provides an adequate return path capable of allowing the circuit breaker to fail in the unlikely event of a battery wire to chassis fault. Page 22 © 2006, ADC Telecommunications, Inc. -
Page 23: External Alarm Contact Connectors
#16 to #30 AWG wire with crimp-on spade lug or ring connectors that have a maximum width of 0.200 inches (5.080 mm) or use #16 to #30 AWG wire without lugs (see Figure 15). Tighten the screws to approximately 9 pound-force inches (1 Newton-meter) of torque. Page 23 © 2006, ADC Telecommunications, Inc. -
Page 24: Output Power Connectors
0.325 inches (8.255 mm). • The terminals also accommodate copper wire without lugs (insulation stripped back). • Tighten the screws to approximately 9 pound-force inches (1 Newton meter) of torque. Page 24 © 2006, ADC Telecommunications, Inc. -
Page 25: Input Power Connectors
Tighten the nuts to approximately 16 pound-inches (1.8 Newton meters) of torque. Replace the protective cover on the circuit breaker panel after all the wiring connections are made and before power is applied to the panel (refer to Subsection 4.3, Protective Cover Installation/Removal). Page 25 © 2006, ADC Telecommunications, Inc. -
Page 26: Circuit Breaker Designation Card Holder And Card
Only insulated tools should be used on energized elements of the panel. Each unit is thoroughly tested at the ADC factory. The following tests are recommended, however, to assure that no damage has occurred during shipping or handling. Both bus A and bus B input circuits need to be tested. -
Page 27: Resistance Test
Only insulated tools should be used on energized elements of the panel. Page 27 © 2006, ADC Telecommunications, Inc. -
Page 28: Maintenance
Care should be taken to not damage the circuit breakers or any wiring. Adjustments No adjustments in the field are indicated or required. If a circuit is not operating properly, contact ADC customer assistance (see Section 8, Customer Information and Assistance). Power-On LED Replacement The circuit breaker power-on indicator LEDs may be replaced as follows: 1. -
Page 29: Circuit Breaker Replacement
6. Push down and forward on the lower circuit breaker lock tab until the bottom of the circuit breaker is released from the panel. 7. Pull the circuit breaker forward and out of the panel to expose the wiring connections on the rear side of the circuit breaker. Page 29 © 2006, ADC Telecommunications, Inc. - Page 30 (see Figure 19). Note that with the circuit breaker oriented as shown, the white load wire connects to the top terminal and the black power wire connects to the bottom (LINE) terminal. Page 30 © 2006, ADC Telecommunications, Inc.
- Page 31 ADCP-80-531 • Issue 4 • July 2004 10. Connect the two alarm wires to the specified terminals on the rear side of the replacement circuit breaker (see Figure 19). Note: Do not connect any wires to the center terminal on the circuit breaker. 11.
-
Page 32: Customer Information And Assistance
Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
