Panasonic TH-42PHW7EX Service Manual

Specifications

Power Source: AC120V 50/60Hz (UY version)
AC220-240V 50/60Hz
(Except UY version model)
Power Consumption: 375 W (UY version), 315 W (Except UY
version model)
Save off 0.8 W, Save on 0.5 W (stand-by
condition)
(UY version)
Save off 1.0 W, Save on 0.7 W (stand-by
condition)
(Except UY version model)
0.1 W (Power off condition)
(UY version model)
0.3 W (Power off condition)
(Except UY version model)
Plasma Display panel: Drive method AC type
16:9 aspect ratio
Contrast Ratio 3000:1
Screen size: 920 mm (W) × 518 mm (H)
1,056 mm (diagonal)
No. of pixels
786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
Operating condition:
Temperature 34 °F - 104 °F (0 °C - 40 °C)
Humidity 20 % - 80 %
Horizontal scanning frequency 15 - 110kHz
Vertical scanning frequency 48 - 120Hz
Connection terminals:

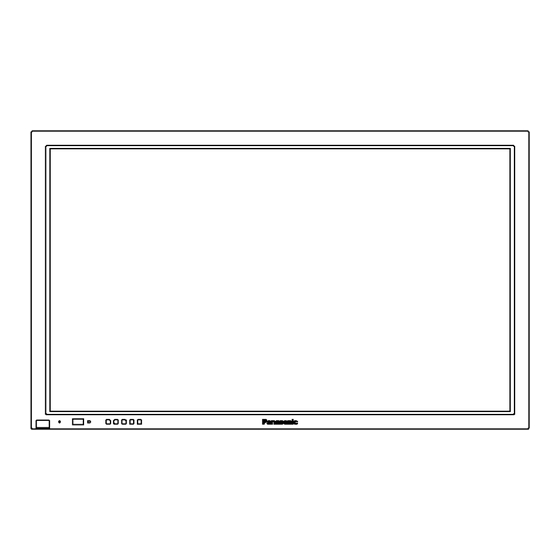

High Definition Plasma Display
TH-42PHW7EX
TH-42PHD7EK
TH-42PHD7BK
TH-42PHD7UY
GPH7D Chassis
AV (UY version)
Video in
S-VIDEO IN
(MINI DIN 4PIN)
AUDIO IN
(RCA PIN JACK × 2)
COMPONENT/RGB (UY version)
Y/G
P /B
B
P /R
R
HD
VD
AUDIO IN
(RCA PIN JACK×2)
PC
(HIGH-DENSITY
D-SUB15PIN)
AUDIO IN (M3 JACK)
SERIAL
EXTERNAL CONTROL
TERMINAL (D-SUB9PIN)
SPEAKERS (External
speakers) (6W W W W )
Dimensions (W×H×D): 1,020 mm × 610 mm 89 mm
Weight (Mass) approx. 29.5 kg net (main unit only)
approx. 33.7 kg net (with speakers)
© 2004 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. ITD0410050C0
D10 Canada: B07
1.0 Vp-p (75-ohm)
Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p
(75-ohm)
0.5 Vrms (high impedance)
1.0 Vp-p/composite (75-ohm)
0.7 Vp-p/non-composite (75-ohm)
0.7 Vp-p (75-ohm)
0.7 Vp-p (75-ohm)
1.0 - 5.0 Vp-p (high impedance)
1.0 - 5.0 Vp-p (high impedance)
0.5 Vrms (high impedance)
R,G,B/0.7 Vp-p (75-ohm)
HD, VD/1.0 - 5.0 Vp-p (high
impedance)
0.5Vrms (high impedance)
RS-232C COMPATIBLE
16W [8W+8W] (10% THD)
Unauthorized copying and
