Summary of Contents for Gigabyte BRIX

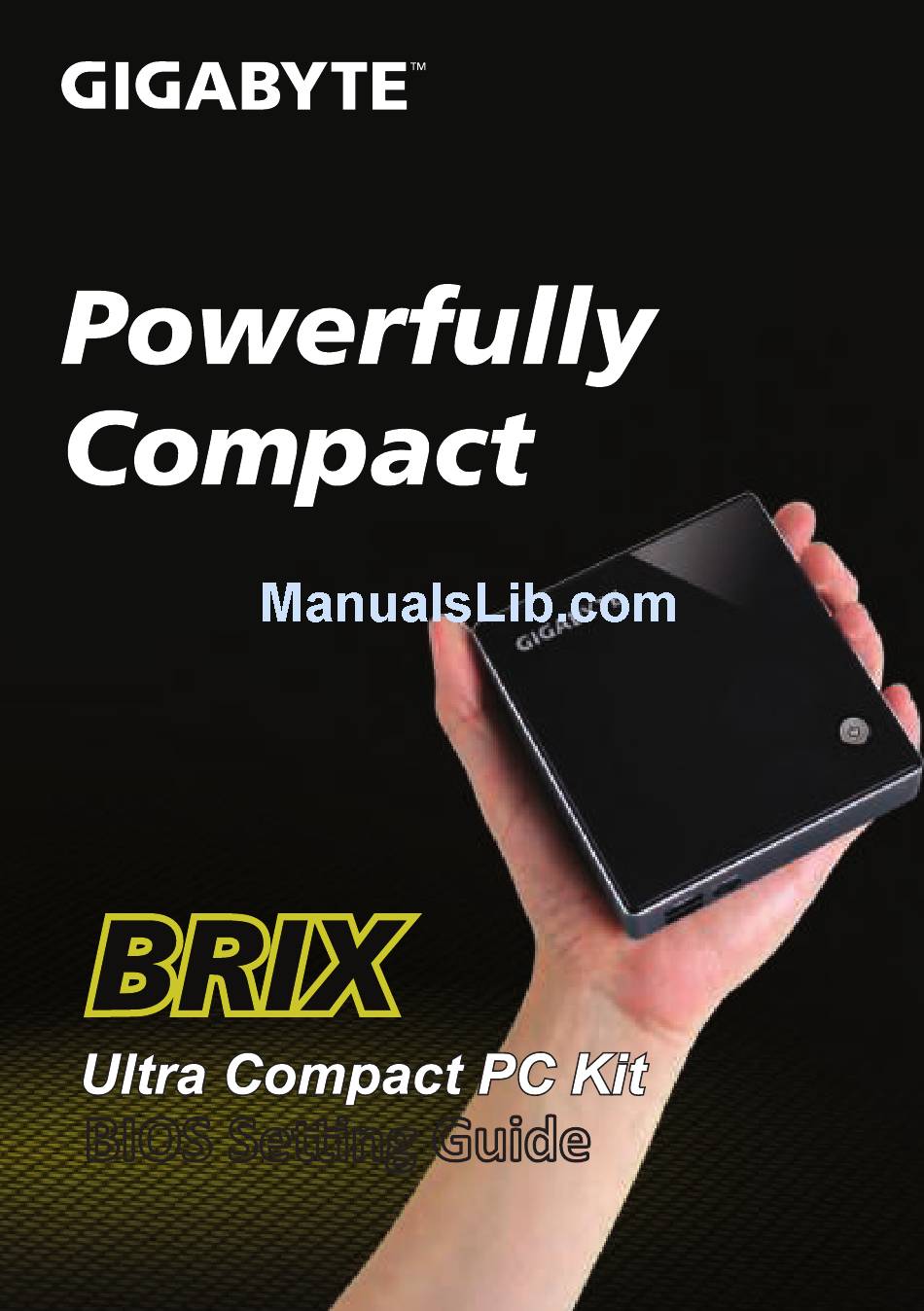

  • Page 1 BIOS Setting Guide BIOS Setting Guide Schnellstartanleitung / Guide de démarrage rapide / Руководство по быстрой сборке Przewodnik użytkownika / Hızlı Başlangıç Kılavuzu...

  • Page 2: Bios Setup

    Save all the changes and exit the BIOS Setup program Main ■ This setup page includes all the items in standard compatible BIOS Advanced ■ This setup page includes all the items of BRIX enhanced features. Chipset ■ Platform Controller Hub additional features configuration. Boot ■...

  • Page 3: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help ■...

  • Page 4: Advanced Menu

    Displays a real-time record of the CPU / system temperature and fan speed. Intel Rapid Start Technology ■ Enables BRIX to get up and running faster from the deepest sleep, saving time and power consumption. Intel Smart Connect Technology ■...
  • Page 5 CPU Configuration Your CPU features / instructions are displayed and can be individually enabled / disabled in the CPU features list showed below. CPU Configuration L1 Data Cache ■ CPU Model Name Displays the information of L1 Data Cache. ■ Displays the processor type information.
  • Page 6 CPU Configuration Intel Virtualization Technology (Default: Enabled) ■ Select whether to enable the Intel Virtualization Technology function. Intel VT allows a single platform to run multiple systems in independent partitions. Option available: Enabled / Disabled. EIST (Default: Enabled) ■ EIST (Enhanced Intel SpeedStep Technology) allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat...
  • Page 7 SATA Configuration Let you select the on chip SATA type. SATA Mode Selection (Default: AHCI) ■ SATA controller enable its AHCI functionality. The RAID function is disabled and cannot be access the RAID setup utility at boot time. SATA Port ■...
  • Page 8 System Temperature ■ Displays current system temperature. CPU Temperature ■ Displays current CPU temperature. CPU Fan Speed ■ Displays current CPU fan speed. SMART FAN control is the unique function by GIGABYTE whether providing intelligent and dynamic FAN speed control function.
  • Page 9 Intel Rapid Start Technology (Default: Disabled) Enable / Disable the Intel Rapid Start Technology function. The Intel Rapid Start Technology (Intel RSTe) enables BRIX to get up and running faster from even the deepest sleep, saving time and power consumption.
  • Page 10 Intel Smart Connect Technology (Default: Disabled) Allows BRIX to automatically update programs while system suspended. Option available: Enabled / Disabled. Intel Smart Connect Technology is for S3 mode only. During the updating process, the monitor will not light up and no sound will be output from the speaker.
  • Page 11 Intel Anti-Theft Technology Configuration (Default: Enabled) Intel Anti-Theft Technology makes your BRIX useless to thieves with immediate shutdown. Option available: Enabled / Disabled. Enter Intel AT Suspend Mode (Default: Disabled) ■ Suspends Intel AT support. Option available: Enabled / Disabled.
  • Page 12 Chipset Allows users to view and configure the BRIX chipset features. Onboard LAN Device (Default: Enabled) Restore AC Power Loss (Default: Enabled) ■ ■ Enabled / Disabled onboard LAN This option provides user to set the mode controller. if an AC power loss occurs.
  • Page 13 Chipset Allows users to view and configure the BRIX chipset features. System Performance Mode (Default: DRAM Frequency Control (Default: ■ ■ Operation Mode) Disabled) GIGABYTE provides several methods to Allows users to overclock memory users to overclock the BRIX in a frequency in a convenient way.
  • Page 14 Boot Allows you to set the device priority during system boot-up. Boot Option Priorities Boot Option (Default: #1) ■ Press <Enter> to configure the boot priority. Option may vary depends on your connected HDD numbers: #1 / (#2).
  • Page 15 Boot Allows you to set the device priority during system boot-up. BIOS setup will display an error message if the drive specified is not bootable. CSM parameters Launch Storage OpROM policy ■ Launch CSM (Default: Disabled) Allows users to select the UEFI or legacy ■...
  • Page 16 Security Allows you to safeguard an protect the BRIX from unauthorized use by setting up access passwords. Administrator Password Press <Enter> to configure the administrator password. ■ User Password Press <Enter> to configure the user password. ■ System Mode ■...
  • Page 17 Security Allows you to safeguard an protect the BRIX from unauthorized use by setting up access passwords. Secure Boot Mode (Default: Standard) ■ Define the Secure Boot Mode. Option available: Standard / Custom. The Key Management below can be selected if Secure Boot Mode is Custom.
  • Page 18 Save & Exit The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Save Changes and Reset ■ Active this option to reset system after saving the changes.
