Warranty Period : 1 year
For more details, read the attached
"Minoura Limited Warranty Policy"
card.
Please refer to our website for any
updated information.
Important Notes
●VERGO-TF is a an in-vehicle bike mounting base and should not be used for any other purpose.
●For normal 2-wheel bike only. Not suitable for heavy electric, downhill or tandem bikes.
●Standard 9mm quick release skewer and 15mm thru type axle can be used on VERGO-TF. 20mm thru axle for
downhill bike cannot be mounted. A plain front fork for standard nut type axle is compatible.
●When using 9mm quick release skewer, use the supplied skewer. When using 15mm thru type axle, remove the
sleeves from the Fork Mount and use your own axle.
●The Fork Mount in the kit is for the standard 100mm width hub only. Any other sizes cannot be mounted.
Boost Hub and 12mm Thru Axle can be used by using the optional adapter (sold separately).
●Do not grasp the brake lever after removing the wheel if your bike is equipped with hydraulic disc brake.
●Drive carefully when transporting bikes with the VERGO-TF. Do not fix bikes to the floor and be careful when
accelerating, braking or driving recklessly. Your bikes and vehicle may sustain damage so we recommend you tie
the bikes down with a strap.
●When closing the back gate door, make sure the bike will not hit the rear window.
●VERGO-TF3 is the kit for the vehicle with enough wide interier width. If the bar length is too long to your vehicle, you can cut it by
a metal saw.
Contact
If you have any questions or need help, you should contact the dealer where you purchased or the
Minoura distributor in your country first. Only when you cannot get enough service, you can contact us.
MINOURA JAPAN
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131 / Fax: +81-584-27-7505
Email: minoura@minoura.jp / Web: www.minoura.jp
(for ALL customers)
VERGO TF-3
MINOURA North America
California, U.S.A.
Phone: 1-510-538-8599 / Fax: 1-510-538-5899
Email: support@minourausa.com
Made in Japan
instructions manual
(ver.1.2 2016/12)

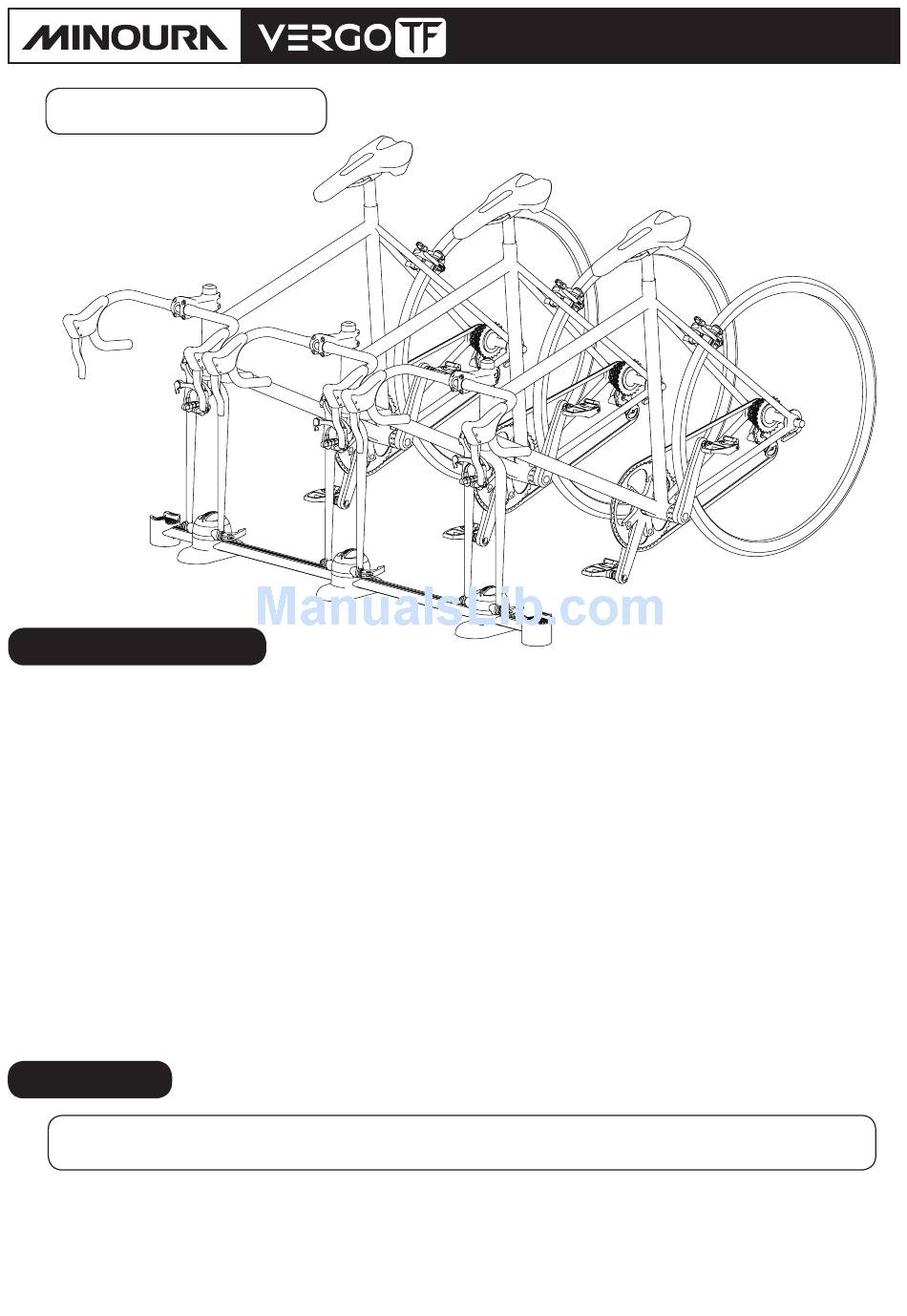

[ In-Use Style ]
(for U.S. residents ONLY)
Advertisement
Related Manuals for MINOURA VERGO TF-3
Summary of Contents for MINOURA VERGO TF-3
- Page 1 Contact If you have any questions or need help, you should contact the dealer where you purchased or the Minoura distributor in your country first. Only when you cannot get enough service, you can contact us. MINOURA JAPAN MINOURA North America (for ALL customers) (for U.S.
- Page 2 Schematics End Base (Gray) Knob Dial (Red) Plate Nut Fork Mount (White) T-slot Nut Fork Mount Base (Gray) Knob Bolt 15mm Thru Axle Adapter (Red) Rail Bar (1,260mm) 9mm Quick Skewer Quick Release Skewer Guide Sleeve (Silver) (Special for VERGO-TF) How To Use VERGO-TF VERGO-TF is pre-assembled.
- Page 3 The front fork mount fits both the standard 9mm quick release skewer and the 15mm thru type axle by changing the parts construction. [ Front Fork Mount in standard condition ] Use For 15mm Thru Type Axle Use For 9mm Quick Release Type Skewer Remove all skewer, sleeve, adapter and bolts.
- Page 4 Set the white Fork Mount parallel to the Rail Bar in order to achieve the maximum stability of the bike during installation. Changing the fork angle should be done later. Remove the front wheel from the bike. Open the quick release skewer lever to have enough clearance for mounting the front fork.
