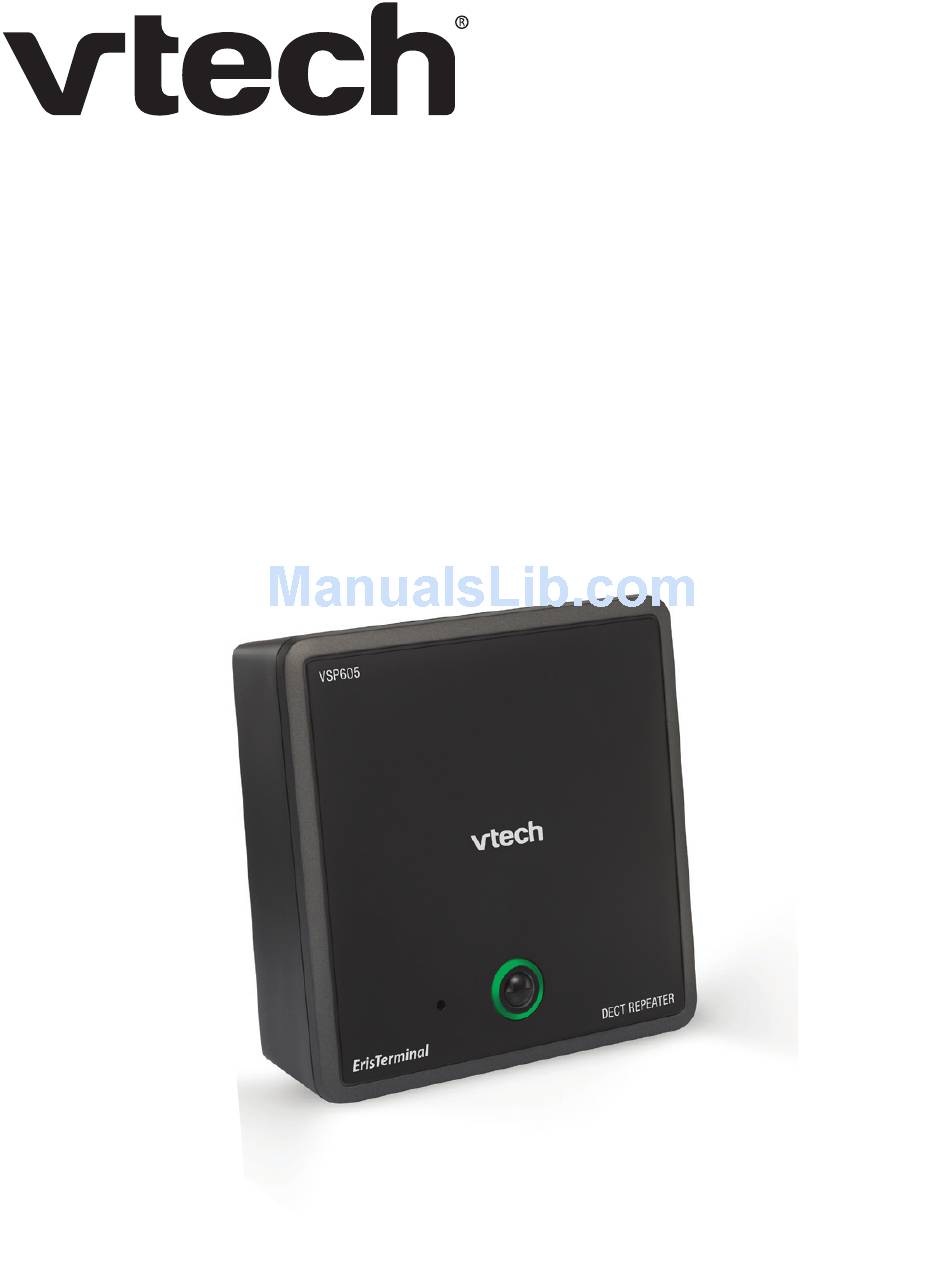

Page 1: Quick Start Guide

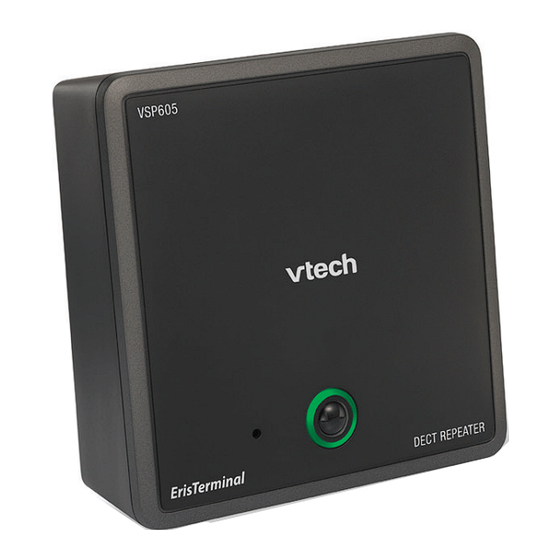

VSP605 Range Extender for use with VTech ErisTerminal ® SIP DECT Base Station and Cordless Handsets Quick Start Guide... -
Page 2: Important Safety Information
5. Do not overload wall outlets and extension cords, as this can result in the risk of fire or electric shock. 6. Unplug this product from the wall outlet and refer servicing to VTech under the following conditions: • When the power supply cord or plug is damaged or frayed. - Page 3 11. Never push objects of any kind into this product through the unit slots, as they may touch dangerous voltage points or short-out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product. 12.
- Page 4 FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: About This Guide
About this Guide This Quick Start Guide provides you with basic installation and use instructions. A limited set of features are described in abbreviated form. For customer service or product information, visit our website at businessphones.vtech.com 1 (888) 370-2006 or call Introduction The Range Extender lets you extend the coverage area of your telephone system in all directions, including up and down. -
Page 6: Getting Started
Getting Started Location To get the best operating conditions for the Range Extender, it is important to place it correctly. Here are a few tips for placing the Range Extender: • Place the Range Extender as high as possible, but at least 6 feet (2 meters) off the ground. - Page 7 Connect Install your Range Extender Plug the AC adapter into the Range Extender in its final location, and then plug the other end into the electrical outlet wall socket and switch the power on. Or if you want to mount the Range Extender on a wall: Wall mount slot Locking slot Back view...
- Page 8 Overview Overview of the Range Extender 1. Setup Button Combined with LED Indicator button initiates the registration/deregistration process. The LED indicator shows the link or usage status of the Range Extender. Description Colour Pattern Powered off. Red/Green Toggle The Range Extender is in registration mode. Green Triple Flash Registration is completed successfully.
- Page 9 NOTE: The registration mode of the Range Extender may last for 30 minutes. Connect a Range Extender to another Range Extender in Cascade Mode: You can connect up to two Range Extenders in series between a VTech ErisTerminal SIP DECT Base Station and Handset. This connection is called Cascade Mode.
-
Page 10: Troubleshooting
Troubleshooting Problem Solutions The LED on the Range • Move the Range Extender closer to the Base Station. Extender won’t stop • Check for interference from electronic devices. flashing. • Make sure the Range Extender is not too close to metal objects or thick walls. -
Page 11: Technical Specifications
Technical Specifications Standards Digital Enhanced Cordless Telecommunication (DECT) RF Frequency Band 1921.536–1928.448 MHz Number of Channels AC Adapter Output Voltage 6.0V DC 450mA Disposal Warning 1. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC. 2. - Page 12 VTECH COMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. ErisTerminal® is a registered trademark of VTech Communications Inc.
