- Page 1 ADS Active 40 User manual...

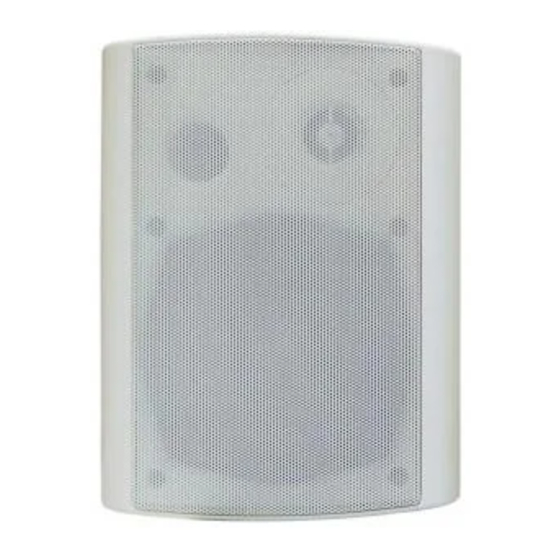

- Page 2 The Active 40 powered loudspeaker set is a very compact, easy to use, plug and play sound system. It consists of one amplified loudspeaker with a 5.25” woofer, a quality high frequency tweeter unit and a second connectable passive loudspeaker.
-
Page 3: Safety Information
Safety Information Information for Users on Collection and Disposal of Old Equipment These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation. -
Page 4: User Information
12. Heat Sink: When using the Active 40 at full power and for a long time, this heat sink might become very hot, do not touch! Take care when placing it to close to other items sensitive to heat. - Page 5 CONTROLS & CONNECTIONS 12. Heat Sink 4. Power On/Off 11. Mains Input Socket 240V 13. Power Indicator 5. Left and Right Clipping LED Indicators 9. Right Output Speaker Connection 8. Right Input Balanced Connector 8. Left Input Balanced Connector 7. 3.5mm Stereo Input Jack Socket 6.
-
Page 6: Specifications
4.7Kg Weight Fitting Instructions 1. Use the Active 40 bracket as a template to mark the surface where the speaker will be mounted. 2. The Loudspeaker can be mounted horizontally or vertically. 3. Mark and drill in the positions shown,... -
Page 7: Wiring Instructions
4. Once the bracket is securely attached to the wall, Fit the loudspeaker and secure using the fasteners supplied. Remembering to tighten the speaker once the wiring is completed. Wiring Instructions 1. Link the left powered speaker to the right passive speaker as follows: left powered speaker R Out euro connector + and –... - Page 8 Telephone: +44 [0] 161 666 6363 Audio Design Services Limited T/A ADSworldwide Fax : +44 [0] 161 666 6366 St. David's House, Adcroft Street, Email : info@ads-worldwide.net Higher Hillgate, Stockport Website: www.ads-worldwide.net SK1 3HW, United Kingdom...
