Summary of Contents for Westinghouse VC14150
-

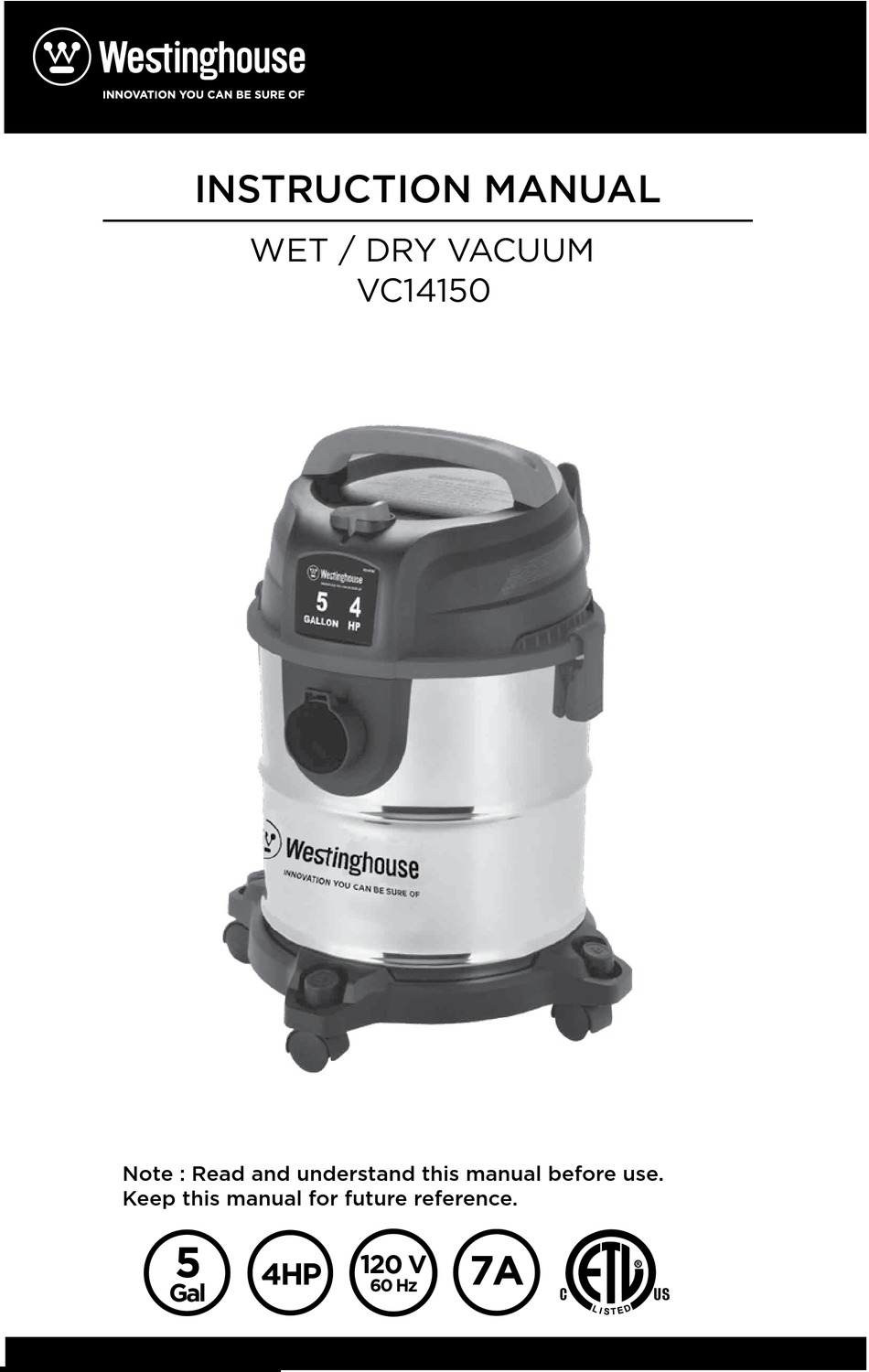

Page 1: Instruction Manual
INSTRUCTION MANUAL WET / DRY VACUUM VC14150 Note : Read and understand this manual before use. Keep this manual for future reference. 120 V 60 Hz... -
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications-----------------------------------------------------------------------------------2 Package Contents----------------------------------------------------------------------------- 3 Safety Information-----------------------------------------------------------------------------4 Operating Instructions ----------------------------------------------------------------------- 6 Care and Maintenance ----------------------------------------------------------------------- 8 Troubleshooting -------------------------------------------------------------------------------9 Exploded View and Parts List ---------------------------------------------------------------10 Warranty ---------------------------------------------------------------------------------------11 PRODUCT SPECIFICATIONS Power 120 V / 60 Hz / 7 A Motor By-Pass, Single Stage Tank Capacity 5 Gallon... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRTIPTION Handle On/Off switch Lid latch Vacuum port Dust tank Blowing port Power cord wrap Accessory holder Casters PART DESCRIPTION Hose Extension wand Floor nozzle Gulper nozzle Crevice nozzle Foam filter (Wet) Disposable filter bag (Dry) Reusable filter (Dry) Clamp ring... -
Page 4: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS & GROUNDING INSTRUCTIONS When using an electrical appliance, basic precautions should be always followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. ATTENTION! Read all safety rules carefully before attempting to operate. Retain for future reference. DANGER! Never operate this unit when flammable materials or vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion. - Page 5 20. Use special care when emptying heavily loaded tanks. 21. To avoid spontaneous combustion, empty tank after each use. 22. The operation of a utility vac can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles when operating vacuum. 23.
-
Page 6: Operating Instructions
OPERATING INSTRUCTIONS WARNING: To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases, vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol or aerosol sprays. - Page 7 Reusable filter Disposable filter bag Clamp ring OPERATING INSTRUCTIONS WET PICK-UP 1. Remove reusable filter and replace it with foam filter when you do wet pickups. 2. This wet/dry vac is equipped with a float mechanism which will rise automatically to cut o the airflow when the liquid in the tank reaches a predetermined level.
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE FILTER REPLACEMENT WARNING: To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter. Your filter should be cleaned often to maintain peak vac performance. IMPORTANT: To avoid damage to the blower wheel and motor, always reinstall the reusable filter before using the vac for dry pickups and always reinstall the foam filter before using the vac for wet pickups. -
Page 9: Troubleshooting
TROUBLESHOOTING WARNING! TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK, TURN POWER SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS. Minor problems often can be fixed without calling customer service. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Make sure electrical outlet has voltage... -
Page 10: Exploded View And Parts List
EXPLODED VIEW / PARTS LIST PART DESCRIPTION PART DESCRIPTION Handle Float Top cover Filter cage ON/OFF switch Vacuum port Thermal baffle Vacuum port deflector Motor Caster Bushing Caster dolly Washer Ø 8 Lid latch assembly Impeller Dust tank Nut M6 Power cord Screw ST3.9×17F Middle Frame... -
Page 11: Warranty
2 year Limited Warranty This warranty covers any defects in materials or workmanship of the enclosed product. WESTINGHOUSE will repair or replace any defective materials due to craftsmanship of the product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of God, such as floods or hurricanes.
