Owner's Manual
Dec, 2002

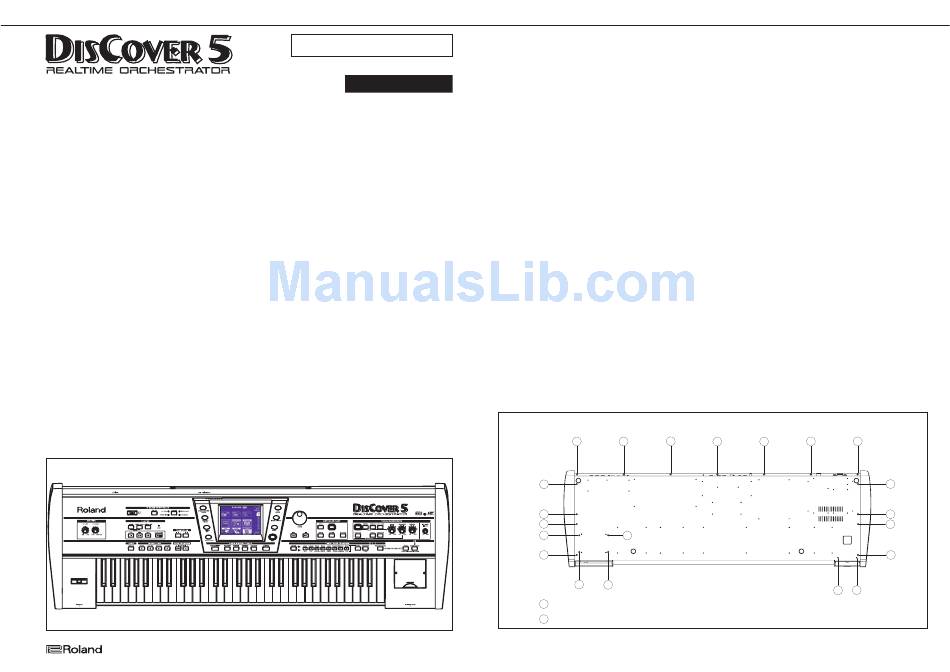

TABLE OF CONTENTS
SPECIFICATIONS
LOCATION OF CONTROLS
PARTS LIST OF LOCATION OF CONTROLS
EXPLODED VIEW (TOP)
EXPLODED VIEW (BOTTOM)
WIRING DIAGRAM
KEYBOARD PARTS LIST
PARTS LIST
HOW TO VISUALIZE THE "SYSTEM PROGRAM" VERSION
HOW TO SAVE THE SOFTWARE ON A FLOPPY DISK
HOW TO UPDATE THE SOFTWARE AND/OR TO LOAD THE TEST PROGRAM FROM FLOPPY DISK
CIRCUIT DIAGRAM (MAIN PCB ASSY)
SMART CARD PCB ASSY & CIRCUIT DIAGRAM
CENTRAL CONTR. / LEFT POTENT. / RIGHT POTENT. / PHONE / FREEZE PCB ASSY
CIRCUIT DIAGRAM (CENTRAL CONTR. PCB ASSY)
CIRCUIT DIAGRAM (RIGHT POTENT. / PHONE / FREEZE PCB ASSY)
RIGHT & LEFT CONTACT PCB ASSY & CIRCUIT DIAGRAM

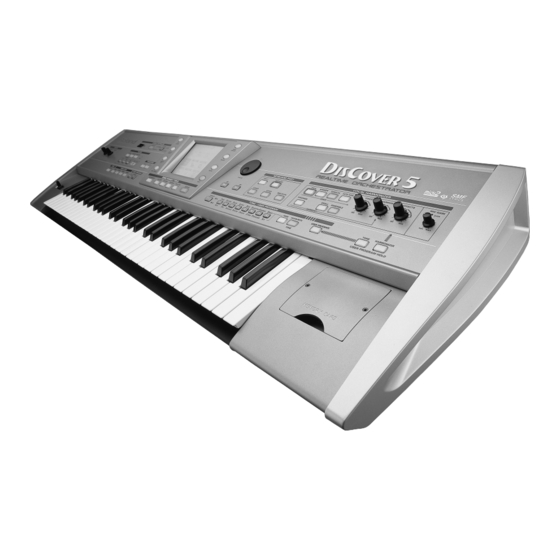

SN00066
K6018496
Discover5
SERVICE NOTES
First edition
Issued by RES
Page
1
2
3
4
5
6
7
7/10
11
11
12
12/15
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
28/29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
43
44
Printed in Italy (H00) (AD)
1
Specifications:
Keyboard:
61 Keys Touch Sensitive (TP-7BA)
Sound source:
PCM samples
Max polyphony
64 voices
Tones
1422 on 20 Mbytes PCM Samples
Drum Kits
44 incl. ORIENTAL Drum Set
Multitimbral parts
19
Compatibility
GM2/GS
Display type & controls:
¼ VGA Touch Screen LCD Backlight
Contrast potentiometer
Yes
Panel controls:
Alpha Dial Data/T empo Controller Yes
D-Beam
Yes, with macro settings
Bender
Yes
Modulation
Yes
Master volume
Potentiometer
Keyboard/Song Balance
Potentiometer
Mic Gain
Potentiometer
Voice Level
Potentiometer
Harmony Level
Potentiometer
Effect Level
Potentiometer
Songs:
Realtime Song player
Yes
Mark/Jump
4 programmable locations
SMT: Song Makeup Tools 2 operation modes: Manual and Cover 30
Cover ALL: Original Sound, Acoustic,
Pop1, Rock1, Dance, Classic, Vocal,
Ethnic, Oriental1, Oriental2, Jungle,
etc..18 Cover Drum, 24 Cover Bass
Text Import/Export
Yes
Text to lyrics synchronization Yes
Lyrics on display
Yes
Chords on display
Yes
Minus One
Yes, Programmable
SCE: Song Chord Extractor Yes
User Programs:
128
User Program Finder
Search all User Program Sets
User Program Hold
Tone - Harmonizer
Effects:
8 types
8 types
Multi-FX (Rotary, Distortion..) 47 types
Data Storage:
Smart Media
Yes
FDD 3.5" 2HD/2DD
Yes
Type of files managed
MIDI Song, User Programs, MIDI Sets,
Song Chain, Files.txt
DISASSEMBLY
A
A
A
A
A
A
A
A
A
A
A
A
SELF TAP.SCREW 3.5X13 TC TC code: J2289116
B
SCREW 2.9X10 TC TC PR BRUN code: J2289254
Copyright © 2002 by ROLAND CORPORATION
All rights reserved. No parts of this publication may be reproduced in any form whithout the written permission of ROLAND CORPORATION.
Vocal Harmonizer:
4 programmable macro
Talk, Voice-FX 12 macro, Auto Tune, Singer
2 programm. Harmony mode 30 macro Small, 30 macro Ensemble
Programmable Vocoder mode 24 macro
Voice Effects
Noise Gate, Compressor, 9 Reverb types,
9 Delay types, programmable
Harmony Effects
9 Reverb types, 9 Delay types, 9 Chorus
types, programmable
Other functions:
Interactive DEMO
Yes: Cover, Tones, Harmonizer
Tone Finder
34 families (Categories)
Favourite Tone
16 programmable
Song Finder
Yes, up to 99999 songs
NSR: Next Song Reserve Yes
Keyboard Part
Upper, Lower, MDrums
Fade OUT/IN
Yes, programmable
Octave
Yes, - 4~ +4 separate forUpper-Lower- MDrums
Transpose with SKA:
Singer Key Adapter
Yes, -6 ~ +5
Updating system:
Yes, on Flash
Connections:
MIDI
In, Out, Thru
Output
(L/mono-Right)
Hold Footswitch
Yes
Footswitch
Yes, Programmable
Foot Pedal
Yes
Phones
Yes
Harmonizer Microphone Input Yes
Harmonizer Output
Separate Left-Right or Main Output mixed
Video Output
Composite, Independent Lyrics transmission
Other:
Power Supply
100V - 117V - 230V - 240V
Dimensions (mm):
1184 (W) x 371 (D) x 127 (H) mm
Weight:
12,5 Kg.
Supplied accessories:
Owner's Manual
Yes
Power chord
Yes
Smart Media 64 MB
100 SMFs + 32 SMFs Rhythm
A
A
A
A
A
A
A
A
B
B
