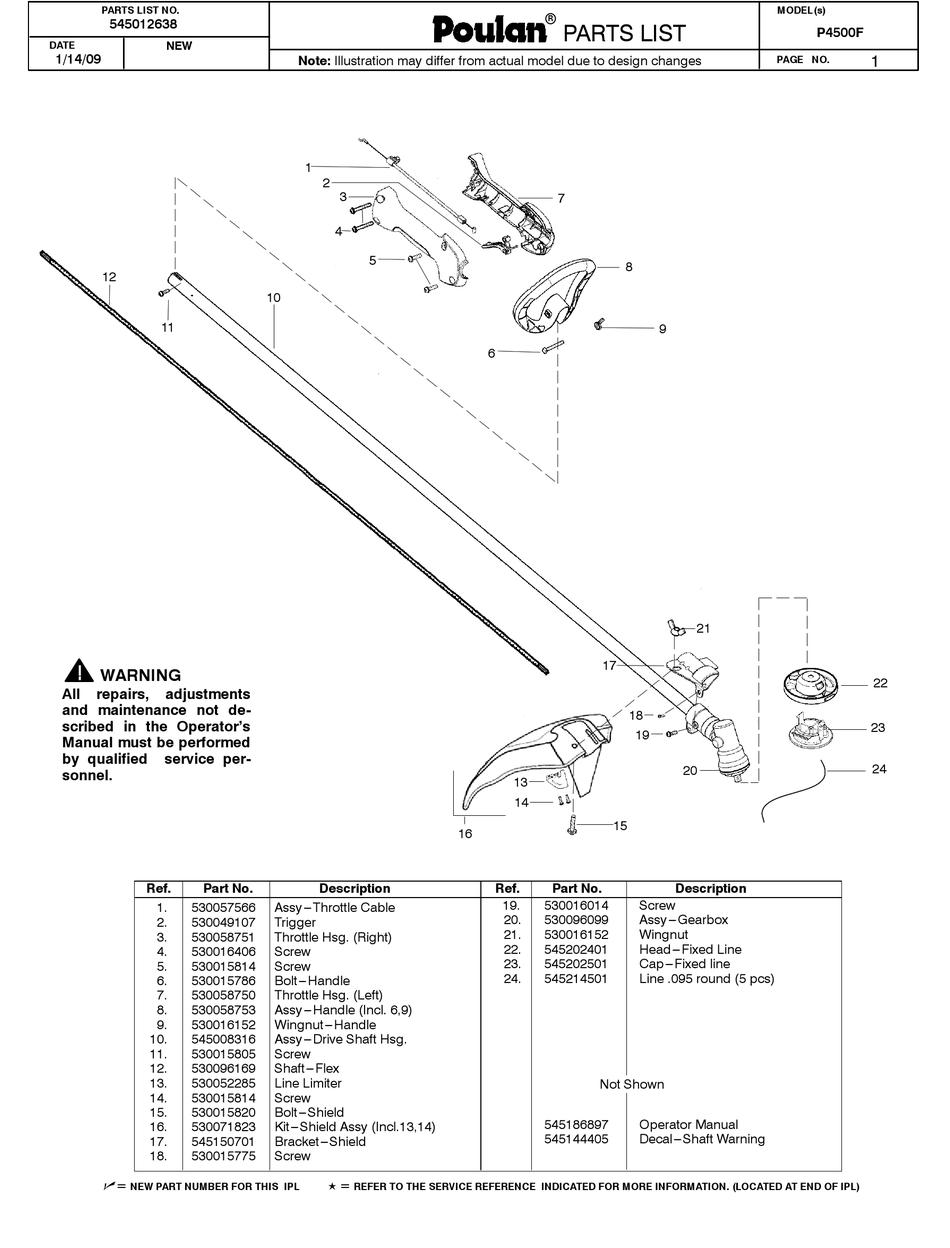

Poulan Pro 545012638 Parts List

PARTS LIST NO.
545012638
DATE NEW
1/14/09
12
11
WARNING
All repairs, adjustments
and maintenance not de-
scribed in the Operator's
Manual must be performed
by qualified service per-
sonnel.
Ref. Part No.
1. 530057566
2. 530049107
3. 530058751
4. 530016406
5. 530015814
6. 530015786
7. 530058750
8. 530058753
9. 530016152
10. 545008316
11. 530015805
12. 530096169
13. 530052285
14. 530015814
15. 530015820
16. 530071823
17. 545150701
18. 530015775
=
NEW PART NUMBER FOR THIS IPL
n
PARAMOUNT
POULAN
POULAN PRO
Note: Illustration may differ from actual model due to design changes
1
2
3
4
5
10
Description
Assy--- Throttle Cable
Trigger
Throttle Hsg. (Right)
Screw
Screw
Bolt--- Handle
Throttle Hsg. (Left)
Assy--- Handle (Incl. 6,9)
Wingnut--- Handle
Assy--- Drive Shaft Hsg.
Screw
Shaft--- Flex
Line Limiter
Screw
Bolt--- Shield
Kit--- Shield Assy (Incl.13,14)
Bracket--- Shield
Screw
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
R R
R R
PARTS LIST
PARTS LIST
PARTS LIST r
PARTS LIST
7
8
6
17
18
19
13
14
15
16
Ref. Part No.
19. 530016014
20. 530096099
21. 530016152
22. 545202401
23. 545202501
24. 545214501
Not Shown
545186897
545144405
MODEL(s)
P4500F
PAGE NO.
9
21
20
Description
Screw
Assy--- Gearbox
Wingnut
Head --- Fixed Line
Cap --- Fixed line
Line .095 round (5 pcs)
Operator Manual
Decal--- Shaft Warning
1
22
23
24
