Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
www.poulanpro.com
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Poulan PRO
7349 Statesville Road
Charlotte, NC 28269
1- -800- -554- -6723

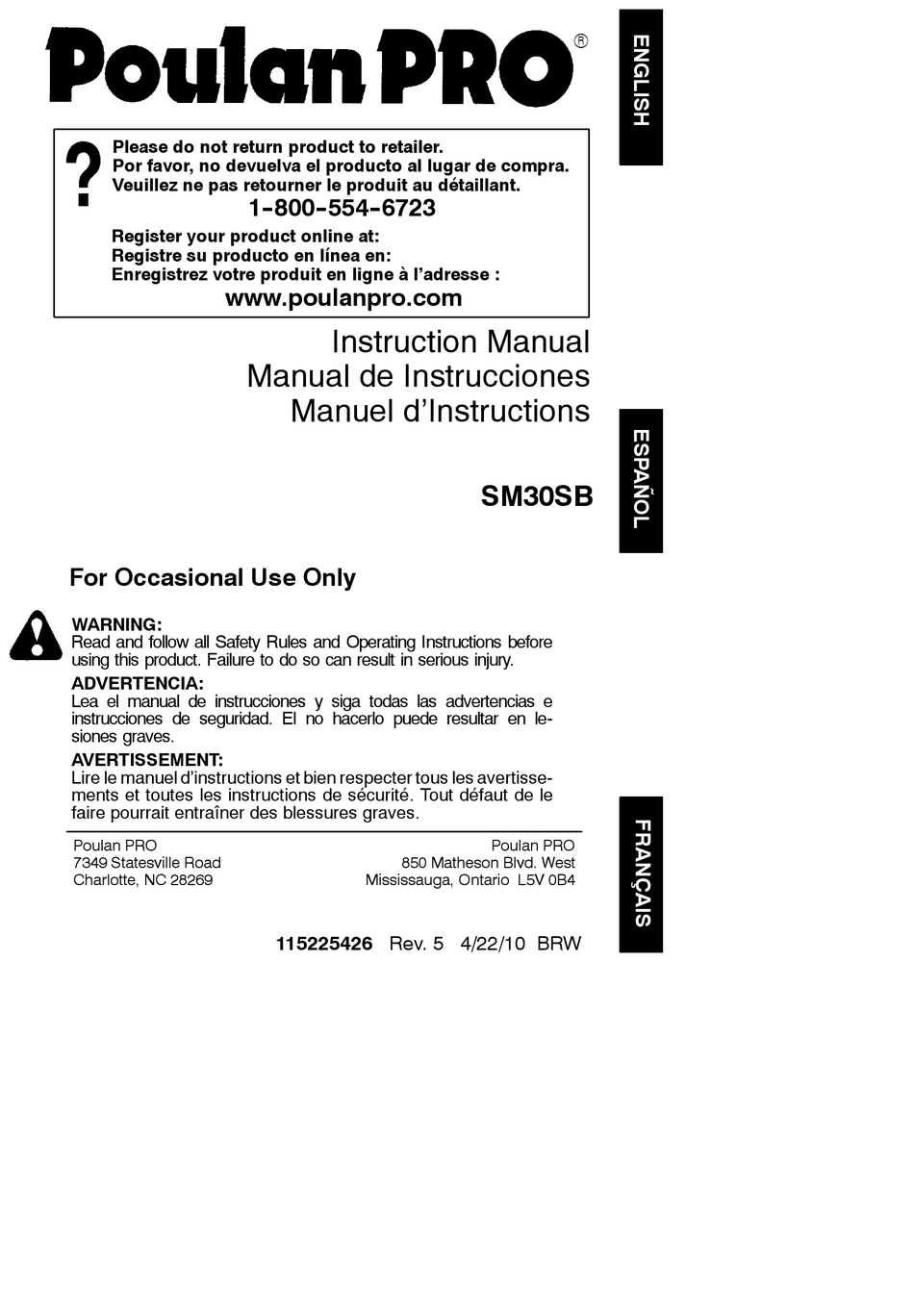

Instruction Manual
Manual de Instrucciones
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115225426 Rev. 5 4/22/10 BRW
R
SM30SB
Poulan PRO
Advertisement
Table of Contents
Related Manuals for Poulan Pro 115225426
Summary of Contents for Poulan Pro 115225426
- Page 1 Tout défaut de le faire pourrait entraîner des blessures graves. Poulan PRO 7349 Statesville Road Charlotte, NC 28269 115225426 Rev. 5 4/22/10 BRW Instruction Manual SM30SB Poulan PRO 850 Matheson Blvd. West Mississauga, Ontario L5V 0B4...
- Page 2 Never use blades, flailing devices, wire, rope, string, etc. This attachment is designed for line trimmer use only. Failure to follow these instruc- tions may result in serious injury. Trimmer line can throw objects violently.
-
Page 3: Identification Of Safety Symbols
IDENTIFICATION OF SAFETY SYMBOLS Assist handle to be positioned only below the arrow. Never allow children to operate this unit. Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replacement parts. -
Page 4: Optional Attachments
Never use flailing devices with any attachment. This unit (when used with supplied line trimmer attachment) is designed for line trimmer use only. Use of any other ac- cessories or attachments with line trimmer at- tachment will increase the risk of injury. -
Page 5: Fuel Safety
S Maintain unit according to recommended procedures. Keep cutting line at proper length. S Use only 0.115 inch (3 mm) diameter Poulan PRO brand line. Never use wire, rope, string, etc. S Install required shield properly before using the unit. Use only specified trimmer head;... - Page 6 Blade can thrust violently away from material it does not cut. Blade thrust can cause amputation of arms or legs. WARNING: Do not use trimmer head as a fastening device for the blade. WARNING: The blade continues to spin after the trigger is released or engine is turned off.
- Page 7 bent, warped, cracked, broken or damaged in any other way. S Install required shield properly before using the unit. Use the metal shield for all metal blade use. Only brushcutter attachments that provide a metal shield with proboscis nose. Proboscis nose S Use only specified blade and make sure it is properly installed and securely fastened.
- Page 8 WARNING: Falling objects can cause severe head injury. Wear head protec- tion when operating this unit with a pole prun- er attachment. WARNING: To prevent serious injury, do not use more than one boom extension with a pole pruner attachment. WARNING: Keep the pruner away from power lines or electrical wires.
- Page 9 LOOSEN Knob TIGHTEN 2. Remove shipping protector from coupler. 3. Remove the shaft cap from the trimmer at- tachment (if present). 4. Position locking/release button of attach- ment into guide recess of coupler. 5. Push the attachment into the coupler until the locking/release button snaps into the primary hole.
-
Page 10: Operation
COUPLER The COUPLER enables optional attach- ments to be installed on the unit. of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and oil at a ra- tio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. - Page 11 WARNING: Alternative fuels (not gas- oline) such as E- -15 (15% alcohol), E- -20 (20% alcohol), E- -85 (85% alcohol) are NOT classified as gasoline and are NOT approved for use in 2- -stroke gasoline engines. Use of alternative fuels will cause problems such as: improper clutch engagements, overheating, vapor lock, power loss, lubrication deficiency, deterioration of fuel lines, gaskets and internal carburetor...
-
Page 12: Operating Position
Heavy shoes Cut only from your left to your right. WARNING: Always wear eye protec- tion. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury. - Page 13 3 inches (8 cm) above ground unwanted vegetation down to the ground. Hold the bottom of the trimmer head about 3 in. (8 cm) above the ground and at an angle. Allow the tip of the line to strike the ground around trees, posts, monuments, etc.
-
Page 14: Maintenance
If any dealer other than an authorized service dealer performs work on the product, Poulan PRO may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance. -
Page 15: Service And Adjustments
1. Remove and discard worn line before installing new line. 2. Use only 0.115 inch (3 mm) diameter Poulan PRO brand cut length line. 3. Insert one end of the line through the positioning tunnel. 4. Continue to feed line through tunnel until line is centered (leaving equal amounts on each side). - Page 16 Idle Speed Screw Air Filter Cover STORAGE WARNING: Perform the following steps after each use: S Allow engine to cool before storing or trans- porting. S Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.
- Page 17 WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Engine flooded. start. 2. Fuel tank empty. 3. Spark plug not firing. 4.
-
Page 18: Limited Warranty
Poulan PRO, a division of Husqvarna Consumer Outdoor Products N.A., Inc., war- rants to the original consumer purchaser that each new Poulan PRO brand gasoline tool or attachment is free from defects in material and workmanship and agrees to repair or replace... - Page 19 Poulan PRO at 1- -800- -554- -6723, or send e-mail correspondence to emission.warranty @HCOP- -emission.com. WARRANTY PE- RIOD: Any warranted part which is not...
