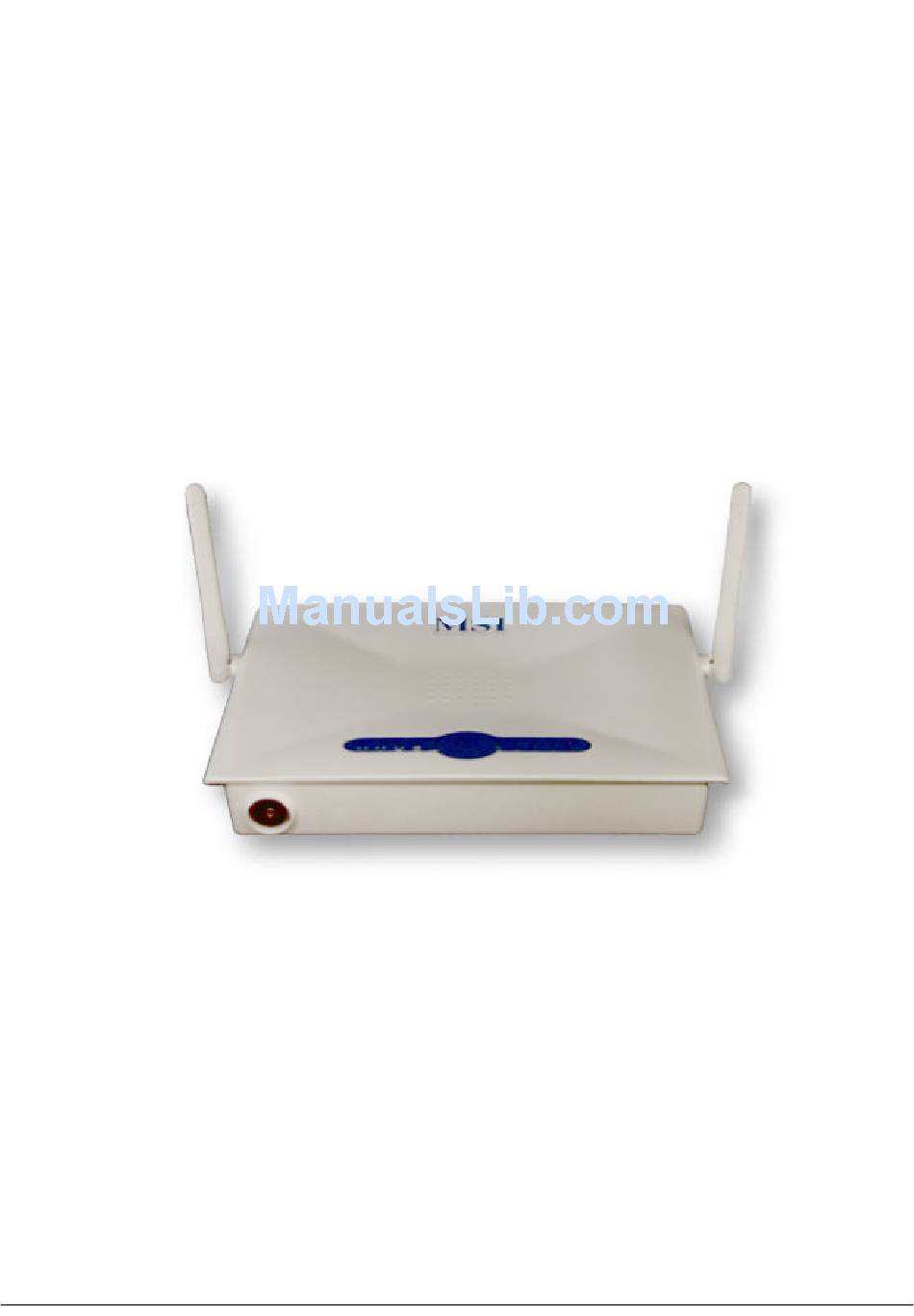

- Page 1 MSI MS-6811 RG11B Wireless 802.11b Residential Gateway...
- Page 2 NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 WAN service (eg. the Internet). With the Wireless Residential Gateway, networking and sharing information throughout the house/corporate becomes an easy and flexible task. In addition, MSI MS-6811 RG11B is also a switching device as an aggregating point of the wireless LAN and wired LAN clients, and as a bridge between LAN and WAN traffic.
-
Page 4: Networking Options
2. Networking Options The Wireless Residential Gateway is a Base Station that bridges communication between (wireless) computers, and connects the computers to the Internet. You can use the Wireless Residential Gateway as the followings: Home connectivity: a stand-alone wireless network. Broadband access: a wireless/wired Internet access via xDSL/Cable Modem or Ethernet. - Page 5 2.2 Wireless Internet Access via xDSL/Cable Modem To access the Internet via an ADSL modem, Cable modem or ISDN modem, you will need to: Connect the external modem to the Residential Gateway using a LAN cable. An ISP (Internet Service Provider) account. 2.3 Wireless Internet Access via Ethernet The Wireless Residential Gateway can be installed in the companies or educational organizations that offer the Internet access to their employees or students via an...
-
Page 6: Package Contents
3. Package Contents After removing the package, you should find the following items: MS-6811 RG11B. Power Supply. Software CD containing the User’s Manual. Quick Installation Guide. If any item is missing or damaged, please contact your dealer for assistance. 4. System Requirement To configure the Wireless Residential Gateway, you will need: Computer with Windows®... -
Page 7: Connect And Power Up
5. Connect and Power Up 5.1 Connections Power Reset LAN Ports WAN Port DMZ Port USB Port Connector Reset Button Press and release this button to restart the Residential Gateway. If you press and hold this button more than five seconds, the system will reload the factory default settings. - Page 8 5.2 LEDs Power A steady Blue light indicates the power adapter is connected. LAN 1~4 A Green light glows when there is a computer/device connected to respective port, and flashes when receiving/ transmitting data on the link. A Green light glows when the system connects to the xDSL/ Cable Modem or Ethernet connection, and flashes when receiving/transmitting data on the link.
- Page 9 POST (Power-On-Self-Test) to diagnose the system. 5.4 Security Lock MSI MS-6811 RG11B provides a security lock on its front panel. When it is locked, the users cannot enter the Web Configuration through the browser to change any...
-
Page 10: Specification
6. Specification Standards IEEE 802.11b LAN Connection - Four auto-negotiating 10/100Mbps RJ-45 ports, Auto MDI/MDI-X. - One auto- negotiating10/100Mbps DMZ port, Auto MDI/MDI-X. WAN Connection One 10/100Mbps Fast Ethernet port for connecting to the xDSL/Cable Modem or Ethernet connection. Internet Protocol Support TCP/IP, NAT, DHCP, HTTP, FTP, PPPoE, DDNS.
