IMPORTANT MANUAL
OWNER'S MANUAL
MODEL NUMBER:
XT1053ES

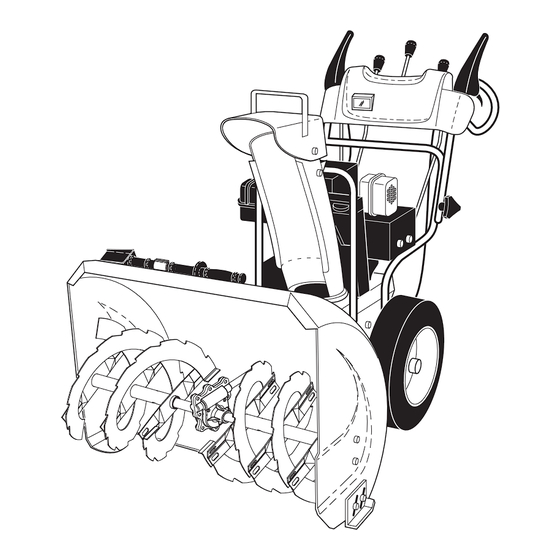

SNOW THROWER

Always Wear Eye Protection During Operation
Do Not Throw Away
WARNING:
Read the Owner's Manual and
fol low all Warnings and Safety
In struc tions. Fail ure to do so
can result in serious injury.
422077 08.12.08 TH
Printed in the U.S.A.
