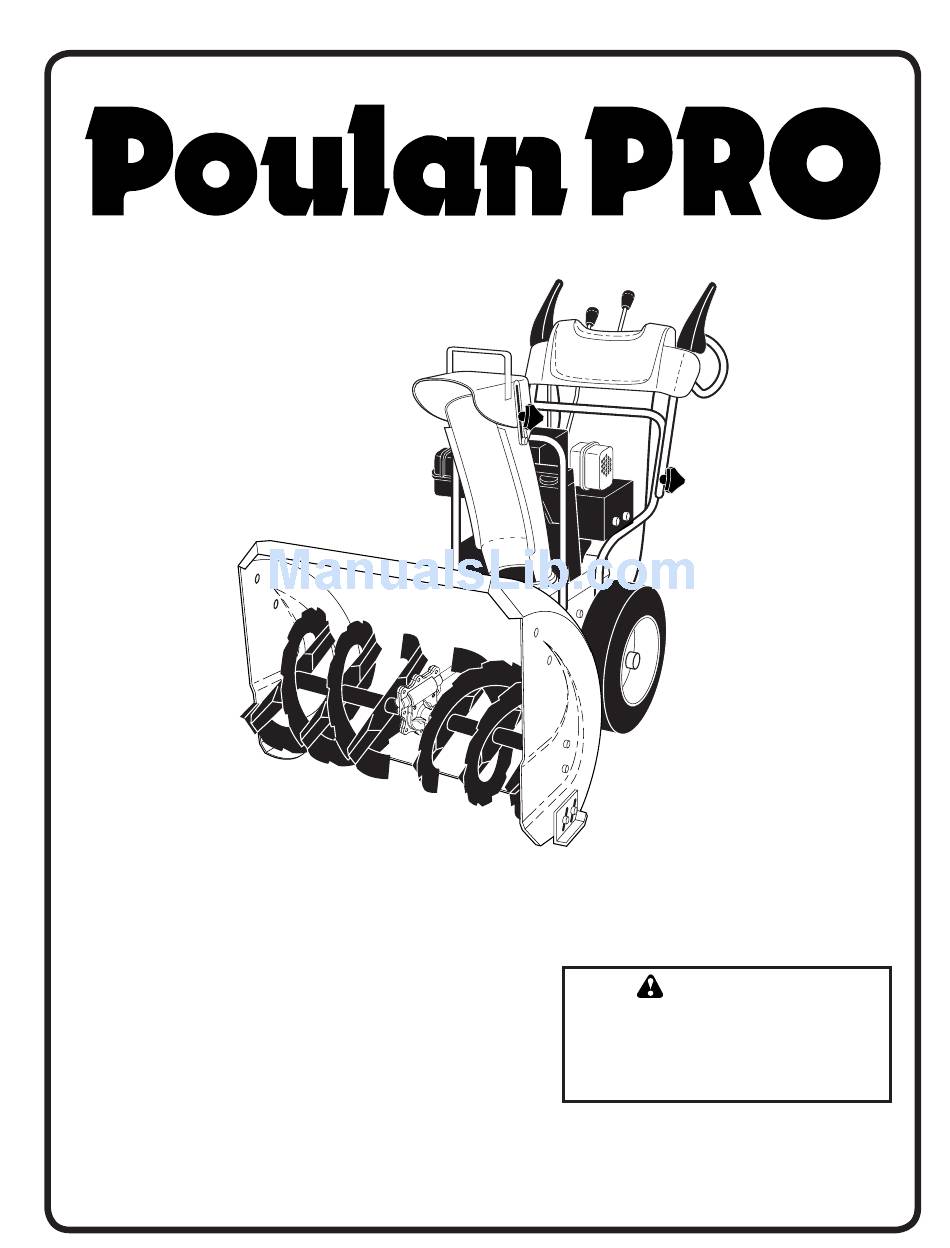

IMPORTANT MANUAL
OWNER'S MANUAL
MODEL NUMBER:
PP5524ESA
SNOW THROWER
Always Wear Eye Protection During Operation
Do Not Throw Away
WARNING:
Read the Owner's Manual and
fol low all Warnings and Safety
In struc tions. Fail ure to do so
can result in serious injury.
183618 Rev. 5 09.26.02 BY
Printed in U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Poulan Pro 183618

Summary of Contents for Poulan Pro 183618

  • Page 1 Always Wear Eye Protection During Operation Do Not Throw Away WARNING: Read the Owner's Manual and fol low all Warnings and Safety In struc tions. Fail ure to do so can result in serious injury. 183618 Rev. 5 09.26.02 BY Printed in U.S.A.

  • Page 2: Safety Rules

    Safe Operation Practices for Snow Throwers IMPORTANT: This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. Look for this symbol to point out im- por tant safety precautions.

  • Page 3: Product Specifications

    • Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening and front auger area at all times. • Exercise extreme caution when op er at ing on or cross- ing gravel drives, walks or roads. Stay alert for hidden hazards or traffi...

  • Page 4: Table Of Contents

    SAFETY RULES ... 2-3 PRODUCT SPECIFICATIONS ... 3 CUSTOMER RESPONSIBILITIES... 3 WARRANTY... 32 ASSEMBLY / PRE-OPERATION ... 5-7 OPERATION ... 8-13 PARTS PACKED SEPARATELY IN CARTON MAINTENANCE ... 14-15 MAINTENANCE SCHEDULE ... 14 SERVICE AND AD JUST MENTS ... 16-18 STORAGE ...

  • Page 5: Assembly / Pre-Operation

    ASSEMBLY / PRE-OPERATION Read these instructions and this man u al in its entirety before you attempt to assemble or operate your new snow thrower. Your new snow thrower has been as sem bled at the factory with the ex cep tion of those parts left unassembled for shipping purposes.
  • Page 6 ASSEMBLY / PRE-OPERATION INSTALL TRACTION DRIVE CONTROL ROD (See Figs. 3 and 4) The traction drive control rod has the long loop on the end of the spring as shown. 1. Slide rubber sleeve up rod and hook end of spring into pivot bracket with loop opening down as shown.
  • Page 7 ASSEMBLY / PRE-OPERATION INSTALL DISCHARGE CHUTE / CHUTE ROTATER HEAD (See Fig. 7) NOTE: The multi-wrench provided in your parts bag may be used to install the chute rotater head. 1. Place discharge chute assembly on top of chute base with discharge opening toward front of snow thrower.

  • Page 8: Operation

    OPERATION KNOW YOUR SNOW THROWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product.
  • Page 9 SPARK PLUG SAFETY IGNITION CHOKE CON- TROL THROTTLE / ENGINE CONTROL RECOIL POWER (AUXILIARY) CORD STARTER PLUG ELECTRIC HANDLE START BUTTON PRIM ER NOTE: ITEMS ABOVE ARE SHOWN IN THEIR TYPICAL LOCATION ON THE ENGINE. ACTUAL LOCATION MAY VARY WITH THE ENGINE ON YOUR UNIT.
  • Page 10 The operation of any snow thrower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your snow thrower or performing any ad just - ments or repairs.
  • Page 11 CHUTE DEFLECTOR LOW POSITION FIG. 14 TO THROW SNOW (See Fig. 15) The auger rotation is controlled by the auger control lever located on the right side handle. • Squeeze auger control lever to handle to engage the auger and throw snow. •...

  • Page 12: Before Starting The Engine

    TO ADJUST SKID PLATES (See Fig. 17) NOTE: The wrench provided in your parts bag may be used to adjust the skid plates. Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the ground surface.
  • Page 13 COLD START - ELECTRIC STARTER 1. Insert safety ignition key into the ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place. 2. Place throttle control in FAST position. 3. Rotate choke control to FULL position. 4.

  • Page 14: Maintenance

    GENERAL REC OM MEN DA TIONS The warranty on this snow thrower does not cover items that have been sub ject ed to operator abuse or negligence. To receive full value from the warranty, operator must maintain snow thrower as in struct ed in this manual. Some ad just - ments will need to be made periodically to properly maintain your snow thrower.

  • Page 15: To Change Engine Oil

    V-BELTS Check V-belts for deterioration and wear after every 50 hours of operation and replace if necessary. The belts are not ad just able. Replace belts if they begin to slip from wear. (See “TO REMOVE BELT COVER” in the Service and Adjustments section of this manual).

  • Page 16: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: To avoid serious injury, before performing any service or ad- just ments: 1. Be sure throttle is in STOP position. 2. Remove safety ignition key. 3. Make sure the augers and all mov ing parts have completely stopped. 4.

  • Page 17: Service And Adjustments

    SERVICE AND ADJUSTMENTS TO REPLACE BELTS (See Fig. 21) The auger and traction drive belts are not adjustable. If the belts are damaged or begin to slip from wear, they should be replaced. It is recommended that the belt(s) be replaced by a qualifi...

  • Page 18: Storage

    TO REMOVE WHEELS (See Fig. 22) • Remove the klik pin and remove wheel from axle. IMPORTANT: When installing wheel, be sure to use the axle hole closest to the end of the shaft – do not use the hole in the wheel hub (if equipped). Inner hole in axle and hole in wheel hub are not used for your model snow thrower.

  • Page 19: Troubleshooting

    TROUBLESHOOTING See appropriate section in manual unless directed to a qualifi ed service center. PROBLEM CAUSE Does not start 1. Fuel shut-off valve (if so equipped) in OFF position. 2. Safety ignition key is not inserted. 3. Out of fuel. 4.

  • Page 20: Repair Parts

    REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY SNOW THROWER - MODEL NUMBER PP5524ESA 44 27...
  • Page 21 REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY KEY PART NOTE: All component dimensions given in U.S. inches SNOW THROWER - MODEL NUMBER PP5524ESA DESCRIPTION 183578 Bag, Weight 183577 Bracket, Weight Bag 74520524 Screw, Hex Head 5/16-18 x 1-1/2 181083 Pulley, Impeller 175323 Bearing Assembly, Flange 155377...
  • Page 22 REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NUMBER PP5524ESA 11 9...
  • Page 23 REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE SNOW THROWER - MODEL NUMBER PP5524ESA KEY PART DESCRIPTION 183334 Knob, Lever 17501010 Screw #10-24 x 5/8 179096X479 Strap, Slotted 73800600 Nut, Lock 3/8-16 19131316 Washer, Flat 3/8 178659 Control Assembly, Chute Rotater 178638X479 Support, Pivot 150078...
  • Page 24 REPAIR PARTS HANDLES SNOW THROWER - MODEL NUMBER PP5524ESA...
  • Page 25 REPAIR PARTS HANDLES KEY PART NOTE: All component dimensions given in U.S. inches SNOW THROWER - MODEL NUMBER PP5524ESA DESCRIPTION 178875X479 Lever, Auger Control, RH 178648X479 Lever, Traction Drive Control, LH 179439 Nut, Cage 1/4-20 178888 Bushing, Flange 169675 Retainer, Hairpin 180402 Screw, Hex Head 1/4-20 x 3/4 178652...
  • Page 26 REPAIR PARTS DRIVE SNOW THROWER - MODEL NUMBER PP5524ESA 9 10...
  • Page 27 REPAIR PARTS DRIVE KEY PART NOTE: All component dimensions given in U.S. inches SNOW THROWER - MODEL NUMBER PP5524ESA DESCRIPTION 146315 Screw, Hex Head 5/16-18 x 3/4 73800500 Nut, Lock 5/16-18 155415 Washer, Flat 17490508 Screw, Hex Head 5/16-18 x 1/2 180017 Bearing, Flange 180134...
  • Page 28 REPAIR PARTS SNOW THROWER - MODEL NUMBER PP5524ESA CHASSIS / ENGINE / PULLEYS 10 21 53 54...
  • Page 29 REPAIR PARTS CHASSIS / ENGINE / PULLEYS KEY PART 181044 180522 - - - 74780520 59289 73930500 175330 179092 10040500 150078 184789 85179 178828 183533 150406 179354X008 74780524 175331 180523 74610516 179371 180478 179157 62735 10040600 851084 155452 180465 178830 17490408 179256 179250...
  • Page 30 REPAIR PARTS WHEELS / DECALS SNOW THROWER - MODEL NUMBER PP5524ESA...
  • Page 31 Washer, Thrust (1") NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm KEY PART DESCRIPTION 181037 Decal, Danger 183884 Decal, Poulan Pro, 5.5HP/24" 181035 Decal, Danger, Defl ector 181042 Decal, Danger 183883 Decal, Poulan Pro 181033...

  • Page 32: Warranty

    The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from de- fects in materials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi...
