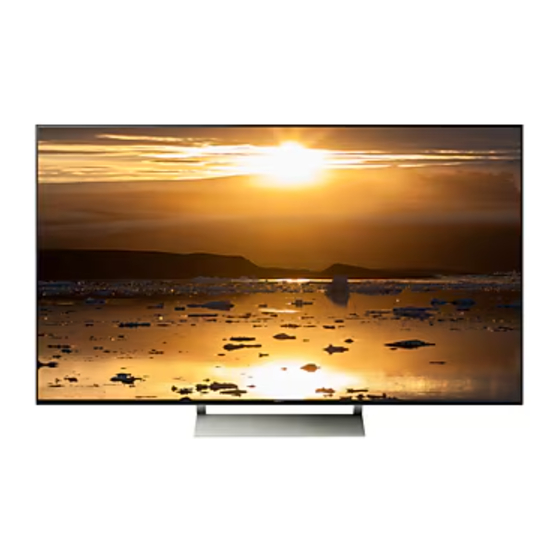

Sony BRAVIA KD-75X9400E Reference Manual
Hide thumbs
Also See for BRAVIA KD-75X9400E:
- Reference manual (52 pages) ,
- Setup manual (2 pages) ,
- Setup manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Sony BRAVIA KD-75X9400E
Summary of Contents for Sony BRAVIA KD-75X9400E
- Page 1 4-689-886-E1(1) Television Reference Guide KD-75X9400E / 65X9300E / 55X9300E...
-
Page 2: Table Of Contents
Introduction Table of Contents Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference. Note • Before operating the TV, please read the “Safety information” (page 4). • Instructions about “Installing the TV to the Wall” are included within this TV’s instruction manual. - Page 3 Equipment name: Television Restricted substances and its chemical symbols Hexavalent Polybrominated Polybrominated Unit Lead Mercury Cadmium chromium biphenyls diphenyl (Pb) (Hg) (Cd) (PBB) ethers (PBDE) Print circuit board Glass panel Cabinet Speaker Accessory (Example: remote controller) Remark 1. “ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
-
Page 4: Safety Information
• Only qualified service personnel should carry out wall-mount installations. • For safety reasons, it is strongly recommended that you use Sony accessories, including: Supplied Wall-Mount Bracket Wall-Mount Bracket SU-WL500 (KD-75X9400E) Wall-Mount Bracket SU-WL450 (KD-65/55X9300E) • Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. - Page 5 Environments: damage and/or injuries: • Places that are hot, humid, or excessively dusty; where insects Use only Sony supplied AC power cords (mains lead), not those may enter; where it might be exposed to mechanical vibration, of other brands.
- Page 6 • Do not install the TV over or under an air conditioner. Ask your dealer or Sony service centre to have it checked by qualified service personnel. • Be sure to install the...
-
Page 7: Precautions
Optional Equipment • Do not allow the AC power cord (mains lead) or the connecting Keep optional components or any equipment emitting cables to be pinched as the electromagnetic radiation away from the TV set. Otherwise internal conductors may become picture distortion and/or noisy sound may occur. -
Page 8: Parts And Controls
Parts and Controls Controls and Indicators (Power) /+/- When the TV is off, Press to power on. When the TV is on, Press and hold to power off. Press repeatedly to change the function, then press + or – button to: •... -
Page 9: Using Remote Control
Using Remote Control Remote Control Parts Description The remote control shape, location, availability and function of remote control button may vary depending on your region/country/TV model. Number buttons 輸入選擇 Display and select the input source. 字幕 語音服務 Turn subtitles on or off (when the feature is available). - Page 10 Colour buttons 寬螢幕 Execute corresponding function at that time. Change the screen format. 快捷窗 同步選單 Display a list of contextual functions. Display the BRAVIA Sync Menu. 電視 • Switch to a TV channel or input from other applications. • Turn on the TV to display TV channel or input.
-
Page 11: Connection Diagram
Connection Diagram For more information on connections, refer to the Help Guide by pressing 說明 on the remote control. Digital still camera/ Camcorder/USB storage media Headphone/Home Audio System/ Subwoofer VCR/Video game equipment/DVD player/Camcorder Home Audio System with Optical Audio Input player with VCR/Video game... - Page 12 HDMI 輸入 1/2/3/4 USB 1/2, USB 3 • Connecting a large USB device may • If connecting a digital audio system that is interfere with other connected devices compatible with Audio Return Channel (ARC) technology, use HDMI 輸入 3. If not, beside it.
-
Page 13: Installing The Tv To The Wall
To Sony Dealers and Contractors Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. Sony is not liable for any damages or injury caused by mishandling or improper installation. -
Page 14: Using The Optional Wall-Mount Bracket
TV's weight. If it is not properly secured during installation, the TV may fall and cause serious injury. Sony is not liable for any damage or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected. -
Page 15: Su-Wl500 (Kd-75X9400E Only)
Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it parallel with the wall). (KD-65/55X9300E only) VS(S) VS(L) 1.5 N∙m {15 kgf∙cm} Note • If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. •... - Page 16 Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least six times that of the TV. Refer to the following table on installing the TV to the wall. See page 25-26 (Specifications) for the TV’s weight. Screen centre point Unit: mm Length for mounting...
- Page 17 Install the TV on the wall. Model Name Hook location 75X9400E Hook location When installing the TV onto the Base Bracket. Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.
-
Page 18: Su-Wl450 (Kd-65/55X9300E Only)
SU-WL450 (KD-65/55X9300E only) Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least six times that of the TV. Refer to the following table on installing the TV to the wall. See page 25-26 (Specifications) for the TV’s weight. - Page 19 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to “1” of the Wall-Mount Bracket Installation Guide. Note • If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. • Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference. Standard mounting ...
- Page 20 Detach the Table-Top Stand from the TV. Install the TV to the Base. Refer to “5” of Installation Guide and “Installing the TV to the Wall” of Operating Instructions supplied with the Wall-Mount Bracket. Model Name KD- Hook location 65X9300E 55X9300E Refer to the instructions supplied with the Wall-Mount Bracket for your model to install the TV on the wall.
-
Page 21: Kd-55X9300E Only
TV's weight. If it is not properly secured during installation, the TV may fall and cause serious injury. Sony is not liable for any damage or injury caused by mishandling or improper installation, or installing any other than the specified product. Your Statutory Rights (if any) are not affected. - Page 22 Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it parallel with the wall). VS(S) VS(L) 1.5 N∙m {15 kgf∙cm} Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). Wall-Mount Bracket (not supplied) Screw (not supplied)
- Page 23 Detach the Table-Top Stand from the TV. Note • If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. • Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.
-
Page 24: Troubleshooting
If the problem persists, disconnect the AC power on the remote control until a message cord (mains lead), and contact your dealer or Sony appears. The TV will restart. If the TV does not service centre with the number of times the recover, try unplugging the TV from the AC illumination LED flashes. -
Page 25: Specifications
DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: Specifications 48 kHz, 16 bits, Dolby Digital, DTS) AUDIO OUT/ (Stereo mini jack) System Headphone, Audio output, Subwoofer Panel system LCD (Liquid Crystal Display) Panel, LED Backlight USB port 1 and 2 support High Speed USB (USB2.0) TV system USB port 3 supports Super Speed USB (USB3.0) Analogue: M... -
Page 26: Trademark Information
KD-75X9400E: 47.6 kg KD-65X9300E: 42.4 kg Bluetooth SIG, Inc. and any use of such KD-55X9300E: 32.6 kg marks by Sony Corporation is under without Table-Top Stand license. Other trademarks and trade names KD-75X9400E: 42.8 kg are those of their respective owners. - Page 28 Help Guide http://rd1.sony.net/help/tv/etw3/h_tw/ Customer Support and Contact: © 2017 Sony Corporation Printed in Japan...
