Treker
®

Parts Manual

Models
996122 – 4 x 2 Red
996124 – 4 x 2 Red
996143 – 4 x 4 Red
996144 – 4 x 4 Camouflage
09650700 7/10
Printed in USA
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Gravely Treker 996122

Summary of Contents for Gravely Treker 996122

  • Page 1: Parts Manual

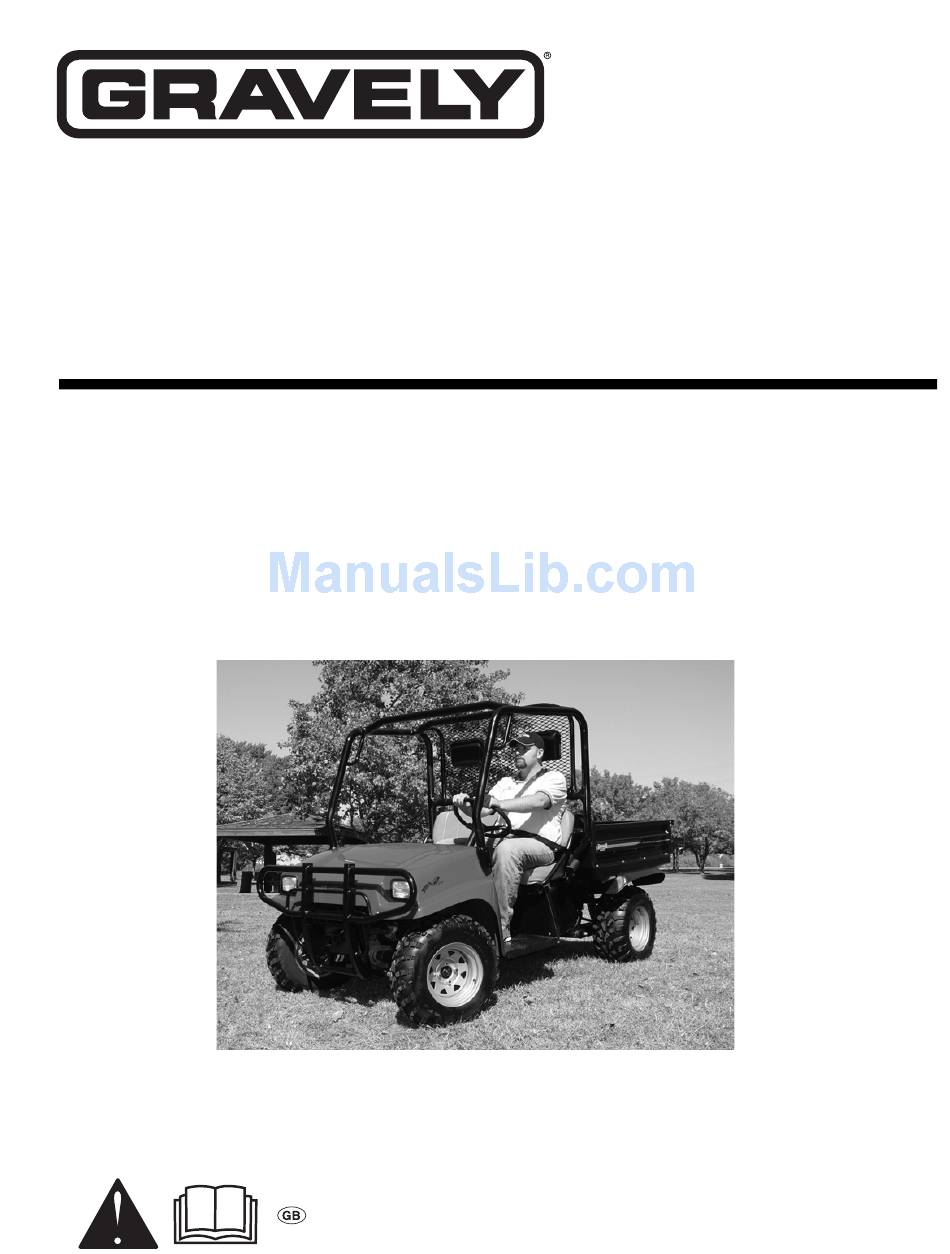

    Treker ® Parts Manual Models 996122 – 4 x 2 Red 996124 – 4 x 2 Red 996143 – 4 x 4 Red 996144 – 4 x 4 Camouflage 09650700 7/10 Printed in USA ENGLISH...
  • Page 2 Gravely disclaims liability for any claims or damages, whether warranty, property damage, personal injury or death arising out of the use of unauthorized replacement parts. Gravely® is a registered trademark of Ariens Company. Treker® is a registered trademark of Trek Bicycle Corporation.

  • Page 3: Table Of Contents

    ODELS ABLE ONTENTS Domestic Lower Control Arm ......4 Main Frame ....... . .5 Model 996122 4 x 2 Red Shock Front .

  • Page 4: Lower Control Arm

    OWER ONTROL Model 996122, 996124, 996143, 996144 Item Part No. Description 802-486C HHCS M12X1.75X80 GR8.8 PLT 05929100 HHCS M10X1.5X30 GR8.8 803-280C NUT HEX NYLOCK M10X1.5 PLT 803-281C NUT HEX NYLOCK M12X1.75 PLT 803-341C NUT HEX SLOTTED M10X1.25 PLT 804-011C WASHER FLAT 3/8 USS PLT 06435900 WASHER, FLAT STEEL .438 x 1.00 x .083 06700117...

  • Page 5: Main Frame

    RAME Model 996122, 996124, 996143, 996144 Item Part No. Description 700-316A ST 10/20 Series Frame with Decals...

  • Page 6: Shock Front

    HOCK RONT Model 996122, 996124, 996143, 996144...
  • Page 7 HOCK RONT Model 996122, 996124, 996143, 996144 Item Part No. Description 700-055H STEERING BRACKET RIGHT 700-054H STEERING BRACKET LEFT 840-100C STRUT/COIL SPRING ASM 803-344C NUT HEX JAM M10 X 1.25 6MTHK YLW 804-220C WASHER, FLAT 816-531C GROMMET, RUBBER MOUNT 840-314C WASHER, STRUT MOUNT 04067200 CONTROL ARM ASM, LH...

  • Page 8: Shock Rear

    HOCK Model 996122, 996124, 996143, 996144 Item Part No. Description 840-101C SHOCK COIL REAR TRUCK 802-751C HHCS M14X2.00X60 GR8.8 803-334C NUT HEX NYLOCK M14X2.00 803-319C NUT HEX TOP LOCK 9/16-12 YLW 700-262H TRAILING ARM RH WELDMENT 817-517C BUSHING IDLER ARM RUBBER 700-371H CENTER PIVOT TUBE WELDMENT 700-422H...

  • Page 9: Trailing Arm

    RAILING Model 996122, 996124, 996143, 996144 Item Part No. Description 700-256S TRAILING ARM RH ASSY 700-257S TRAILING ARM LH ASSY 700-262H TRAILING ARM RH WELDMENT 700-263H TRAILING ARM LH WELDMENT 700-371H CENTER PIVOT TUBE WELDMENT 700-422H TRAILING ARM PIVOT BOLT WLDMNT 803-319C NUT HEX TOP LOCK 9/16-12 YLW 817-517C...

  • Page 10: Steering Components

    TEERING OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 11 TEERING OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 9175 NUT HEX SLOTTED M12X1.25 PLT 680002 TIE ROD W/BALL 826-399C/400C 43142100 NUT HEX M14X1.5 PLT 47002300 SPACER 826-399C/400C 700-060H STEERING COLUMN WELDMENT 802-387C HFS 5/16-18X3/4 GR5 802-714C HHCS M8X1.25X25 GR8.8 YLW PLT 802-760C HHCS M8X1.25X100 GR8.8 PLT 803-084C...

  • Page 12: Throttle Components

    HROTTLE OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 13 HROTTLE OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-127H GAS PEDAL WELDMENT 700-128S GAS PEDAL W/PAD ASSEMBLY 700-129D GAS PEDAL MOUNT 700-206D GAS PEDAL ADJUSTMENT PLATE 700-255D BODY MOUNT SPACER .375 THICK Use as needed 700-254D BODY MOUNT SPACER .25 THICK Use as needed 802-010C HHCS 5/16-18X1 1/4 GR5 05958000...

  • Page 14: Brake Drum Rear Components

    RAKE OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 15 RAKE OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 815-145C RH DRUM ASM 180mm 4 ON 4" BC ITEM 19 NOT INCLUDED 815-146C LH DRUM ASM 180mm 4 ON 4" BC ITEM 19 NOT INCLUDED F136 LEFT SHOE F137 RIGHT SHOE F777...

  • Page 16: Brake Disc Front Components

    RAKE RONT OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 17 RAKE RONT OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 815-143C RH DISC BRAKE ASM 172m/JNT Does Not Include #3, #4 or #5 Rev. 2 815-144C LH DISC BRAKE ASM 172mm W/JNT Does Not Include #3, #4 or #5 Rev. 2 802-589C HHCS 7/16-14X2 GR5 803-229C...

  • Page 18: Parking Brake And Shifter Dash Mount

    ARKING RAKE AND HIFTER OUNT Model 996122, 996124, 996143, 996144...
  • Page 19 ARKING RAKE AND HIFTER OUNT Model 996122, 996124, 996143, 996144 Item Part No. Description 700-255H PIN WELDMENT 700-271H SHIFT LEVER WLDMNT 700-272H SHIFT LEVER LOWER WLDMNT 700-273S SHIFTER ASSEMBLY 700-414H WELDMENT, F-N-R LEVER 700-415H WELDMENT, PARK BRAKE LEVER 700-419D SPACER PLATE 700-449H WELDMENT, SHIFTER HOUSING 700-450D...

  • Page 20: Parking Brake And Shifter Transaxle

    ARKING RAKE AND HIFTER RANSAXLE Model 996122, 996124, 996143, 996144...
  • Page 21 ARKING RAKE AND HIFTER RANSAXLE Model 996122, 996124, 996143, 996144 Item Part No. Description 700-378D SHIFT LEVER 700-418D BRAKE DISC 700-423H CALIPER MOUNT BRACKET 700-446D CLAMP COUPLING 700-449D BRAKE HUB ADAPTER 700-524D BRAKE CABLE CLIP PLATE 700-525D CALIPER SPACER TUBE 800-347C WIRING/TUBE CLIP FOR 1/4 OD 800-351C...

  • Page 22: Parking Brake Caliper

    ARKING RAKE ALIPER Model 996122, 996124, 996143, 996144...
  • Page 23 ARKING RAKE ALIPER Model 996122, 996124, 996143, 996144 Item Part No. Description 840-312C BRAKE CALIPER 82775 STATOR ASSEMBLY 82779 LEVER 82781 SLEEVE 82785 STEEL BALL 82788 COMPRESSION SPRING 82960 STATOR ASSEMBLY 82967 SPRING PIN SLOTTED 82968 SHIM 83113 THRUST WASHER 10 83465 SLEEVE 11 85578...

  • Page 24: Brake System Front

    RAKE YSTEM RONT Model 996122, 996124, 996143, 996144...
  • Page 25 RAKE YSTEM RONT Model 996122, 996124, 996143, 996144 Item Part No. Description 700-056H BRAKE PEDAL PIVOT WELDMENT 700-342H BRAKE PEDAL ARM WELDMENT 700-341S BRAKE PEDAL W/PAD ASSEMBLY 800-347C WIRING/TUBE CLIP FOR 1/4 OD 800-355C RETAINING RING 5/8 EXT. 800-356C CLAMP PINCH FOR .50 OD HOSE 800-360C HOSE CLAMP 1/4 ID 801-174C...

  • Page 26: Brake System Rear

    RAKE YSTEM Model 996122, 996124, 996143, 996144...
  • Page 27 RAKE YSTEM Model 996122, 996124, 996143, 996144 Item Part No. Description 700-454D COVER, BRAKE LINE 13.5" 800-347C WIRING/TUBE CLIP FOR 1/4 OD 801-151C SCR HEX SELF TAP 1/4-20X1TYPEF 801-174C HH DRILL SCREW 1/4 X 3/4LG 802-731C HHCS M8X1.25X30 GR10.9 ZNYCR 804-157C WASHER SPRING LOCK M8 PLT 815-156C...

  • Page 28: Drive Belt Components

    RIVE OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 29 RIVE OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-286D BRACKET, CVT COVER TO TRANS. 04070000 COVER, CVT INLET DUCT 710-097D KEY 3/16 X 3 800-219C RIVET POP 3/16 .126-.250 800-235C SPRING CLAMP 1" OD HOSE 800-259C CLAMP WRM DRV#36SS (1.81-2.75) 800-271C RIVET POP WASHER 3/16 800-350C...

  • Page 30: Drive Belt Driven Pulley

    RIVE RIVEN ULLEY Model 996122, 996124, 996143, 996144 Item Part No. Description 6105-0005 FIXED FLANGE SHIM WASHER 6110-0001 SLIDING FLANGE SPRING SQUARE KEY 1/4 0080-0220 SNAP RING 6030-3001 CAM SHOE 0080-0031 HEX, SOCKET BUTTON HEAD...
  • Page 31 RIVE RIVER ULLEY Model 996122, 996124, 996143, 996144 Item Part No. Description 0405-0104 FIXED FLANGE 0410-0031 SLIDING FLANGE SPRING SUPPORT 0440-2032 STROKE LIMITER SPRING 0440-0005 SPRING COVER 0080-0167 LOCK WASHER 0080-0021 SOCKET HEAD CAP SCREW 0130-0165 BLOCK ASSEMBLY 10 0115-0050 11 06400534 WASHER, FLAT #10 ZP SAE 12 803-149C...

  • Page 32: Engine Mounting

    NGINE OUNTING Model 996122, 996124, 996143, 996144...
  • Page 33 NGINE OUNTING Model 996122, 996124, 996143, 996144 Item Part No. Description 700-059H ENGINE MOUNT WELDMENT 700-099D TRANS MNT SUPPORT BRACKET ST 802-113C HHCS 7/16-14X1 3/4 GR5 802-143C HHCS 3/8-16X2 GR5 803-209C NUT FLANGE LOCK 3/8-16 PLT 803-229C NUT HEX FLANGE LOC 7/16-14 PLT 804-011C WASHER FLAT 3/8 USS PLT 08200534...

  • Page 34: Front Differential And Driveshaft

    RONT IFFERENTIAL AND RIVESHAFT Model 996122, 996124, 996143, 996144...
  • Page 35 RONT IFFERENTIAL AND RIVESHAFT Model 996122, 996124, 996143, 996144 Item Part No. Description 1-0170NPL CROSS & BRG KIT 700-466D VENT HOSE 17.5LG 4X4 GBOX 800-303C CABLE TIE 2 DIA MIN - BLK 800-353C SPRING CIR CLIP .95ODX.063WIRE 800-356C CLAMP PINCH FOR .50 OD HOSE 802-017C HHCS 3/8-16X1 GR5 802-115C...

  • Page 36: Front Differential Components

    RONT IFFERENTIAL OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 37 RONT IFFERENTIAL OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 826-398C FRONT DIFFERENTIAL W/ELE CLTCH 6203-12-100 OUTPUT COVER PLATE ASSEMBLY #1 Kit includes #2 to #8 & 42 MATE-N-LOK- HOUSING Sold with #1 kit MATE-N-LOK PIN Sold with #1 kit GROMMET, OUTPUT COVER Sold with #1 kit COVER PLATE, OUTPUT-MACHINED Sold with #1 kit O-RING, OUTPUT-164S (SQ.

  • Page 38: Transaxle Rear And Axle Shafts

    RANSAXLE EAR AND HAFTS Model 996122, 996124, 996143, 996144...
  • Page 39 RANSAXLE EAR AND HAFTS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-378D SHIFT LEVER 802-769C HHCS 1/4-20X1 1/4 GR8 803-255C NUT HEX NYLOCK 1/4-20 803-332C NUT HEX M16X1.5 TOP LOCK PLT 804-025C WASHER FLAT 3/4 SAE PLT 5048 OUTER BOOT KIT W/ 2 CLAMPS 5051 INNER BOOT KIT W/2 CLAMPS...

  • Page 40: Transaxle Rear Components

    RANSAXLE OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 41 RANSAXLE OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 826-454C TRANSAXLE W/ AUTO-LOCK DIFF. 012CH291-2X DANA HOUSING AND SHAFT ASSBLY 012CH289 DANA HOUSING-AXLE FIN 012LK133 DANA KIT, DETENT 012HH122 DANA SEAL - OIL 012GV164-X DANA ACTUATOR ASSY 012SV118-X DANA SHIFT ROD SUB-ASSY 012HH128 DANA SEAL - OIL...

  • Page 42: Transfer Case And Rear Driveshaft

    RANSFER ASE AND RIVESHAFT Model 996122, 996124, 996143, 996144...
  • Page 43 RANSFER ASE AND RIVESHAFT Model 996122, 996124, 996143, 996144 Item Part No. Description 04064551 GEAR BOX MNT PLATE 826-417C GBOX MODEL R100 1.5 TO 1 RATIO 04054451 CLAMP COUPLING 05947000 @BLT-HEX .31-18 .75 G5 YWZC 05946900 @BLT-HEX .31-18 1.00 G5 YWZC 06308600 WASHER, HELICAL SPRING LOCK, R 800-366C...

  • Page 44: Transfer Case Components

    RANSFER OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 45 RANSFER OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 826-417C GBOX MODEL R100 1.5TO1 RATIO R100-003M-A0427 HOUSING, R100 MACHINED TAP STD R100-004M-A0428 HOUSING, R100 MACHINED THRU STD R100-8B00-A0471 STUB SHAFT/GEAR ASSEMBLY R100-8B00-A0473 SUPERIOR CROSS SHAFT/GEAR ASSEMBLY 244643 BEARING, CONE1.00VN-L44643 244610 BEARING, CUP 1.98VN-L44610 109843...

  • Page 46: Air Cleaner

    LEANER Model 996122, 996124, 996143, 996144 Item Part No. Description 840-266C SNORKEL AIR INTAKE 839-375C DNLDSN COVER W/LATCHES P533761 839-377C DNLDSN VACUATOR (BURP) P522958 839-311C DNLDSN AIR CLNR CLAMP PPGF30 839-323C FILTER AIR OUTER ELEMENT 03964931 SNORKEL TUBE 03964913 INTAKE TUBE 840-268C FILTER, AIR INTAKE 800-259C...

  • Page 47: Exhaust Components

    XHAUST OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 04071600 ENGINE MANIFOLD, SUBARU 04071601 MUFFLER, SUBARA 840-315C SPARK ARRESTER WITH SCREW 801-183C SCREW HEX SLT 8-18X1/2 PLT 700-517D SHIM, MUFFLER MOUNTING 807-219C SPRING EXT. .5ODX1.68LGX.08W 801-193C SCREW, HEX #8 X 1/2 SELF TAP 802-735C HHCS 5/16-18 X 3/4 GR5 YELLOW DI 804-084C...

  • Page 48: Fuel System Components

    YSTEM OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 49 YSTEM OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-017D GAS TANK MOUNT SPACER 700-175D GAS TANK STRAP, WIDE 700-213D FUEL LINE 9" ST MODEL 700-368S ST FUEL TANK ASSY 800-007C PINCH CLAMP HONDA .32OD HOSE 800-356C CLAMP PINCH FOR .50 OD HOSE 802-004C HHCS 1/4-20X3/4 GR5 802-005C...

  • Page 50: Electrical Wiring

    LECTRICAL IRING Model 996122, 996124, 996143, 996144...
  • Page 51 LECTRICAL IRING Model 996122, 996124, 996143, 996144 Item Part No. Description HEADLIGHT BULB 37.5 WATT 894 TAILLIGHT BULB 1157 1157 700-456D HOLDOWN, BATTERY ST 802-257C HFSS 1/4-20X3/4 GR5 802-793C SP HOOK 5/16-18X9X3 THREAD 06529200 NUT, HEX 5/16-18 PLT 803-293C NUT HEX FLNG T-LOCK 1/4-20 YLW 03400215 WASHER, FLAT 5/16 SAE 06308600...

  • Page 52: Instrument Panel - 4 X 2

    – 4 NSTRUMENT ANEL Model 996122, 996124, 996143, 996144...
  • Page 53 – 4 NSTRUMENT ANEL Model 996122, 996124, 996143, 996144 Item Part No. Description 700-211D DASH BACKER PLATE 800-236C RIVET, 1/4 833-020C INDICATOR LIGHT STRIP 8-PIN Replacement Bulb 833-418c 833-254C DUMP SWITCH WAYTEK 44304 833-267C SWITCH MOUNT END 833-268C PANEL PLUG 833-269C SWITCH ROCKER SPST 833-271C...

  • Page 54: Instrument Panel - 4 X 4

    – 4 NSTRUMENT ANEL Model 996122, 996124, 996143, 996144...
  • Page 55 – 4 NSTRUMENT ANEL Model 996122, 996124, 996143, 996144 Item Part No. Description 700-211D DASH BACKER PLATE 800-236C RIVET, 1/4 833-020C INDICATOR LIGHT STRIP 8-PIN Replacement Bulb 833-418c 833-254C DUMP SWITCH WAYTEK 44304 833-267C SWITCH MOUNT END 833-268C PANEL PLUG 833-269C SWITCH ROCKER SPST 833-271C...

  • Page 56: Bench Seat

    ENCH Model 996122, 996124, 996143, 996144...
  • Page 57 ENCH Model 996122, 996124, 996143, 996144 Item Part No. Description 700-389D SEAT PIVOT PLATE 700-460H BENCH SEAT WELDMENT 801-214C SCREW, OVPH SM 8 X 3/4 SS 05958700 BOLT, HEX 7/16-14 X 1 GR5 802-185C HFSS 3/8-16X3/4 LG 802-387C HFS 5/16-18X3/4 GR5 803-177C NUT HEX FLG TP LK 5/16-18ZNYCR 803-209C...

  • Page 58: Four Post Accessory Bar

    CCESSORY Model 996122, 996124, 996143, 996144...
  • Page 59 CCESSORY Model 996122, 996124, 996143, 996144 Item Part No. Description 700-421H WELDMENT, ACCESSORY BAR REAR 700-425H WELDMENT, ACCESSORY BAR FRONT 700-445H BAR MOUNT FRONT LH 700-446H BAR MOUNT FRONT RH 05957200 BOLT, HEX 5/16-18 X 2 GR5 802-387C HFS 5/16-18X3/4 GR5 802-480C HSHCS 3/8-16X1 1/2 Apply Loc-Tite®...

  • Page 60: Floor Panel And Shields

    LOOR ANEL AND HIELDS Model 996122, 996124, 996143, 996144...
  • Page 61 LOOR ANEL AND HIELDS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-047H FLOOR WIDE WELDMENT 700-145D SIDE PANEL, WIDE 700-197D FRONT FRAME GUARD ST 700-289H KICK PANEL WLDMNT (ST) 801-180C TPHMS Y 1/4-20 X 3/4 YELLOW DIE 05947000 BOLT, HEX 5/16-18 X 3/4 GR5 YELLOW DI 05946900 BOLT, HEX 5/16-18 X 1 GR5...

  • Page 62: Cargo Box Components

    ARGO OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 63 ARGO OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-318D TAILGATE LATCH HANDLE 700-461H WELDMENT, TAILGATE PIVOT 700-479V LH BED SIDE ASSY, RED 4220 Includes Decals 700-480V LH BED SIDE ASSY, RED 4420 Includes Decals 700-481V LH BED SIDE ASSY, CAMO Includes Camo Panel & Decals 700-487V RH BED SIDE ASSY, RED 4220 Includes Decals 700-488V...

  • Page 64: Cargo Box Power Lift

    ARGO OWER Model 996122, 996124, 996143, 996144...
  • Page 65 ARGO OWER Model 996122, 996124, 996143, 996144 Item Part No. Description 805-045C PIN COTTER 5/32 X 1 1/4 LG 805-252C PIN CLEVIS 1/2 X 6 805-303C PIN CLEVIS 1/2X1 49/64 USABLE 833-317C ELECT. LINEAR ACTUATOR 12"STRK...

  • Page 66: Hood Assembly Components

    SSEMBLY OMPONENTS Model 996122, 996124, 996143, 996144...
  • Page 67 SSEMBLY OMPONENTS Model 996122, 996124, 996143, 996144 Item Part No. Description 700-233D BACKING PLATE FOR TRUCK BODY 700-255D BODY MOUNT SPACER .375 THICK As Required 700-254D BODY MOUNT SPACER .25 THICK As Required 700-442D DASH MOUNT PLATE 800-219C RIVET POP 3/16 .126-.250 800-236C RIVET, 1/4 REMOVEABLE 801-181C...

  • Page 68: Front Tires

    RONT IRES Model 996122, 996124, 996143, 996144...
  • Page 69 RONT IRES Model 996122, 996124, 996143, 996144 Item Part No. Description 700-038S TIRE/RIM FRONT TURF 23-8.5-12 710-019S AT TIRE/RIM, GRAY RIGHT FRONT 700-386S AT TIRE/RIM, BLACK RIGHT FRONT 710-036S AT TIRE/RIM, GRAY LEFT FRONT 700-388S AT TIRE/RIM, BLACK LEFT FRONT 814-214C RIM, 12X7 4-4 BOLT GRAY...

  • Page 70: Rear Tires

    IRES Model 996122, 996124, 996143, 996144...
  • Page 71 IRES Model 996122, 996124, 996143, 996144 Item Part No. Description 700-037S TIRE/RIM REAR TURF 23-10.5-12 03959700 AT TIRE/RIM BLACK RIGHT REAR 03959800 AT TIRE/RIM BLACK LEFT REAR 03960100 AT TIRE/RIM BLACK RIGHT FRONT 03960200 AT TIRE/RIM BLACK LEFT FRONT 06517600 RIM 12X8.5 4-4 BOLT BLACK 814-217C TIRE 25 X 11 X 12 AT489...

  • Page 72: Decals

    ECALS Model 996122, 996124, 996143, 996144 18, 19...
  • Page 73 DASH SHIFTER DECAL 16 07800138 DECAL, TREKER RED STRIPE Not on Camo Unit 17 07800133 DECAL, 4 X 4 18 07800131 DECAL, GRAVELY TREKER STRIP LH 19 07800130 DECAL, GRAVELY TREKER STRIP RH 20 07800132 DECAL, GRAVELY TREKER LOGO FRONT 21 07800134...

  • Page 74: Decals And Panels - Camo

    – C ECALS AND ANELS Model 996144 Item Part No. Description 03959500 PANEL, TAILGATE CAMO 03959400 PANEL, SIDE CAMO 990-132R TAPE, DOUBLE-SIDED...

  • Page 75: Front Bumper Guard

    RONT UMPER UARD Model 996122, 996124, 996143, 996144 Item Part No. Description 700-268H BRUSH GUARD WLDMNT Optional 700-330H HITCH WELDMENT FRONT 05947000 BOLT, HEX 5/16-18X 3/4 GR5 06530200 NUT, NYLON LOCK 5/16-18 06400536 WASHER, FLAT 5/16 HARDENED ASTMF436 817-589C PLASTIC END CAP 2X1 1/2...
  • Page 76 GRAVELY 655 West Ryan Street Brillion, WI 54110 920-756-2141 Fax 920-756-2407 www.gravely.com...
