IMPORTANT MANUAL
OPERATOR'S MANUAL
MODEL:
XT22H42YT

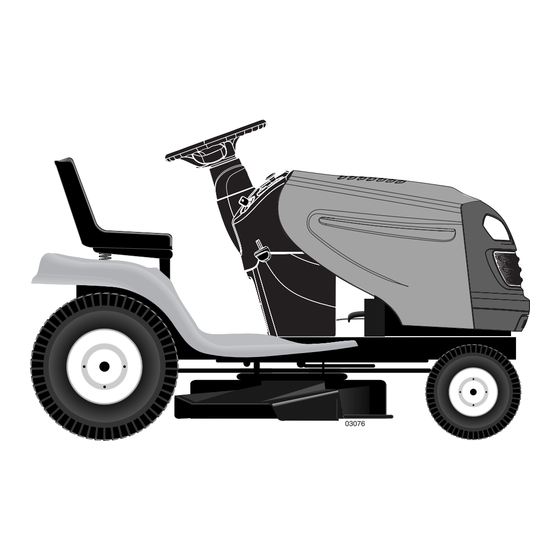

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
Do Not Throw Away
03076
WARNING:
Read this Man u al and follow all Warnings and
Safety Instructions. Fail ure to do so can re sult
in serious in ju ry.
404378 Rev.2 03.16.06 VB
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro 404378
Summary of Contents for Poulan Pro 404378
- Page 1 Visit our website: www.poulan-pro.com Do Not Throw Away 03076 WARNING: Read this Man u al and follow all Warnings and Safety Instructions. Fail ure to do so can re sult in serious in ju ry. 404378 Rev.2 03.16.06 VB Printed in U.S.A.
-
Page 2: Safety Rules
Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac- ci den tal starting when setting up, trans port ing, ad just ing or making re- pairs, al ways dis con nect spark plug... - Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS Gasoline Capacity 3 Gallons and type: Unleaded Regular Oil Type (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) Oil Capacity: W/ Filter: W/O Filter: Spark Plug: Champion QC12YC (Gap: .040") Ground Speed (MPH): Forward: Reverse: Charging System: 3 AMPS Battery 5 AMPS Headlights Battery:... -
Page 5: Assembly
UNASSEMBLED PARTS (2) Keys Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping puposes. When right or left hand is mentioned in this man ual, it means when you are in the operating po si tion (seated be hind the steer ing wheel). - Page 6 • Place freewheel control in "trans mis sion dis en gaged position" (See “TO TRANS PORT” in the Op er a tion section of this manual). • Roll tractor forward off skid. • Remove banding holding the defl ector shield up against tractor.
-
Page 7: Operation
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL REVERSE ENGINE OFF OPERATION SYSTEM (ROS) LIGHTS ON BATTERY FUEL ATTACHMENT ATTACHMENT CLUTCH DISENGAGED CLUTCH ENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or... - Page 8 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Our tractors conform to the applicable safety standards of the American National Standards Institute. (A) ATTACHMENT LIFT LEVER –...
- Page 9 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 10 TO MOVE FORWARD AND BACKWARD (See Fig. 7) The direction and speed of movement is controlled by the motion control lever. (J) • Start tractor with motion control le ver in neutral (N) position. • Release parking brake. • Slowly move motion control lever to desired position. FIG.
-
Page 11: Before Starting The Engine
REVERSE OPERATION SYSTEM (ROS) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON" position. - Page 12 ADD GASOLINE • Fill fuel tank to bottom of fi ller neck. Do not overfi ll. Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline.
-
Page 13: Mowing Tips
CAUTION: At any time, during step 4, there may be movement of the drive wheels. • Move motion control lever to full forward position and hold for fi ve (5) seconds. Move lever to full reverse position and hold for fi ve (5) seconds. Repeat this procedure three (3) times. -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check Mower Levelness Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) Change Engine Oil (without oil filter) Clean Air Filter... - Page 15 TRACTOR Always observe safety rules when per form ing any main- te nance. BRAKE OPERATION If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be serviced.
-
Page 16: Clean Air Screen
• Rinse the battery with plain water and dry. • Clean terminals and battery cable ends with wire brush until bright. • Coat terminals with grease or petroleum jelly. • Reinstall battery (See “REPLACING BATTERY" in the SERVICE AND ADJUSTMENTS section of this man u al). - Page 17 ENGINE OIL FILTER Replace the engine oil fi lter every season or every other oil change if the tractor is used more than 100 hours in one year. MUFFLER Inspect and replace corroded muffl er and spark arrester (if equipped) as it could create a fi re hazard and/or dam- age.
-
Page 18: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place motion control lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •... -
Page 19: Service And Adjustments
SERVICE AND ADJUSTMENTS • Slide mower out from under right side of tractor. IMPORTANT: If an attachment other than the mower deck is to be mounted on the trac tor, remove the front link (E) and rear lift liks (C) from tractor. TO INSTALL MOWER (See Figs. -
Page 20: To Level Mower
SERVICE AND ADJUSTMENTS TO LEVEL MOWER Make sure tires are properly infl ated to the PSI shown on tires. If tires are over or under infl ated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly. -
Page 21: To Replace Motion Drive Belt
SERVICE AND ADJUSTMENTS NOTE: Each full turn of the adjustment nut will change mower height about 1/8". • Recheck measurements, adjust if necessary until front tip of blade is 1/8" to 1/2" lower than the rear tip. • Hold adjustment nut in position with wrench and tighten jam nut securely against adjustment nut. -
Page 22: To Start Engine With A Weak Battery
SERVICE AND ADJUSTMENTS FRONT WHEEL TOE-IN/CAM BER Your new tractor front wheel toe-in and camber is set at the factory and is normal. The front wheel toe-in and camber are not adjustable. If damage has occurred to affect the factory set front wheel toe-in or camber, contact a qualifi ed service center. - Page 23 SERVICE AND ADJUSTMENTS REPLACING BATTERY (See Fig. 30) WARNING: Do not short battery ter mi nals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc. Positive terminal must be connected fi...
-
Page 24: Storage
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open fl... -
Page 25: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine fl ooded. Bad spark plug. 5. Weak or dead battery. Dirty air fi lter. Dirty fuel fi lter. 8. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. -
Page 26: Troubleshooting Points
TROUBLESHOOTING POINTS PROBLEM CAUSE Engine dies when 1. Reverse operation system tractor is shifted (ROS) is not "ON" while into reverse mower or other attachment is engaged. Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven... -
Page 27: Warranty
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi- als and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi... - Page 28 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
- Page 29 NOTES...
-
Page 30: Parts And Service
Model Number/Manufacturer's I.D. Number b. Description of part. For Techical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan-pro.com/support.asp NOTE: Electrolux Home Products provides parts and service through its au thor ized dis tribu tors and dealers;...
