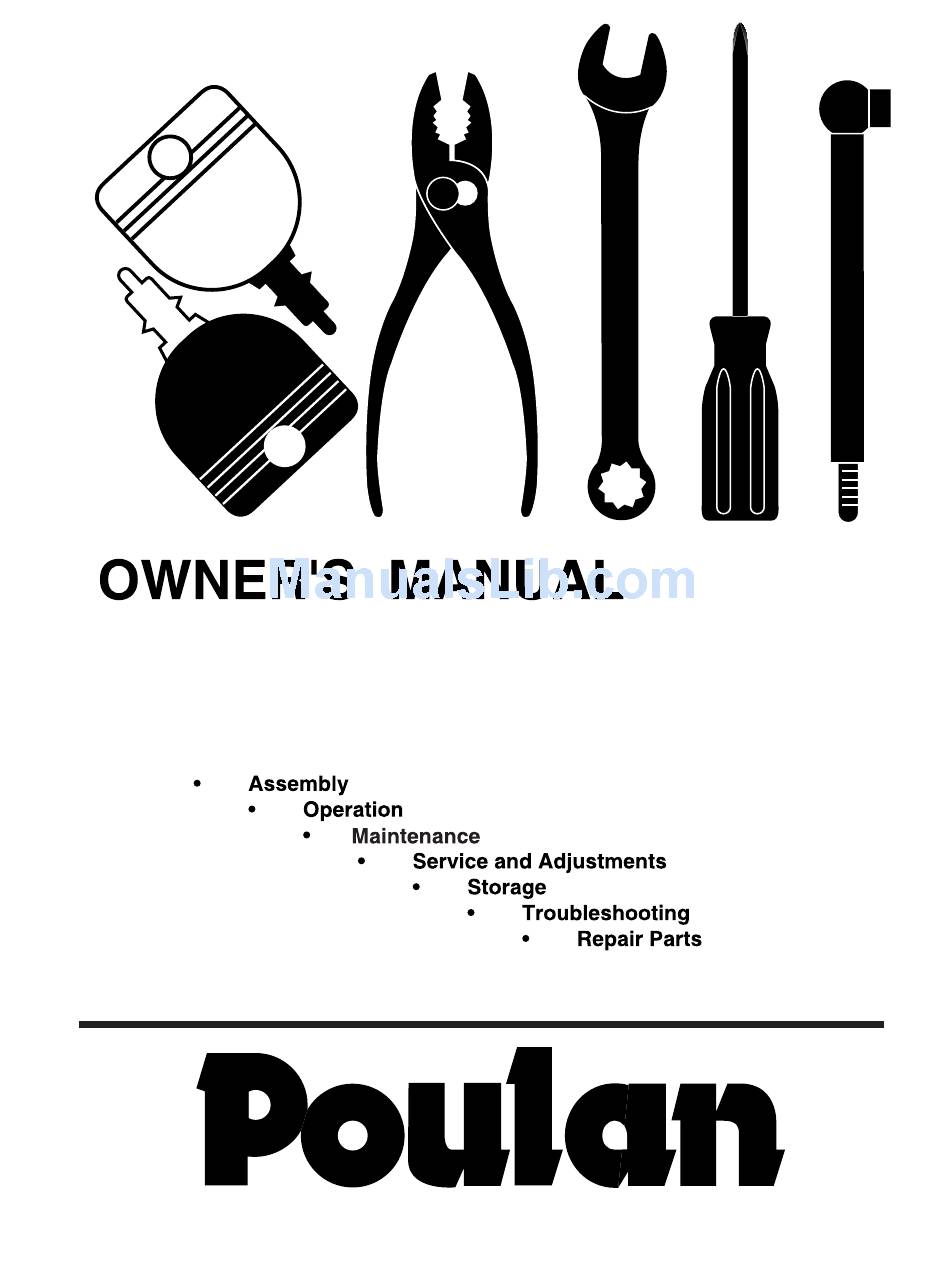

- Page 1 MODEL NO. PC1742STA 17.0 HP 42 Inch Lawn Tractor For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 186890 Rev. 1 3.10.03 JH/MH PRINTED IN U.S.A.
-
Page 2: Safety Rules
SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting. - Page 3 SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless absolutely necessary. Al ways look down and behind before and while backing.
-
Page 4: Table Of Contents
PRODUCT SPECIFICATIONS GASOLINE CAPACITY 1.25 GALLONS AND TYPE: UNLEADED REGULAR OIL TYPE (API-SF-SJ): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) OIL CAPACITY: W/ FILTER: W/O FILTER: 3.0 PINTS SPARK PLUG: CHAMPION RC12YC (GAP: .030") GROUND SPEED (MPH): FORWARD: 2nd 1.4 3rd 2.2 REVERSE: TIRE PRESSURE:... -
Page 5: Contents Of Hardware Pack
CONTENTS OF HARDWARE PACK Steering Wheel Steering Wheel Insert Steering Wheel Adapter (1) Large Flat Washer (1) Hex Bolt 1/4-28 x 1-1/4 Steering Boot (1) Washer 17/32 x 1-3/16 x 12 Gauge Steering Extension Shaft (1) Locknut 1/2-20 Keys (2) Keys (1) Locknut 1/4-28 Seat (1) Lock... -
Page 6: Assembly
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier. -
Page 7: How To Set Up Your Tractor
HOW TO SET UP YOUR TRACTOR INSTALL SEAT (See Fig. 2) Adjust seat before tightening adjustment bolt. • Remove adjustment bolt, lock washer and fl at washer se cur ing seat to cardboard packing and set aside for as sem bly of seat to tractor. •... -
Page 8: Assembly
CHECK TIRE PRESSURE The tires on your tractor were overinfl ated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown in “PRODUCT SPEC I FI CA TIONS” section of this manual. CHECK DECK LEVELNESS For best cutting results, mower housing should be properly leveled. -
Page 9: Operation
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL LIGHTS ON ENGINE ON ENGINE OFF OIL PRESSURE FUEL OVER TEMP LIGHT ATTACHMENT ATTACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions... - Page 10 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. THROTTLE/ CHOKE CONTROL CLUTCH/...
-
Page 11: To Move Forward And Backward
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses. -
Page 12: Before Starting The Engine
TO ADJUST GAUGE WHEELS (See Fig. 6) Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck in proper position to help prevent scalping in most terrain conditions. -
Page 13: Operation
ADD GASOLINE • Fill fuel tank to bottom of fi ller neck. Do not overfi ll. Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) -
Page 15: Maintenance
TRACTOR Always observe safety rules when performing any main- te nance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Ad just ments section of this manual). -
Page 16: Clean Air Screen
TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to “leak” power. • Disconnect BLACK battery cable fi rst then RED bat- tery cable and remove battery from tractor. • Rinse the battery with plain water and dry. •... -
Page 17: Spark Plugs
PRE-CLEANER BASE FIG. 12 ENGINE COOLING FINS (See Fig. 13) Remove any dust, dirt or oil from engine cooling fi ns to prevent engine damage from overheating. • Remove screws from blower housing and lift housing and dipstick tube assembly off engine. •... -
Page 18: Service And Adjustments
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUST- MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place gearshift lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •... -
Page 19: To Level Mower Housing
SERVICE AND ADJUSTMENTS TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly infl ated (See “PROD UCT SPECIFICATIONS” section of this manual). If tires are over or underinfl ated, you will not properly adjust your mower. -
Page 20: To Check And Adjust Brake
SERVICE AND ADJUSTMENTS IDLER PULLEYS MANDREL PULLEYS FIG. 20 TO CHECK AND ADJUST BRAKE (See Fig. 21) Your tractor is equipped with an ad just able brake system which is mounted on the right side of the transaxle. If tractor requires more than fi ve (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. - Page 21 SERVICE AND ADJUSTMENTS ENGINE PULLEY CLUTCHING IDLER STA TION ARY IDLER CENTER SPAN KEEPER TRANSAXLE PULLEY FIG. 22 TRANSAXLE GEAR SHIFT LEVER NEU TRAL- ADJUSTMENT (See Fig. 23) The transaxle should be in neutral when the gear shift lever is in neutral (N) (lock gate) position. The adjustment is preset at the factory;...
- Page 22 SERVICE AND ADJUSTMENTS TO START ENGINE WITH A WEAK BATTERY (See Fig. 25) WARNING: Lead-acid batteries gen- er ate ex plo sive gases. Keep sparks, fl ame and smoking ma te ri als away from bat ter ies. Always wear eye pro tec tion when around batteries.
-
Page 23: Interlocks And Relays
SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT BULB • Raise hood. • Pull bulb holder out of the hole in the backside of the grill. • Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. •... -
Page 24: Storage
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open fl... -
Page 25: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine fl ooded. Bad spark plug. Dirty air fi lter. Dirty fuel fi lter. 7. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. -
Page 26: Trou Ble Shoot Ing
TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven 1. Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel. -
Page 27: Repair Parts
REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 SCHEMATIC AMMETER (OPTIONAL) WHITE IGNITION SWITCH IGNITION SWITCH POSITION CIRCUIT “MAKE” M+G+A1 NONE RUN/LIGHT B+A1 A2+L B+A1 NONE START B + S + A1 NONE BATTERY FUSE CLUTCH / BRAKE (PEDAL UP) WHITE... -
Page 28: Repair Parts
REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 ELECTRICAL... - Page 29 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 ELECTRICAL NOTE: All component dimensions give in U.S. inches PART DESCRIPTION 163465 Battery 12 Volt 25 Amp 74760412 Bolt Hex Hd 1/4-20unc x 3/4 176689 Box Battery 176138 Switch Interlock Push -In 175685...
- Page 30 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 CHASSIS AND ENCLOSURES...
-
Page 31: Chassis And Enclosures
REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 CHASSIS AND ENCLOSURES PART DESCRIPTION 174619 Chassis 176554 Drawbar 17060612 Screw 3/8-16 x.75 155272 Bumper Hood/Dash 168336X010 Dash P/L 72140608 Bolt Carriage 3/8-16 x 1 174996 Panel Dash Lh 145660 Clip Tinnerman 172105X010... - Page 32 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 DRIVE...
- Page 33 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 DRIVE PART DESCRIPTION - - - - - - Transaxle Peerless (206-545C) (Order parts from transaxle manu- facturer) 146682 Spring Return Brake T/a Zinc 123666X Pulley Transaxle 18" tires 12000028 Ring Retainer # 5100-62 121520X...
-
Page 34: Steering Assembly
REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 STEERING ASSEMBLY... - Page 35 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 STEERING ASSEMBLY NOTE: All component dimensions given in U.S. inches PART DESCRIPTION 140044X428 Wheel Steering Auto Black 175131 Axle Asm Front 169840 Spindle Asm Lh 169839 Spindle Asm Rh 6266H Bearing Race Thrust Harden 121748X...
- Page 36 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 ENGINE OPTIONAL EQUIPMENT Spark Arrester...
- Page 37 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 ENGINE PART DESCRIPTION 170551 Control Throt /Ch Flag 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 - - - - - - Engine Briggs Model 31G777 (Order Parts From Engine Manufacturer) 137352 Muffl...
-
Page 38: Seat Assembly
REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 SEAT ASSEMBLY PART DESCRIPTION 140116 Seat 140551 Bracket Pnt Pivot Seat (blk ) 71110616 Bolt 19131610 Washer 13/32 x 1 x 10 Ga 145006 Clip Push-In Hinged 73800600 124181X Spring Seat Cprsn 2 250 Blk Zi... - Page 39 158168 Decal Ins Strg Whl 160396 Decal V-Belt Schematic 185410 Decal Replace 145005 Decal Bat Dan/Psn 138311 Decal Handle Lft Height Adjust 186890 Manual Owner's (English) 186891 Manual Owner's (French) PART DESCRIPTION 59192 Cap Valve Tire 65139 Stem Valve 106222X...
- Page 40 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 MOWER LIFT 17 18 20...
- Page 41 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 MOWER LIFT PART DESCRIPTION 159460 Wire Asm Inner/Sprg w/Plunger 159471 Shaft Asm Lift 105767X Pin Groove 12000002 E Ring #5133-62 19211621 Washer 21/32 x 1 x 21 Ga. 120183X Bearing Nylon 109413X...
- Page 42 REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 MOWER DECK 153 154 42_deck_man-t-path_3...
-
Page 43: Repair Parts
REPAIR PARTS TRACTOR - - MODEL NUMBER PC1742STA, PRODUCT NUMBER 954 57 07-72 MOWER DECK PART DESCRIPTION 165892 Mower Deck Assembly, 42" 72140506 Bolt 138017 Bracket Asm Fr. Sway Bar 3/42 165460 Bracket Asm Deck 42" Sway Bar 4939M Retainer Spring 178024 Bar Sway Deck 850857... - Page 44 SERVICE NOTES...
- Page 45 The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi- als and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi...
-
Page 46: Warranty
® Issued January 1980 Revised January 1991 NEW PEERLESS GEAR POWER TRAIN COMPONENTS Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below,will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used here in means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train Compo- nent), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DE FEC TIVE IN... - Page 47 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
