Step

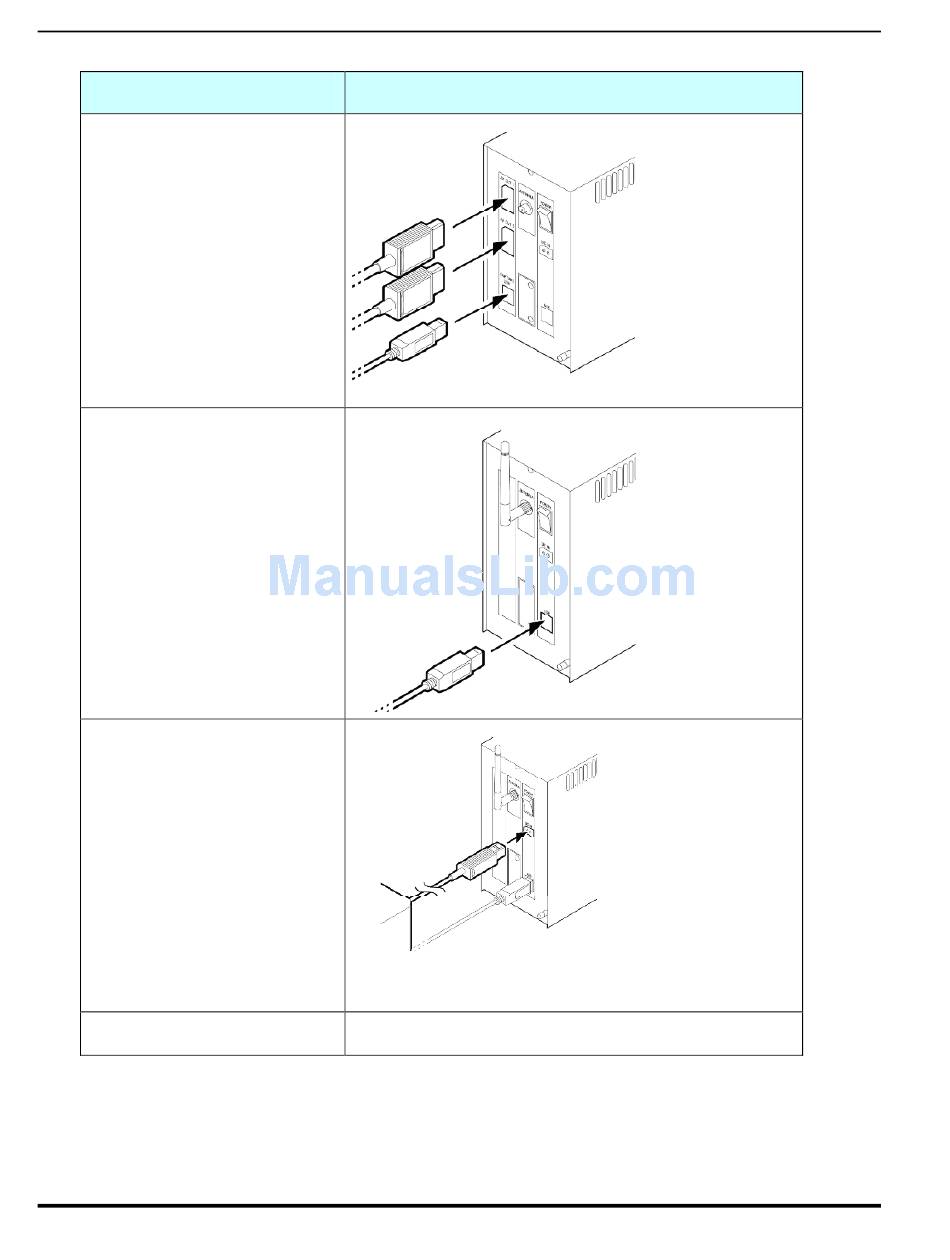

7. If you are using an
IS-TWL-DEBUGGER equipped
with the Capture option, connect
the AV cable to AV OUT 1 and AV
OUT 2 on the back panel of the
device to output video signals. In
addition, when performing captures,
connect the CAPTURE USB
connector and the computer using a
USB cable.
8. Connect the main unit to the
computer with a USB cable.
9. Connect the DC plug of the AC
adapter to the DC connector at the
back of the main unit.
10. Connect the AC plug of the
AC adapter to an outlet (AC 100 V).
TWL-06-0024-001-E
Released: March 17, 2009
Illustration
12
IS-TWL-DEBUGGER Setup
© 2008-2009 Nintendo
