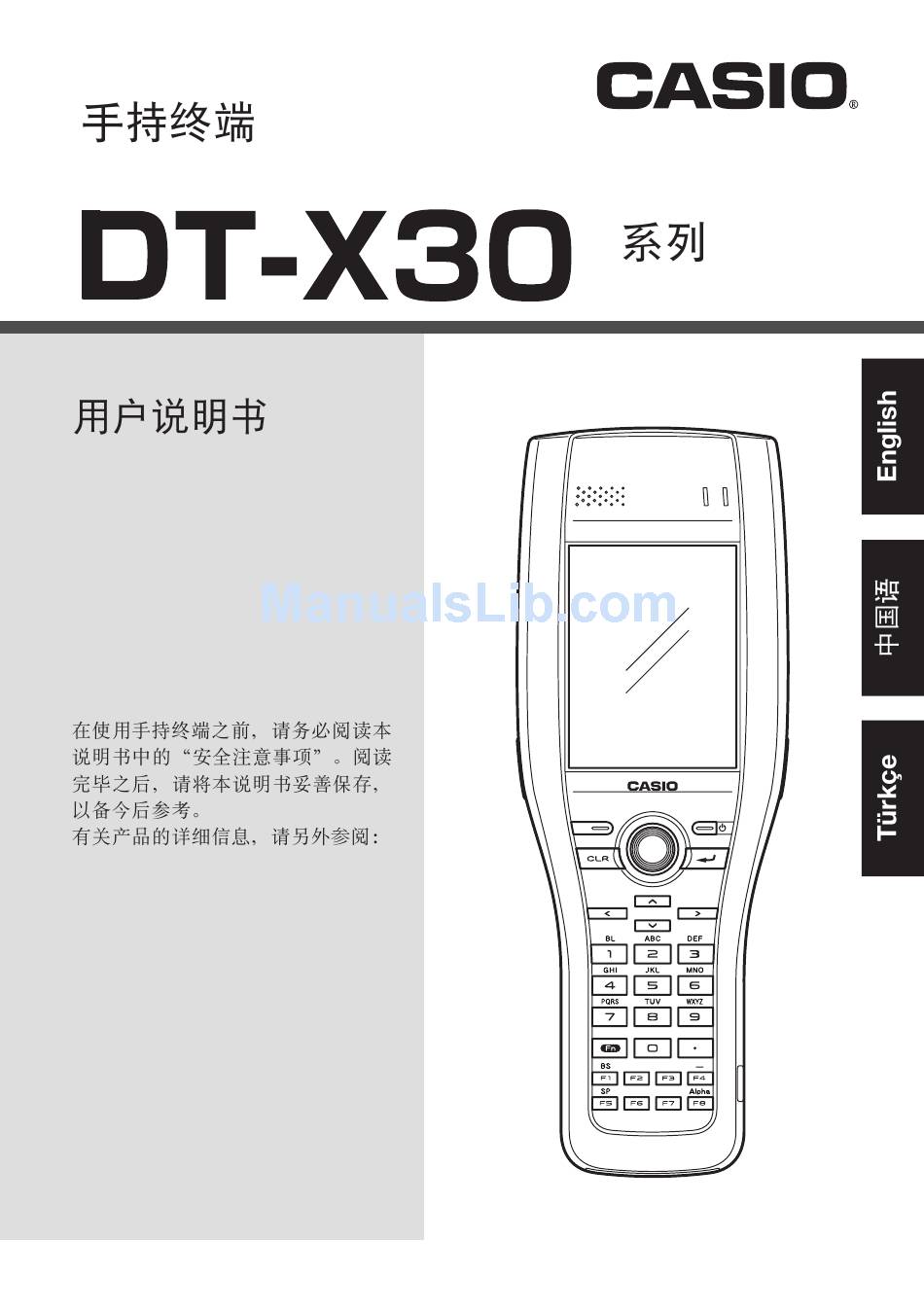

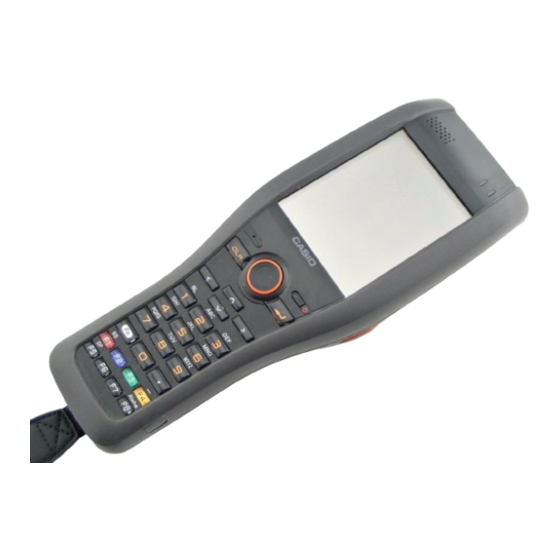

- Page 1 Precautions” inside this guide before trying to use your Handheld Terminal. After reading this guide, keep it in a safe place for future reference. For product detail, refer also to http://world.casio.com/system/ pa/UsersGuide/sup85_e.html http://world.casio.com/system/pa/ UserGuide/sup85_e.html Portatif Terminali kullanmadan önce kılavuzun içindeki “Güvenlik Önlemlerini”...
- Page 2 Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Information in this document is subject to change without advance notice. CASIO Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this manual and specifi...
-
Page 3: Table Of Contents
Contents Safety Precautions ..................E-2 Operating Precautions ...................E-8 Important ......................E-8 Regulatory Information ..................E-9 Handheld Terminal System Confi guration ..........E-12 General Guide ....................E-14 Loading and Removing the Battery Pack ...........E-15 Charging the Battery Pack ................E-18 Attaching the Hand Belt ................E-20 Confi guring Handheld Terminal Settings ...........E-21 Adjusting the Laser Light Emission Width ..........E-22 Resetting the Handheld Terminal ..............E-24 Warning Label ....................E-25... -
Page 4: Safety Precautions
Safety Precautions Congratulations upon your selection of this CASIO product. Be sure to read the following Safety Precautions before trying to use it for the fi rst time. Your neglect or avoidance of the warning and caution statements in the subsequent pages causes the danger of fi... -
Page 5: Lcd Screen
Warning Dust and Moisture Though the Handheld Terminal is dust and water splash resistant, its options including the battery pack are not. Keep loose metal objects and containers fi lled with liquid away from your Handheld Terminal and the options. Also, never handle the Handheld Terminal and the options while your hands are wet. - Page 6 Warning Avoiding Traffi c Accidents Never use your Car Mounted-type Battery Charger while operating a motor vehicle. Park your vehicle in a safe place before performing any operation. Never locate the Car Mounted-type Battery Charger where it might interfere with proper operation of the vehicle. Locate connecting cables as instructed by the manual, avoiding locations that can interfere with driving operations.
- Page 7 Optional Lithium-ion Battery Pack Danger high heat, or leave them for a long period of time in a vehicle parked in direct sunlight. Terminal. to heat. storing it. Warning device. period, stop using it. Caution...
- Page 8 Power Supply / AC Adaptor Warning Do not use the Handheld Terminal at a voltage other than the specifi ed voltage. Also, do not connect the Handheld Terminal to a multi-plug power strip. Never modify, sharply bend, twist, or pull on the power cord. Never use a detergent to clean AC adaptor and its power cable, especially on the plug and the jack.
- Page 9 Backup Copies of All Important Data Caution Note that CASIO Computer Co., Ltd. shall not be held liable to you or any third party for any damages or loss caused by deletion or corruption of data due to use of the Handheld Terminal, malfunction or repair of the Handheld Terminal or its peripherals, or due to the batteries going dead.
-
Page 10: Operating Precautions
Operating Precautions Your . Improper operation or rough handling can cause problems with data storage and other problems. Note and observe the following precautions to ensure proper operation. Do not leave dead battery pack in the Handheld Terminal for a long period. Terminal. -
Page 11: Regulatory Information
Model Number: HA-G60IO, HA-G62IO Trade Name: CASIO Responsible party: Casio America, Inc. Industrial Handheld Division Address: 10710 Baxter Avenue, Los Altos, California 94024 USA Telephone number: 408-738-8220 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Declaration Of Conformity
RF fi eld in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website at http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/index_e.html Europe DECLARATION OF CONFORMITY We, the under signed, CASIO Europe GmbH, hereby declare that the following equipment: Product: Handheld Terminal Models: DT-X30G, DT-X30GR, DT-X30E and DT-X30R Brand: CASIO... - Page 13 Optional models HA-G60IO, HA-G62IO, HA-G30CHG, HA-G32DCHG and HA-G21BAT are in conformity with the Council Directive 2004/108/EC. Manufacturer: CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan Representative within the European Union: CASIO EUROPE GmbH Bornbarch 10, 22848 Norderstedt, Germany Declaration of compliance with other relevant standards can be referred to at http://world.casio.com/system/pa/UsersGuide/sup85_e.html.
-
Page 14: Handheld Terminal System Configuration
Handheld Terminal System Configuration Bundled Items Please check the contents in the box before using the Handheld Terminal for the first time. DT-X30 Series DT-X30 Series Handheld Terminal Hand Belt Stylus The stylus is attached to the Handheld Terminal. User's Guide (this manual) Options The illustration shows the USB Cradle... - Page 15 Options Battery Pack HA-G20BAT (Battery Pack) Soft Case Dual Battery Charger HA-G32DCHG AC Adaptor for USB Cradle/Ethernet Cradle/ Dual Battery Charger AD-S42120B-N Power Cord for Europe AC-CORD-EU Power Cord for North America AC-CORD-US Power Cord for Taiwan AC-CORD-TW Power Cord for Korea AC-CORD-KR Power Cord for Australia AC-CORD-AU...
-
Page 16: General Guide
General Guide Left Front Right Back Bottom Battery compartment 1 Speaker 11 Numeric Keys 21 Camera Lens (Camera models) 2 Indicator 1 12 Fn Key 22 LED (Camera models) 3 Indicator 2 13 Function Keys 23 Expansion Port 4 Screen 14 Hand Belt Holes 24 Battery Pack Cover Lock Switch 5 Microphone... -
Page 17: Loading And Removing The Battery Pack
Loading and Removing the Battery Pack information about how to charge. Important! Remaining capacity on a battery pack when you purchase it may be depleted due to testing at the factory or natural discharge during shipment and storage. Be sure to charge the battery pack before you use it. The life of a battery pack is limited, and charging a battery pack causes it to gradually lose its ability to maintain the charge. - Page 18 Loading position. Notch Notch E-16...
- Page 19 Removing Important! When removing the battery pack, be sure you carefully follow the proper procedure as explained in this guide. Before starting to use the Handheld Terminal, ensure that the battery pack cover is properly closed. If not, the power is not turned on or is turned off abruptly while it is in use.
-
Page 20: Charging The Battery Pack
Charging the Battery Pack To charge the battery pack, use one of the cradles and the battery chargers following the procedure described below. Be sure to use the separately sold AC adaptor (AD- S42120B-N) to power the cradle or charger. Or, if you use the Car Mounted-type Battery Charger in a vehicle, use the accompanied Car Power Cable to power the charger. - Page 21 resumes when the temperature reaches the range.) Car Mounted-type Battery Charger Charger as illustrated below and the other end to the cigarette lighter socket in vehicle. Status of Indicator 1 on DT-X30: charging temperature range E-19...
-
Page 22: Attaching The Hand Belt
Attaching the Hand Belt The hand belt can be used to prevent the Handheld Terminal from dropping when carrying it around. Attach the hand belt according to the procedure described below. To attach the hand belt 1. Thread the belt through the hand belt hole as shown in the fi gure. Then fold it back and secure using the hook-loop fastener. -
Page 23: Configuring Handheld Terminal Settings
Configuring Handheld Terminal Settings Calibrating Touch Screen Alignment alignment of the touch screen using the following method. Settings Calibration. E-21... -
Page 24: Adjusting The Laser Light Emission Width
Adjusting the Laser Light Emission Width The emission width of the laser light emitted by the Handheld Terminal can be adjusted. Adjust the emission width when it has been changed. 1. Tap the menus in order of Start Settings Control Panel. - Page 25 shown at right. light with the barcode for adjusting emission width. Align the laser light with the narrow bars on both sides. The message appears as shown at right when adjustment is completed. Emission Width Adjustment Bar code E-23...
-
Page 26: Resetting The Handheld Terminal
Resetting the Handheld Terminal Resetting the Handheld Terminal is the same as resetting a PC. Performing a reset causes all unsaved inputs and edits to be lost, but data that is already stored in the memory as well as all settings should be unaffected. Use reset to restore normal operation whenever the Handheld Terminal operates abnormally due to misoperation or some other reason. -
Page 27: Warning Label
Warning Label Laser Beam This label is a warning and caution label for Class 2 laser products that comply with IEC60825-1:1993+A1:1997+A2:2001. Although Class 2 laser light is only emitted momentarily, never look directly into the beam light. The laser light emitted by this laser scanner has a maximum output of less than 1 mW and a wavelength of 650 nm. - Page 28 CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan PN430053-001 Printed on recycled paper. MO0806-000501-A Printed in Japan...
