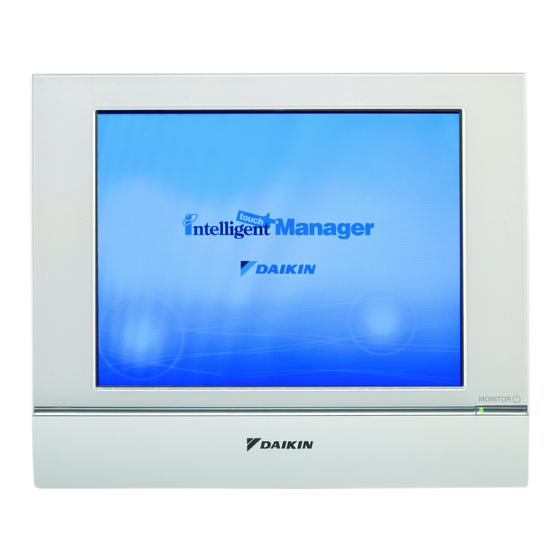

Daikin DCM601A51 Installation Manual
Intelligent touch manager
Hide thumbs
Also See for DCM601A51:
- Technical data manual (406 pages) ,
- User manual (344 pages) ,
- Commissioning manual (125 pages)
Related Manuals for Daikin DCM601A51
Summary of Contents for Daikin DCM601A51
- Page 1 Installation Manual intelligent Touch Manager Model DCM601A51 00_CV_3P291714-1.indd 1 5/13/2011 2:54:17 PM...
-
Page 2: Safety Precautions
An insufficient power supply capacity or improper electrical construction may lead to electric shocks or fire. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 2 5/18/2011 1:45:48 PM... - Page 3 Otherwise, a short-circuit may occur in a pressure switch, temperature switch, or other protective equipment, forcing the unit to operate unexpectedly. In addition, use of parts other than those specified by DAIKIN may result in firing. Install an earth leakage breaker, as required.
-
Page 4: Table Of Contents
2.7.2 Requirements that must be met ..................24 Installation ......................25 Wall mounting .......................... 25 3.1.1 Parts to be used ......................25 3.1.2 Installation procedure ....................25 Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 4 5/18/2011 1:45:48 PM... - Page 5 Viewing target area and management point information in list format ........42 Viewing target areas and management points ................ 42 Starting/stopping an area or management point ..............43 English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 5 5/18/2011 1:45:48 PM...
- Page 6 Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 6 5/18/2011 1:45:49 PM...
-
Page 7: Before Installation
(e-1) Cable tie, 1 pc. (e-2) Push mount tie, 3 pcs. (f-1) Installation manual (This manual), 1 pc. (f-2) Manual CD, 1 pc. (f-3) Paper template, 2 pcs. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 7 5/18/2011 1:45:49 PM... -
Page 8: Understanding External Dimensions
Understanding external dimensions • intelligent Touch Manager body 255.8mm 50mm 272mm 25mm 136mm 136mm 25mm 4.5mm 4.5mm 4.5mm 4.5mm 290mm • Wall mounting metal plate 234.2±0.5mm 60mm 40mm Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 8 5/18/2011 1:45:49 PM... - Page 9 • Frame bracket 281.4±0.1mm 241±0.1mm 61.6mm (28.4mm) (28.4mm) 104.8mm 224.6±0.1mm • Angle bracket 28.2mm 11.6mm 20mm 43.7mm English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 9 5/18/2011 1:45:50 PM...
-
Page 10: Understanding Where Terminals And Switches Are Located
[DIII] The communication line connection terminals for “DIII-NET”, which enables communications with DAIKIN’s air conditioning equipment. [LINE, PHONE] The sockets used when subscribing to the DAIKIN “AIRNET” online monitoring service for air-conditioning systems. To use the AIRNET service, you need to sign a separate maintenance contact. -
Page 11: Front Panel
Off: The monitor is powered off. On (Orange): The monitor display is off. On (Green): The monitor display is on. [RESET//] The switch for restarting the intelligent Touch Manager. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 11 5/18/2011 1:45:50 PM... -
Page 12: Side Face
An example of cables routed to the rear face of the intelligent Touch Manager is shown below. <Routing of cables> To conduit tube Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 12 5/18/2011 1:45:50 PM... -
Page 13: Determining Installation Place
30 mm from the right side edge, and 60 mm from the bottom edge of the unit. <Installation space required for intelligent Touch Manager> Required installa- tion space 30mm 100mm 100mm 30mm 243mm MONITOR MONITOR 290mm 60mm MONITOR MONITOR 60mm Wall English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 13 5/18/2011 1:45:51 PM... -
Page 14: Connection
Phillips screwdriver. Connecting DIII-NET-compatible air conditioning equipment DIII-NET is a unique air conditioning equipment communication capability developed by DAIKIN. Using DIII-NET, you can centrally control multiple DAIKIN DIII-NET-compatible air conditioning devices by connecting them to your intelligent Touch Manager. WARNING •... -
Page 15: Terminals Location And Conceptual Connection Diagram
A maximum of 64 remote controller groups (128 indoor units) can be connected. A maximum of 64 indoor units can be connected when power distribution is enabled. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 15 5/18/2011 1:45:51 PM... -
Page 16: Requirements That Must Be Met
Equipment that controls multiple air conditioners is referred to as “centralized controller”. DAIKIN’s product portfolio includes a wide range of centralized controllers suited to differ- ent applications or target sizes, which can be used in combination to construct an optimal air conditioning system. -
Page 17: Connecting A Lan Cable
• Do not clamp the cables with high-current lines such as a power cable. NOTE For how to connect the intelligent Touch Manager to a PC network, contact your net- work administrator. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 17 5/18/2011 1:45:52 PM... -
Page 18: Terminals Location And Conceptual Connection Diagram
(enabled for use). • You cannot close the cover when the switch set to “FRONT”. To close the cover, select “BACK”. SERVICE LAN LAN SW Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 18 5/18/2011 1:45:52 PM... -
Page 19: Connecting I/O Module
Connecting I/O module The intelligent Touch Manager can be used in conjunction with the I/O module. The I/O module provides a maximum of 960 I/O points for controlling non-DAIKIN peripheral equipment such as lighting equipment and security lock systems. WARNING •... -
Page 20: Address Setup
• Power distribution is available for a maximum of 64 air conditioners (indoor units) per DIII-NET port. • With iTM plus adaptors, however, you can connect up to 512 indoor units per port. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 20 5/18/2011 1:45:53 PM... -
Page 21: Terminals Location And Conceptual Connection Diagram
• Do not clamp the cables with high-current lines such as a power cable. NOTE When emergency stop input signal is enabled, you cannot restart all the air condition- ers unless you disable it. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 21 5/18/2011 1:45:53 PM... -
Page 22: Connecting Itm Plus Adaptors
Touch Manager (Rear face) iTM plus adaptor plus ADP IF (intelligent Touch Manager) plus ADP IF (iTM plus adaptor) iTM plus adaptor on which termination resistor must be enabled Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 22 5/18/2011 1:45:53 PM... -
Page 23: Requirements That Must Be Met
Connect the power supply to the three terminals, L (Live), N (Neutral), and ground in the POWER sec- tion. Earth Breaker Power supply 100-240VAC 50/60 Hz English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 23 5/18/2011 1:45:54 PM... -
Page 24: Requirements That Must Be Met
• For the earth wire, use a green wire with yellow stripes. Do not connect the earth wire to gas or water pipes, lighting rod, or telephone earth wire. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 24 5/18/2011 1:45:54 PM... -
Page 25: Installation
Although you may use any of these screw holes, use ones closer to the edge as much as possible to prevent wobbling. • Secure the wall mounting metal plate at four points using the round-head wood screws. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 25 5/18/2011 1:45:54 PM... -
Page 26: Flush Wall Mounting
• Frame bracket, 1 pc. • Angle bracket, 2 pcs. • Flat-head screw (M4×40), 4 pcs. • Pan-head screw (M4×14, with spring washer and plain washer), 4 pcs. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 26 5/18/2011 1:45:54 PM... -
Page 27: Wall Opening Dimensions
Touch Manager through the cable hole provided at the bottom of the frame bracket. • Before installing the intelligent Touch Manager body, remove the terminal cover from the rear face. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 27 5/18/2011 1:45:55 PM... - Page 28 You can remove it by hand as this is not screwed. Removing the frame reveals four screw holes, two holes each to the left and right of the monitor display. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 28 5/18/2011 1:45:55 PM...
- Page 29 <Installing intelligent Touch Manager body> Pan-head screw 4. Snap the resin frame back into the front face of the intelligent Touch Manager as it was before. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 29 5/18/2011 1:45:55 PM...
-
Page 30: Direct Mounting To Control Enclosure
3. Snap the resin frame back into the front face of the intelligent Touch Manager as it was before. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 30 5/18/2011 1:45:55 PM... - Page 31 To prevent the risk of electric shock by accidentally touching these power termi- nals, for safety, be sure to attach the terminal cover before starting the installa- tion procedure. Terminal cover Control enclosure intelligent Touch Manager English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 31 5/18/2011 1:45:56 PM...
-
Page 32: Basic Setup
When finished assigning air conditioner addresses, proceed to the next step. 2. Touch OK. The Language Settings screen appears. CAUTION Before power-on, make sure that all installation and connection procedures are done without problems. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 32 5/18/2011 1:45:56 PM... -
Page 33: Setting Up Display Language
“Locale setup” means to set up how you want to see items that are expressed in different ways depending on the region, such as the data/time, temperature, and decimal point, on the display. <Locale Settings screen> Dummy English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 33 5/18/2011 1:45:56 PM... -
Page 34: Setting Time Zone
(Enable or disable the daylight saving time function. If enabled, select the start time and the end time.) 2. Touch OK. The A/C Auto Register screen appears. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 34 5/18/2011 1:45:56 PM... -
Page 35: Confirming Air Conditioner Auto Registration Results
The names of buttons and areas of a wired remote controller used in this section are shown below. <Wired Remote Controller> Address display area Parameter number display area Programming time buttons Temperature setting buttons Timer ON/OFF button Inspection / Test operation button English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 35 5/18/2011 1:45:56 PM... -
Page 36: Procedure For A Wired Remote Controller
“00”. In the address display area, the current address setting is displayed. (This area will show “–” if no address is set.) <Step 2> GROUP SETTING Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 36 5/18/2011 1:45:57 PM... - Page 37 <Step 4> GROUP SETTING 5. Press the Timer ON/OFF button to make the “GROUP” indicator stay lit. The DIII-NET address has been set. <Step 5> GROUP SETTING English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 37 5/18/2011 1:45:57 PM...
-
Page 38: Procedure For A Navigation Remote Controller
F i e l d s e t t i n g l i s t Group No. s e t t i n g Indoor unit Air net No. set Error record Retur n Setting Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 38 5/18/2011 1:45:58 PM... - Page 39 6. Press the Menu/Enter button. The DIII-NET address has been set. <Step 6> Group No. s e t t i n g (Group) Group No 1-03 Retur n Release English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 39 5/18/2011 1:45:58 PM...
-
Page 40: Setting An Unique Address To Each Unit (When Power Distribution Is Enabled)
When power distribution is enabled, you need to set a unique address for each unit. For how to set an address, refer to the commissioning manual. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 40 5/18/2011 1:45:58 PM... -
Page 41: Outdoor Unit Address Setup
4. Press the BS2 to change to the desired address. (The default setting is “0”.) 5. Press the BS3 twice to fix the address setting. 6. Press the BS1 button once to return to the normal mode. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 41 5/18/2011 1:45:58 PM... -
Page 42: Quick Operation Guide
Touch the In button to go to the area being selected and view the areas and manage- ment points in it. Touch the Out button to go to the area one level above the current area. Installation Manual 3P291714-1 English DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 42 5/18/2011 1:45:59 PM... -
Page 43: Starting/Stopping An Area Or Management Point
(operating) and gray when stopped. When Confirmation Dialog is set to “Enabled” in the system setup, the corresponding message appears. Select the Yes button to confirm the Start/Stop operation. English Installation Manual 3P291714-1 DCM601A51 intelligent Touch Manager 01_EN_3P291714-1.indd 43 5/18/2011 1:45:59 PM... - Page 44 3P291714-1 EM11A016 (1104) HT 00_CV_3P291714-1.indd 2 5/13/2011 2:54:17 PM...
