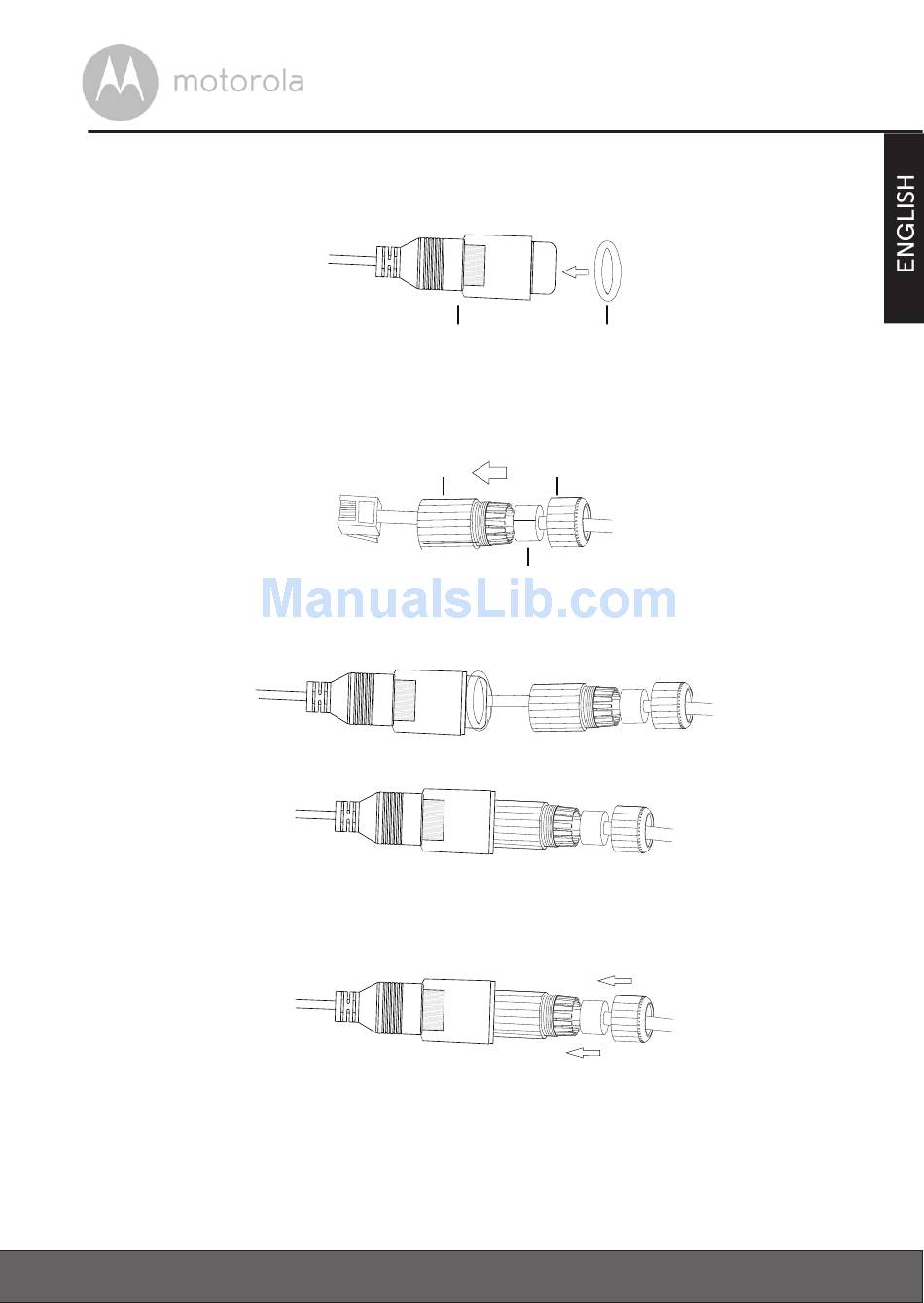

3.1.3 How to assemble the waterproof plug for the LAN cable

Step 1: Place the O-Ring washer over the end of the LAN socket.
Step 2: Pass the LAN plug and cable through Part 1, the Rubber Gasket
and Part 2 in the order shown below.
Step 3: Connect the LAN plug into the LAN socket.
Step 4: Turn and lock Part 2 to the LAN socket.
Step 5: Make sure the Rubber Gasket is inserted into the rear of Part 2 and
screw Part 1 to Part 2 to finalise the connection.
NOTE
If the LAN is not being connected, fit the waterproof blanking cap (provided)
over the end of the camera's LAN socket.
Getting started - Connecting Devices
Lan Socket
Part2
Rubber gasket, please clasp it
around the cable and insert
Ring
Part 1
2
1
11
