SPLIT TYPE
ROOM AIR CONDITIONER
FLOOR CONSOLE /
UNDER CEILING
DUAL TYPE
Indoor unit
Outdoor unit
ABY14FBBJ
AOY14FSDJ
ABY14UBBJ
AOY14USDJL
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . 1
OUTLINE AND DIMENSIONS . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . 4
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . 9
DISASSEMBLY ILLUSTRATION . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . 20
. . . . . . 7
. . . . . . . . . . 22
Advertisement
Table of Contents
Related Manuals for Fujitsu ABY14FBBJ
Summary of Contents for Fujitsu ABY14FBBJ
-
Page 1: Table Of Contents

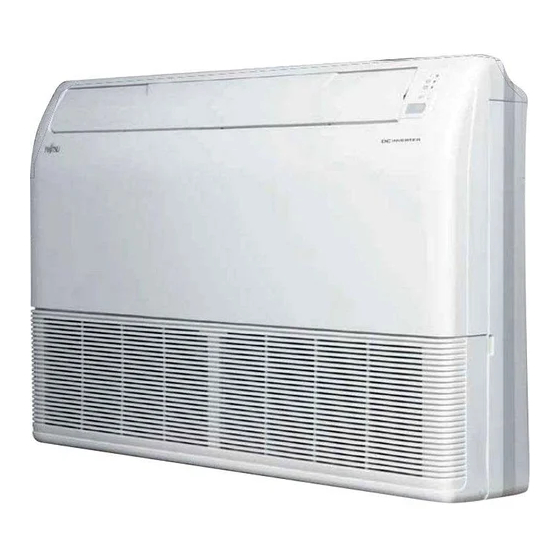

ROOM AIR CONDITIONER FLOOR CONSOLE / UNDER CEILING DUAL TYPE Indoor unit Outdoor unit ABY14FBBJ AOY14FSDJ ABY14UBBJ AOY14USDJL CONTENTS SPECIFICATIONS ....1 OUTLINE AND DIMENSIONS . -
